Overview

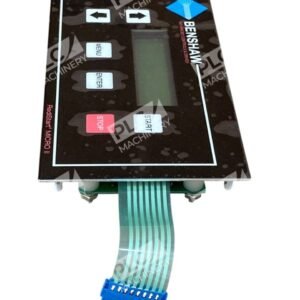

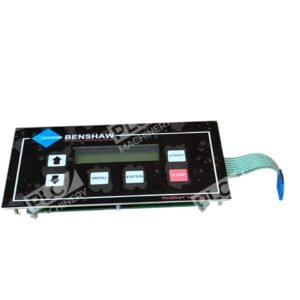

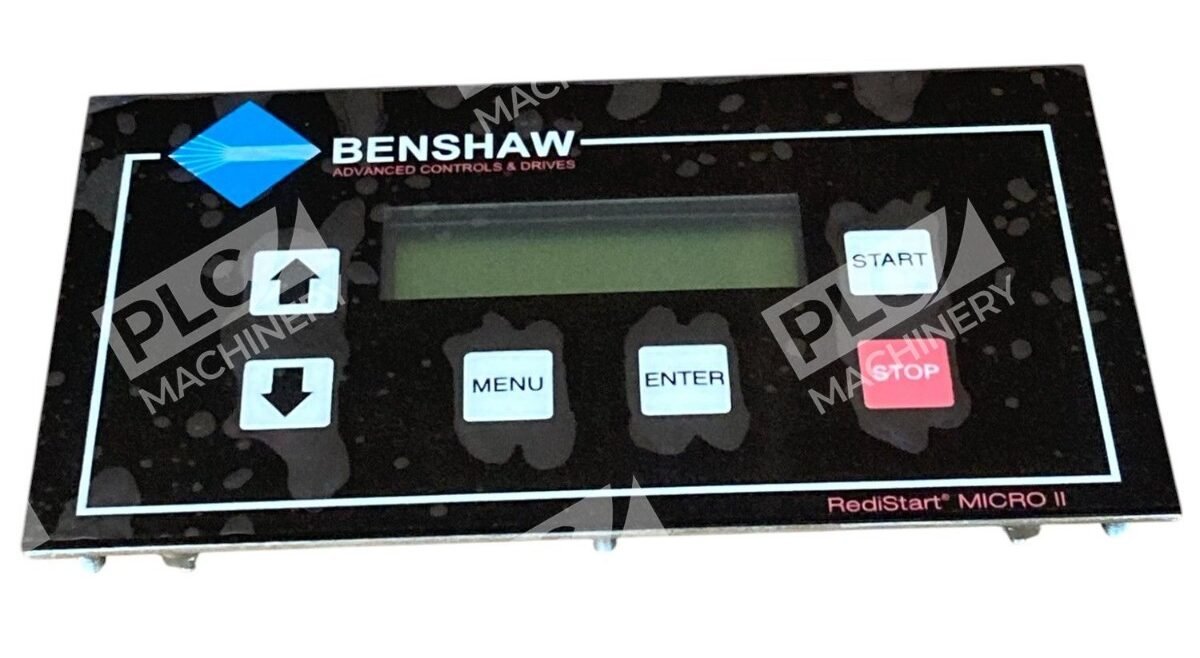

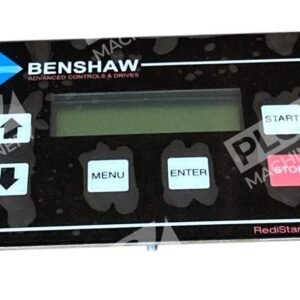

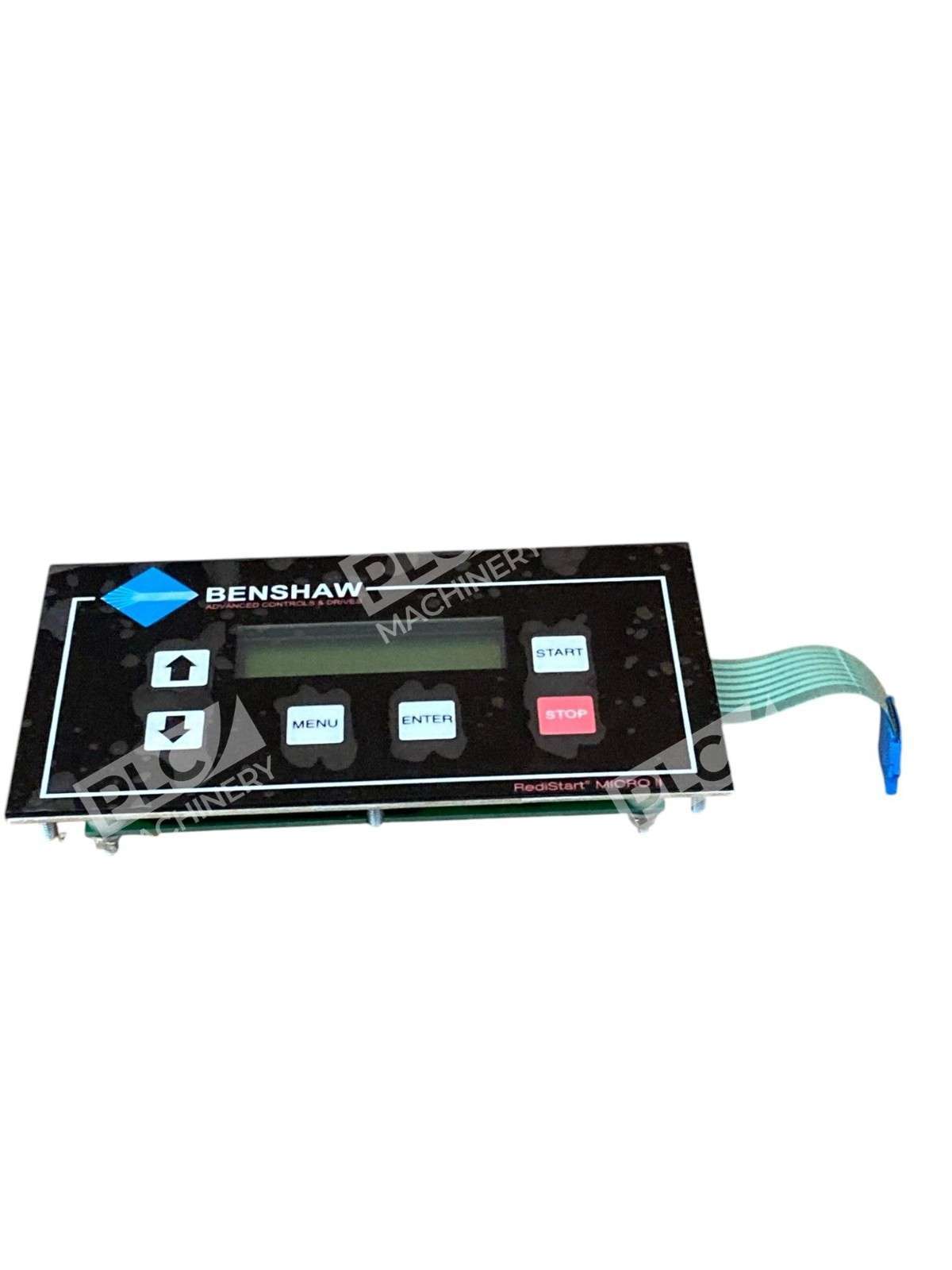

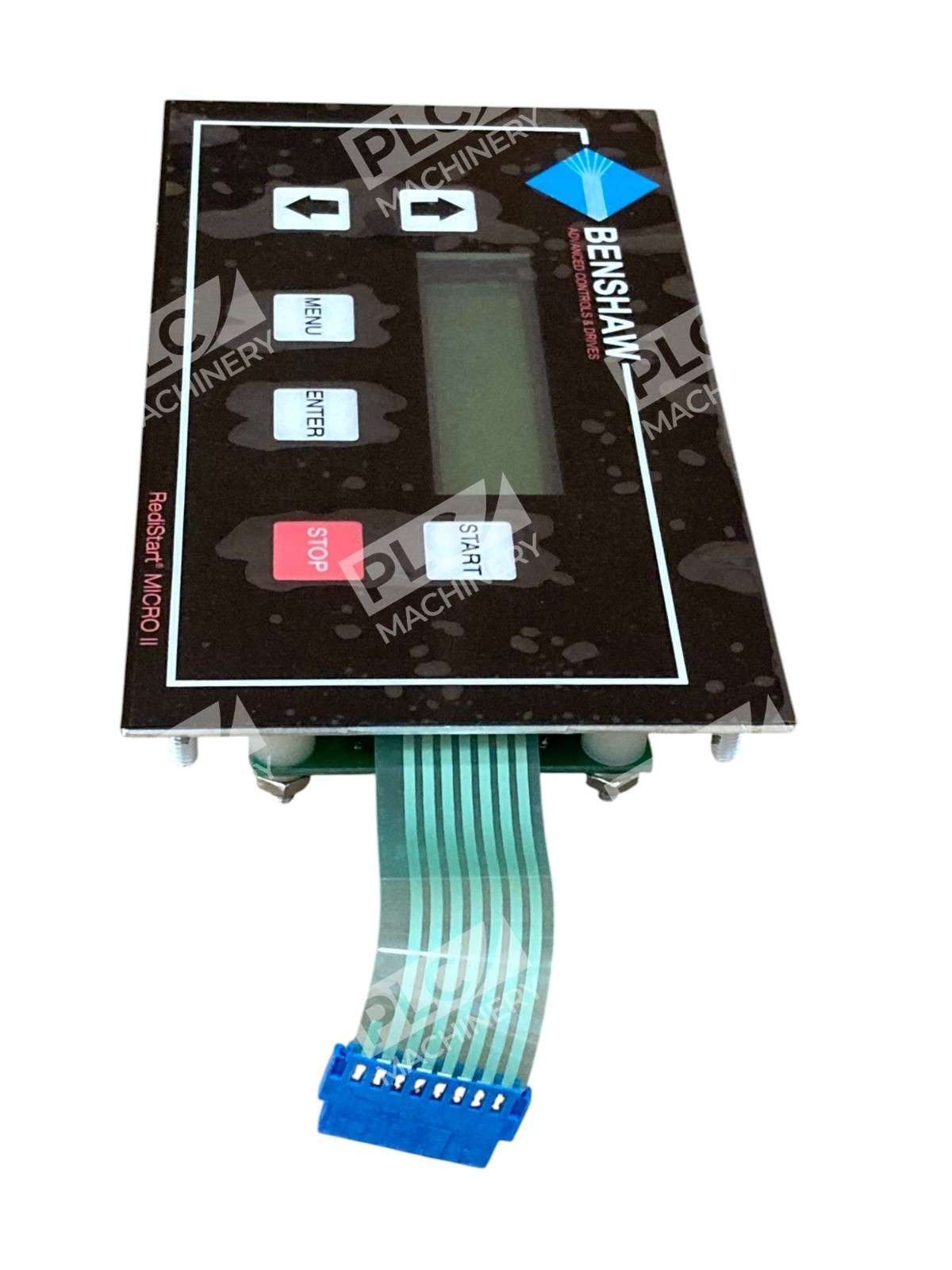

The Benshaw BIPCMLCD is a replacement micro LCD keypad assembly designed for use with Benshaw RediStart Micro motor control platforms. This operator interface display unit functions as the human-machine interface (HMI) for configuring, monitoring, and controlling Benshaw’s intelligent soft-start motor control systems. The BIPCMLCD provides technicians and controls engineers with real-time access to system parameters, diagnostics, and metering data.
Key Features
- Micro LCD display for clear visualization of motor control parameters
- Integrated keypad for intuitive operator navigation and control
- Compatible with Benshaw MX2 and related RediStart Micro platforms
- Supports configuration of multiple starting modes and user-selectable parameters
- Enables on-board metering and comprehensive diagnostic capabilities
- Drop-in replacement for original BIPC-MICRO-LCD assemblies
Technical Specifications
| Part Number | BIPCMLCD |
| Alternate Designation | BIPC-MICRO-LCD |
| Product Type | LCD Display Keypad Assembly |
| Manufacturer | Benshaw Inc. |
| Application | RediStart Micro Motor Control Systems |
| Display Type | Micro LCD |
| Interface Type | Operator keypad with LCD readout |
| Compatible Control Platforms | Benshaw MX2, RediStart Micro |
Typical Applications
- Low voltage soft-start motor control and reduced voltage starting
- Intelligent motor control parameter configuration and tuning
- Real-time motor performance monitoring and diagnostics
- Industrial AC induction motor drive systems
- Retrofit and replacement of existing Benshaw control interfaces
- Original equipment manufacturer (OEM) motor control assemblies
Compatibility & Replacements
Compatible With
- Benshaw RediStart Micro motor control platforms
- Benshaw MX2 low voltage control technology
- Benshaw medium voltage soft starters
- BIPCM1CPU-A1 and similar Benshaw CPU boards
- Benshaw MICRO power boards and relay cards
Replaces / Drop-In Replacement For
- Original Benshaw BIPC-MICRO-LCD display assemblies
- Legacy BIPCMICROLCD operator interface units
Works With
- Benshaw proprietary motor control software and configuration tools
- Benshaw RediStart Micro control logic and firmware
- Standard three-phase AC induction motor systems
- Medium voltage (480V+) and low voltage motor control platforms
