Bell & Gossi 106494 Circle Setter 4″ CB-4.0

Bell & Gossett 106494 Circle Setter 4″ CB-4.0

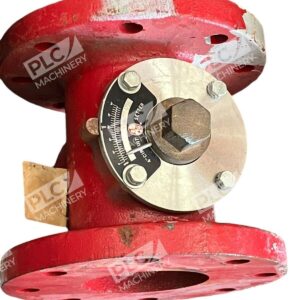

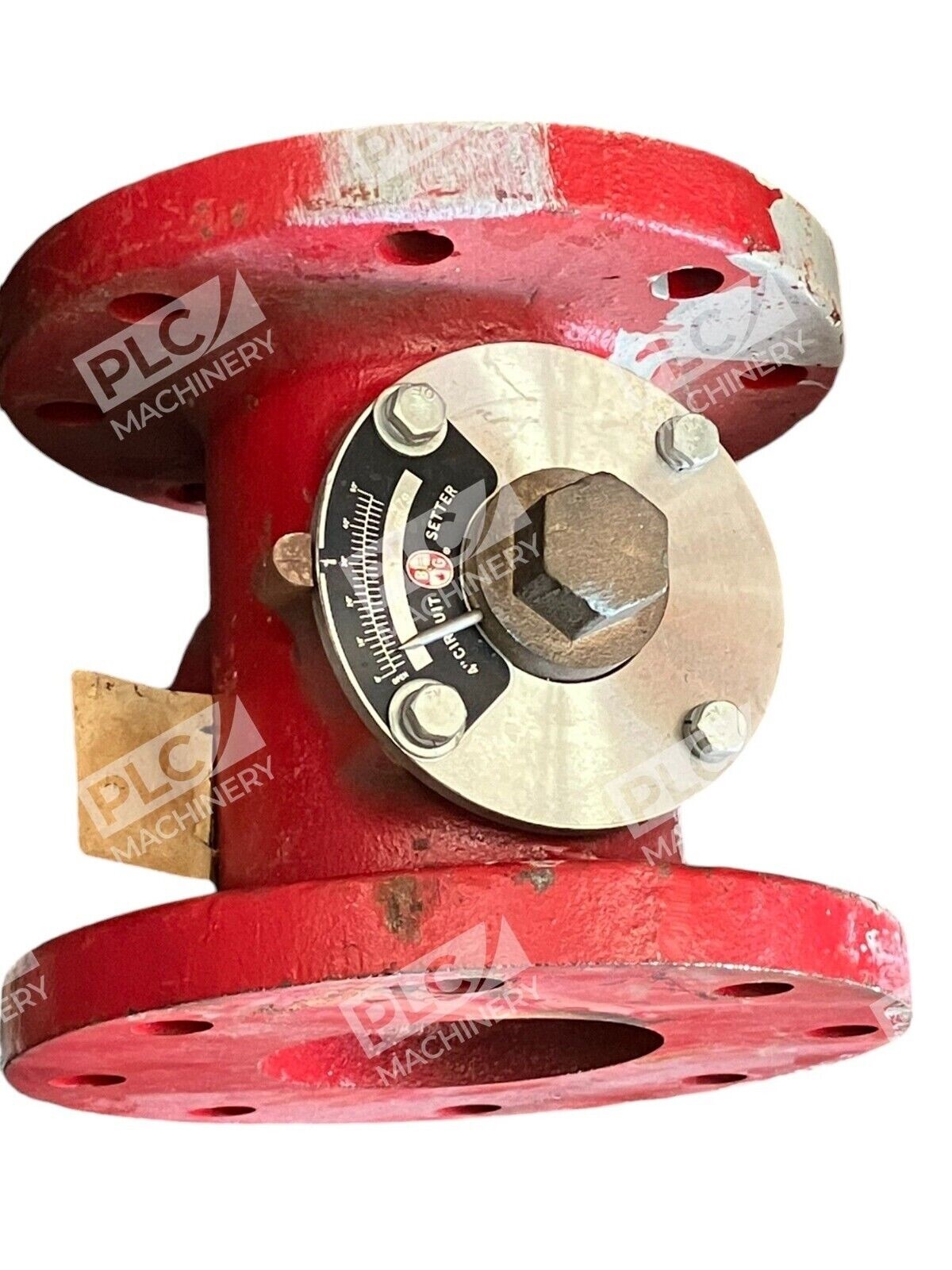

The Bell & Gossett 106494 Circle Setter 4″ CB-4.0 is a precision-engineered balancing valve designed to optimize the performance of hydronic HVAC systems. This 4-inch valve ensures accurate flow control, contributing to energy efficiency and system longevity.

Key Features

• Calibrated Flow Control: Provides precise adjustment capabilities for optimal system balance.
• Integrated Readout Ports: Facilitates easy measurement of pressure and temperature, aiding in system diagnostics.
• Memory Stop Indicator: Allows for quick re-setting of the valve position after shut-off or isolation.
• Positive Shut-Off: Ensures reliable isolation of system components when necessary.

Specifications

• Size: 4 inches
• Connection Type: Flanged
• Material: Lead-free brass construction, compliant with AB1953, Vermont S152, and ANSI/NSF-61 Annex G standards.
• Flow Range: Capable of handling up to 7,200 GPM.

Applications

Ideal for use in large-scale hydronic heating and cooling systems, the CB-4.0 ensures proportional system balance, reducing pump operating horsepower and enhancing overall system efficiency.

Additional Information

For detailed installation instructions and performance curves, refer to the Bell & Gossett Circuit Setter Plus Balance Valve documentation.
