Overview

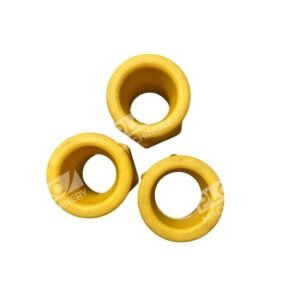

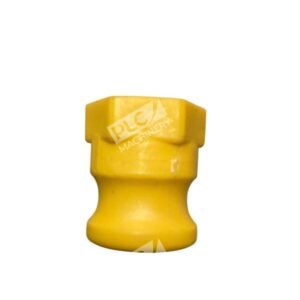

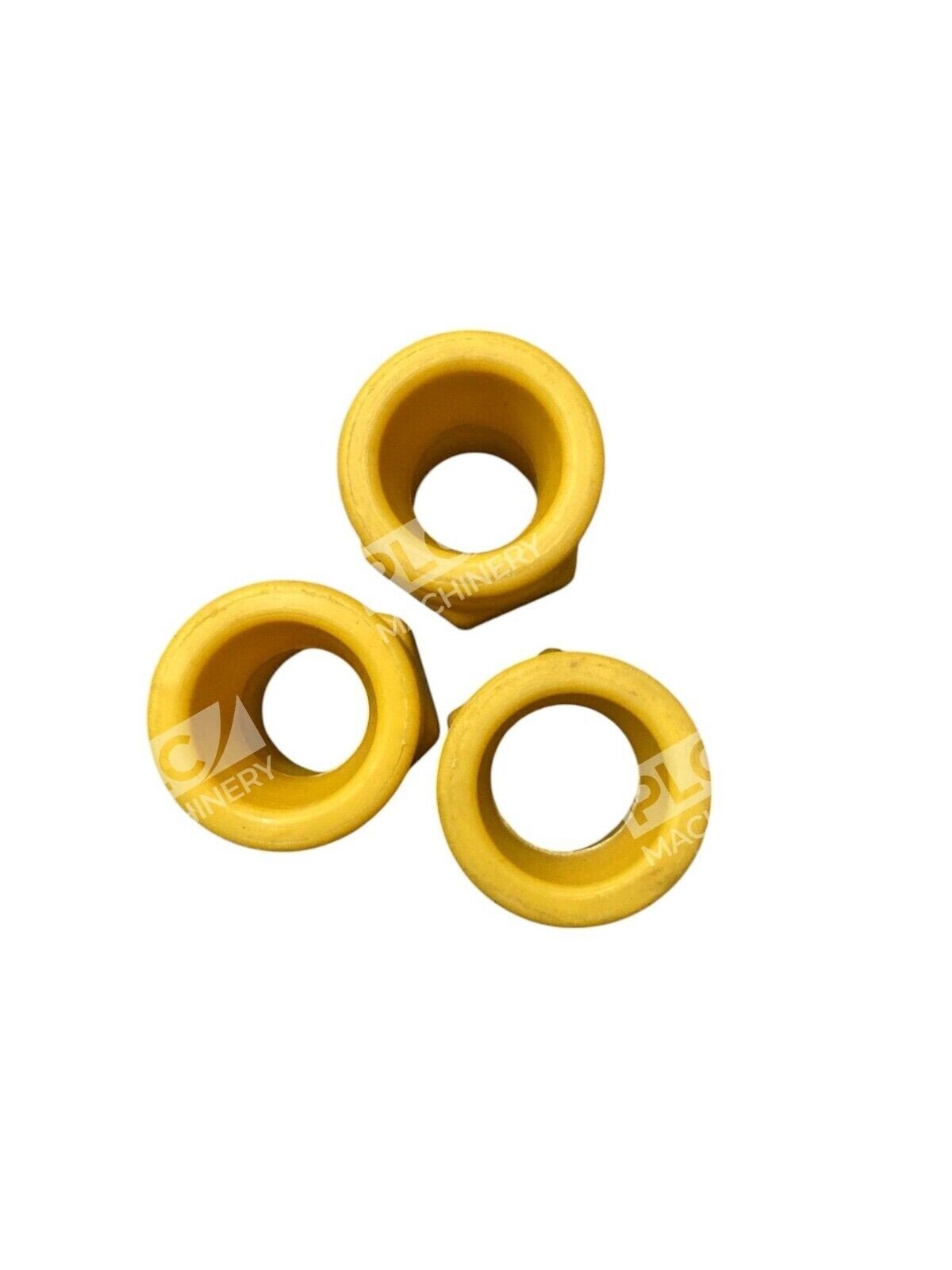

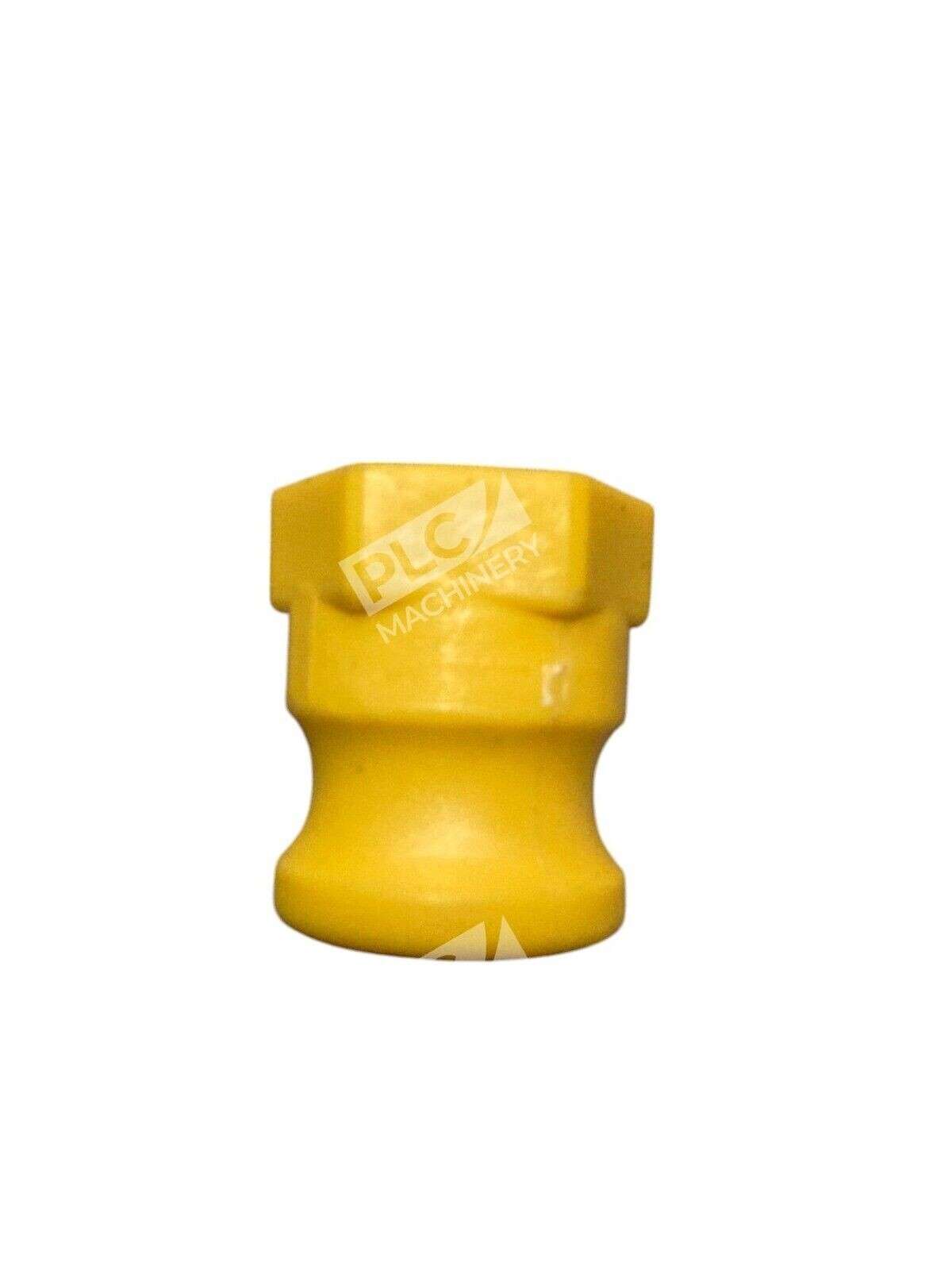

The Bee Valve FC200A is a 2-inch camlock/cam lever coupling adapter manufactured from high-grade glass-reinforced nylon (Nyglass). This adapter features a male camlock end and a female pipe thread (FPT) end, engineered for quick-connect and quick-disconnect applications. Nylon cam & groove couplings are designed to mate with any cam lever coupling manufactured to Specification MIL-C-27487, the industry standard for cam and groove fittings.
Key Features
- MIL-C-27487 Compliant — Manufactured to Specification MIL-C-27487 and constructed of high-grade glass-reinforced nylon, offering quick-connect convenience and long-lasting durability
- Chemical Resistance — Nyglass camlock fittings are resistant to hydrocarbons, solvents, and most agricultural chemicals
- Standard EPDM Gaskets — EPDM gaskets are standard and offer a wide range of chemical compatibility (Buna and Viton seals also available)
- Tool-Free Connection — This kind of coupling is popular because it is a simple and reliable means of connecting and disconnecting hoses quickly and without tools
- Pressure Rated — Nylon cam lever coupling operating pressures for 2" is 150 PSI
Technical Specifications
- Size: 2 inch
- Material: Glass-reinforced nylon (Nyglass)
- Connection Type: Camlock x FPT (Female Pipe Thread)
- Maximum Operating Pressure: 150 PSI
- Gasket Material: EPDM (standard)
- Industry Standard: MIL-C-27487
- Qty per Lot: 3 units
Typical Applications
The Bee Valve FC200A camlock adapter is suited for industries requiring quick-connect fluid transfer:
- Agricultural spraying and chemical application systems
- Fertilizer handling and transfer
- Petroleum and fuel distribution
- Chemical processing and batch operations
- Liquid transfer in manufacturing and maintenance operations
Compatibility & Replacements
Compatible With
- All MIL-C-27487 compliant camlock couplings and adapters
- Standard cam & groove fittings from all manufacturers following federal standard A-A-59326
- Male camlock couplers and adapters (Type A, B, D, F configurations)
- Hose barb and threaded connection systems
Replaces / Drop-In Replacement For
The FC200A is a standard 2-inch camlock adapter to FPT configuration. Verify compatibility with your system integrator before ordering to ensure proper fit with your existing coupling system.
Works With
- Any MIL-C-27487 or A-A-59326 compliant camlock coupler
- Hoses rated for 150 PSI minimum (2-inch applications)
- EPDM, Buna, or Viton gasket-compatible systems
- Nylon and metal camlock coupling assemblies
