Overview

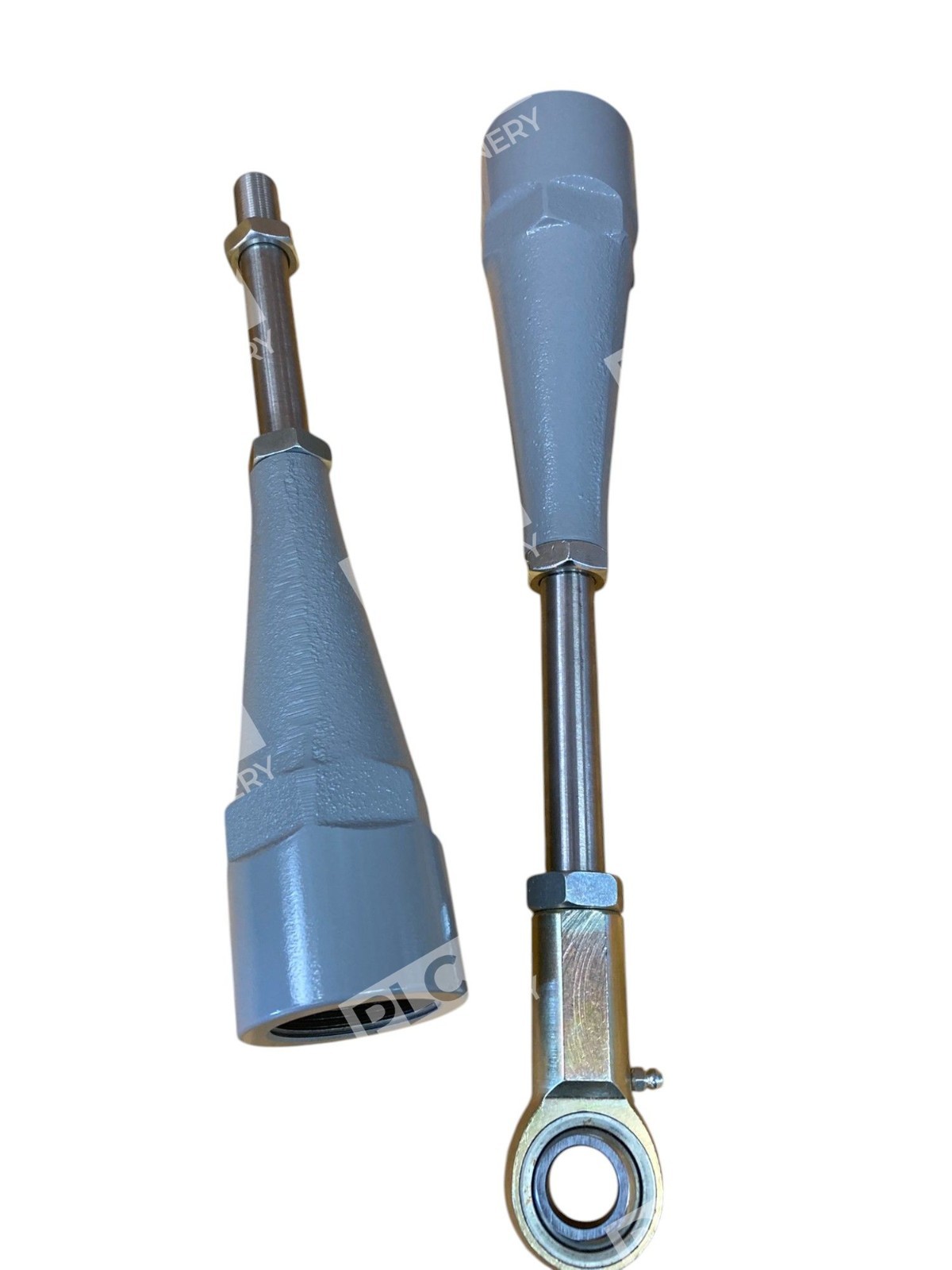

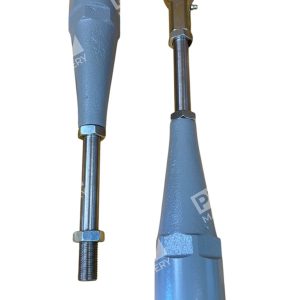

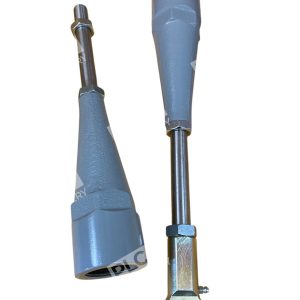

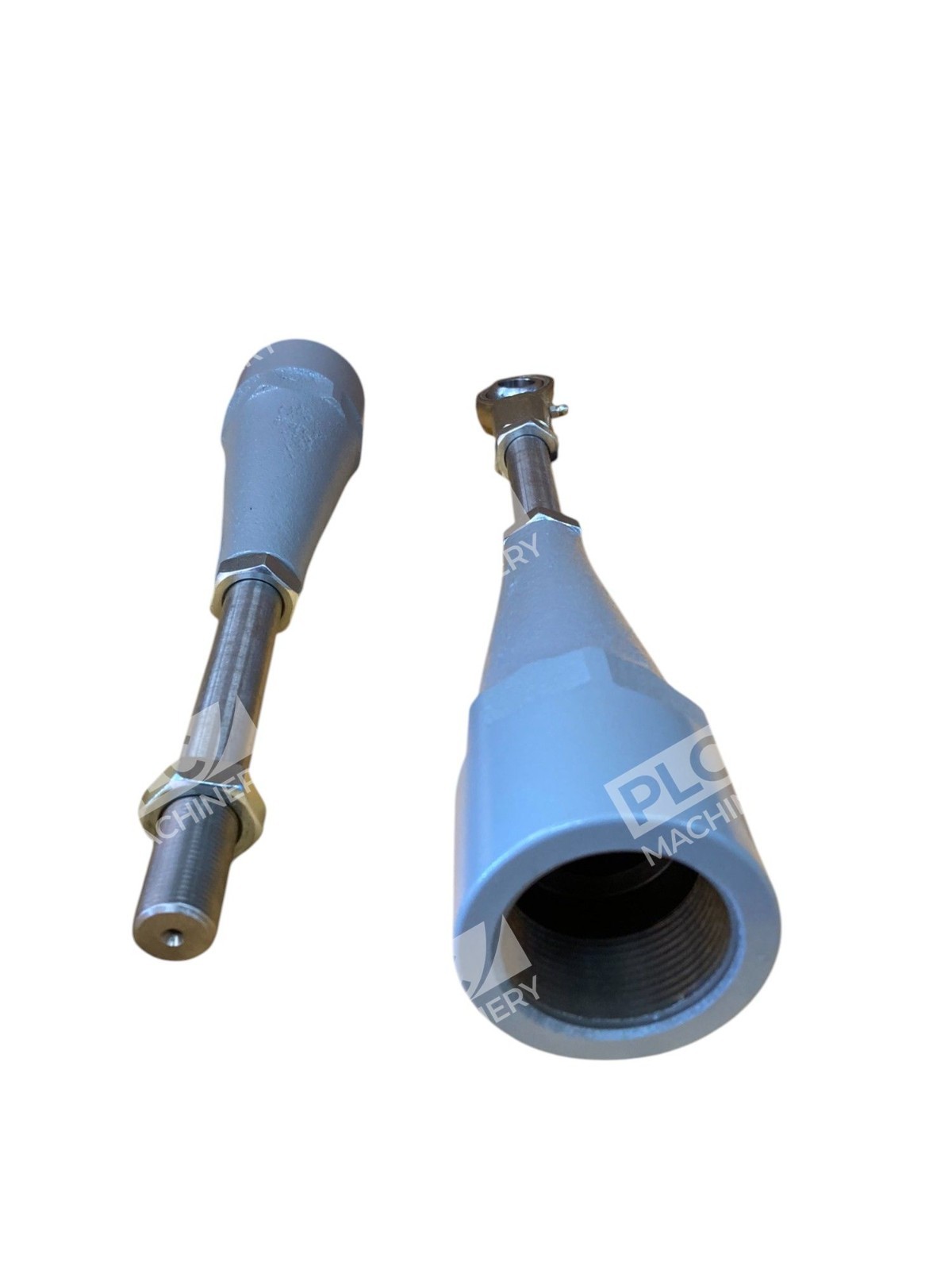

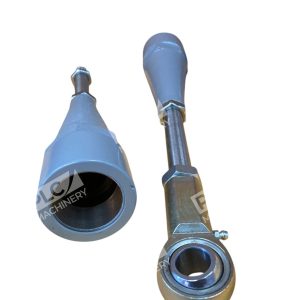

The Beck 20-1740-08 linkage kit is a pipe-style actuator linkage solution engineered for reliable mechanical connections in industrial control applications. This kit features a 1.5″ (38 mm) size with approximately 30 1/2″ (775 mm) length, designed for linkage adjustments ranging from 34 1/2″ to 72″ (876–1,829 mm). Beck linkage kits help eliminate slop in linkage connections, and when properly sized and implemented, help ensure successful, long-lasting installations.
Key Features
- Pipe linkage kits provide maximum flexibility for linkage length requirements
- 1.5″ (38 mm) rod end size for standard industrial applications
- Accommodates wide adjustment range without end fitting modification
- Eliminates slop in linkage connections for precise control
- Durable construction for heavy-duty industrial valve and damper actuator applications

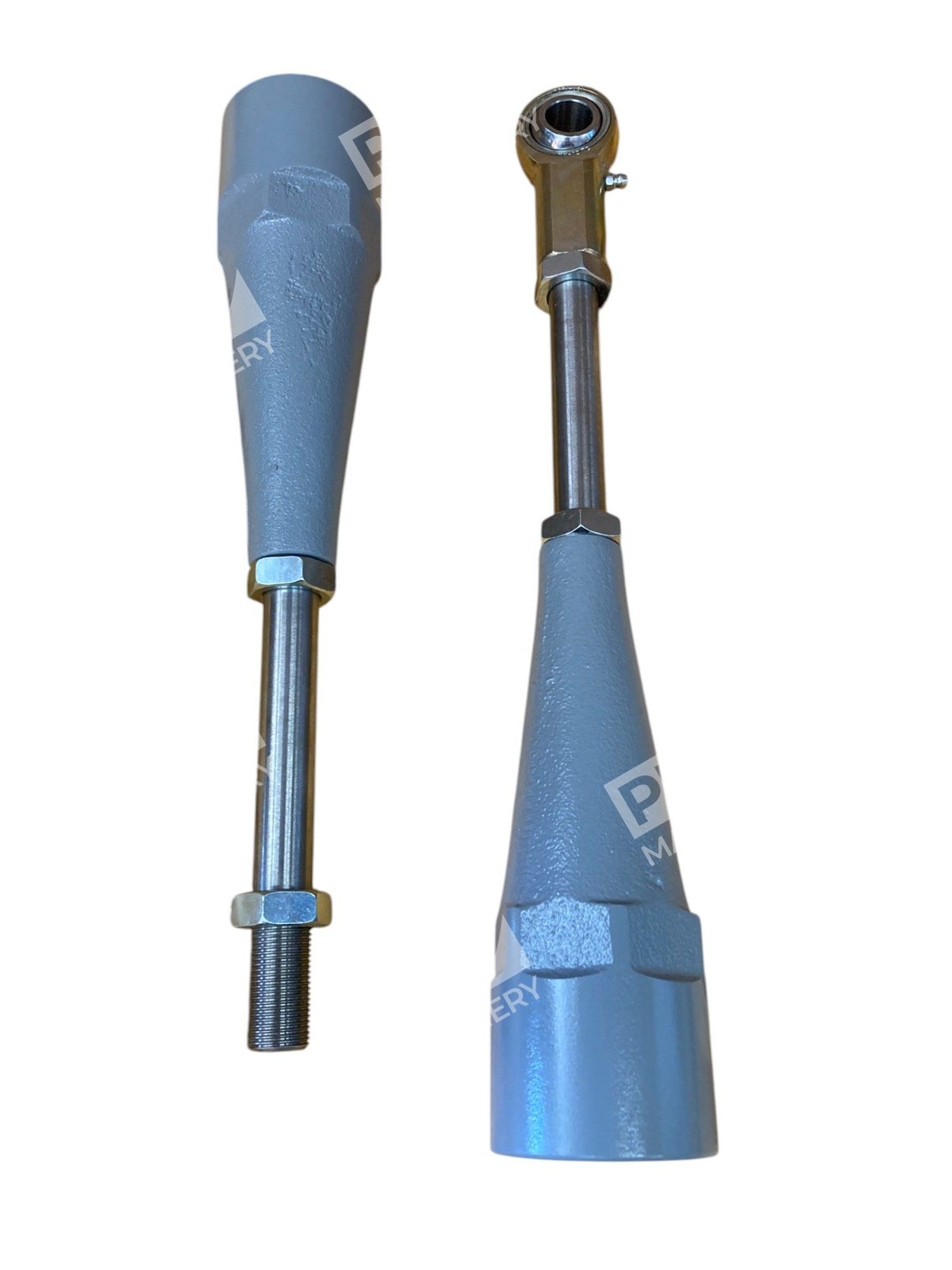

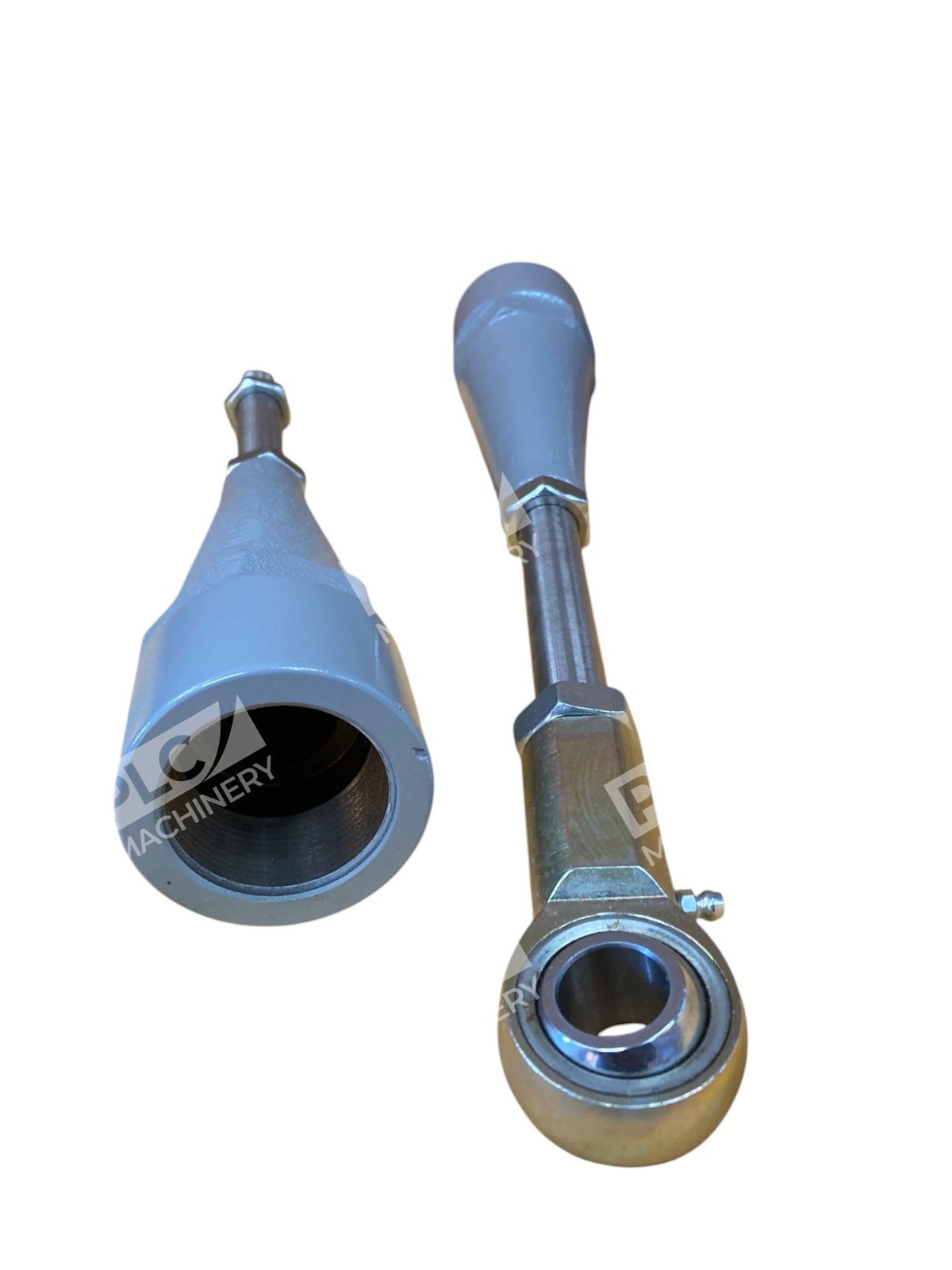

- Complete kit includes rod ends, studs, threaded pipe, and jam nut hardware
Technical Specifications
Detailed specifications for the Beck 20-1740-08:
- Kit Part Number: 20-1740-08
- Linkage Kit Size: 1.5″ (38 mm)
- Approximate Kit Length: 30 1/2″ (775 mm)
- Linkage Length Range: 34 1/2″ to 72″ (876–1,829 mm)
- Rod End Thread: 3/4-16 UNF
- Application Type: Pipe linkage for rotary and linear actuators
- Configuration: Includes pipe, rod ends, studs, and fasteners
Typical Applications
The Beck 20-1740-08 is commonly used to mechanically couple:
- Rotary actuators to damper and butterfly valve control arms
- Linear actuators to process equipment lever arms
- Industrial control systems where precision and low-backlash connections are critical
- HVAC damper linkage installations requiring repeatable positioning
- Utility and industrial process applications requiring durable mechanical linkages
Compatibility & Replacements
Compatible With
- Harold Beck & Sons Inc part-turn and multi-turn rotary actuators
- Harold Beck & Sons Inc linear stroke actuators
- Quarter-turn rotary valve controls
- Damper control systems (HVAC, industrial process)
- Custom mechanical linkage assemblies designed for Beck actuators
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 20-1740-08 is available in various linkage lengths; related kit models include 20-1750-07 (2″ size) and 20-1760-07 (2.5″ size) for different actuator and application requirements.
Works With
- Beck Link-Assist design service (complementary engineering support for linkage configuration)
- Standard 3/4-16 UNF threaded rod ends and couplings
- Industrial control systems using mechanical actuation
- OEM damper and valve control packages
