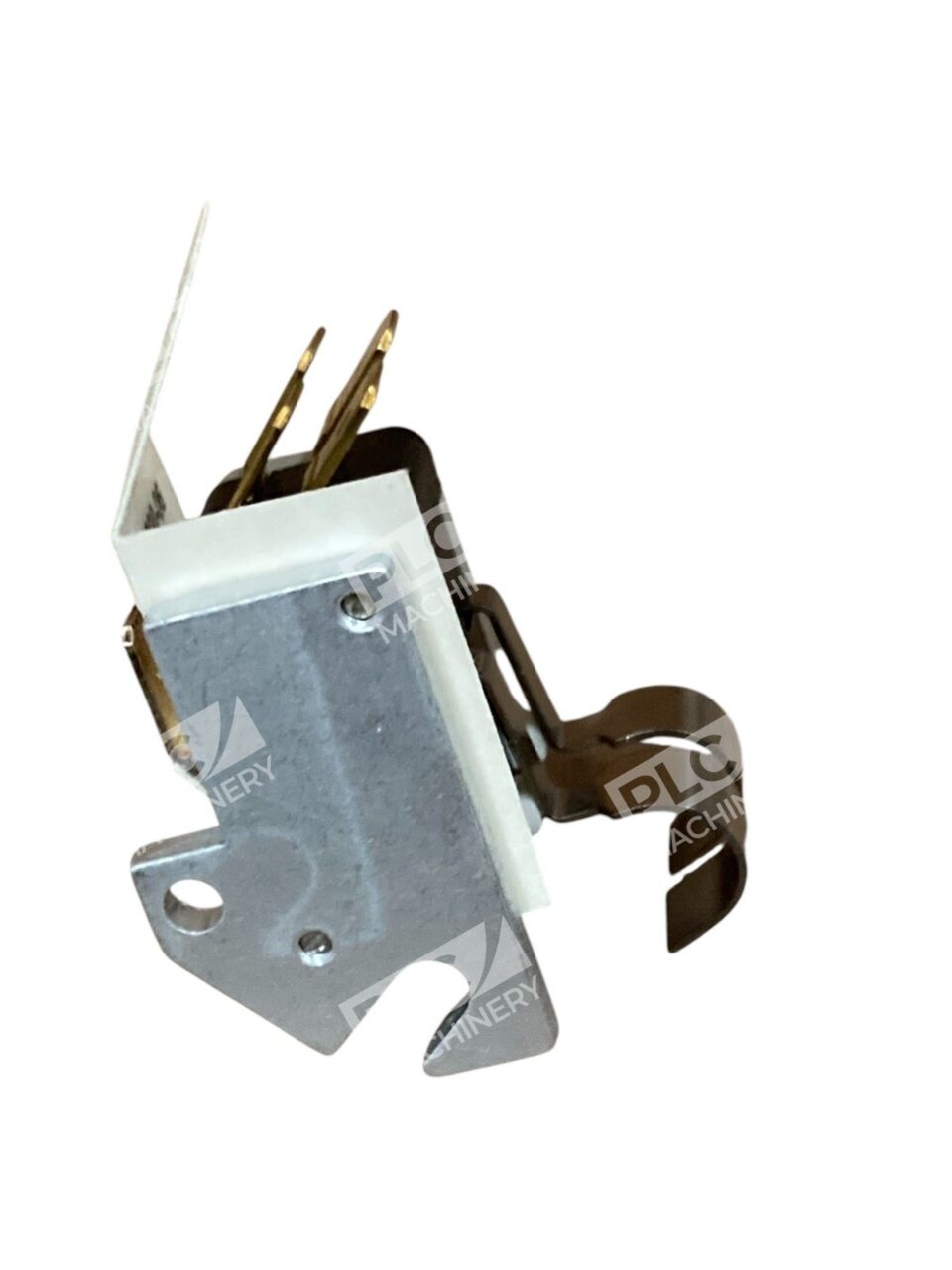

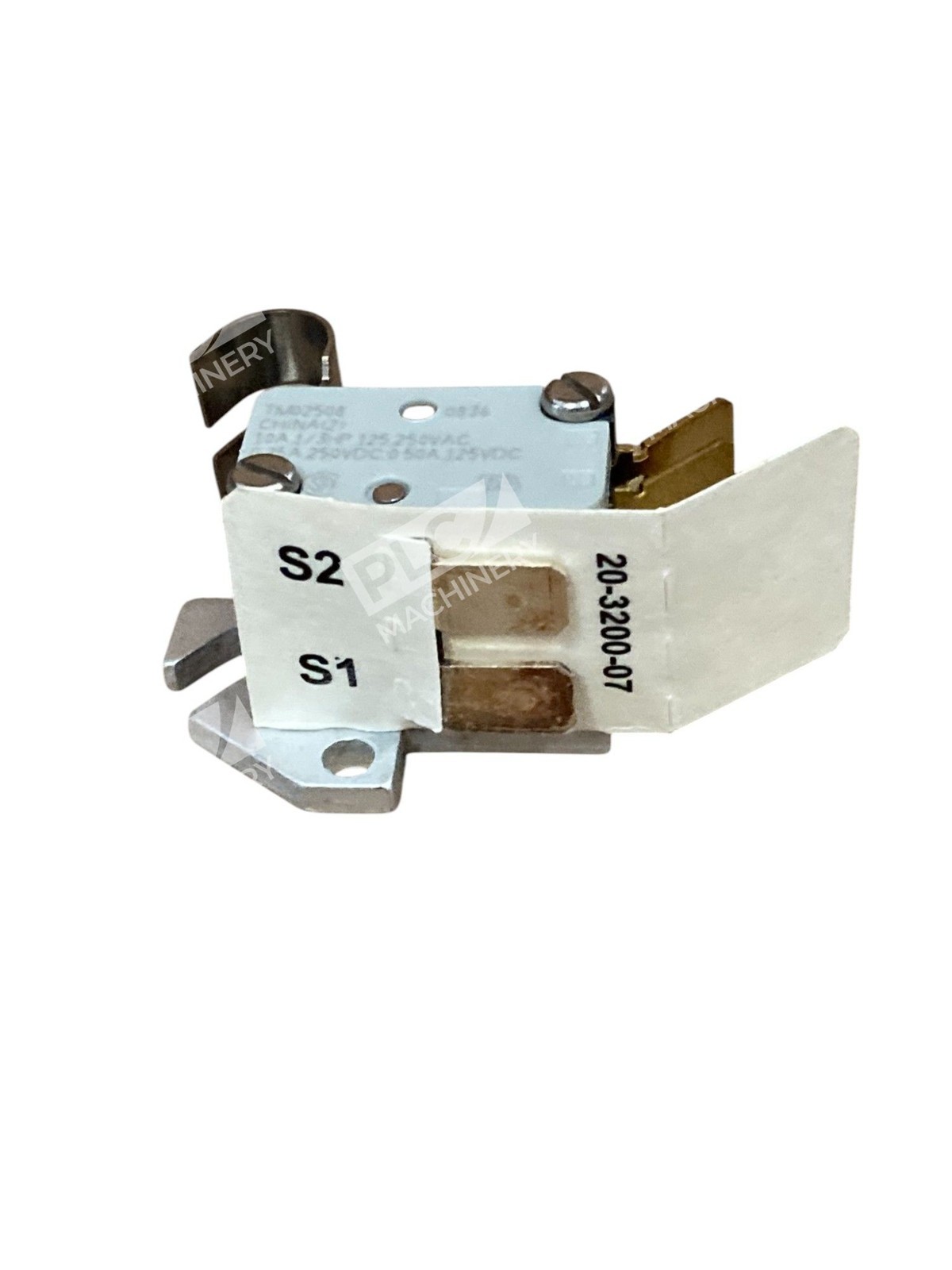

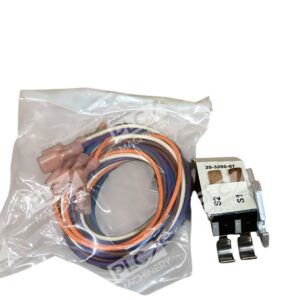

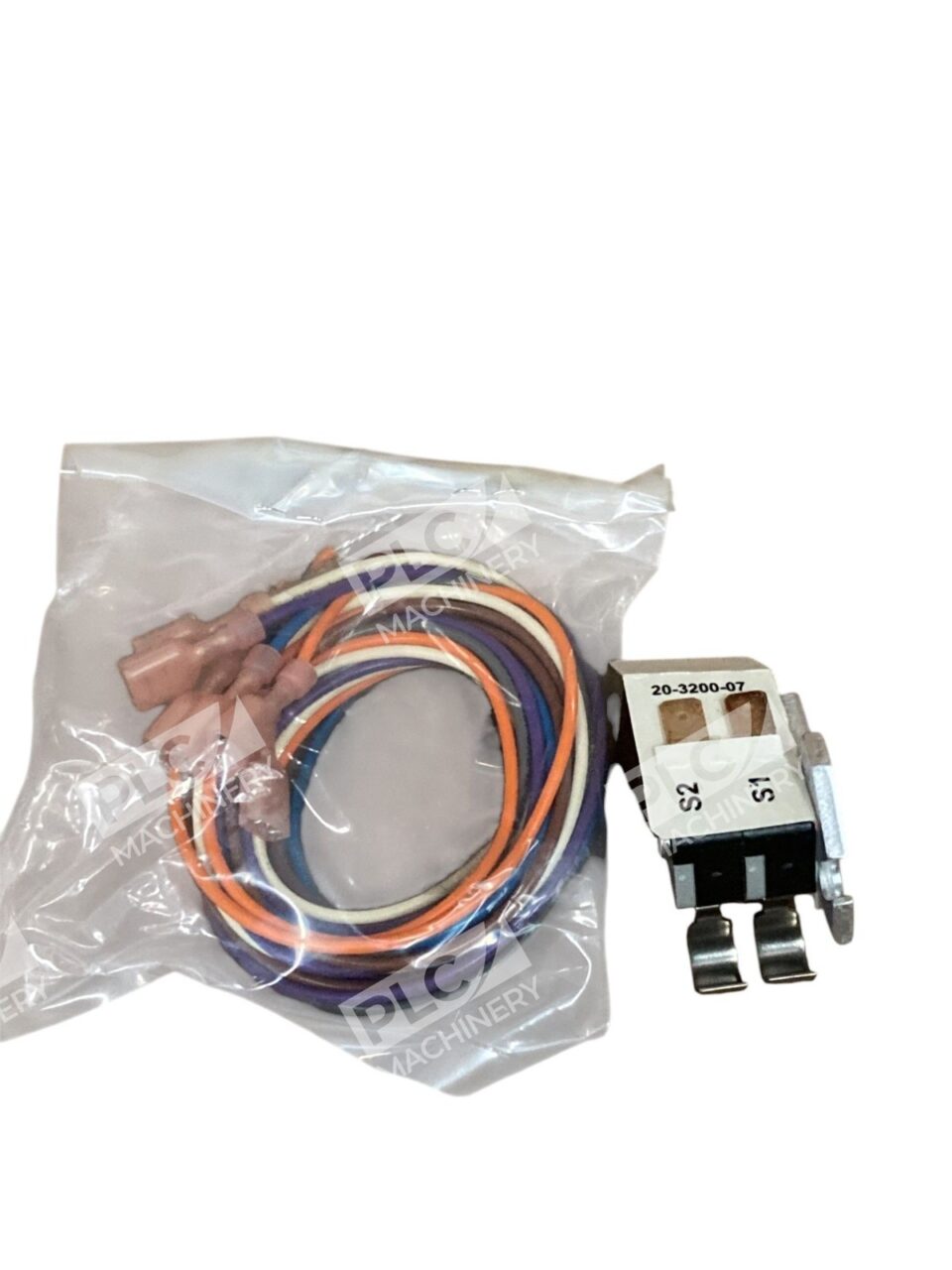

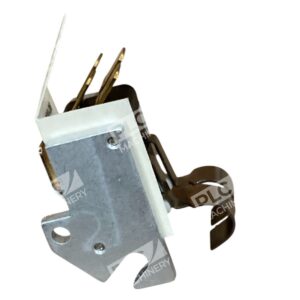

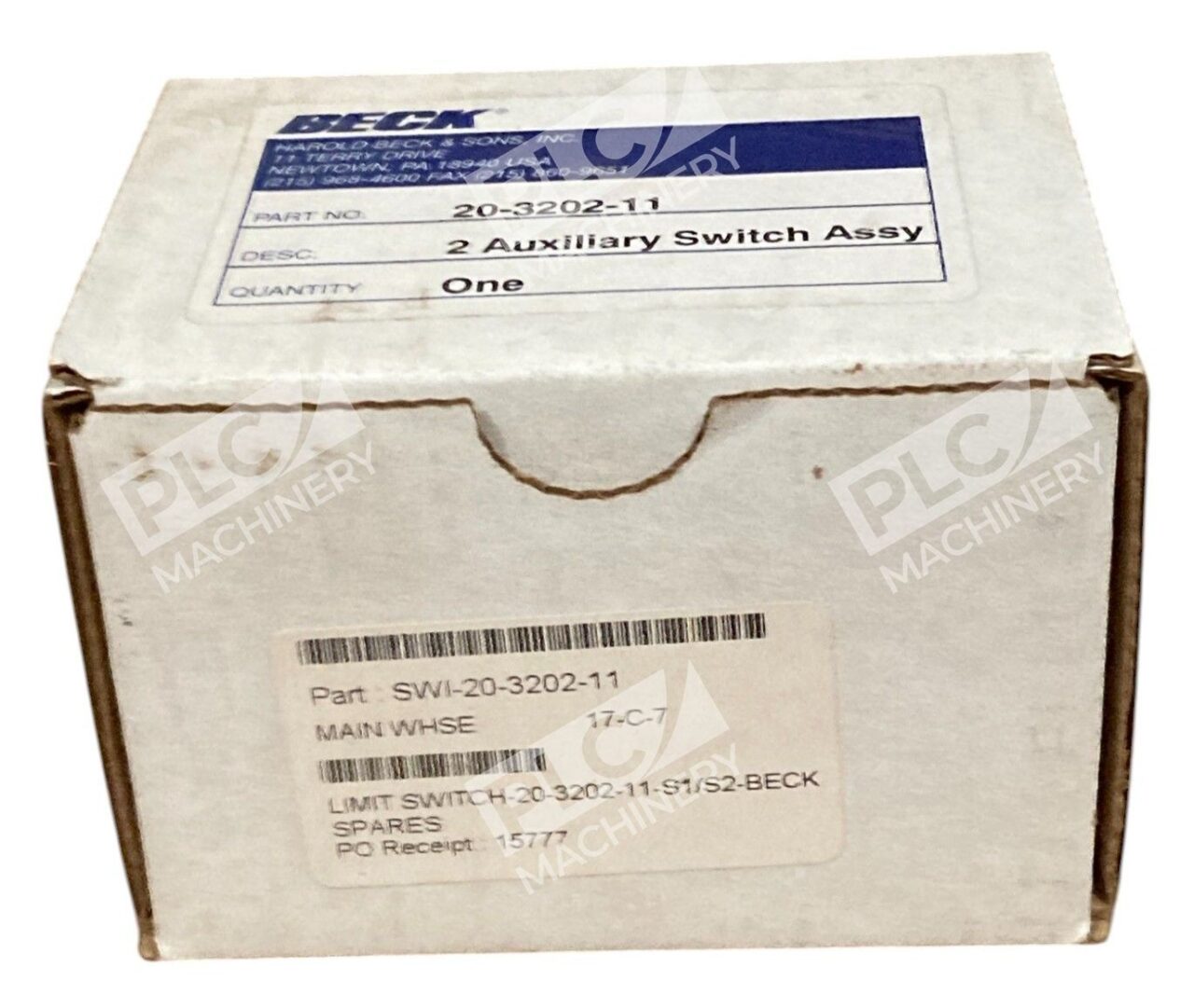

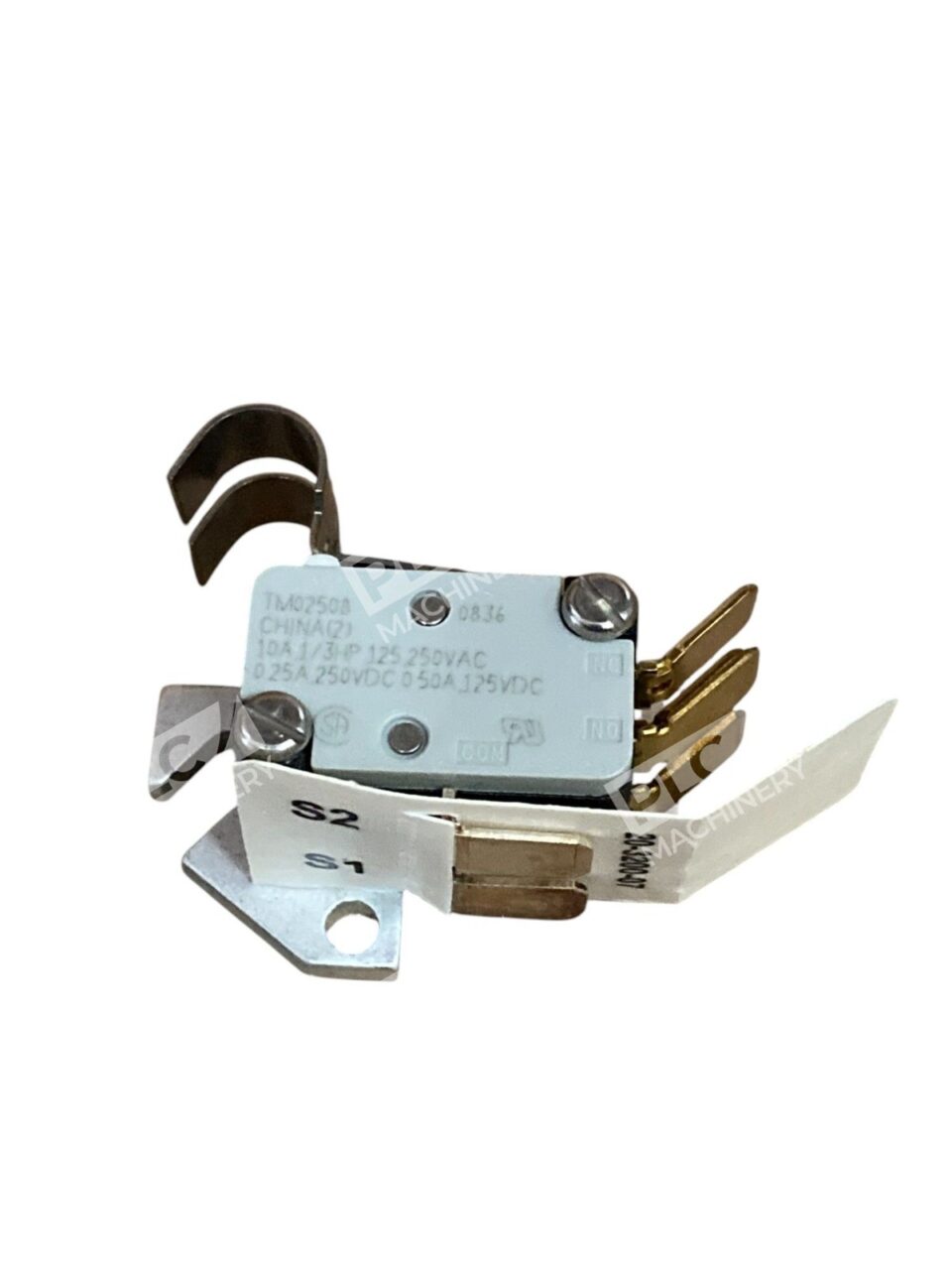

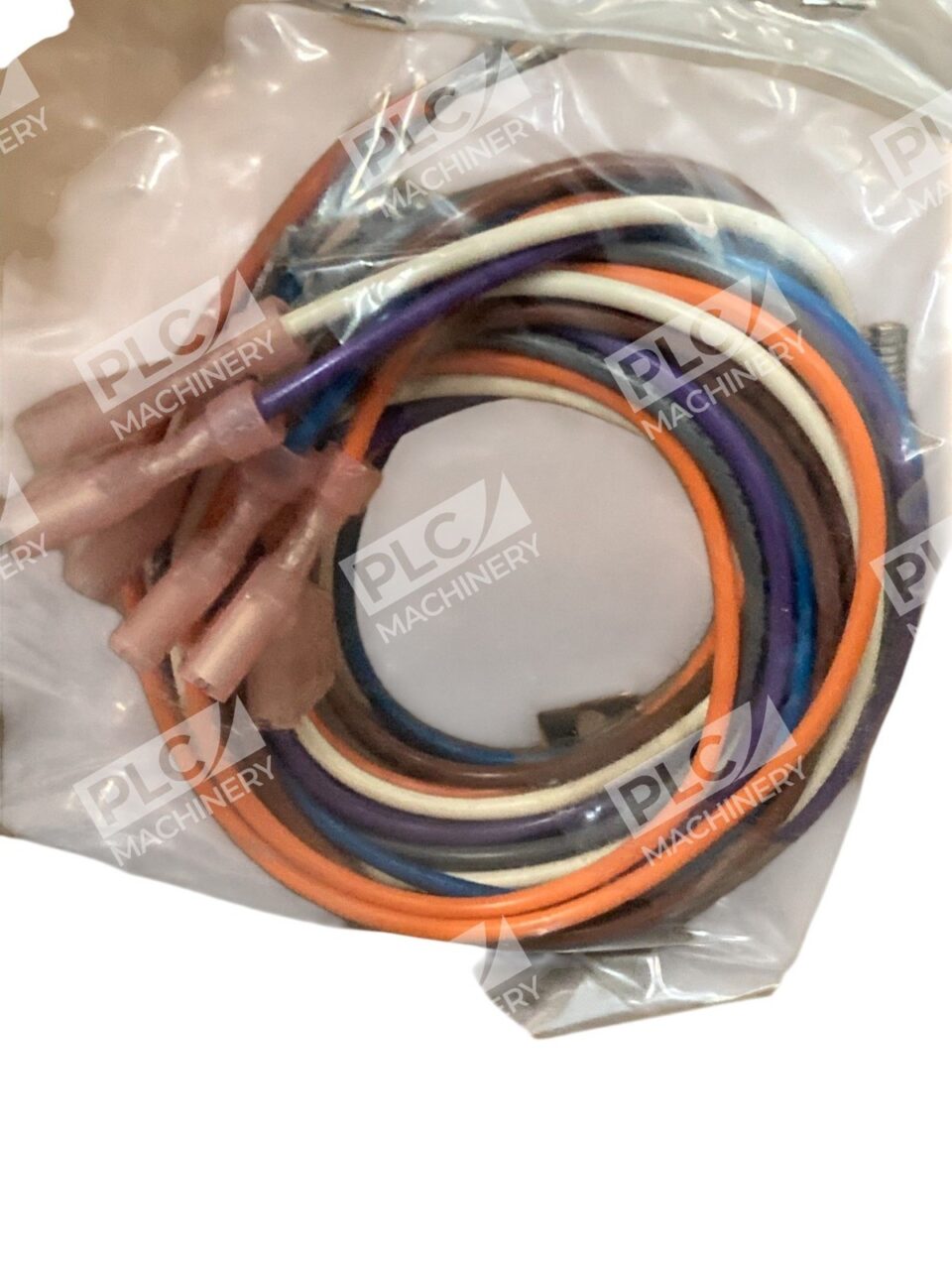

The Beck 2 Auxiliary Switch Assembly (Part No. 20-3202-11) is a precision-engineered component designed to enhance the functionality of Beck electric actuators. This assembly includes two auxiliary switches, identified as S1 and S2, which provide additional control and monitoring capabilities within industrial automation systems.
Key Features
- Dual Auxiliary Switches: Equipped with two switches (S1 and S2) to facilitate enhanced control and feedback mechanisms.
- Seamless Integration: Designed for compatibility with Beck actuator models, ensuring straightforward installation and reliable performance.
- Durable Construction: Manufactured with high-quality materials to withstand demanding industrial environments.
Specifications
- Part Number: 20-3202-11
- Switches Included: 2 (S1 and S2)
- Dimensions: Approximately 7.62 x 11.43 x 7.62 cm
- Weight: 0.16 kg
Installation and Adjustment
To install the auxiliary switch assembly:
- Remove the actuator’s control end cover.
- Position the switch assembly onto the designated mounting plate.
- Secure the assembly using the provided screws, ensuring proper alignment.
- Adjust the cam-to-switch lever spacing to achieve the desired switch actuation point.
For precise adjustment, place a 0.030-inch (0.75 mm) shim between the cam and switch lever. Position the switch assembly so that the switch is just actuated, avoiding overstressing the switch lever. Once adjusted, tighten the screws to a torque of 10 lb-in (14 N·m) and remove the shim.
Applications
The 20-3202-11 auxiliary switch assembly is ideal for applications requiring additional control inputs or feedback signals in industrial automation systems. Its robust design and reliable performance make it suitable for various sectors, including manufacturing, energy, and process control industries.
Ordering Information
When ordering the Beck 2 Auxiliary Switch Assembly, please specify the part number 20-3202-11 to ensure compatibility with your existing Beck actuator system.
