Overview

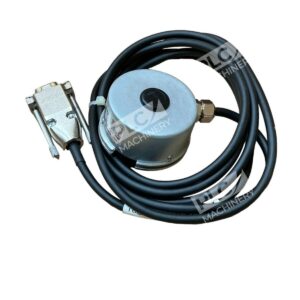

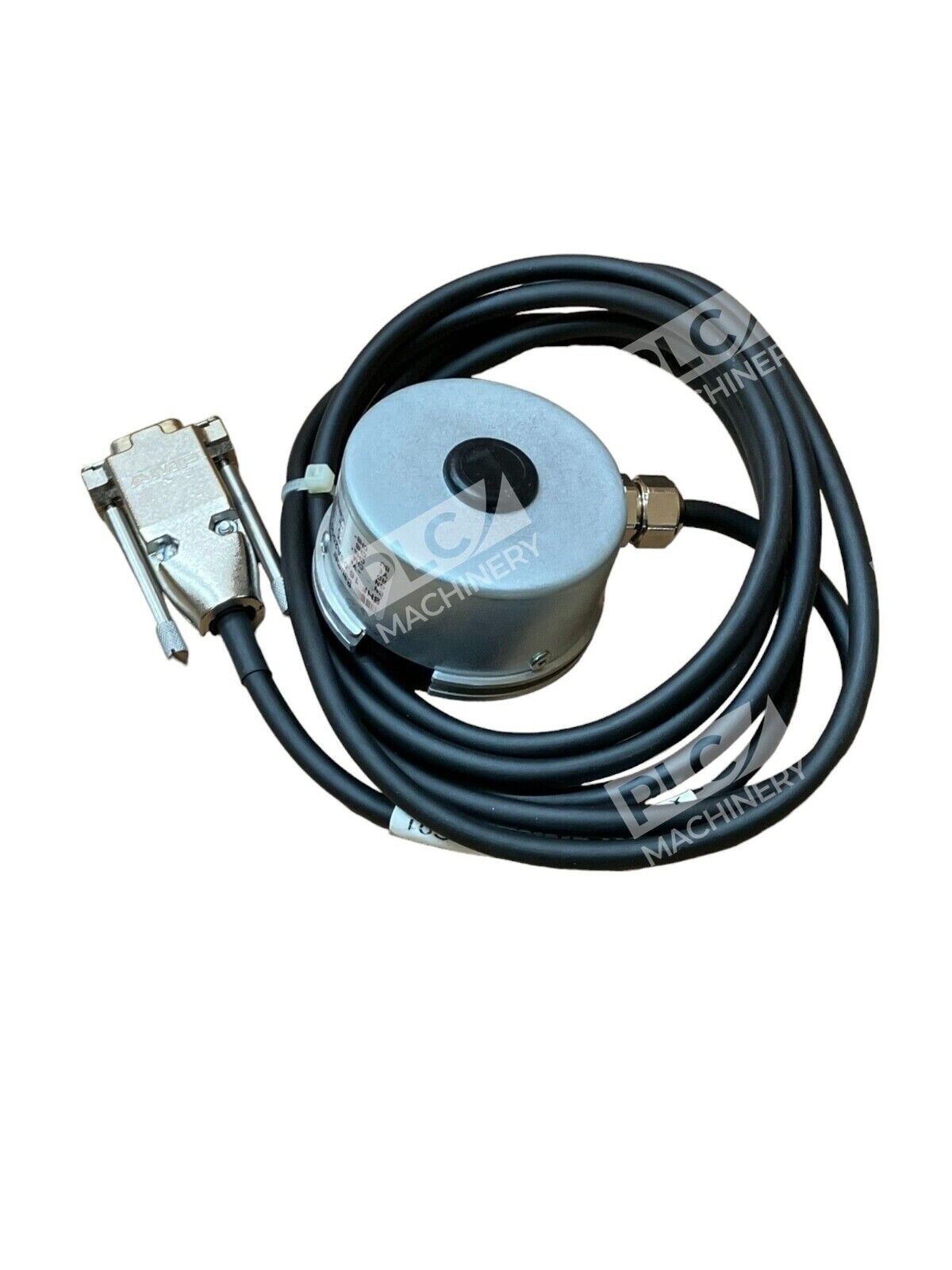

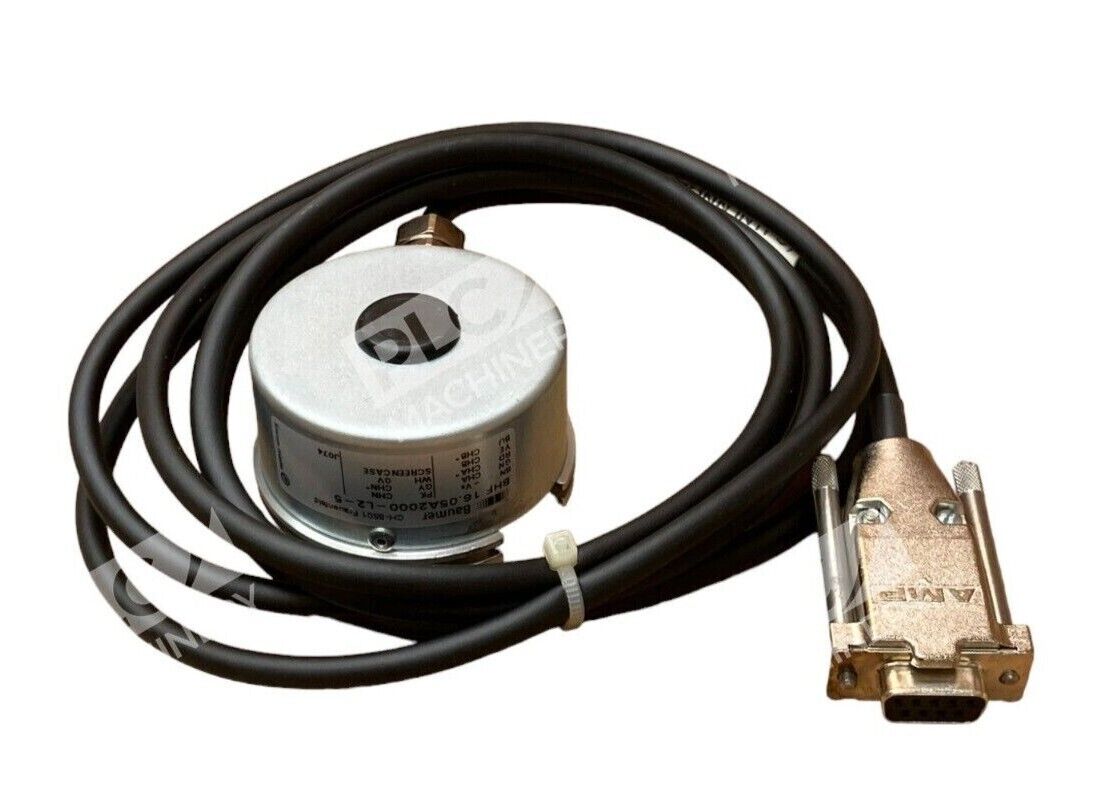

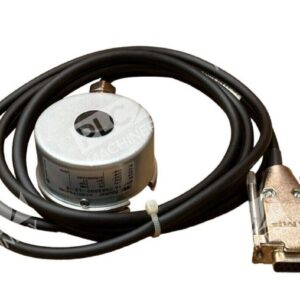

The Baumer BHF 16.05A2000-L2-5 is a precision incremental rotary encoder designed for accurate angular position and rotational speed measurement in industrial automation systems. This optical-reading encoder combines high resolution with robust construction, making it suitable for motion control, motor feedback, and process monitoring applications where reliability and accuracy are critical.
Key Features
- 2000 Pulses Per Revolution (PPR) — provides high-resolution feedback for precise speed and position control
- TTL-Compatible 5 VDC Output — direct interface with industrial controllers and counting circuits without additional signal conditioning
- IP 65 Protection Rating — sealed against dust and moisture ingress for harsh production environments

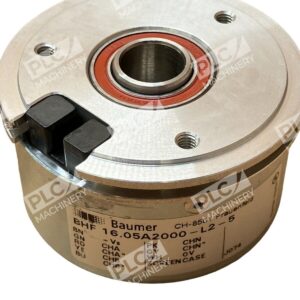

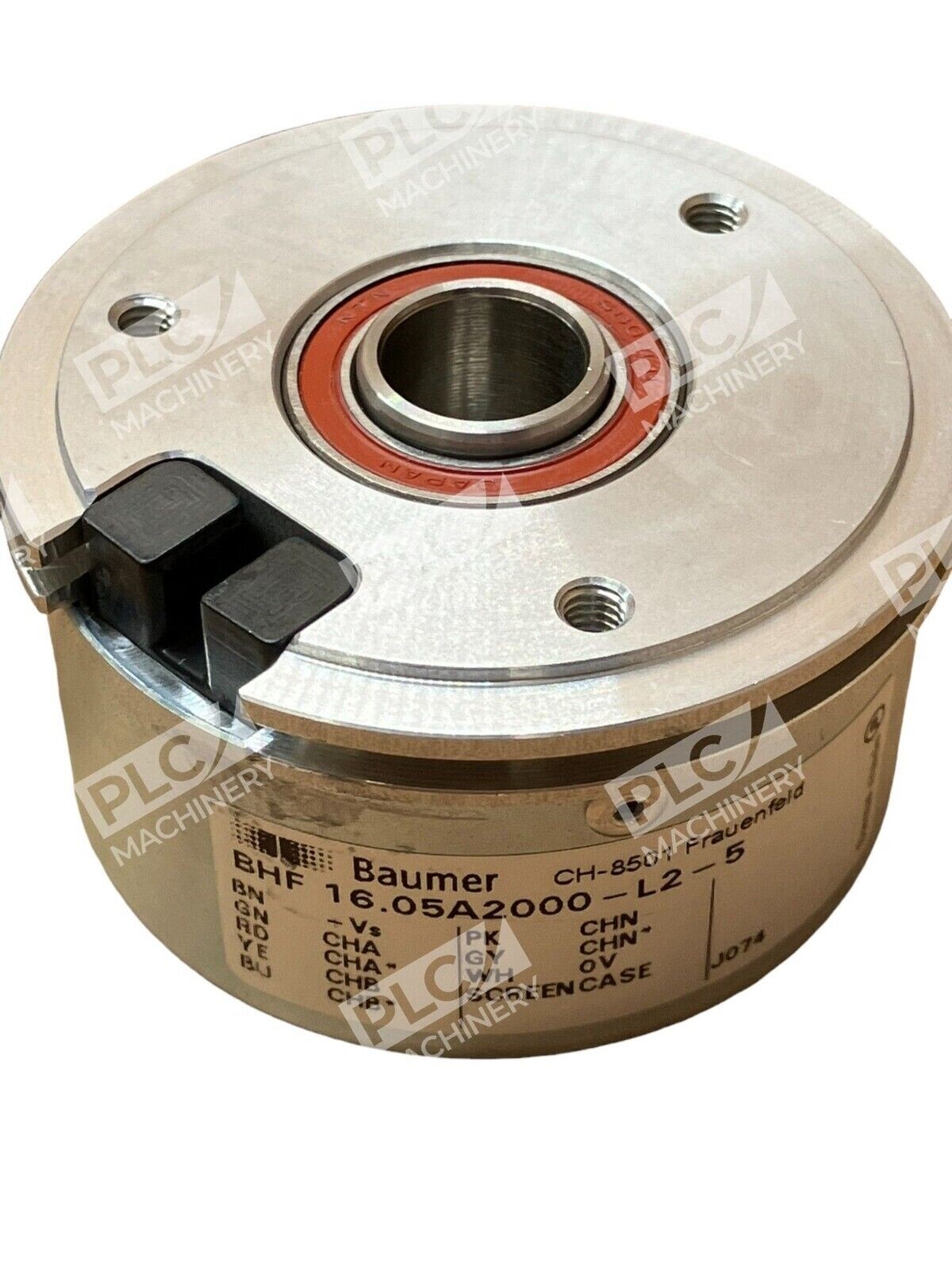

- 12 mm Through Hollow Shaft — allows mounting on rotating shafts with L2 clamping ring design for secure installation
- Compact Optical Design — proven rotary encoder technology with low susceptibility to vibration and shock
Technical Specifications
- Part Number: BHF 16.05A2000-L2-5
- Encoder Type: Incremental, optical
- Pulses Per Revolution: 2000
- Output Signal: Antivalent, TTL compatible
- Supply Voltage: 5 VDC
- Shaft Type: Through hollow shaft, Ø 12 mm
- Mounting: L2 clamping ring
- IP Rating: IP 65
- Weight: Approximately 300 g
- Manufacturer: Baumer Electric
Typical Applications
- Motor speed feedback and tachometer functions
- Machine tool positioning and coordinate control
- Conveyor belt and drive train monitoring
- Rotational speed verification in packaging and printing machinery
- Industrial automation systems requiring high-resolution shaft coupling
- Motion control and servo feedback loops
Compatibility & Replacements
Compatible With
- PLC counters and high-speed inputs accepting TTL or 5 VDC pulse signals
- Industrial motion controllers with encoder feedback inputs
- Standard industrial automation networks requiring pulse-level feedback
- Power transmission systems with 12 mm hollow-shaft coupling
- Legacy and modern motion control systems supporting optical encoder inputs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The BHF 16.05A2000-L2-5 is part of Baumer’s BHF series; alternative resolution or output versions (05A2048, 05A1000, 05A2500) may be available for different application requirements.
Works With
- TTL-compatible counter modules
- 5 VDC pulse input circuits
- Standard shaft couplings and mechanical transmission systems
- Industrial encoder signal conditioning modules
- Motion control firmware and PLC feedback routines
