Overview

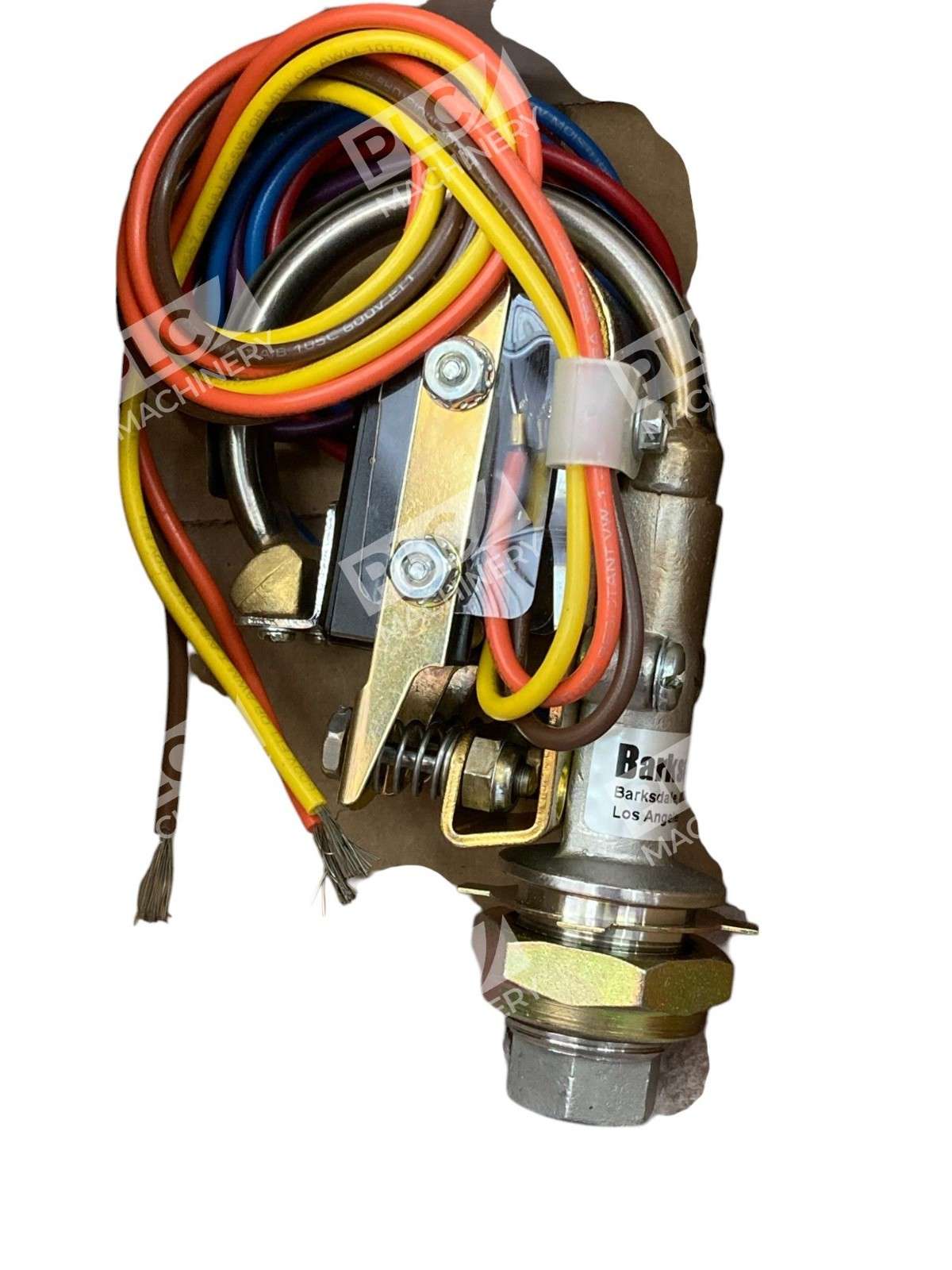

The Barksdale B2S-H32SS-S0441 is a mechanically actuated pressure switch designed for precise pressure monitoring and control in industrial hydraulic and pneumatic systems. This stripped configuration features a Bourdon tube sensing element and dual setpoint control, making it suitable for pump and compressor protection, pressure relief sequencing, and system monitoring applications. The B2S series delivers high accuracy and durability across a wide range of pressure ratings.
Key Features
- Dual setpoint (make and break) adjustment for versatile control logic
- Stripped design allows integration into custom or OEM control panels
- High repeatability and reliability in demanding industrial environments
- Bourdon tube mechanical sensing—no calibration or electronic maintenance required
- 316 stainless steel wetted parts for corrosion resistance
- Proof pressure rating supports transient system spikes
Technical Specifications

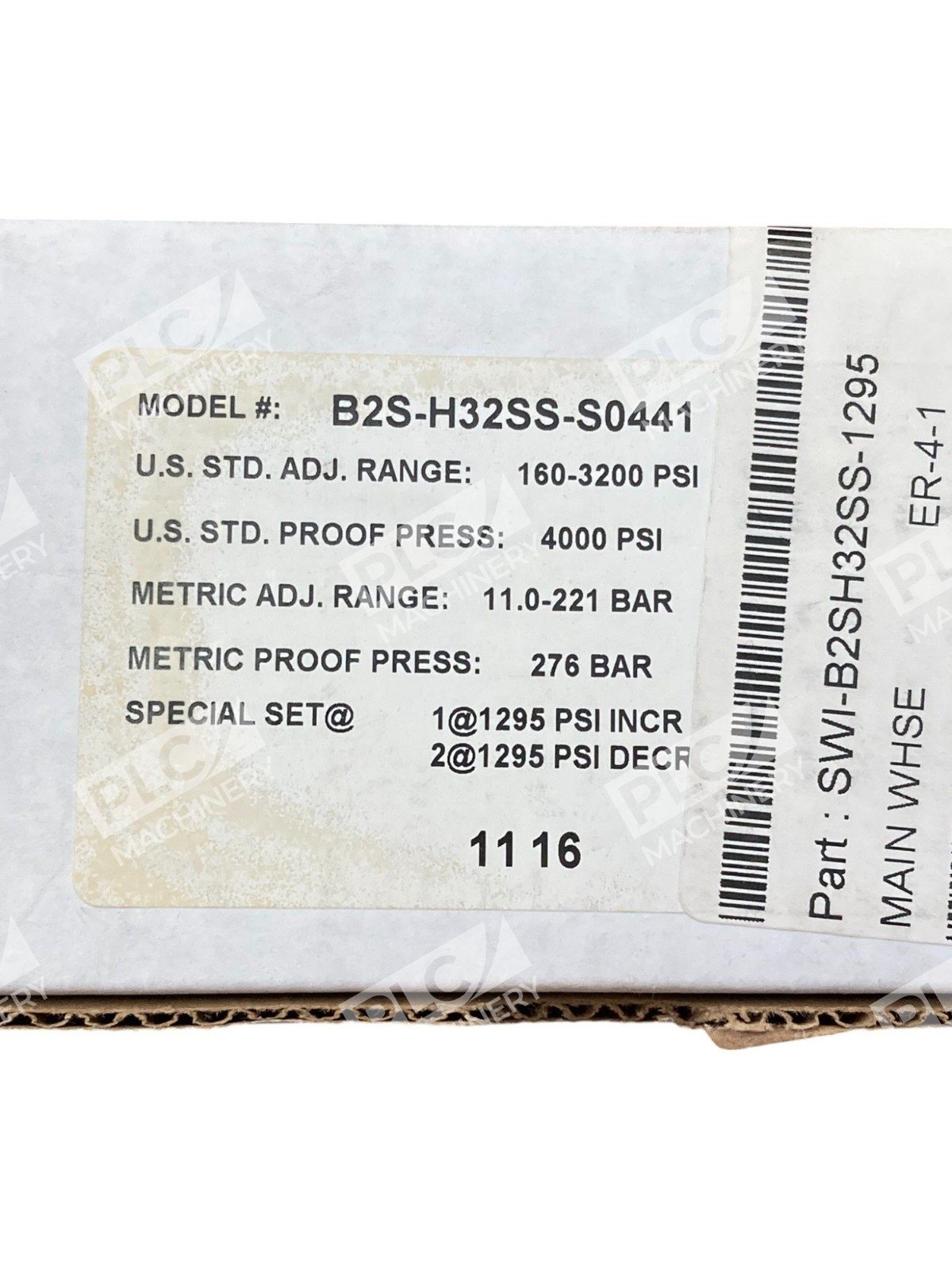

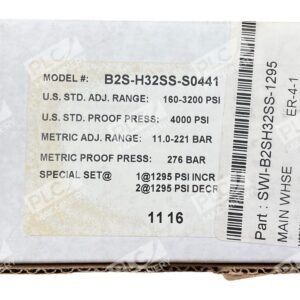

The following specifications apply to the B2S-H32SS-S0441:
Pressure & Performance

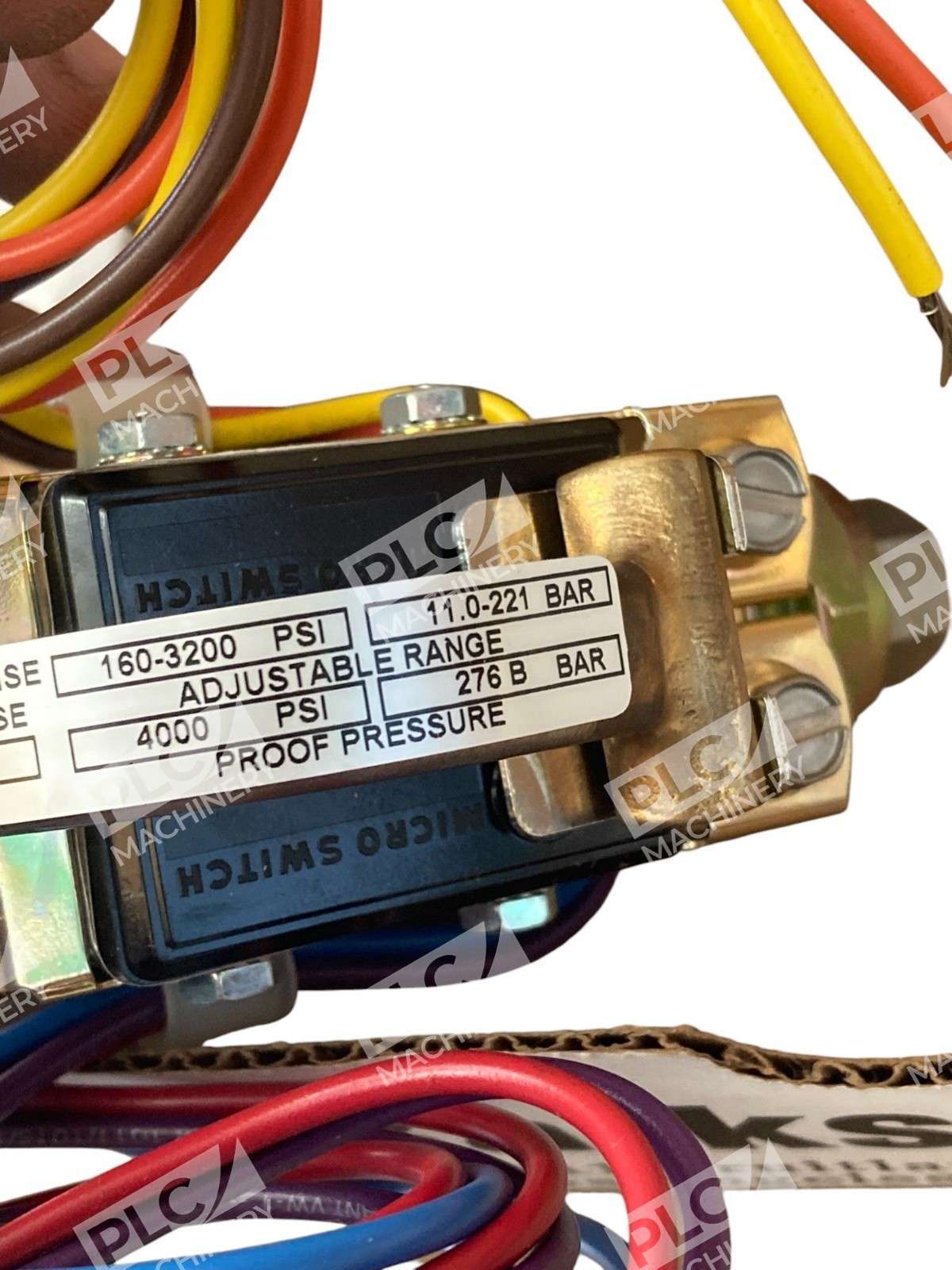

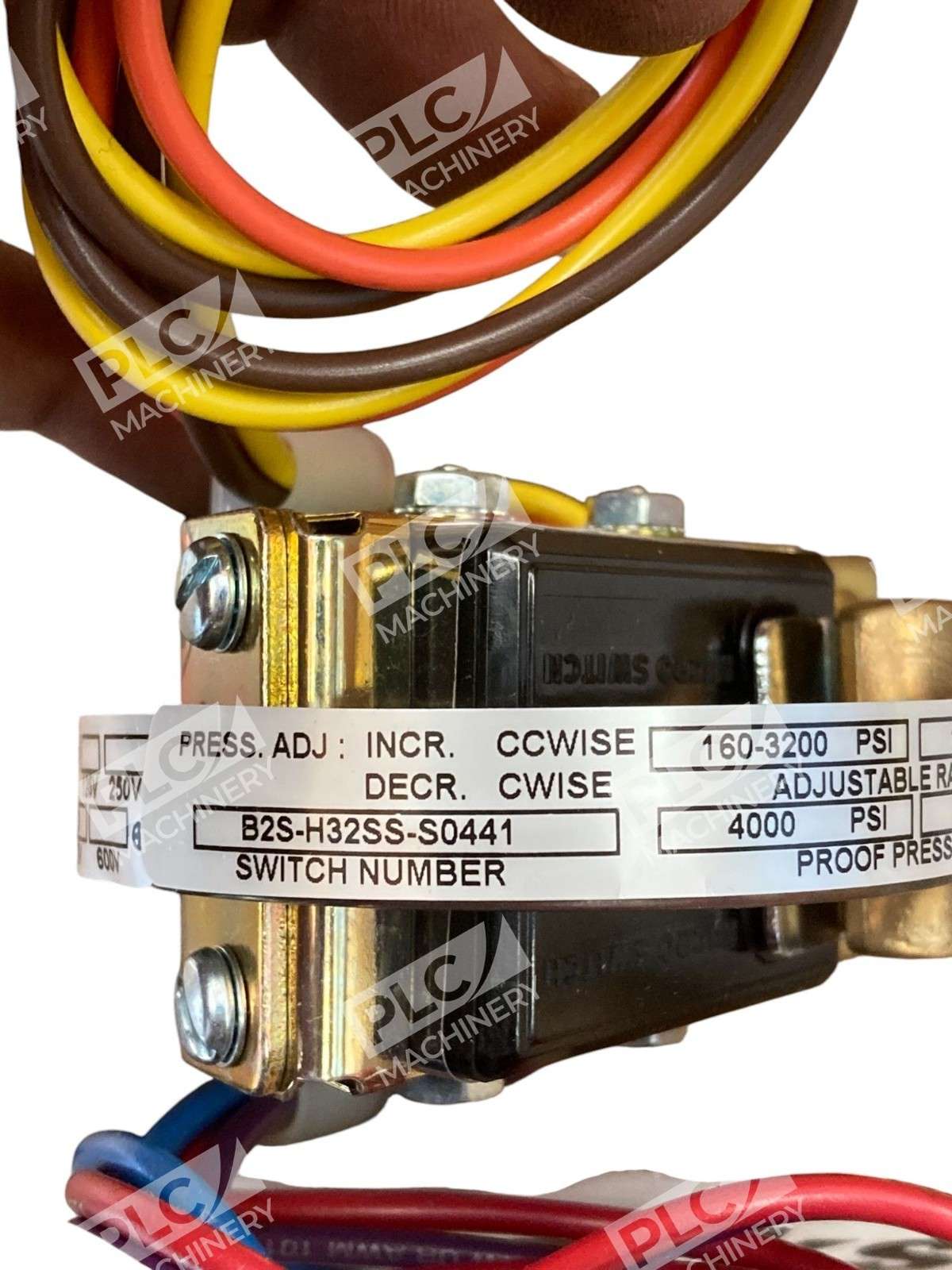

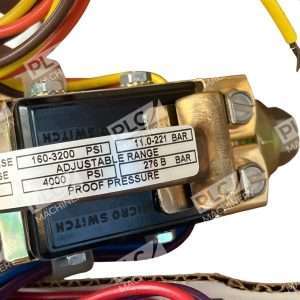

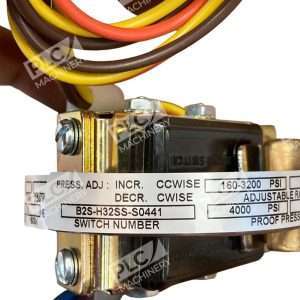

- Adjustable Range: 160 to 3,200 PSI
- Maximum Working Pressure: 4,000 PSI
- Proof Pressure: 20,000 PSI
- Repeatability: Approximately 1% of full scale

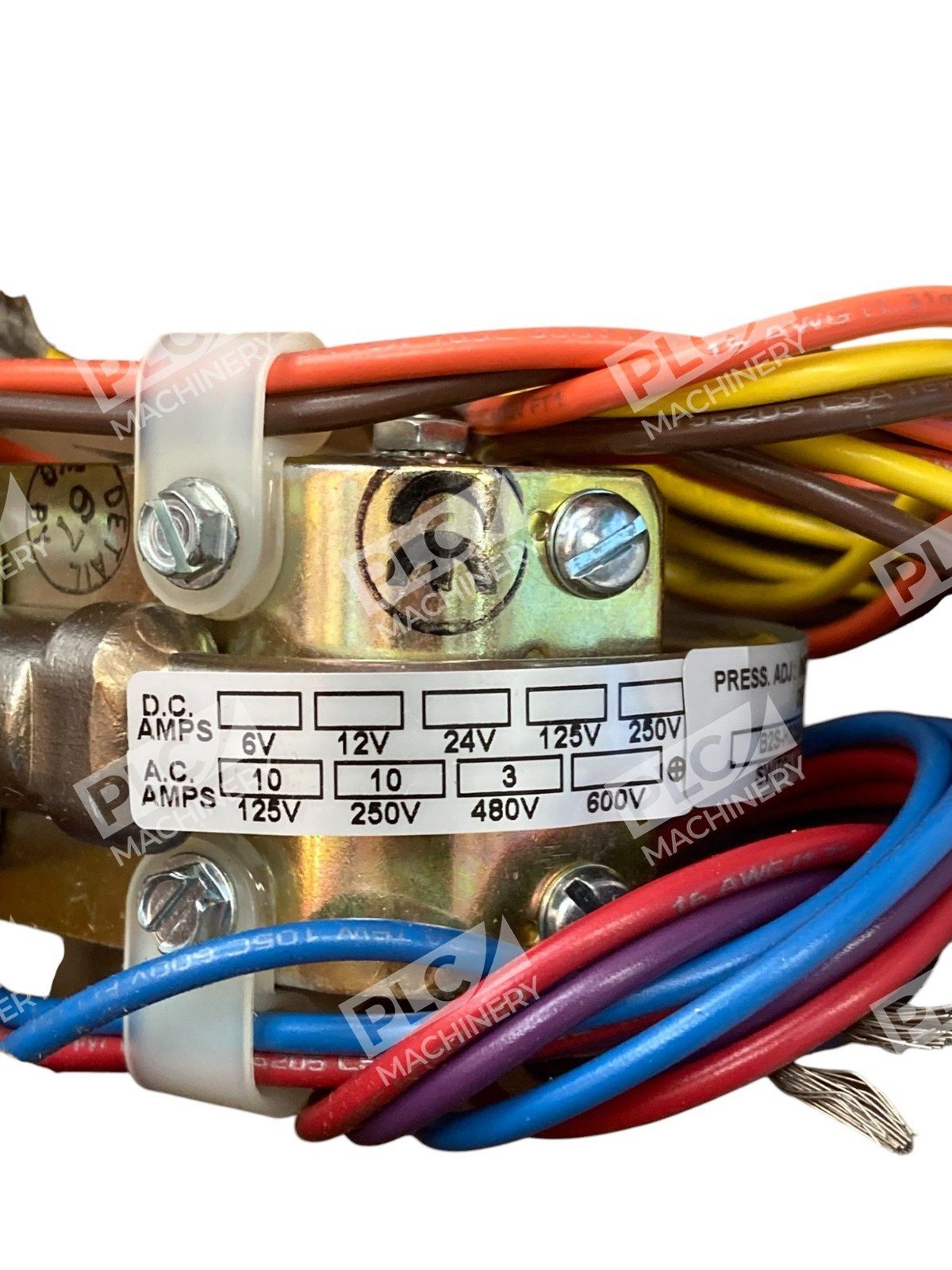

Electrical
- Contact Configuration: 2 × SPDT (single-pole, double-throw)

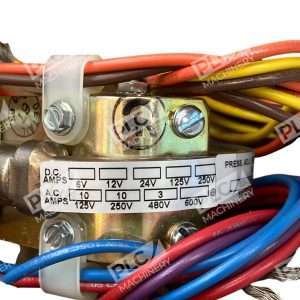

- Voltage Ratings: 125/250 VAC; 125 VDC (standard)
- Contact Current: 10 A @ 125/250 VAC; 0.1 A @ 125 VDC
Physical & Mounting
- Port Connection: 1/4″ NPT female
- Wetted Materials: 316 stainless steel

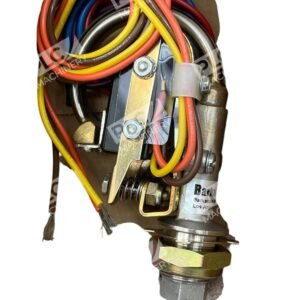

- Configuration: Stripped (no external case; wire terminals)
Typical Applications
- Hydraulic Systems: Pump discharge protection, accumulator charging control, and load-sensing sequencing
- Pneumatic Systems: Compressor load/unload control, pressure vessel protection, and air brake monitoring
- Industrial Machinery: Press systems, injection molding machines, and power transmission equipment requiring precise pressure switching
- OEM Integration: Stripped design suits custom panel building and equipment manufacturers combining multiple control functions
Compatibility & Replacements
Compatible With
- Hydraulic pump and motor systems (fixed or variable displacement)
- Pneumatic compressors and air receivers
- Industrial accumulators and pressure-relief circuits
- Standard 1/4″ NPT threaded ports on manifolds and valve bodies
- AC and DC power supplies within voltage ratings (125/250 VAC, 125 VDC)
Replaces / Drop-In Replacement For
- Barksdale B1S-H32SS (single setpoint variant in same pressure range)
- Other stripped dual-setpoint 160–3200 PSI Bourdon tube switches with matching electrical specs and NPT port
Works With
- Relay coils and PLC input cards for pressure-based machine sequencing
- Solenoid-operated directional control valves for automated pressure switching
- Industrial control panels and custom automation systems
- Safety-critical circuits where mechanical (non-electronic) pressure switching is required
