Overview

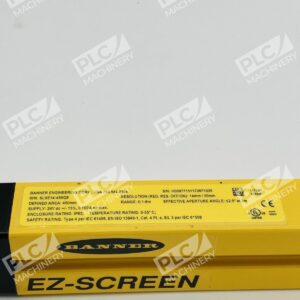

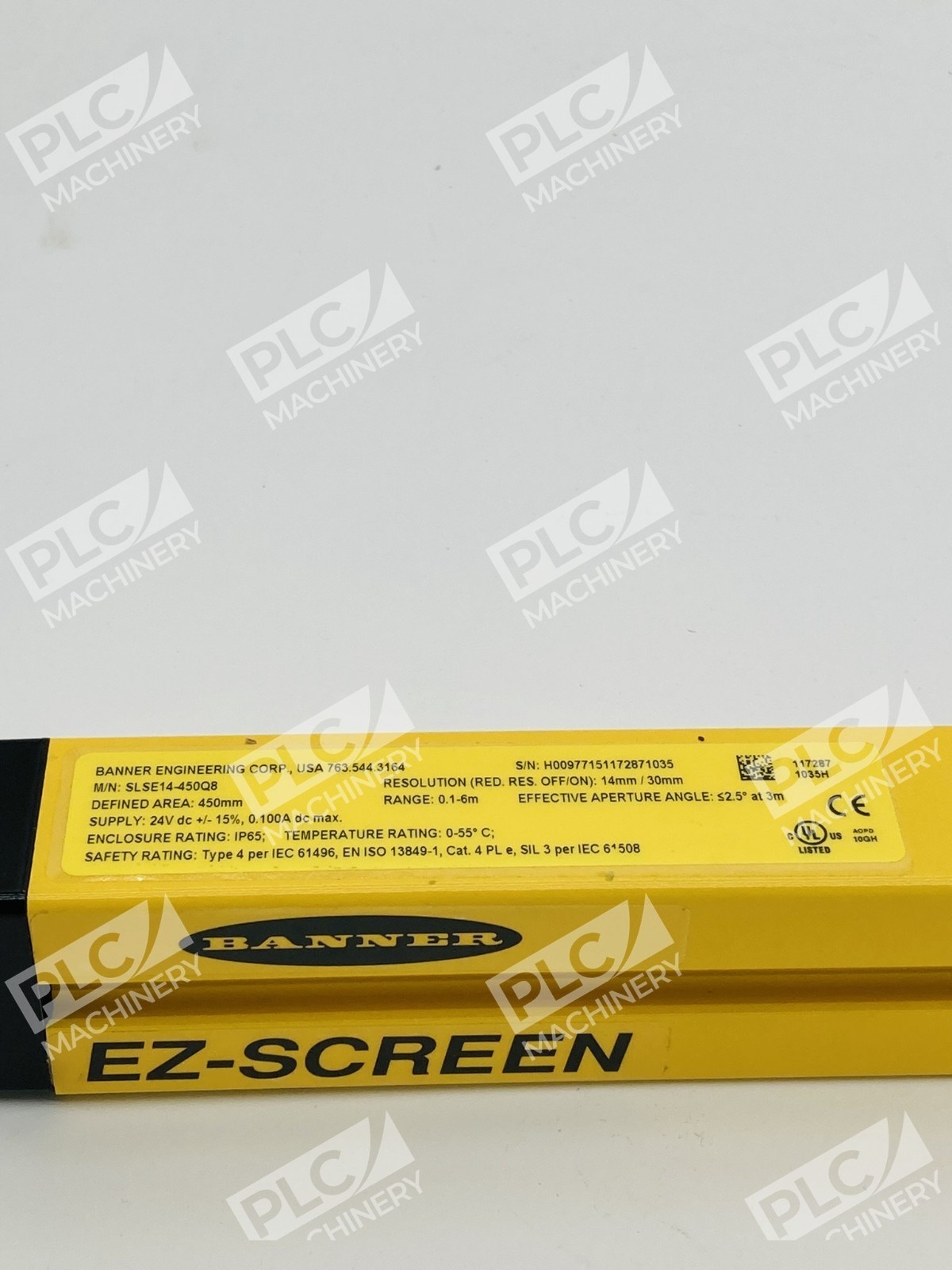

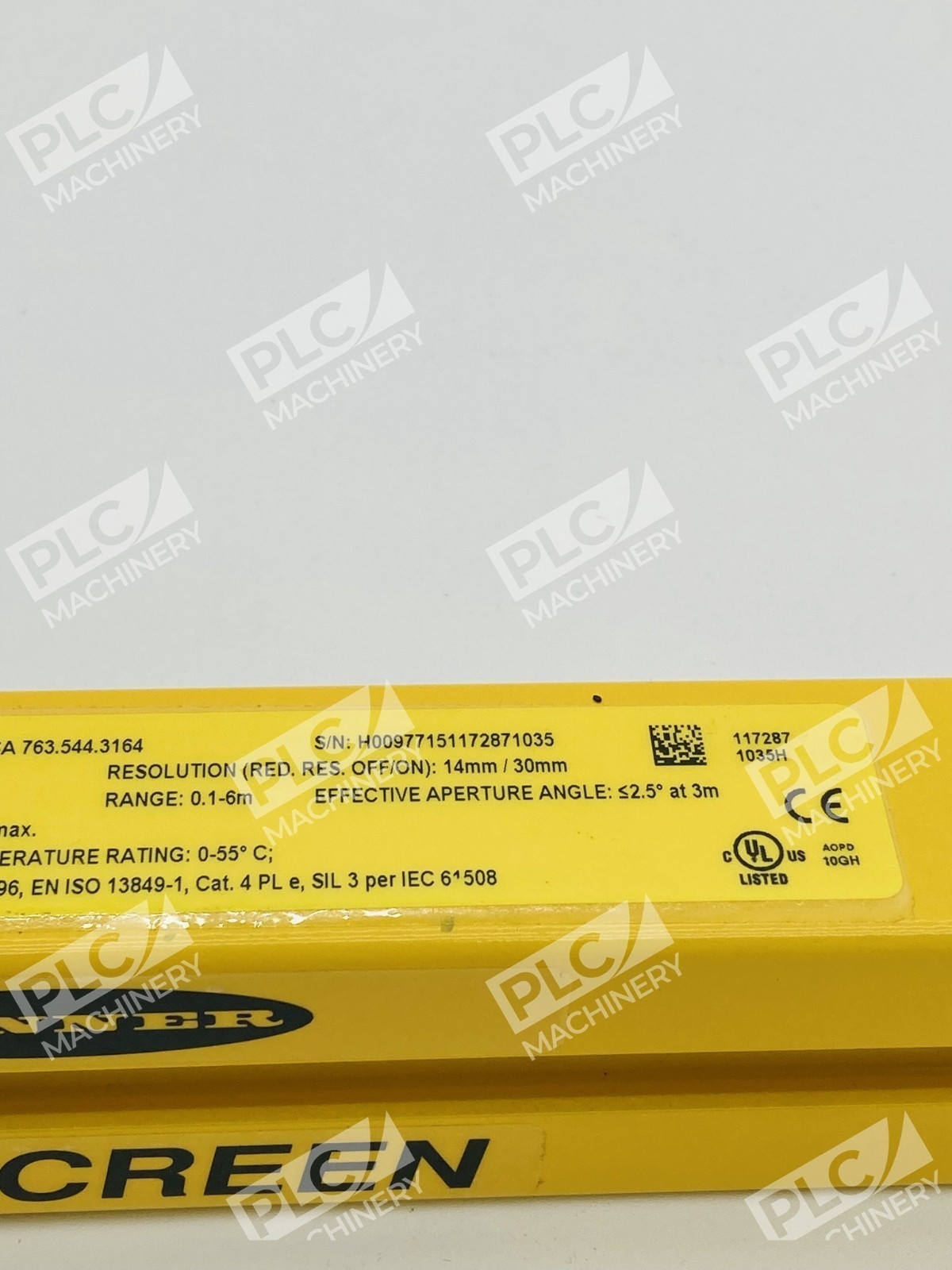

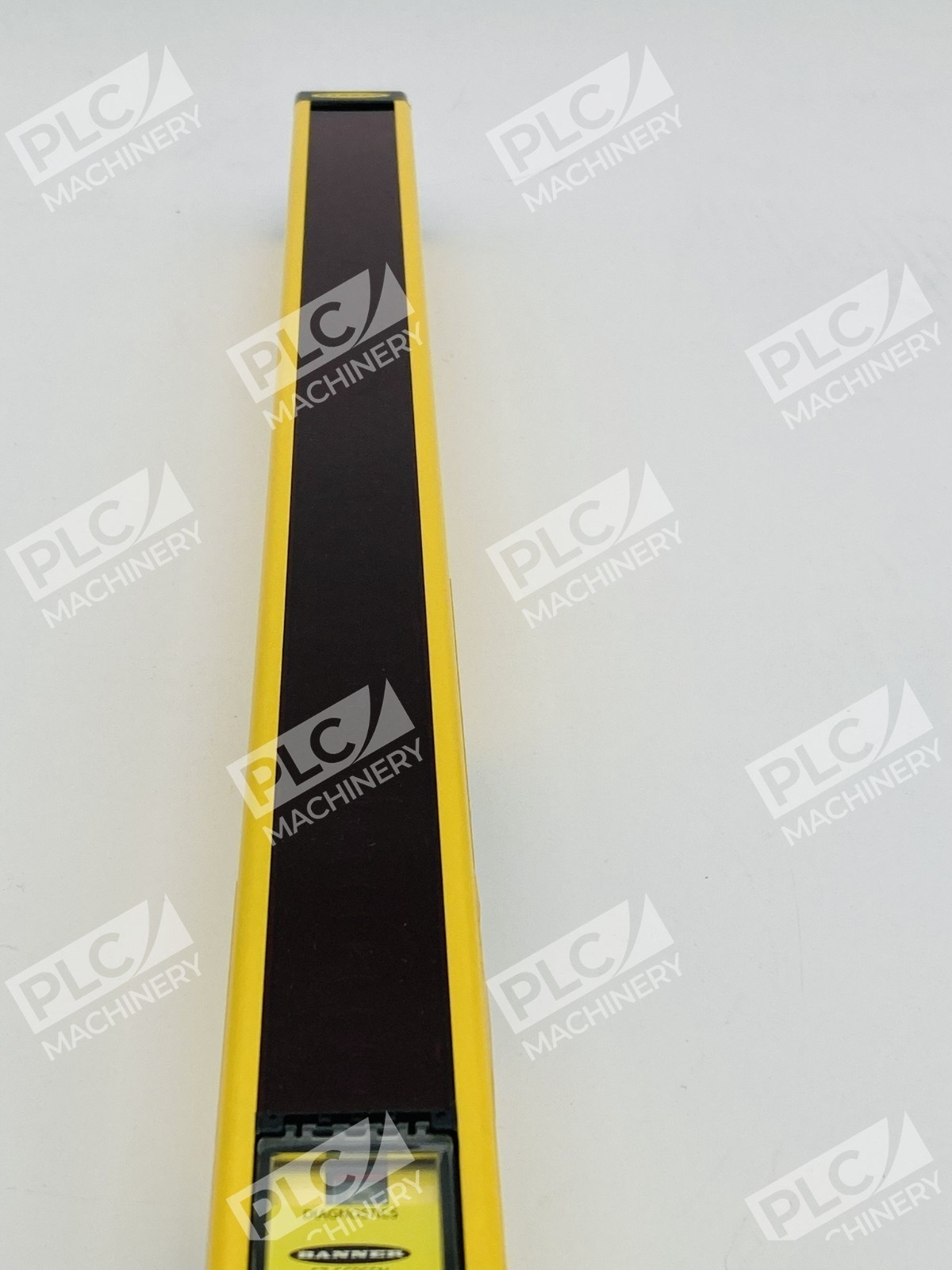

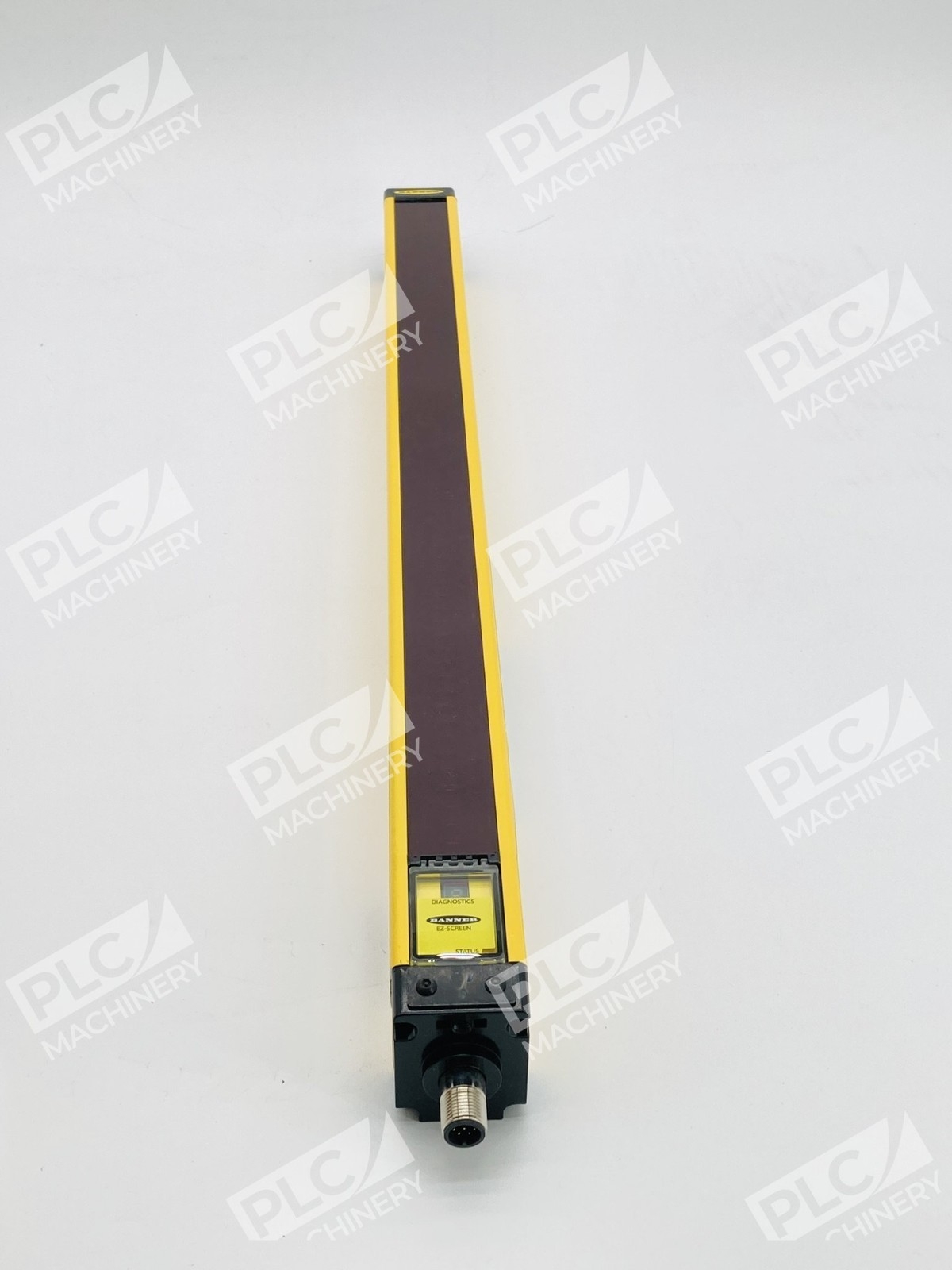

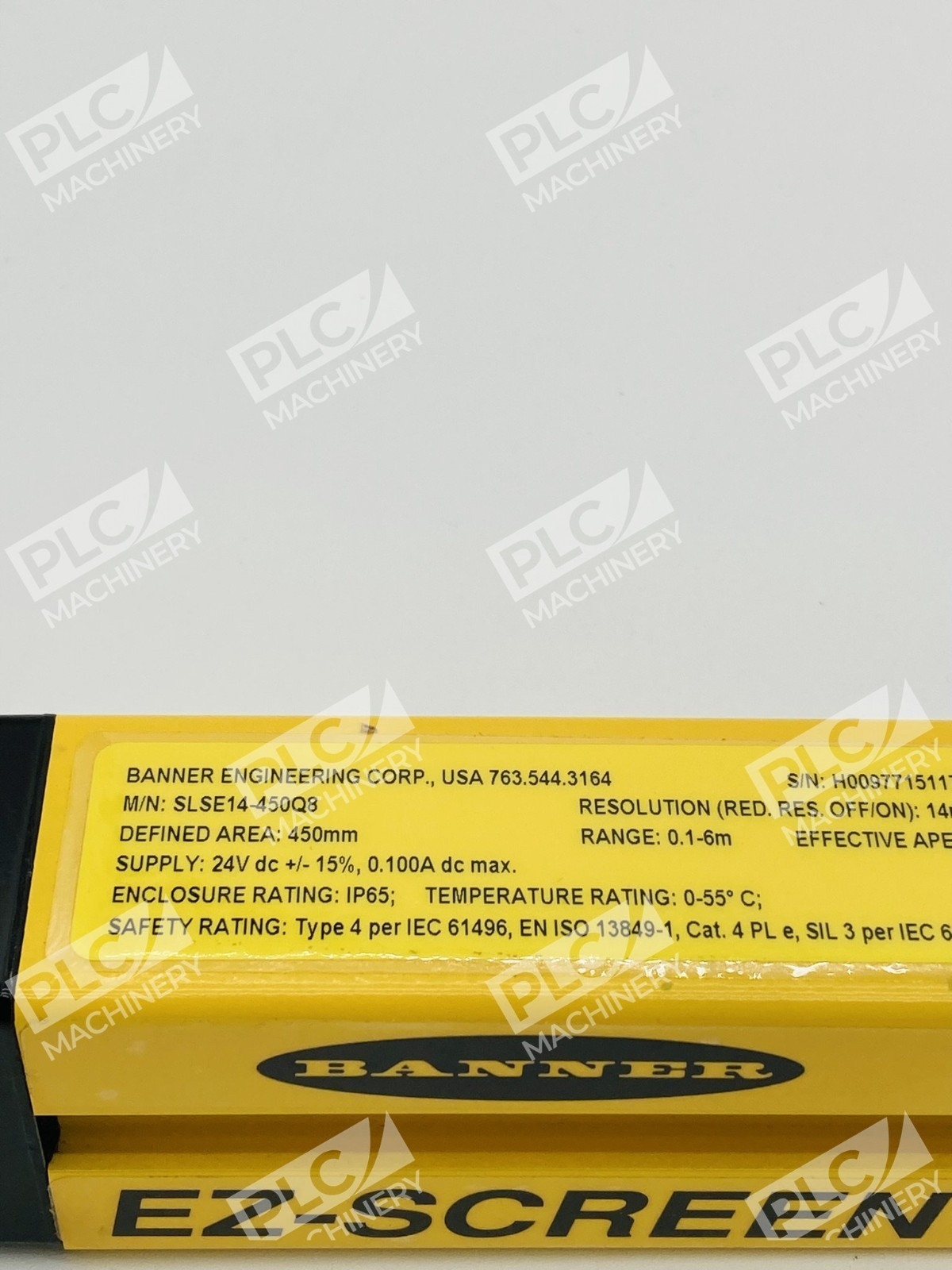

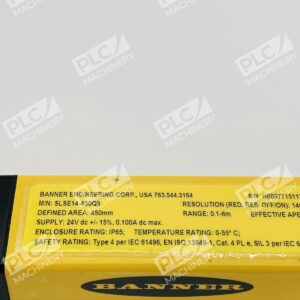

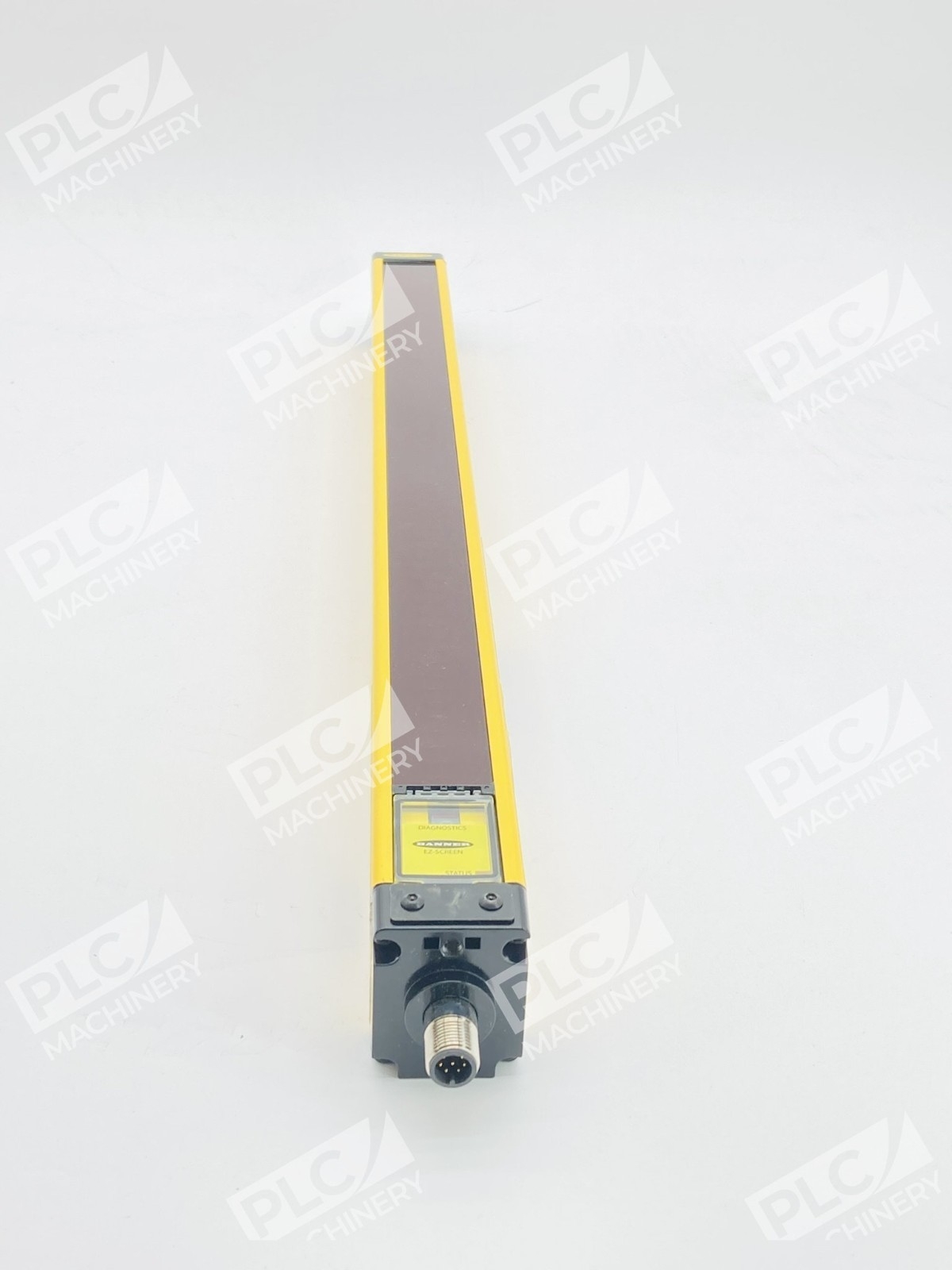

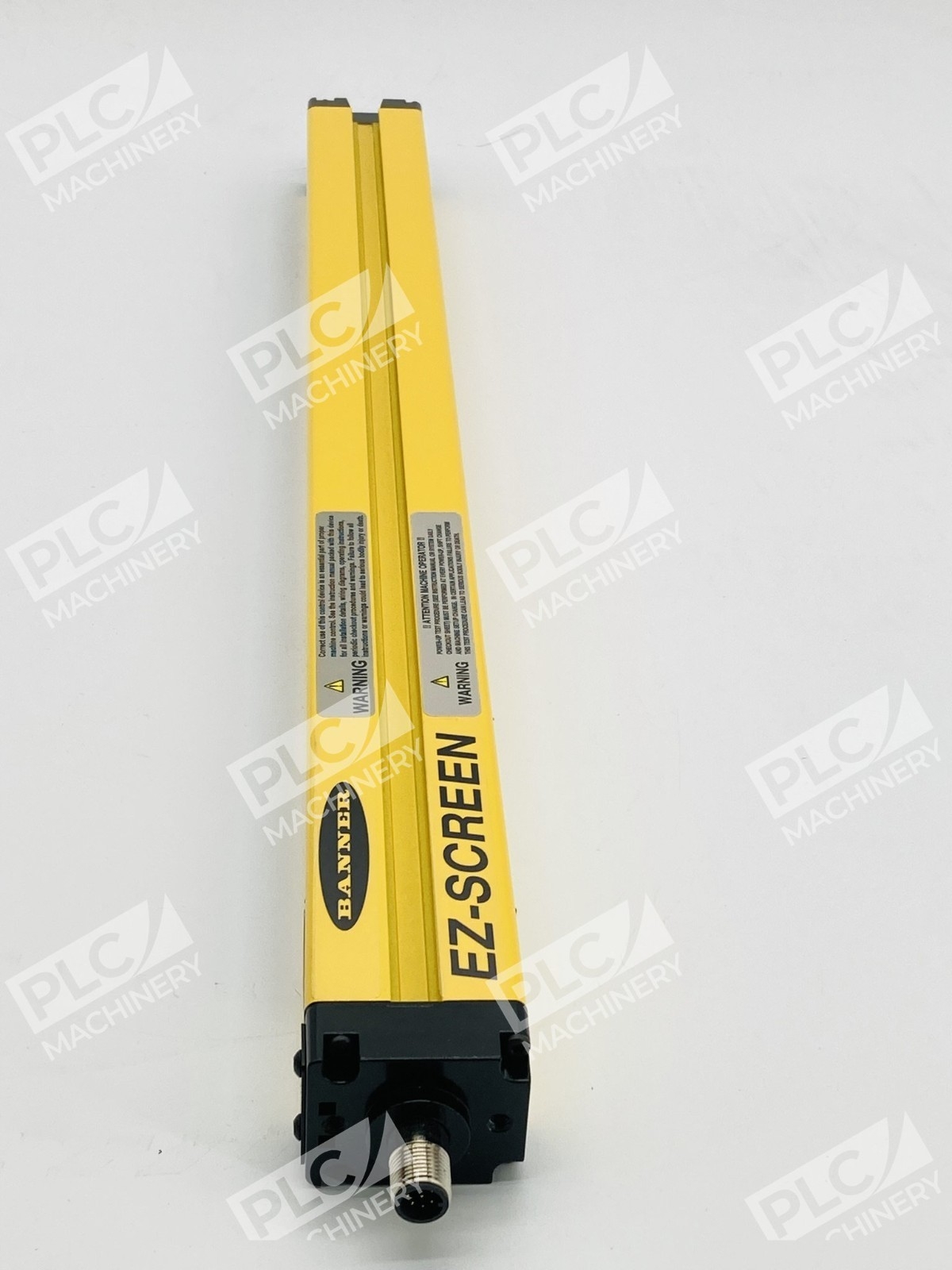

The Banner SLSE14-450Q8 is a redundant, microprocessor-controlled EZ-Screen safety light curtain emitter designed for point-of-operation machine safeguarding. This opposed-mode optoelectronic device produces a “curtain of light” using synchronized modulated infrared LEDs housed in a durable aluminum and metal end-cap design. The SLSE14-450Q8 operates with 14 mm resolution for finger, hand, and ankle protection in industrial automation and machine control applications.
Key Features
- 14 mm resolution for fine object detection
- 450 mm (17.7 in) defined area height with 60 infrared beams
- Operating range: 0.1 m to 6 m (4 in to 20 ft)
- Fast response time of 19 ms (Tr)

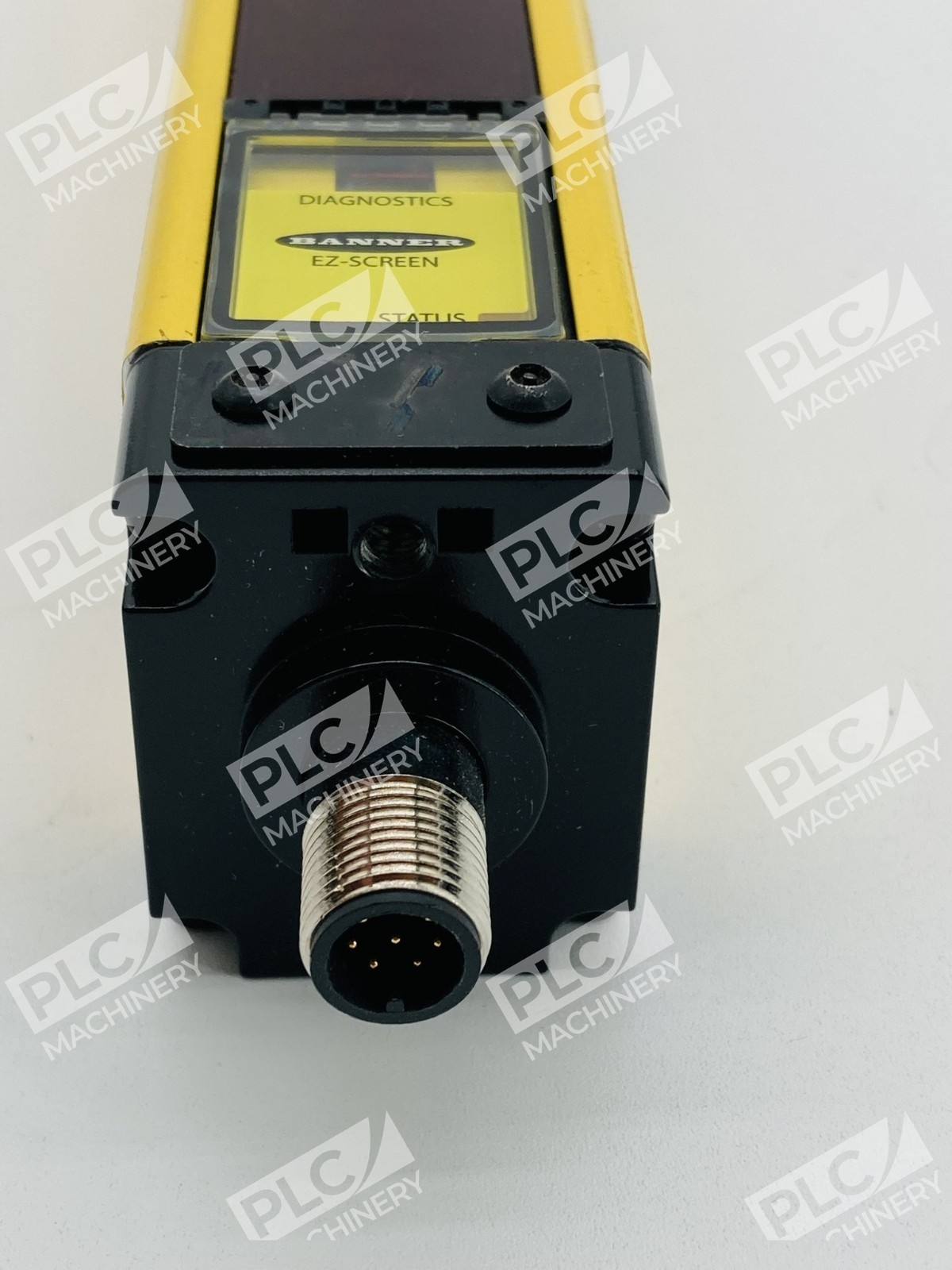

- 8-pin quick-disconnect (QD) connector for field wiring flexibility
- Aluminum housing with metal end caps for impact and abrasion resistance
- Highly immune to EMI, RFI, ambient light, weld flash, and strobe light
Technical Specifications
- Resolution: 14 mm
- Defined Area Height: 450 mm (17.7 in)
- Number of Beams: 60
- Sensing Range: 0.1 m to 6 m (4 in to 20 ft)
- Response Time (Tr): 19 ms
- Connector Type: 8-pin quick-disconnect (QD)
- Housing Material: Aluminum with metal end caps
- Light Source: Synchronized modulated infrared LEDs
- Detection Type: Finger, hand, and ankle protection
Typical Applications
The Banner SLSE14-450Q8 is widely used in machine safeguarding for:
- Press machine point-of-operation protection
- Assembly line personnel safety barriers
- Packaging machinery access guarding
- Industrial punch press and automation systems
- Manufacturing environments requiring reliable object detection
Compatibility & Replacements
Compatible With
- Banner EZ-SCREEN series receivers (SLSR14-150Q8, SLSR14-300Q8, SLSR14-450Q8, SLSR14-600Q8)
- Banner EZ-SCREEN 14 mm pair models (SLSP14-150Q88, SLSP14-300Q88, SLSP14-450Q88, SLSP14-600Q88)
- Standard industrial machine control systems with 24 VDC safety circuits
- Cascadeable with other EZ-SCREEN 14 mm emitter/receiver pairs for extended sensing areas
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The SLSE14-450Q8 is the current production emitter for the 450 mm EZ-SCREEN 14 mm resolution series.
Works With
- Banner EZ-SCREEN LS series control systems
- Safety-rated 24 VDC industrial power supplies
- Quick-disconnect connector cables (8-pin QD standard)
- Machine control relays and safety circuit modules
- IEC 61508/IEC 62061 compliant safety-rated systems
