Overview

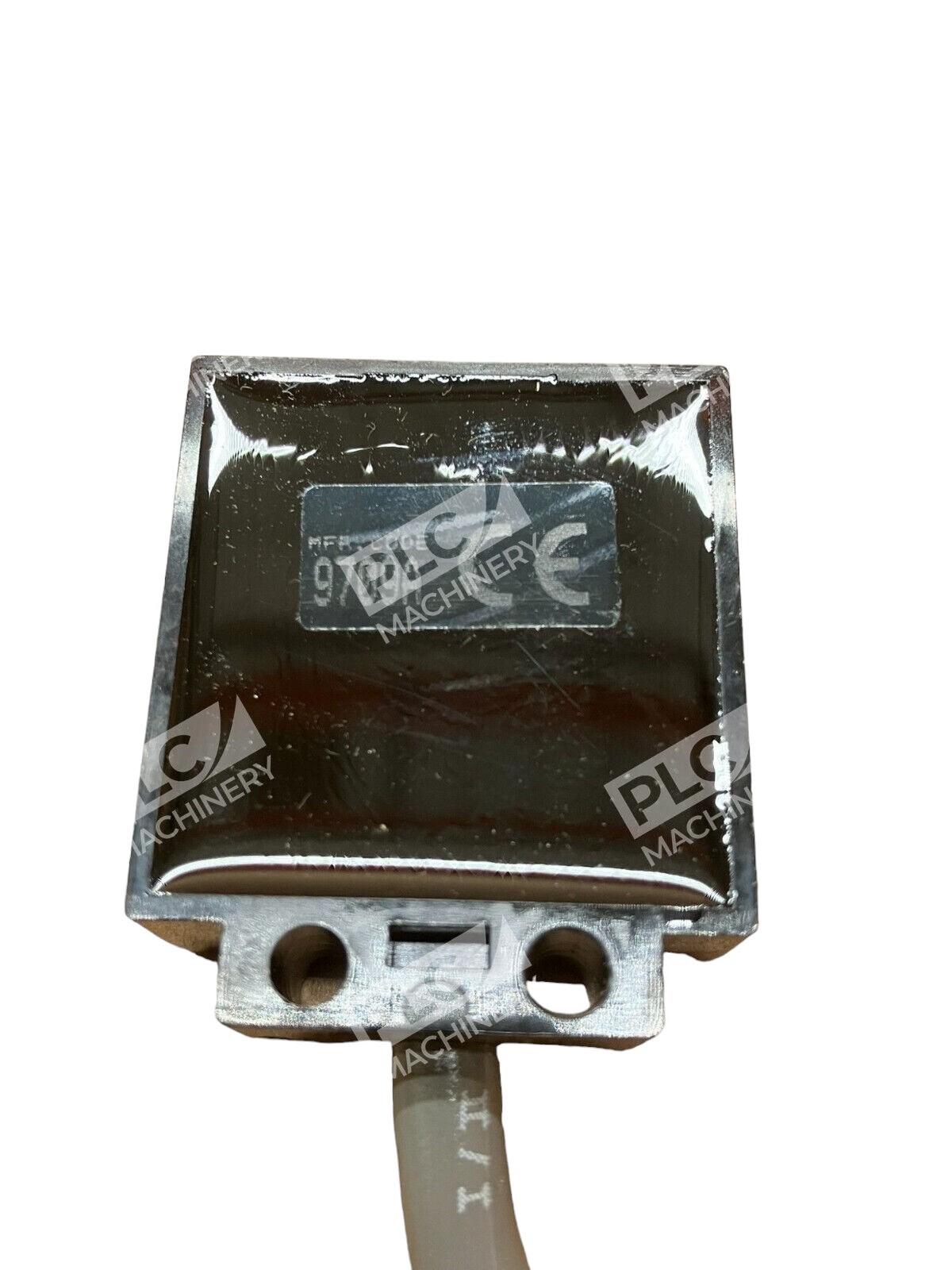

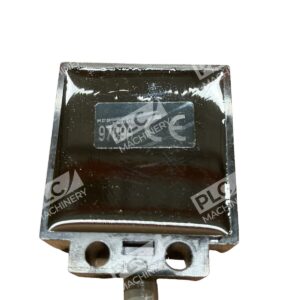

The Banner SE61R is an Econo-Beam photoelectric receiver engineered for straightforward through-beam applications requiring robust, low-maintenance sensing. The SE61 DC series self-contained miniature DC Sensor provides reliable sensing, primarily in straight-forward OEM applications. The sensor features totally solid-state and epoxy-encapsulated construction for unlimited life. This opposed-mode receiver pairs with an SE61T transmitter to detect objects blocking the infrared beam across a 1.8 m range.
Key Features
- Compact and rugged enough to withstand tough sensing environments
- EZ-BEAM technology with specially designed optics and electronics for reliable sensing without adjustments
- Bipolar output with 1 NPN and 1 PNP Light-Operate configuration

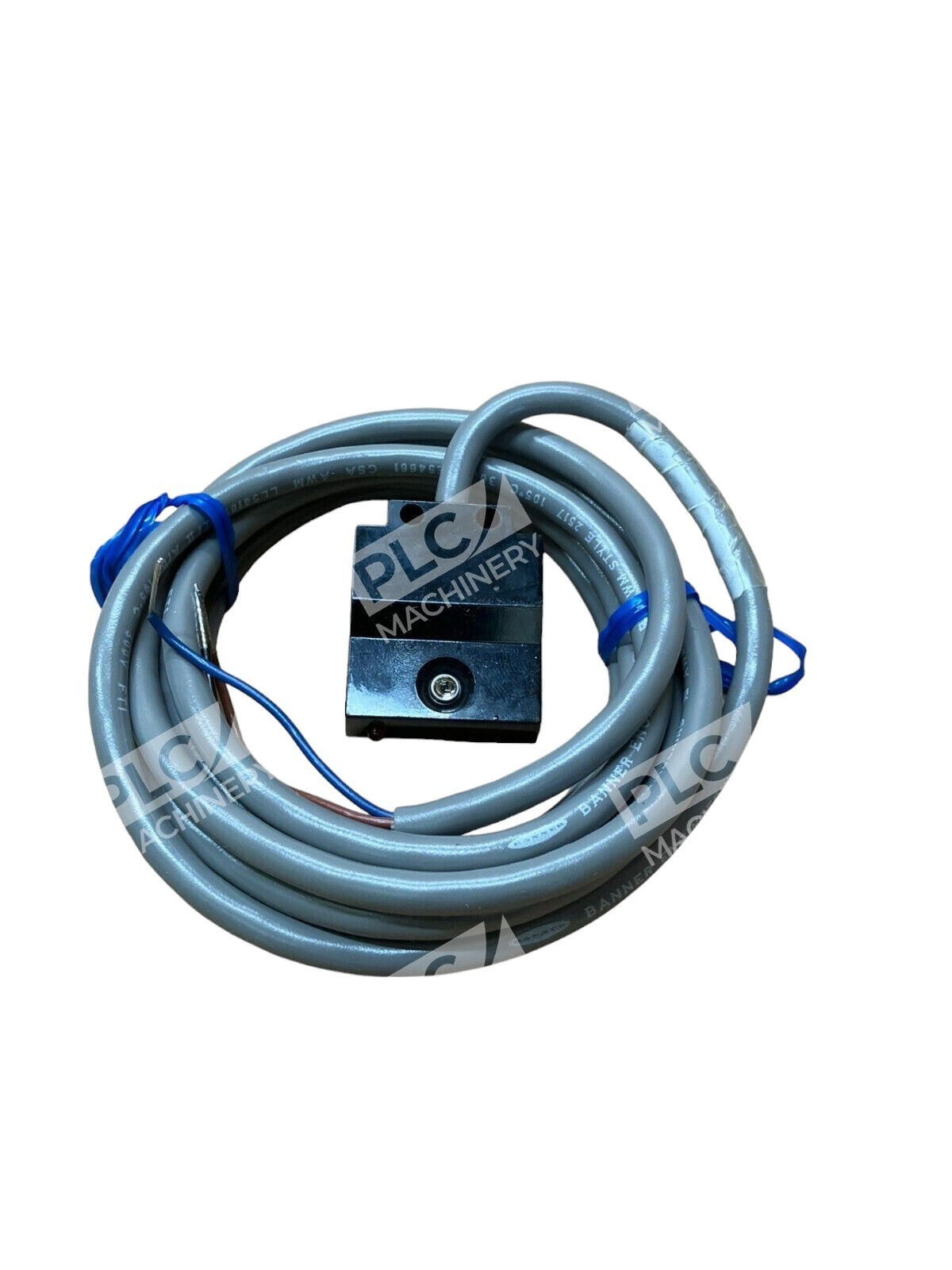

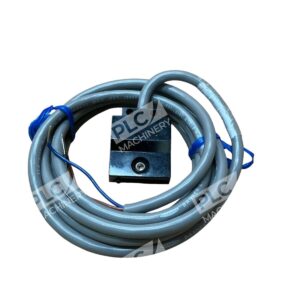

- 2 m (6.5 ft) pre-wired cable with flying leads for quick installation
- Right-angle design and unique shape ideal for mounting against conveyor side rails for flow control and product sensing
Technical Specifications
The SE61R receiver meets industrial duty requirements with solid-state construction and wide voltage input tolerance. Operating temperature range spans 0 to +50°C, making it suitable for climate-controlled factory environments. The epoxy encapsulation and NEMA 4X/IP66 rating ensure long life in washdown and contaminated areas.
Typical Applications
- Conveyor flow control and product detection
- Checkout stand and retail point-of-sale systems
- Assembly line part detection and counting
- Packaging machinery and label sensing
- OEM equipment requiring compact through-beam receivers
Compatibility & Replacements
Compatible With
- Banner SE61T transmitter (paired through-beam system)
- Banner Econo-Beam SE61 series emitter and receiver units
- Standard 10–30 VDC industrial control circuits
- NPN/PNP-input controllers and PLCs
- Industrial LED and audible alarm indicators
Replaces / Drop-In Replacement For

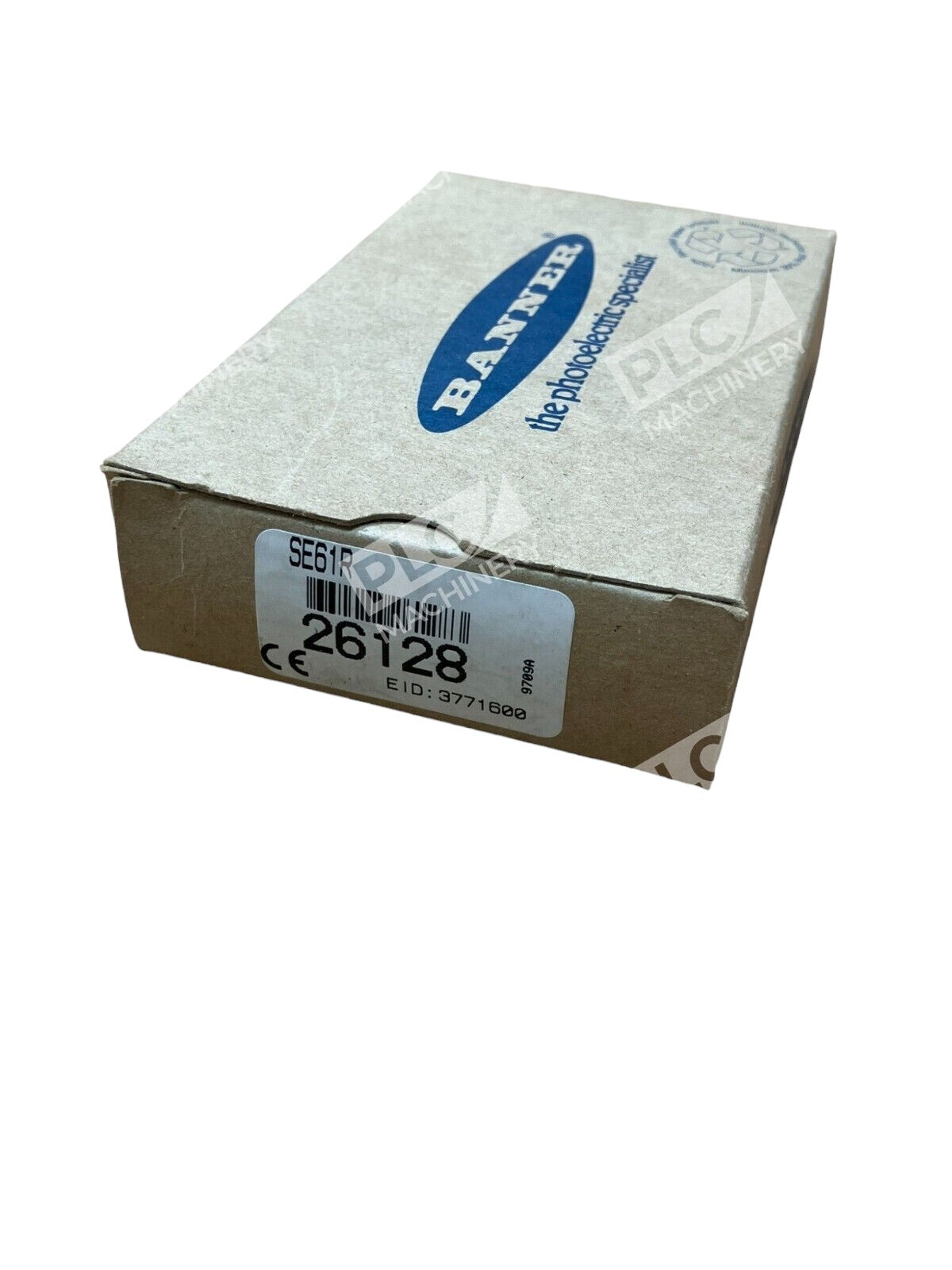

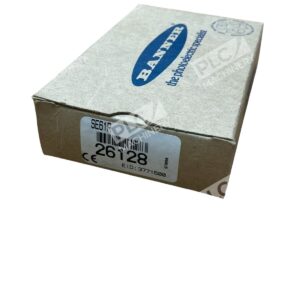

- Banner part number 26128 (equivalent model)
Works With
- Allen-Bradley, Siemens, Mitsubishi, Omron, and Schneider Electric PLCs with 24 VDC logic supply
- Standard NPN/PNP transistor input modules
- EtherNet/IP and PROFINET I/O nodes (via gateway or remote I/O coupler)
- Relay and contactor circuits rated for photoelectric sensor outputs
