Overview

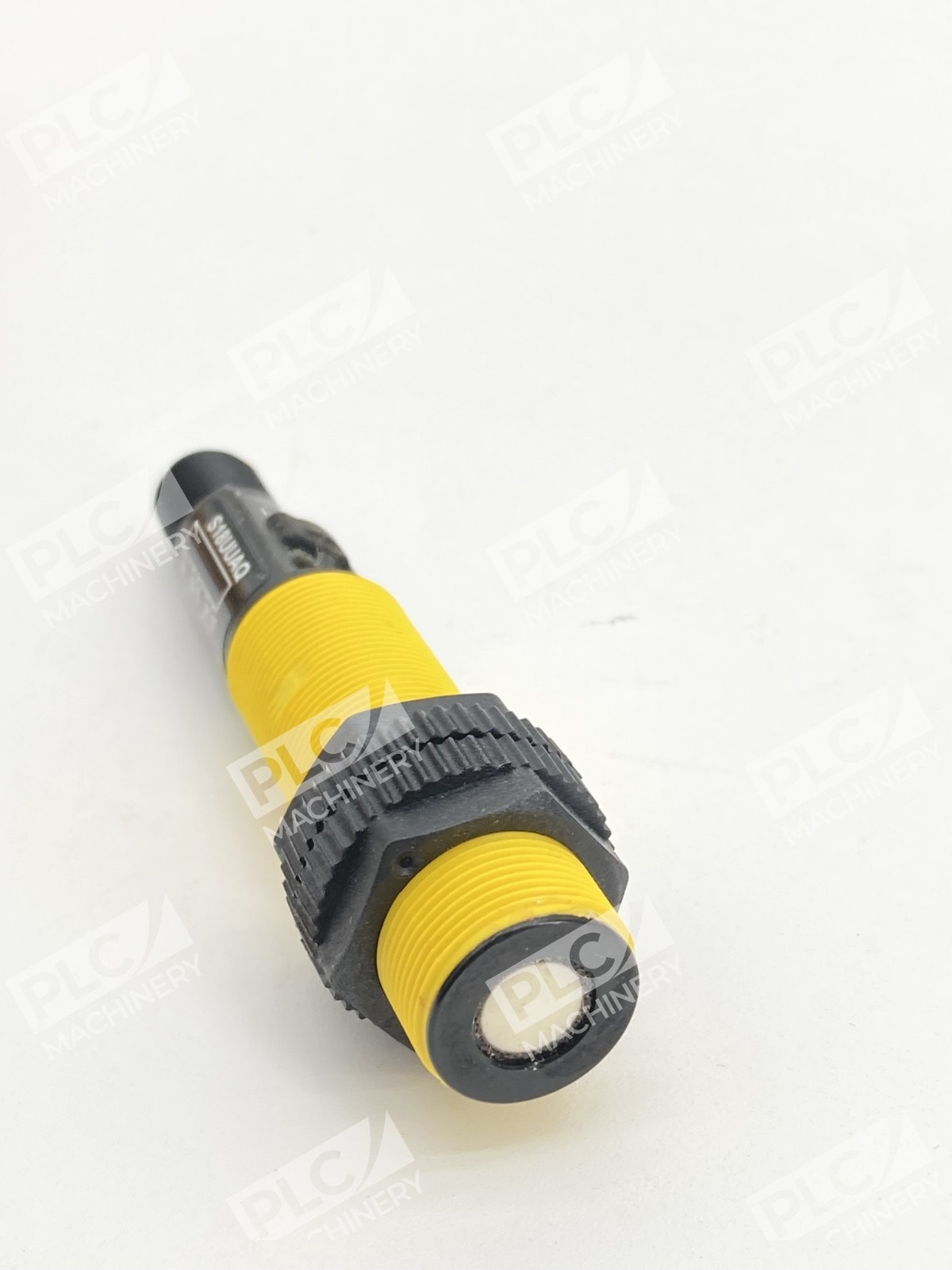

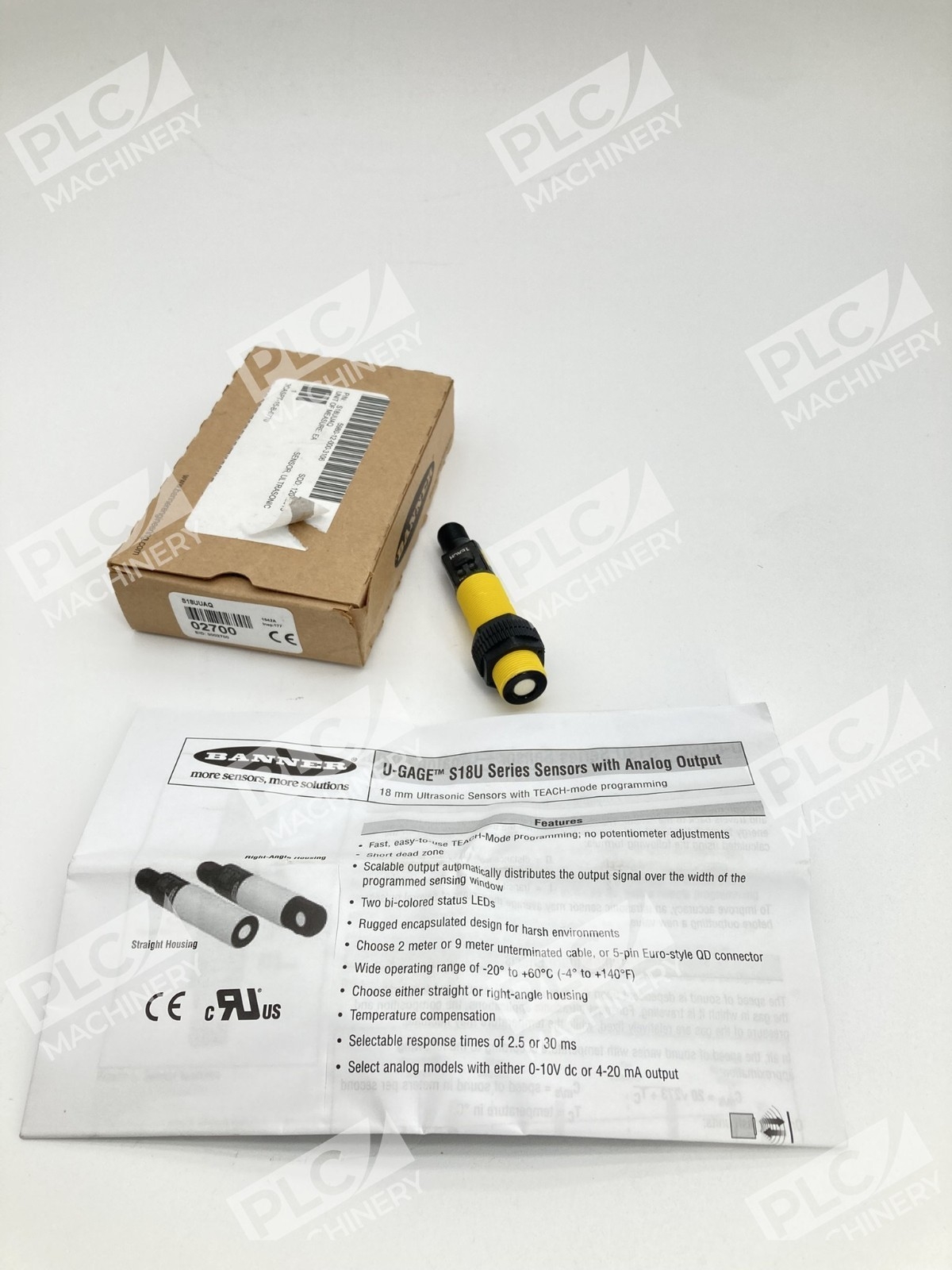

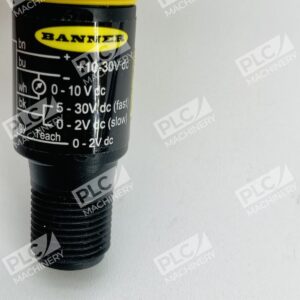

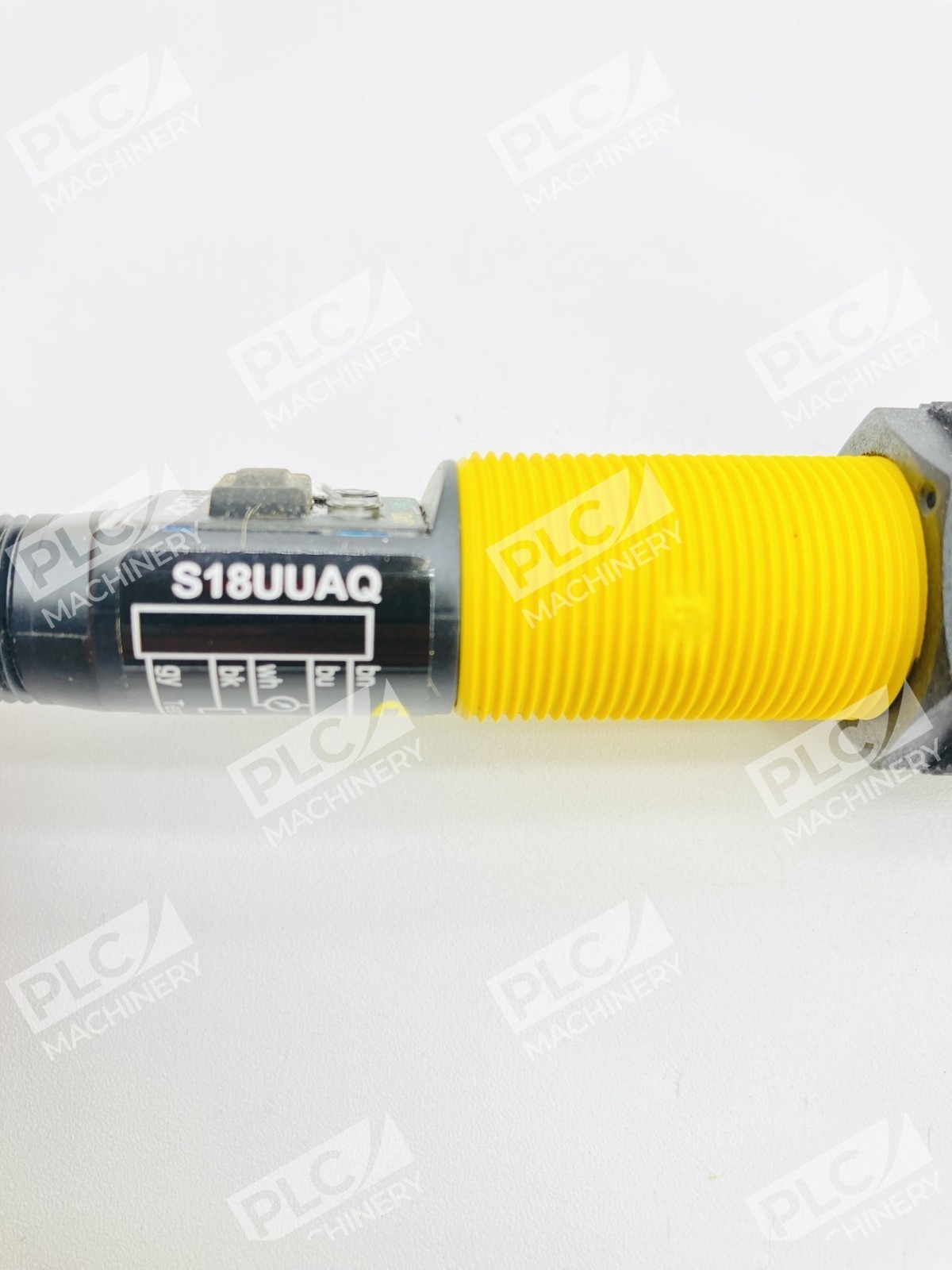

The Banner S18UUAQ is a compact ultrasonic sensor in the U-Gage S18U series, engineered for precise distance measurement and object detection in close-range industrial applications. It reliably detects opaque or translucent objects from 30 mm to 300 mm, making it ideal for presence sensing, level detection, and position monitoring. The S18U series ultrasonic sensors are temperature compensated, which reduces the error due to temperature by about 90%, and will maintain window limits to within 1.8% over the -20° to +60° C range.
Key Features
- High-accuracy close-range detection: Sensing range 30 mm to 300 mm (1.2″ to 11.8″) with stable analog output
- M12 quick-disconnect connector: 5-pin M12 quick-disconnect connector for fast field installation and replacement
- Analog output with scalable window: 0 V DC to 10 V DC output that automatically scales to programmed sensing window

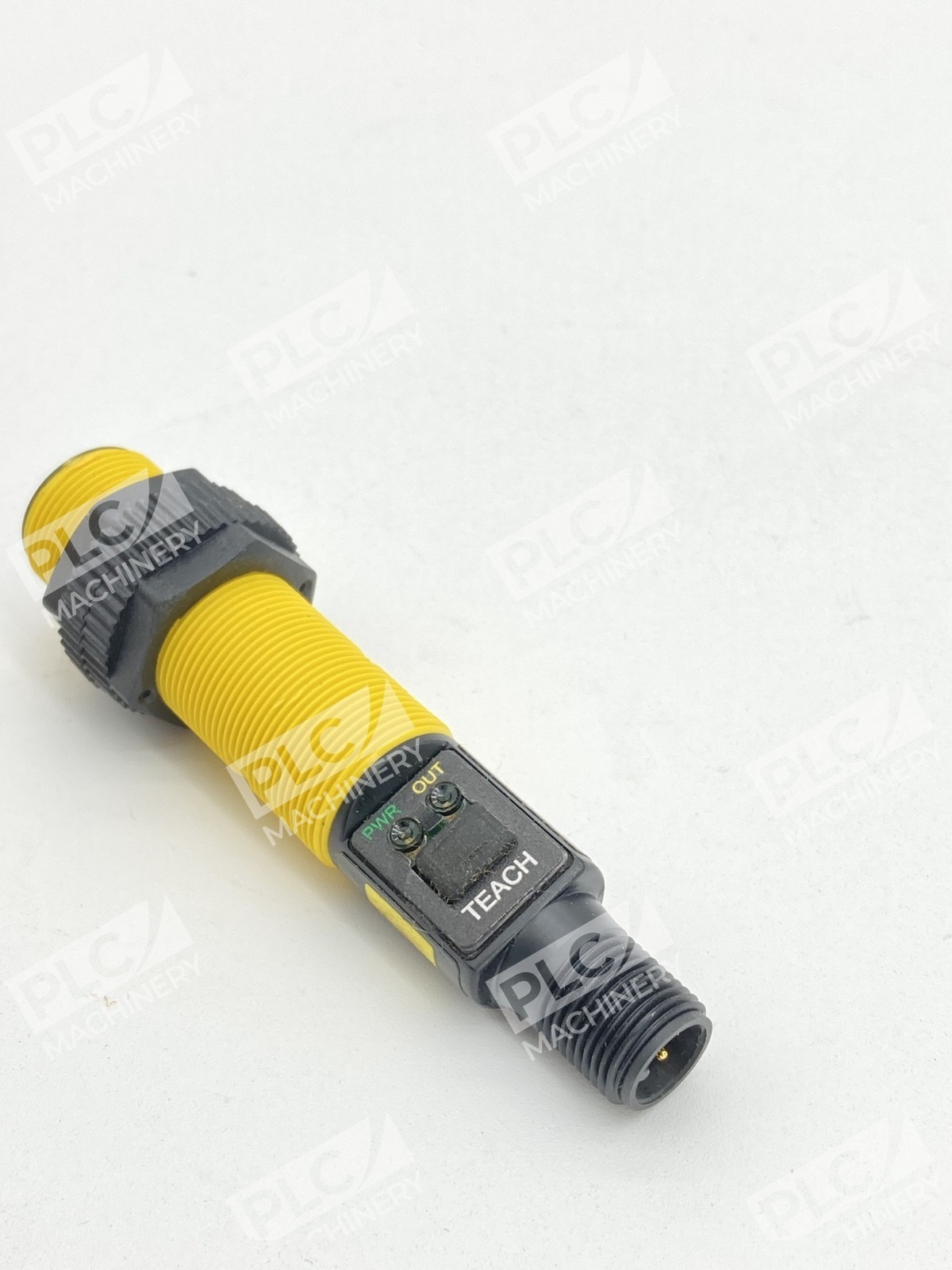

- Push-button TEACH programming: Two-step method to quickly set near and far limits without tools or external equipment
- Temperature-compensated accuracy: Maintains calibration across wide temperature ranges with minimal drift
- Signal loss detection: In the event of signal loss, the analog output goes to 3.6 mA or 0 V DC, which may be used to trigger an alarm
Technical Specifications
- Supply Voltage: 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing Range: 30 mm to 300 mm (1.2″ to 11.8″)
- Output Type: 0–10V DC analog

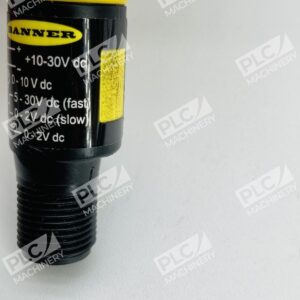

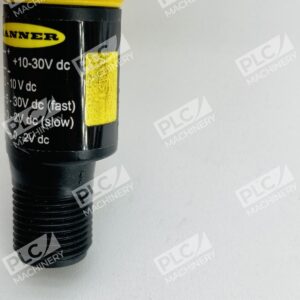

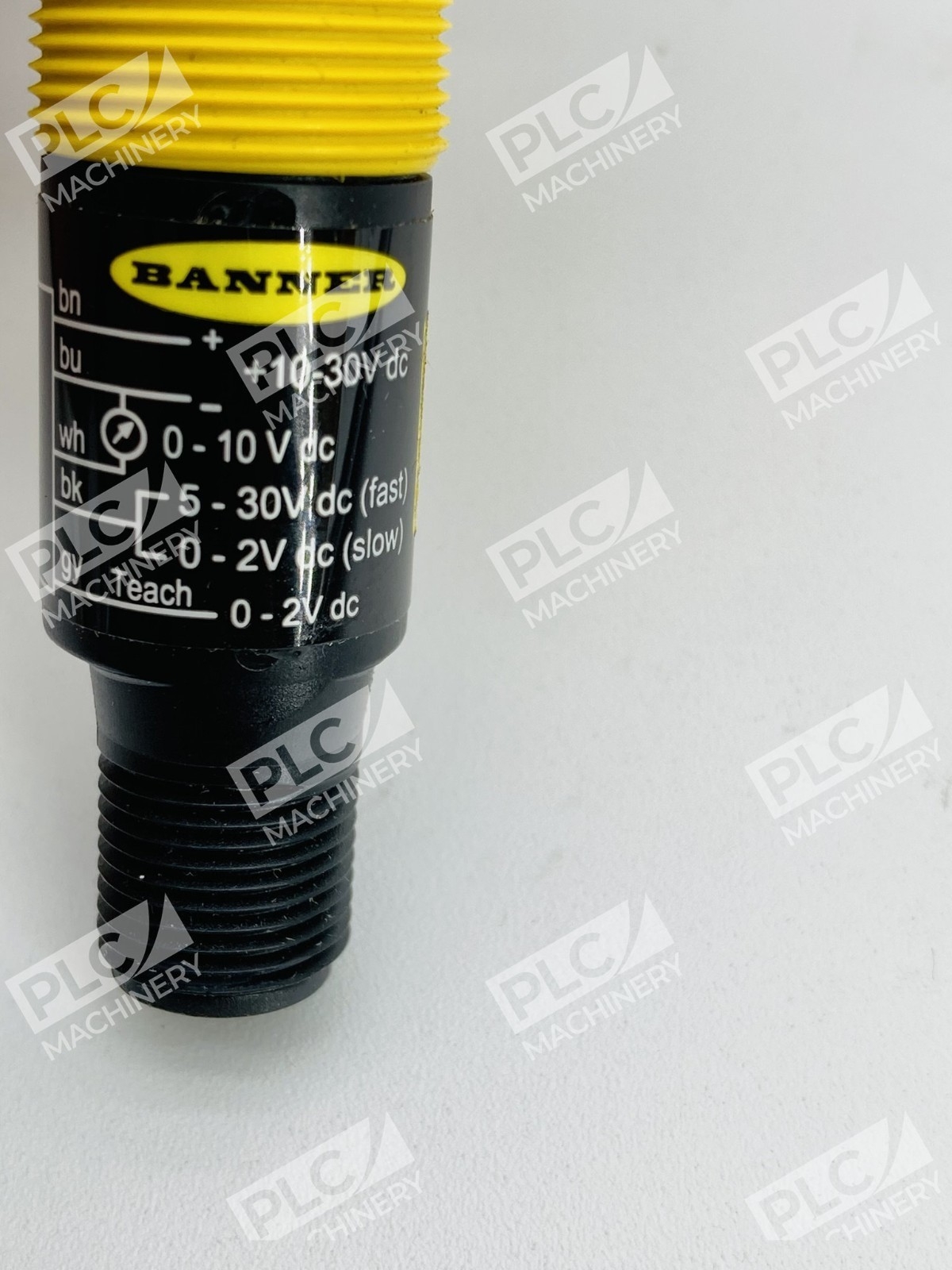

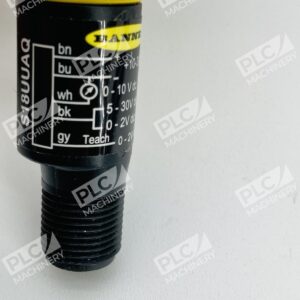

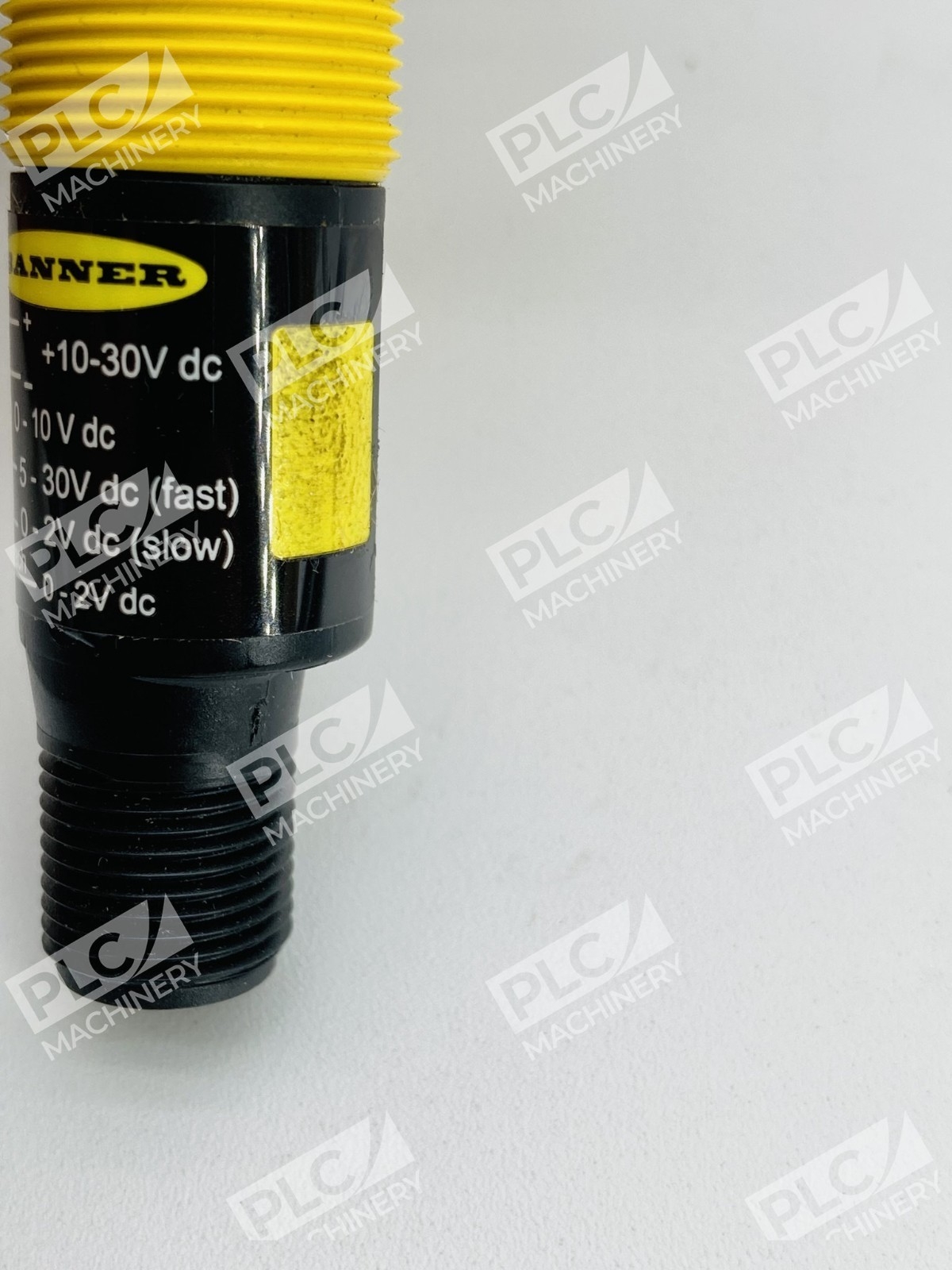

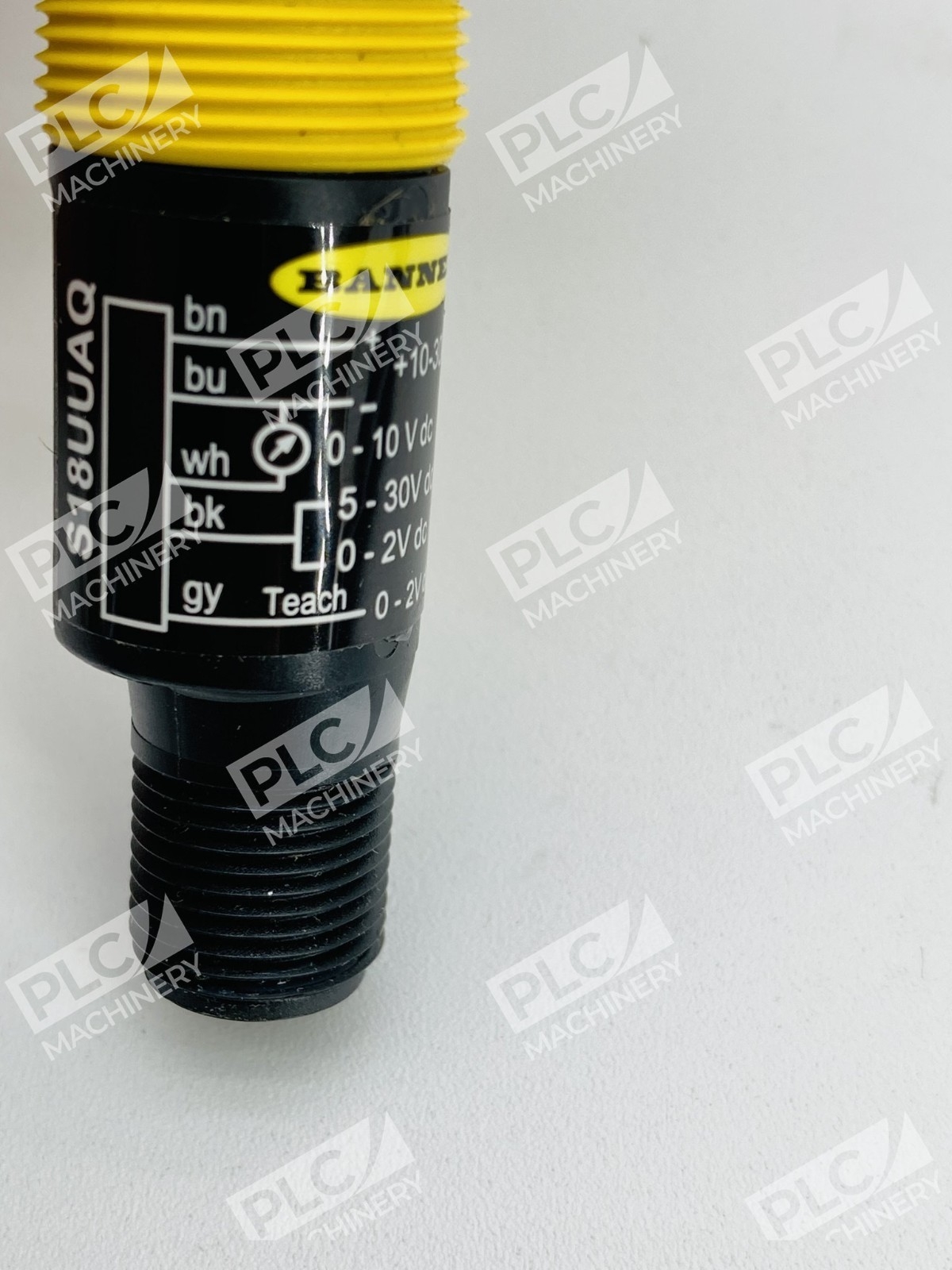

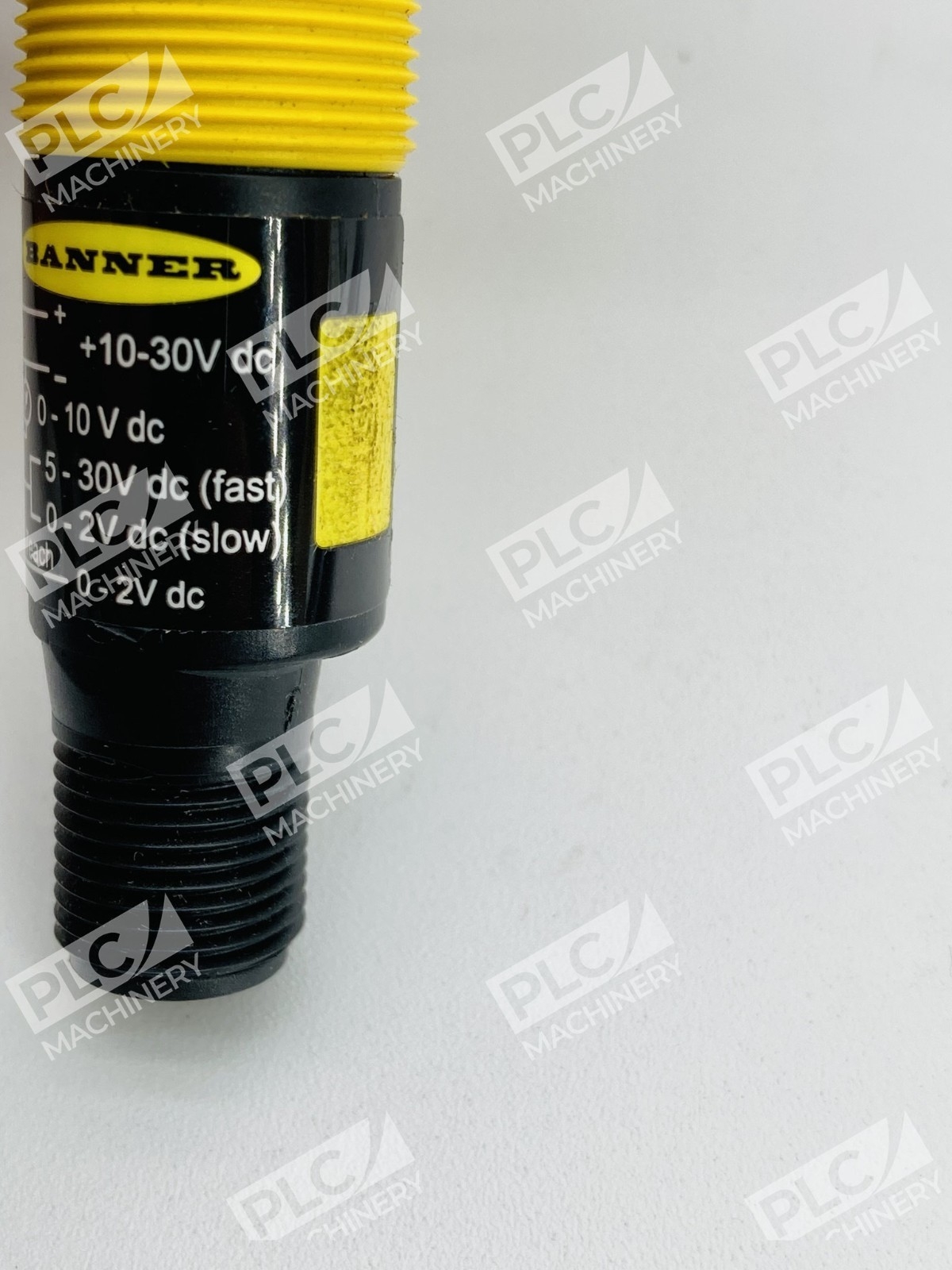

- Connector: 5-pin M12 quick-disconnect connector
- Cable Length: Not applicable (M12 QD model)
- Transmission Frequency: 300kHz
- Housing: Straight barrel (M18 x 1 thread mount)
- Operating Temperature: -20° to +60° C (−4° to +140° F)
- Temperature Warmup Drift: Less than 1.7% of sensing distance after power-up; within 0.3% after 10 minutes
- Warranty: One year from Banner Engineering Corp.
Typical Applications
The Banner S18UUAQ excels in industrial automation and motion control where consistent, accurate distance measurement is critical:
- Material level detection and bin-full sensing
- Product presence and absence detection on conveyors
- Position monitoring for automated assembly and packaging machinery
- Liquid level control in tanks and reservoirs
- Proximity sensing for machine safety and guarding systems
- Part counting and sorting in manufacturing environments
Compatibility & Replacements
Compatible With
- All standard 24 V DC industrial control systems
- PLC and PAC systems with 0–10V analog input modules (Allen-Bradley, Siemens, Mitsubishi, Omron)
- DAQ systems and analog signal conditioning modules
- Industrial automation controllers with 10–30V DC power supplies
- M12 A-coded mating connectors and quick-disconnect cables
Replaces / Drop-In Replacement For
The Banner S18UUAQ can replace other Banner S18U straight-housing analog models with identical pinout and performance. Verify connector type and cable configuration before substitution.
- S18UUA (cabled version, same sensor with 2 m cable)
- Other U-Gage S18U straight-barrel models in the same output family
Works With
- M12 QD Cables: Standard M12 A-coded 5-pin quick-disconnect cables up to 30 m available via suffix “W/30”
- Mounting: M18 x 1 internal thread; optional SMB18SF aluminum mounting bracket available
- PLC / HMI Software: Any analog input card capable of reading 0–10V signals (Studio 5000, TIA Portal, GX Works, Sysmac Studio, etc.)
- Configuration: Push-button TEACH method or remote wire pulse programming (0.04–0.8 sec pulse duration)
