Overview

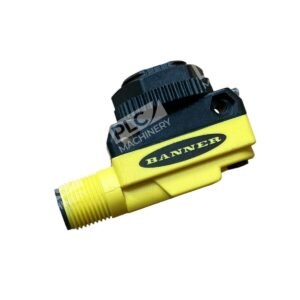

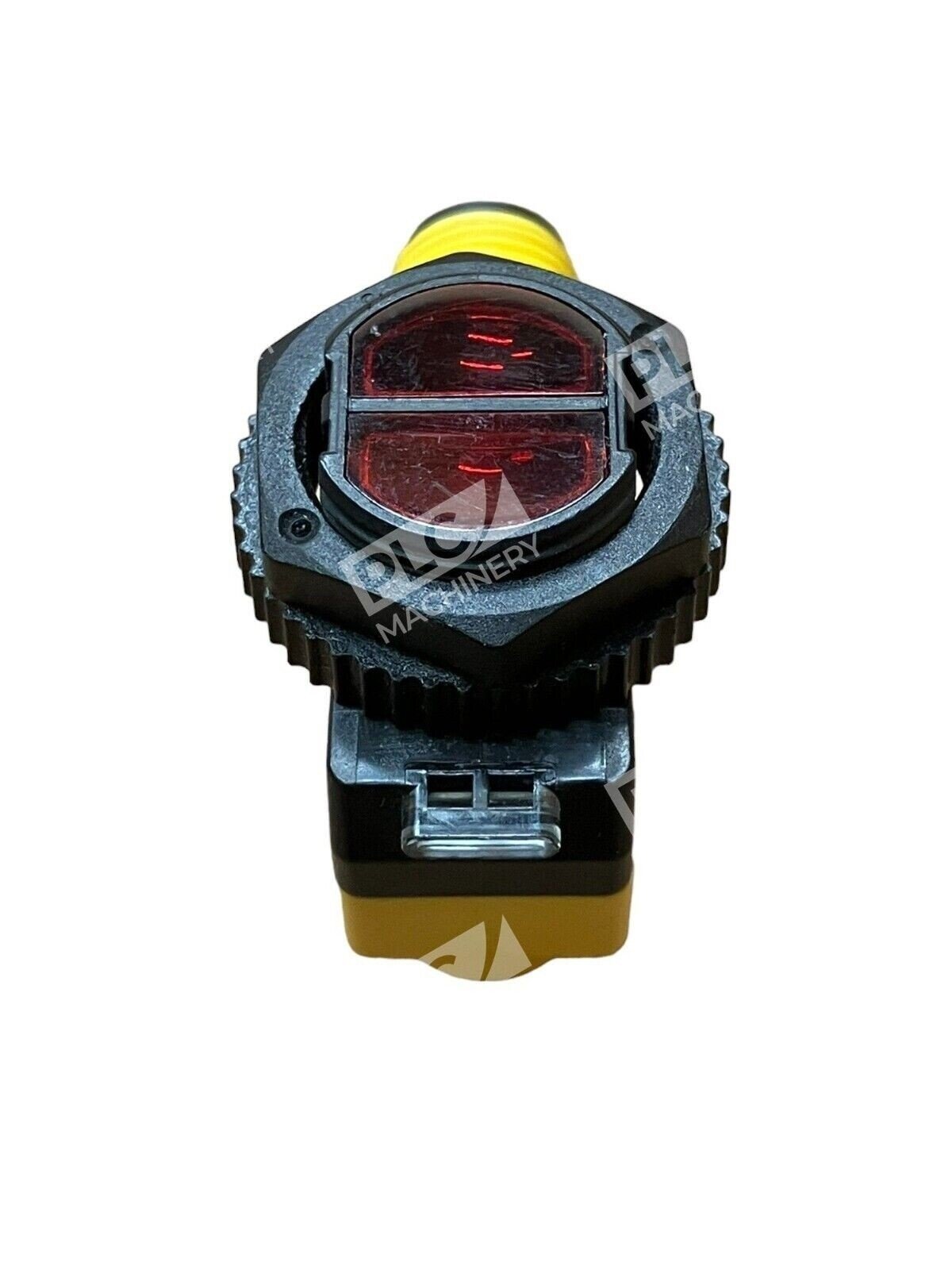

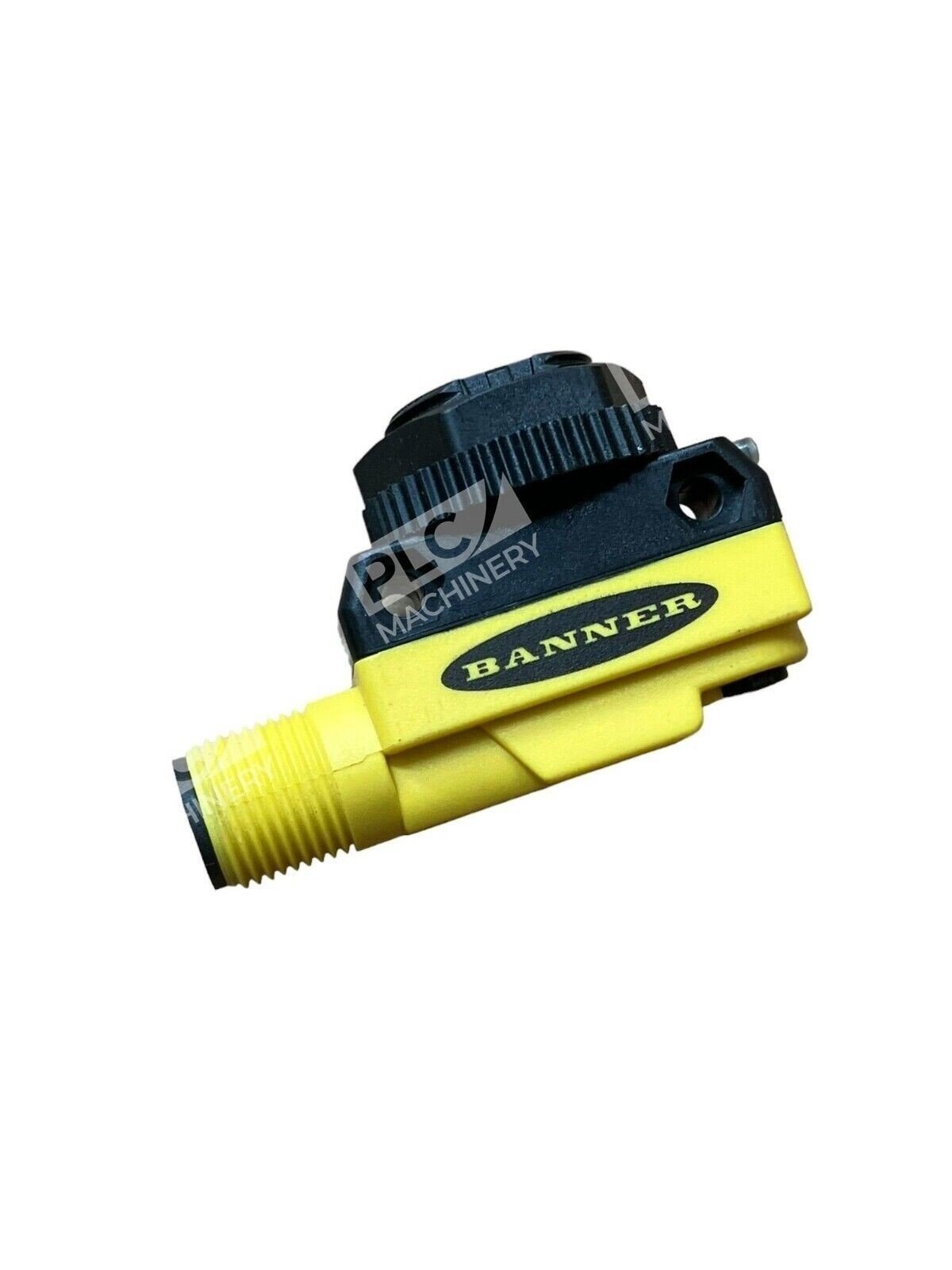

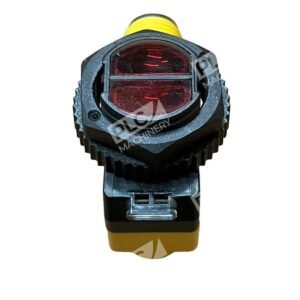

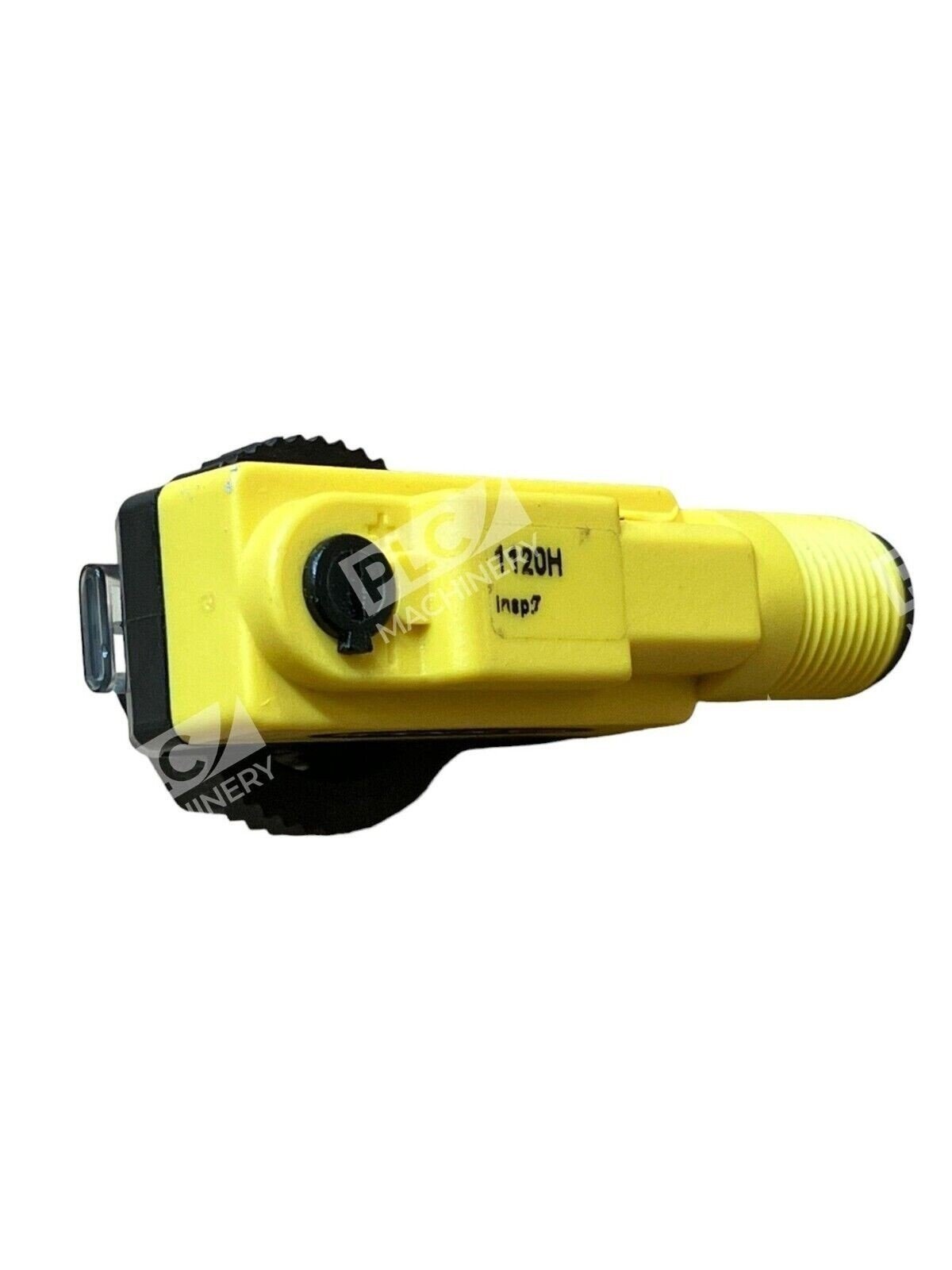

The Banner QS18VN6DQ8 is a diffuse-mode photoelectric sensor from Banner Engineering’s WORLD-BEAM QS18 series. Built for industrial automation and factory floor applications, this sensor delivers 450 mm sensing range with 10-30 VDC NPN solid-state output. The M12 integral quick-disconnect (QD) connector ensures fast, tool-free installation and replacement. Diffuse sensing mode makes it ideal for detecting opaque objects without requiring a retroreflector.
Key Features
- 450 mm (17.7 in) diffuse sensing range for reliable object detection
- 10-30 VDC input voltage with NPN complementary solid-state output

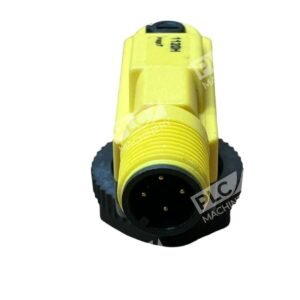

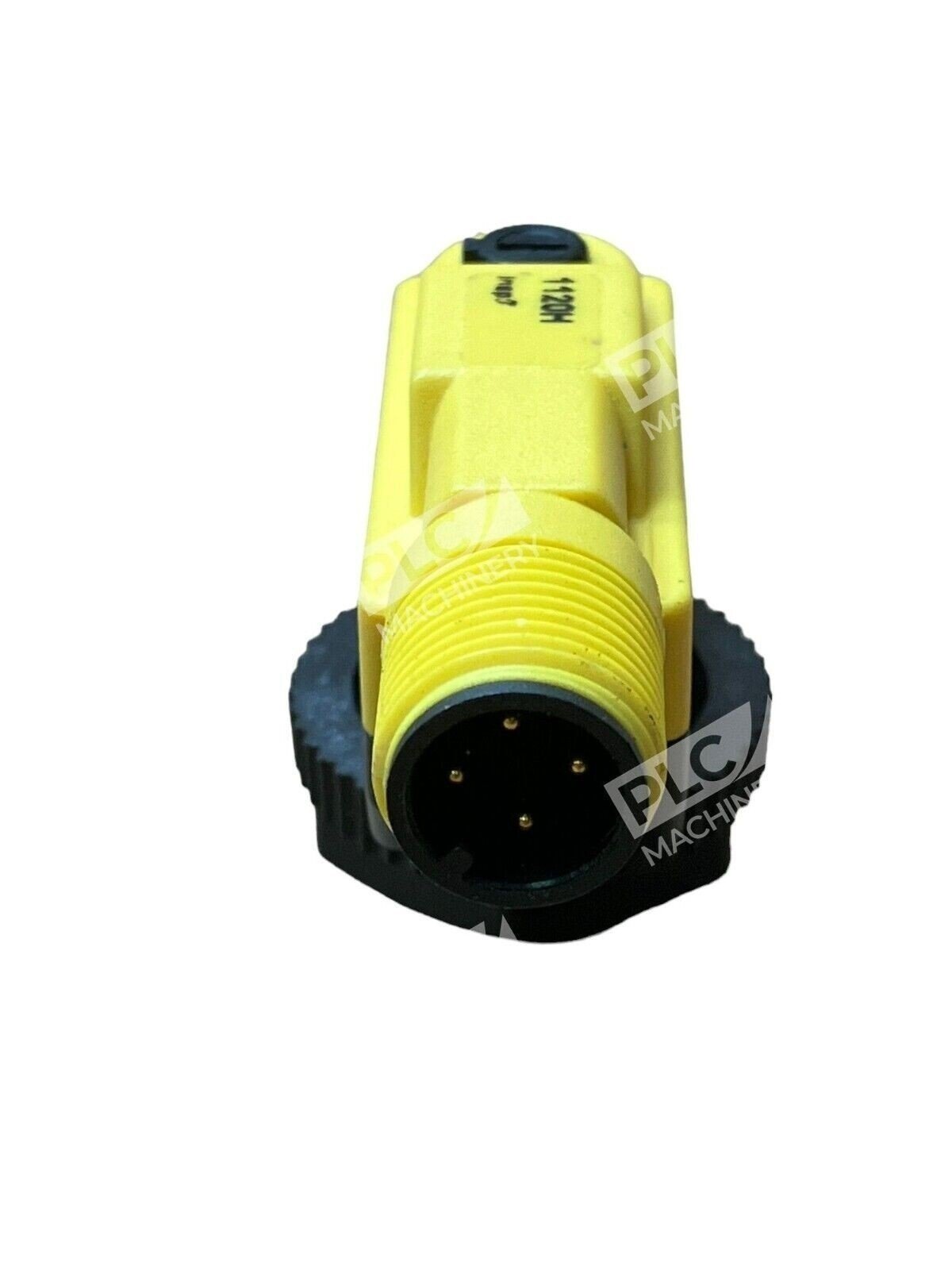

- M12 integral quick-disconnect connector for fast field installation
- IP67 rated enclosure for wash-down and harsh environments
- NEMA 4X stainless steel housing option for corrosive applications
- Universal 18 mm threaded barrel design replaces hundreds of legacy sensors
Technical Specifications
- Sensing Mode: Diffuse
- Sensing Range: 450 mm (17.7 in)
- Input Voltage: 10-30 VDC
- Output Type: NPN Complementary Solid-State
- Connector: M12 Integral Quick-Disconnect (QD)
- IP Rating: IP67
- NEMA Rating: NEMA 4X
- Housing Material: Stainless steel
- Barrel Diameter: 18 mm
- Weight: 1.72 lbs (0.78 kg)
Typical Applications
- Conveyor belt object detection and positioning
- Packaging and labeling line presence sensing
- Material handling and stack height detection
- Automated assembly line quality control
- Container and carton detection on production lines
- Washdown environments and food processing systems
Compatibility & Replacements
Compatible With
- Banner Q-series PLC and controller systems
- Industrial automation platforms supporting 10-30 VDC NPN sensors
- Rockwell CompactLogix and ControlLogix systems
- Siemens S7-1200 and S7-1500 with appropriate input modules
- Mitsubishi, Omron, and Schneider Electric controllers
- Standard M12 Quick-Disconnect sensor networks
Replaces / Drop-In Replacement For
- Legacy 18 mm threaded barrel photoelectric sensors across most brands
- Banner QS18 series variants with different sensing modes or ranges
- Generic diffuse sensors with M12 connectors and similar voltage ratings
Works With
- M12 Quick-Disconnect field-installable connectors
- 5-pin and 4-pin M12 standard connector interfaces
- EtherNet/IP networks via Banner gateway modules
- PROFINET and other industrial Ethernet protocols
- 20+ year sensor library for upgrades and legacy system retrofits
