Overview

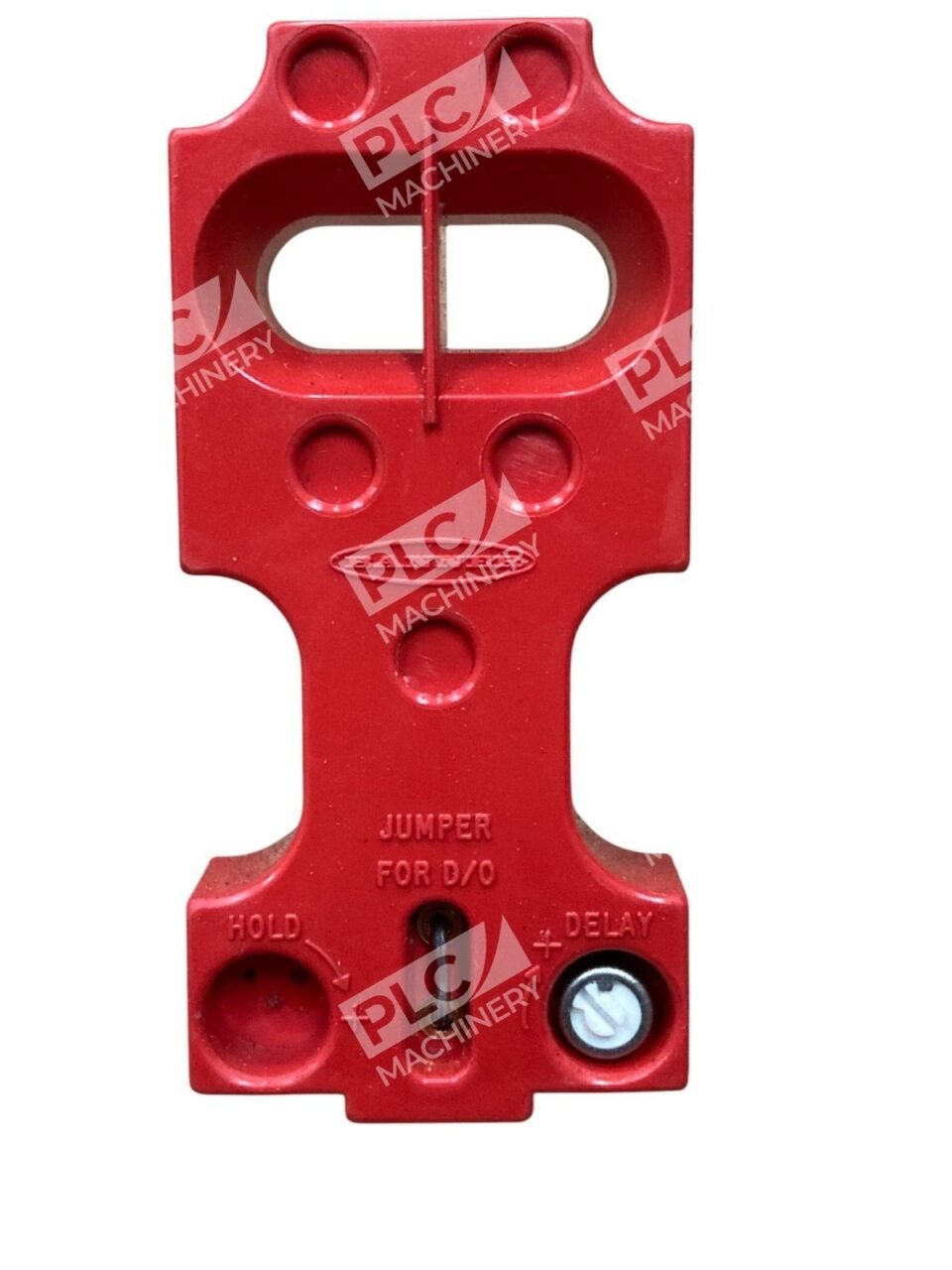

The Banner LM5 16294 is a Multi-Beam logic module designed as part of Banner Engineering’s modular photoelectric sensor architecture. This on-delay logic module electrically and mechanically interconnects the power block and scanner block, providing precise timing control for automation and process monitoring. The LM5 16294 is ideal for applications requiring detection of extended beam blockage or signal presence verification before output activation.
Key Features
- On-delay timing function with field-adjustable range from 0.15 to 15 seconds

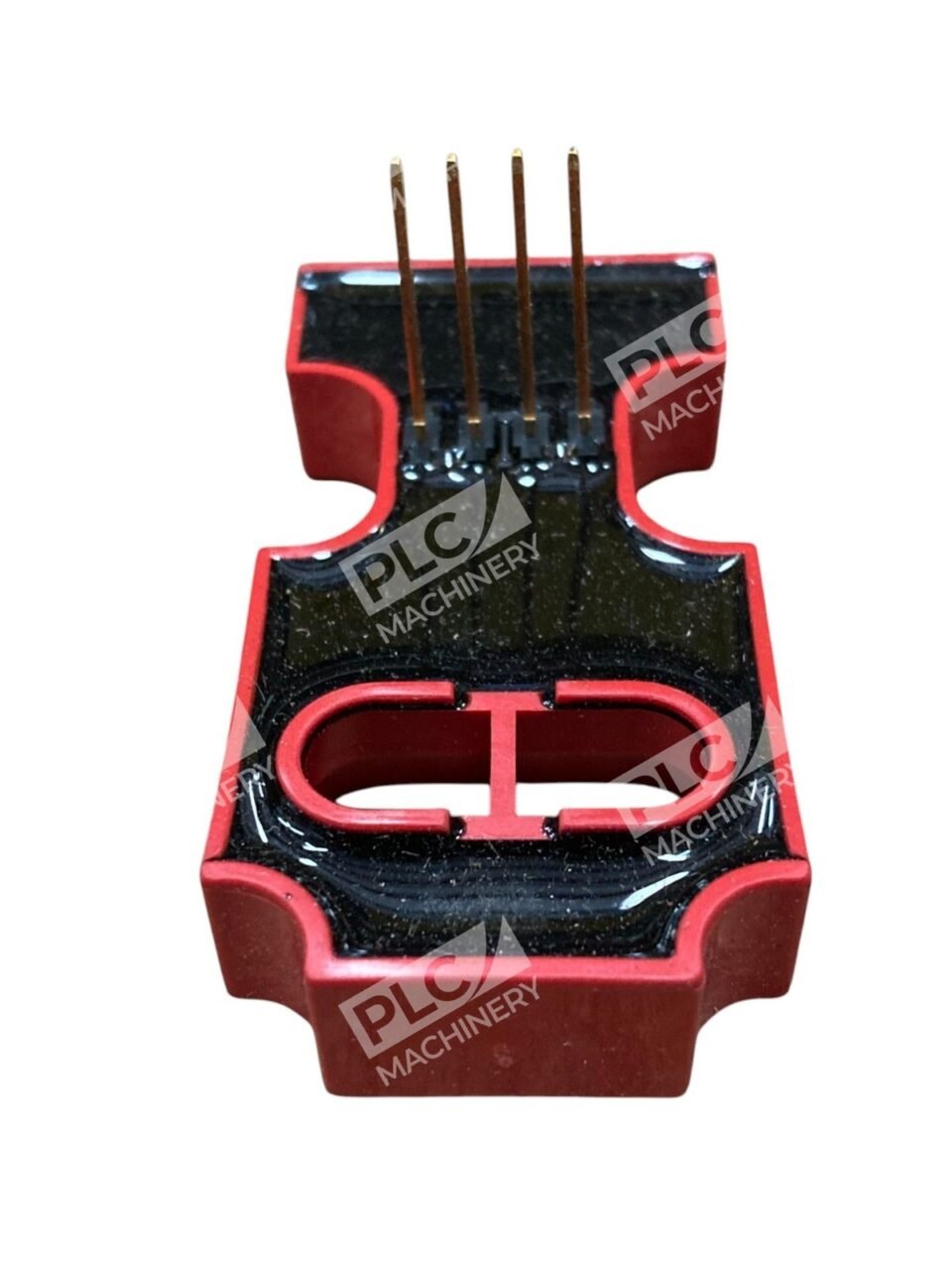

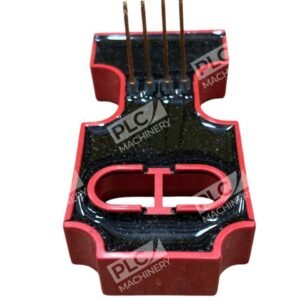

- Interconnects power block and scanner block using blade-and-socket connector

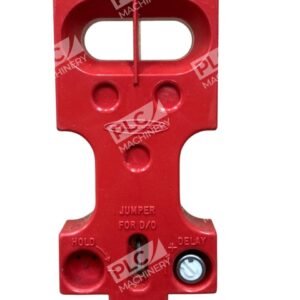

- Light/Dark operate selection via included jumper wire
- Rugged, corrosion-resistant VALOX® housing (NEMA 1, 3, 12, 13 rated)
- Solid-state design for unlimited operational life
- Integrates seamlessly with Banner Multi-Beam sensor families
Technical Specifications
| Timing Function | On-Delay |
| Adjustable Time Range | 0.15 to 15 seconds (field adjustable) |
| Connector Type | Blade-and-Socket Interconnect |
| Operating Logic | Input signal required for preset duration before output energizes |
| Housing Material | VALOX® (corrosion-resistant) |
| NEMA Rating | NEMA 1, 3, 12, 13 |
| UL/CSA Certification | Yes (as part of complete sensor assembly) |
| Part Number | 16294 |
| Manufacturer | Banner Engineering |
Typical Applications
- Conveyor Jam Detection: Detects blockage by monitoring beam interruption duration
- Product Presence Verification: Confirms sustained signal presence before triggering downstream logic
- Fill-Level Monitoring: Monitors reservoir or container levels with beam sensing
- Intermittent Load Control: Manages solenoids and motors with time-delay activation
- Quality Assurance: Validates product position and dwell time at sensing points
Compatibility & Replacements
Compatible With
- Banner Multi-Beam scanner blocks (all series)
- Banner Multi-Beam power blocks (3-wire and 4-wire models)
- Modular photoelectric sensor assemblies using blade-and-socket connectors
- Industrial control systems requiring on-delay logic timing
Replaces / Drop-In Replacement For
- OEM replacement for Banner LM5 16294 logic modules in existing sensor systems
- Compatible with identical part number installations only; verify scanner and power block compatibility before replacement
Works With
- Banner Multi-Beam sensor architecture (Scanner Block + Power Block + Logic Module configuration)
- PLC systems with standard 3-wire and 4-wire photoelectric inputs
- All Banner Multi-Beam optional fiber optic cables and mounting brackets
- General industrial automation control systems
