Overview

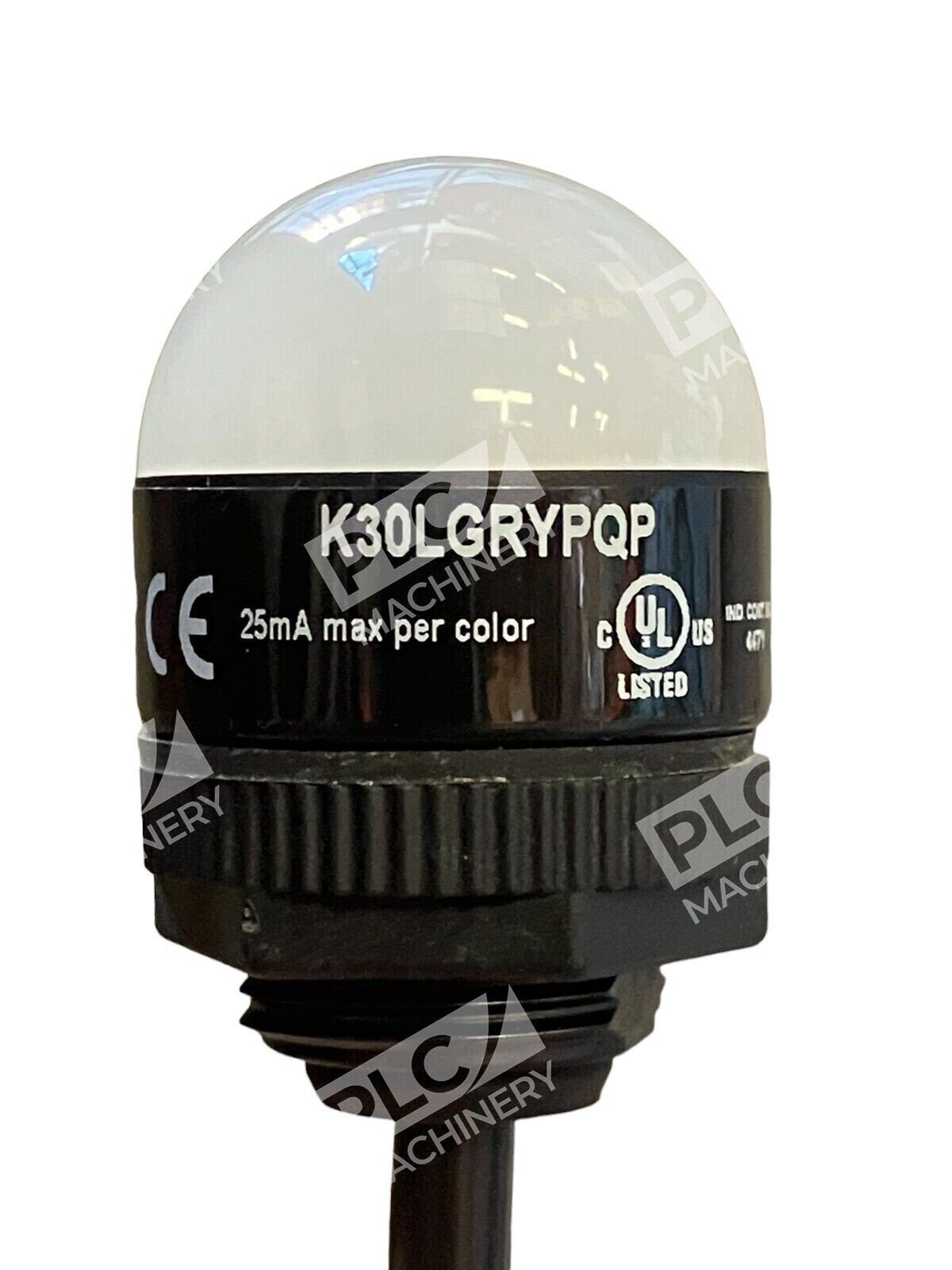

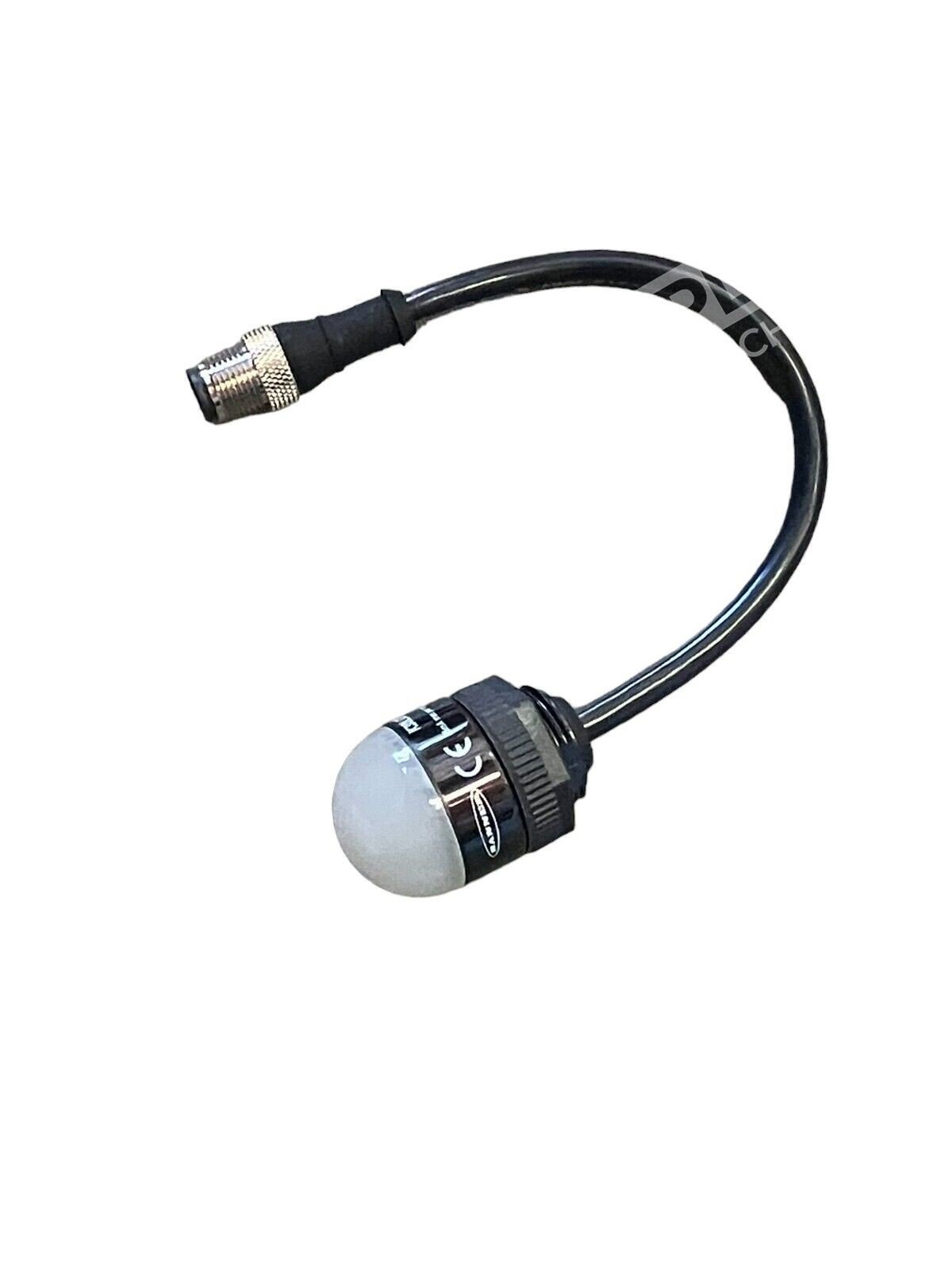

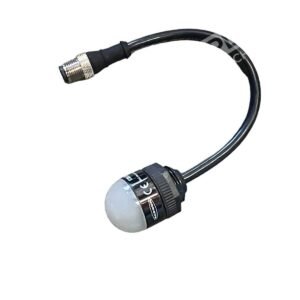

The Banner K30LGRYPQP is a general-purpose 30mm tri-color LED indicator designed for industrial control panels and machine status monitoring. This compact unit combines green, red, and yellow LED elements in a single polycarbonate housing, with 10-30V DC supply voltage and PNP input control. The K30 EZ-LIGHT series offers energy-efficient operation with typical LED life of 100,000 hours, making it a reliable choice for continuous or intermittent signaling applications.
Key Features
- Three-color LED in one housing: Green, red, and yellow light elements enable multi-status indication
- IP67 rated design: Fully encapsulated polycarbonate housing resists dust, moisture, and pressure washdown
- 10-30V DC supply: Wide voltage range supports common industrial power supplies (nominal 12V/24V)
- PNP input control: Individual control wire for each color; max 1ms response time
- 150mm pigtail connector: Pre-assembled M12 Euro-style quick-disconnect connector simplifies installation
- Low power consumption: Efficient LED technology reduces heat and power draw
Technical Specifications
- 30mm dome-shaped thermoplastic housing with 22.5mm (M22 x 1.5) threaded mounting
- Supply voltage: 10–30V DC (nominal 12V, 24V)
- Input type: PNP (positive logic)
- Number of input conductors: 4 (common, green, red, yellow)

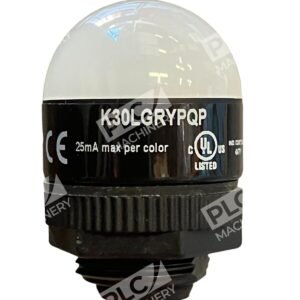

- Max current per color: 25mA
- Max input response time: 1ms
- IP rating: IP67, IP69K
- Color options: Green (solid), Red (solid), Yellow (solid)

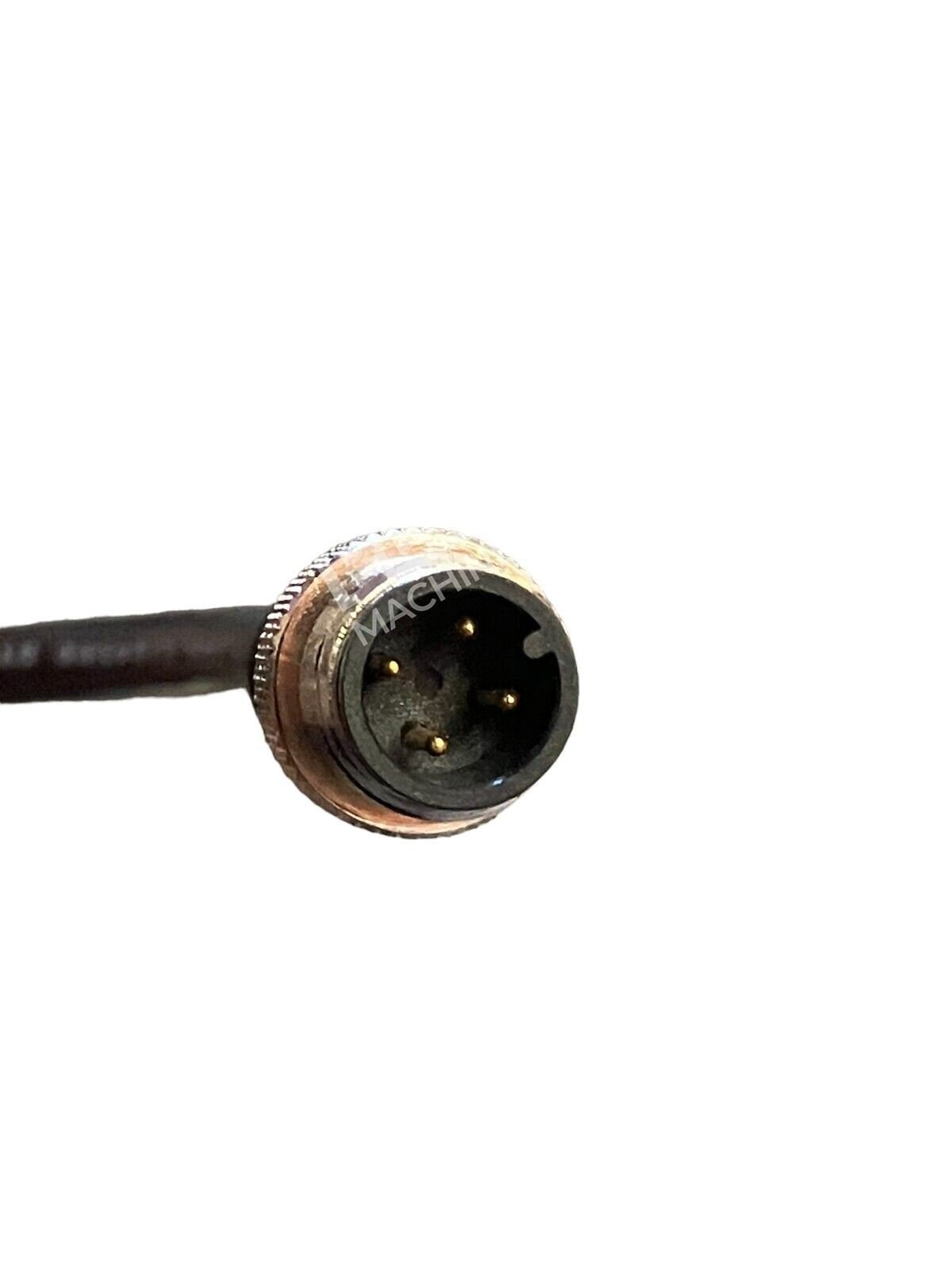

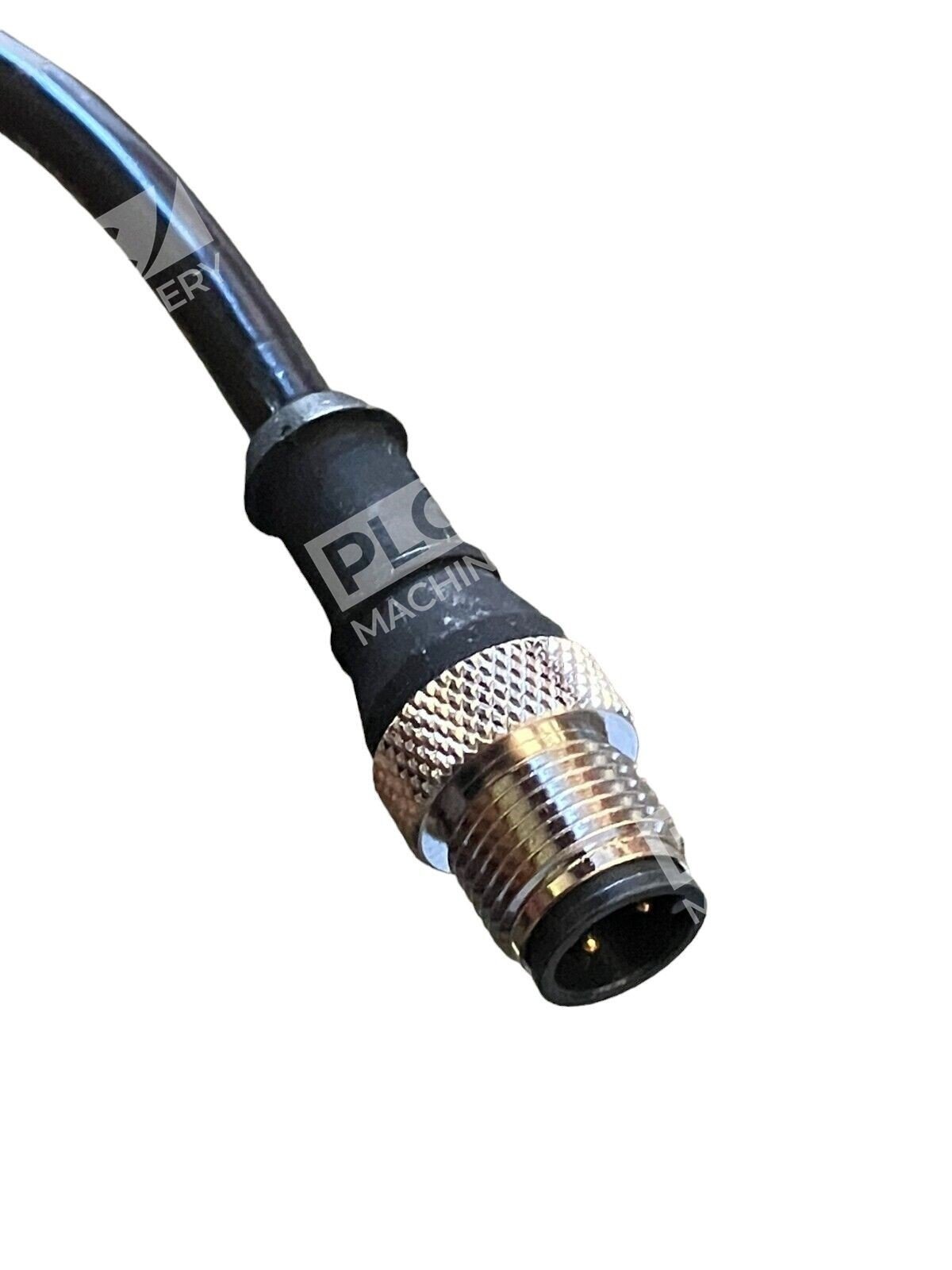

- Connector: M12 Euro-style quick-disconnect, integral 150mm PVC pigtail
- Typical LED life: 100,000 hours
- Operating temperature: See datasheet for specific range

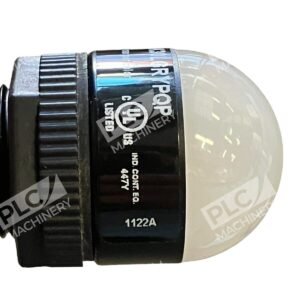

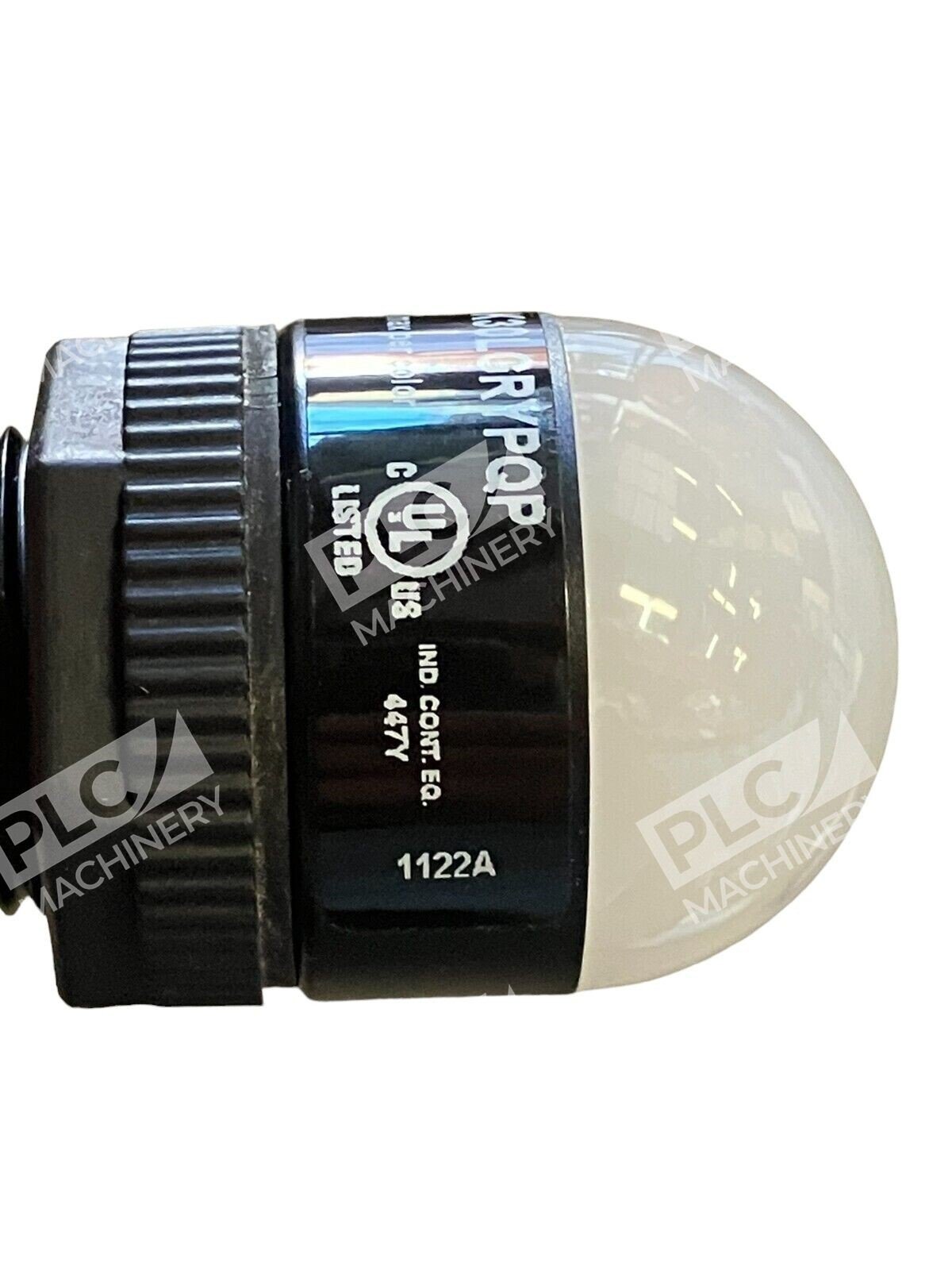

- Certifications: UL 4X, NEMA 4X, 13
- Physical dimensions: 30.0 × 57.0mm (dome × height)
Typical Applications
- Machine status indication (run, stop, alarm, warning)
- Production line progress monitoring
- Process equipment operational state display
- Control panel and enclosure status lights
- Industrial automation system visual feedback
- Safety-critical status signaling in manufacturing environments
Compatibility & Replacements
Compatible With
- Allen-Bradley PLCs and control systems with 10-30V DC output modules
- Siemens SIMATIC PLC systems with compatible digital output cards
- Mitsubishi FX, Q-series, and A-series PLC outputs
- Omron CP/CJ-series controllers with 24V DC output modules
- Schneider Electric Modicon M241/M251 and TM series with 24V DC outputs
- Any industrial controller with PNP or open-collector NPN outputs capable of sourcing 25mA per color at 10-30V DC
- Standard industrial control panels and enclosures with M22 mounting provisions
Replaces / Drop-In Replacement For
- K30LGRYPQ (integral M12 quick-disconnect, no pigtail) – same specifications, different connector termination
- K30LGRYP (2m integral cable instead of 150mm pigtail) – same LED colors and electrical specs
- Other 30mm tri-color indicators requiring M22 × 1.5 mounting and 10-30V DC PNP control
Works With
- PLC software: Studio 5000 (Allen-Bradley), TIA Portal (Siemens), GX Developer/GX Works (Mitsubishi), CX-Programmer (Omron), SoMachine (Schneider)
- Communication protocols: EtherNet/IP, PROFINET, CC-Link, MODBUS TCP, CANopen (via appropriate controller modules)

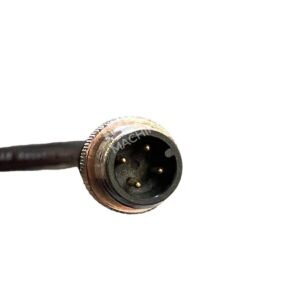

- Connector ecosystem: M12 A-coded, 4-pin Euro-style quick-disconnect plugs and sockets
- Accessories: M12 cordsets, mounting brackets, extension cables, and adapter connectors from Banner and compatible vendors
