Overview

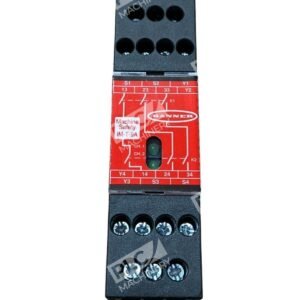

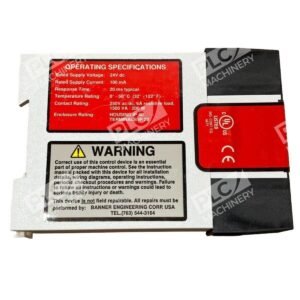

The Banner IM-T-9A interface module is a safety relay designed to expand the switching capability of low-voltage primary safety devices such as safety light curtains and safety scanners with external device monitoring (EDM) functionality. This relay module increases the output switching current capacity to 6 amps, enabling safe control of higher-load safety circuits while maintaining forced-guided contact architecture for failure detection.
Key Features
- Three normally open (3NO) redundant output channels — each rated for 250V ac/dc at 6 amps
- 24V dc supply voltage with ±15% tolerance; 100 mA rated supply current
- Forced-guided (mechanically-linked) contacts — allows primary safety device to detect module failures
- 20 millisecond response time — output relay contacts open within 20 ms of safety input opening
- Dual green status LEDs — indicate output status of internal relays K1 and K2
- Removable terminal blocks — simplifies installation and maintenance
- DIN rail mounting — compact 22.5 mm width for standard cabinet installation
- Safety Category 4 / PL Rating e / SIL 3 — meets ISO 13849-1 and functional safety standards

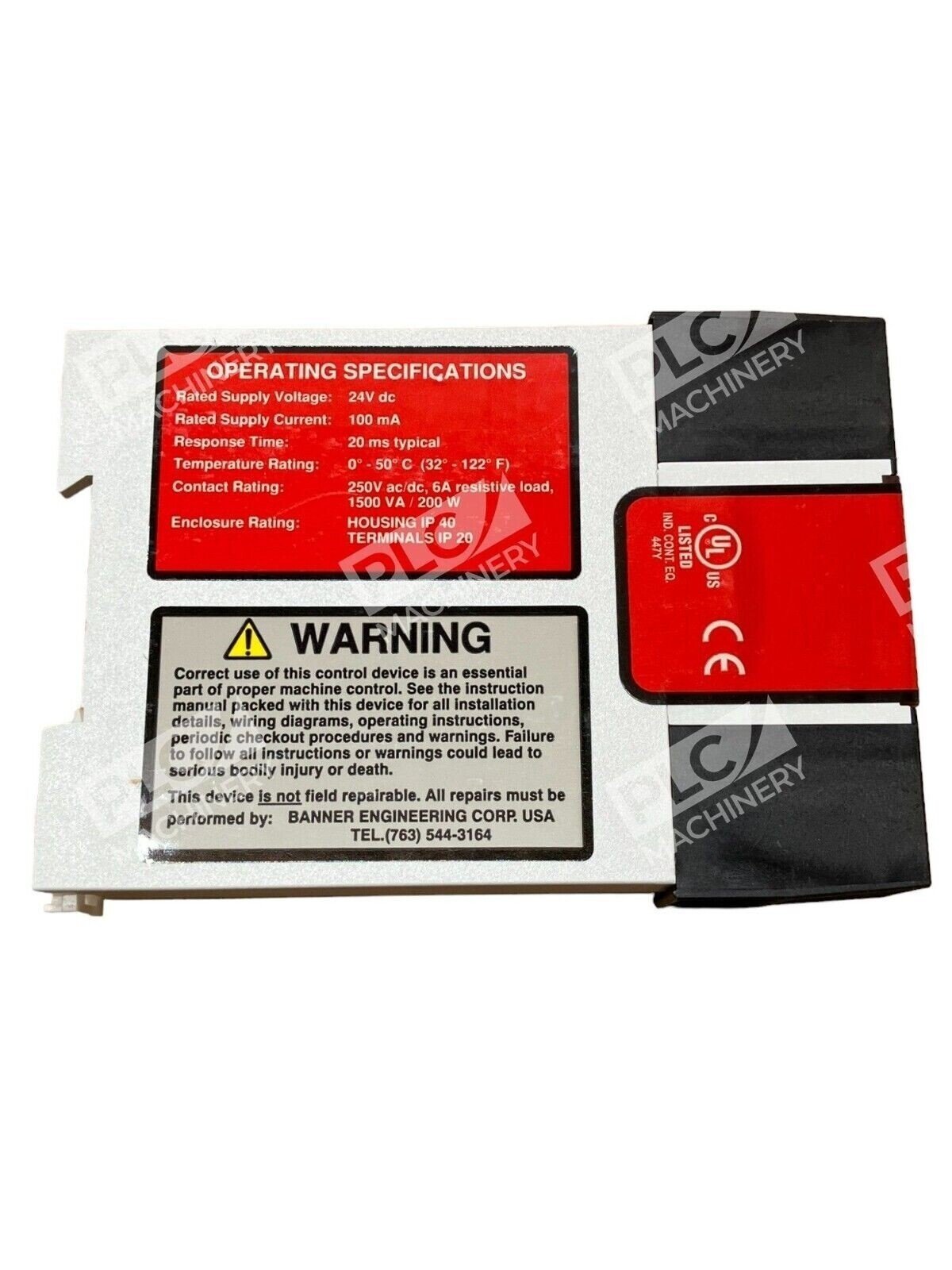

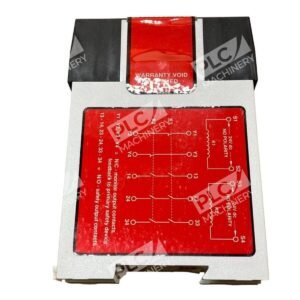

Technical Specifications
- Supply Voltage: 24V dc ±15%
- Supply Current: 100 mA rated
- Safety Inputs: 1 dual/single channel (OSSD)
- Safety Outputs: 3 normally open (NO), 6 amps each
- Output Rating: 250V ac/dc at 6 amps per channel
- Auxiliary Output: None
- Response Time: 20 milliseconds
- Dimensions (H × W × D): 84 mm × 22.5 mm × 118 mm
- Terminal Type: Removable screw terminal blocks
- Environmental Rating: IP20
- Safety Rating: Category 4 (ISO 13849-1), PL Rating e, SIL 3
- Compliance: EN 60204-1, IEC 61810-1, EN 60255-1, EN 50205, Machinery Directive 2006/42/EC
Typical Applications
- Safety light curtain and safety scanner interface circuits
- Machine guarding and perimeter protection systems
- Industrial press and automated equipment safety controls
- Conveyor and material handling system interlocks
- Expansion of low-current safety device outputs to drive higher-load safety relays or contactors
- Safety circuits requiring Category 3 or 4 performance per ISO 13849-1
Compatibility & Replacements
Compatible With
- Banner safety light curtains and safety scanners with OSSD or hard contact outputs
- Banner EZ-SCREEN and equivalent safety devices with EDM (external device monitoring) capability
- Primary safety modules and controls with solid-state or relay outputs
- Standard 24V dc safety control systems and industrial control circuits
- DIN rail-mounted control enclosures and safety relay cabinets
Replaces / Drop-In Replacement For
- Verify specific replacement compatibility with your original equipment documentation; the IM-T-9A is not a stand-alone safeguarding device and must be paired with a primary safety device.
Works With
- Banner safety control software and configuration tools
- External device monitoring (EDM) functions on Banner primary safety devices
- Standard IEC 61810-1 safety relay interface protocols
- 24V dc safety circuit wiring and control architectures
- Safety-rated diagnostic systems per ISO 13849-1
