Overview

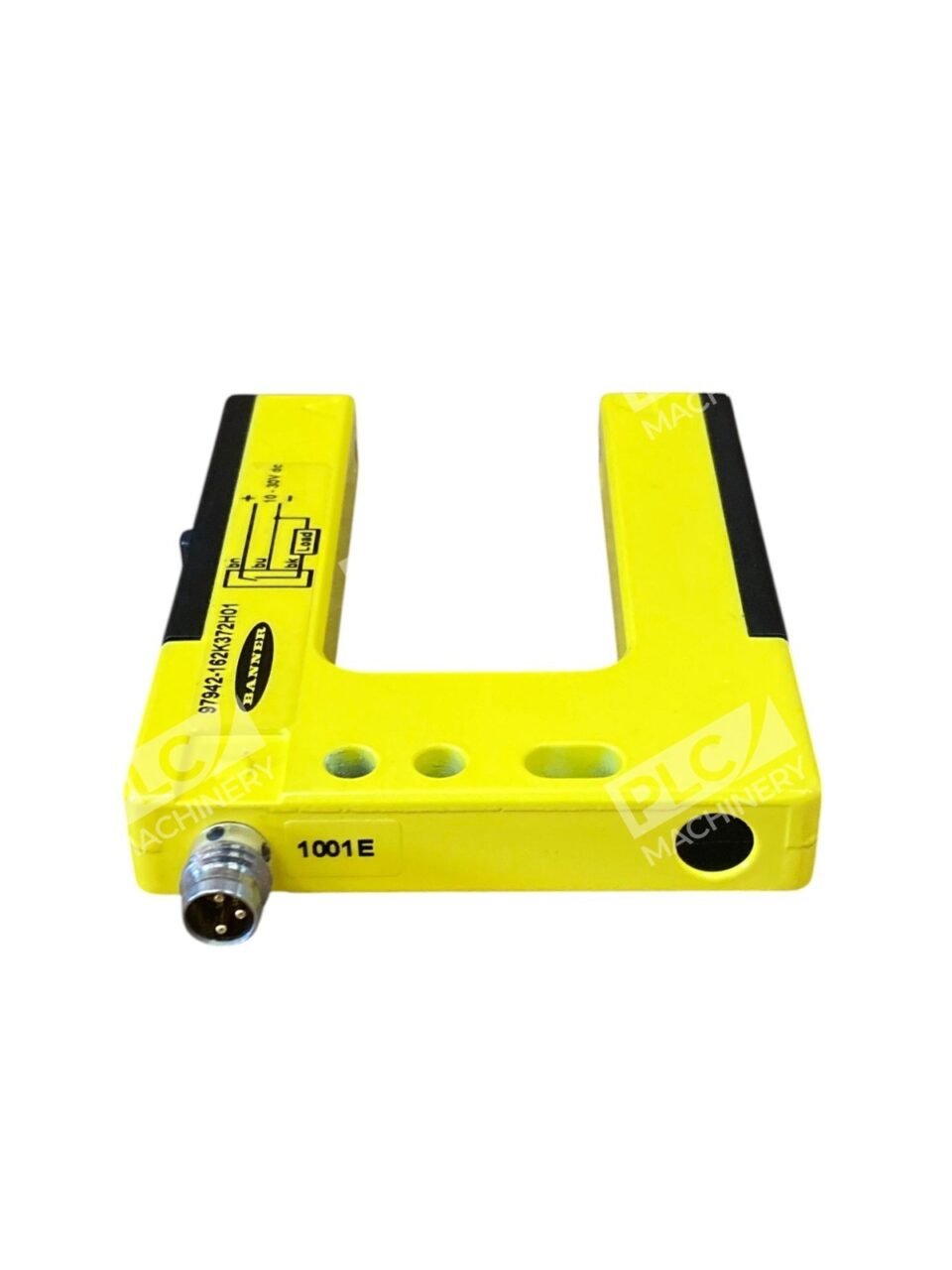

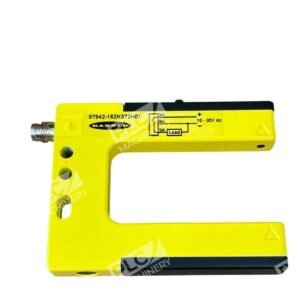

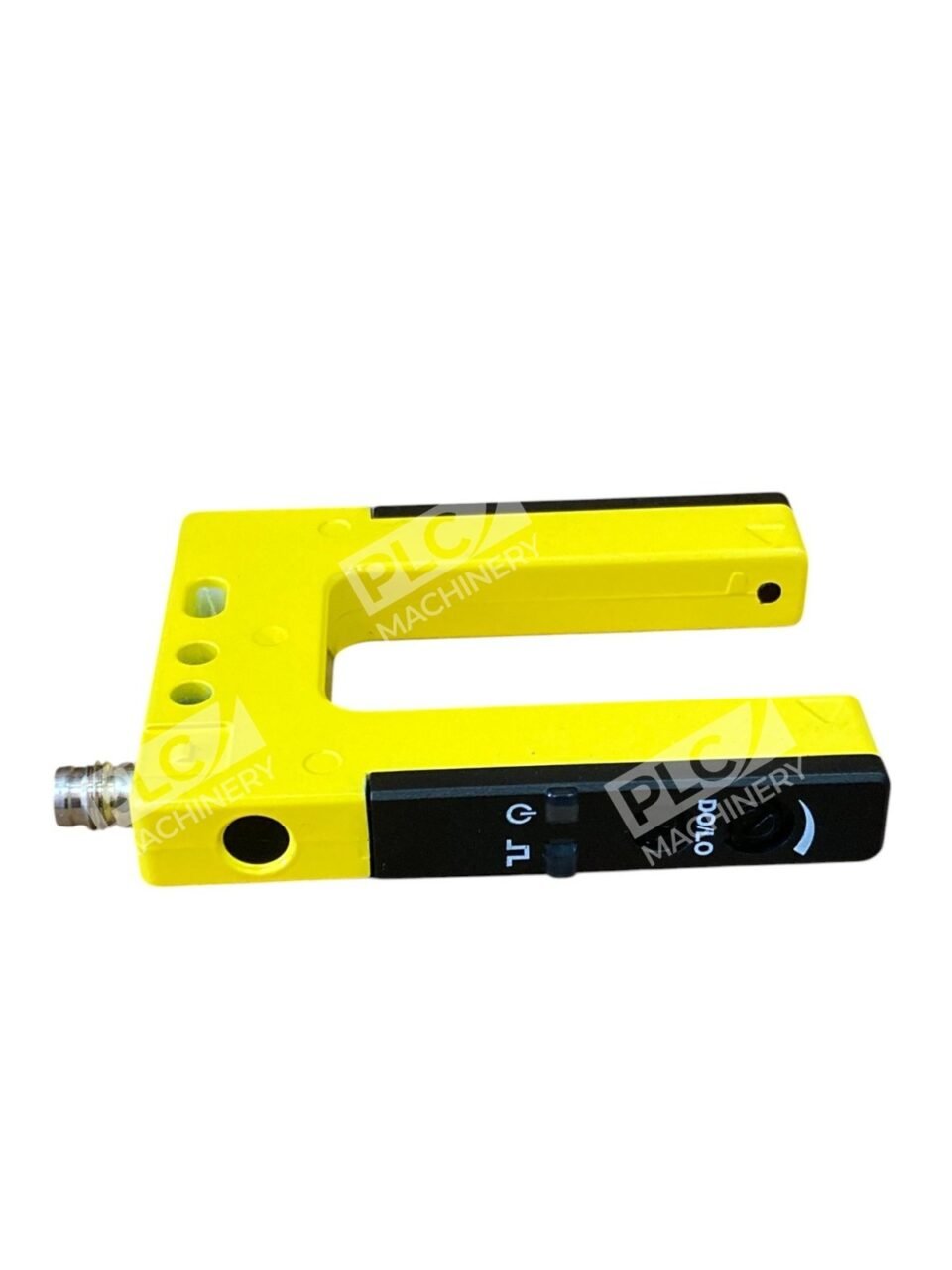

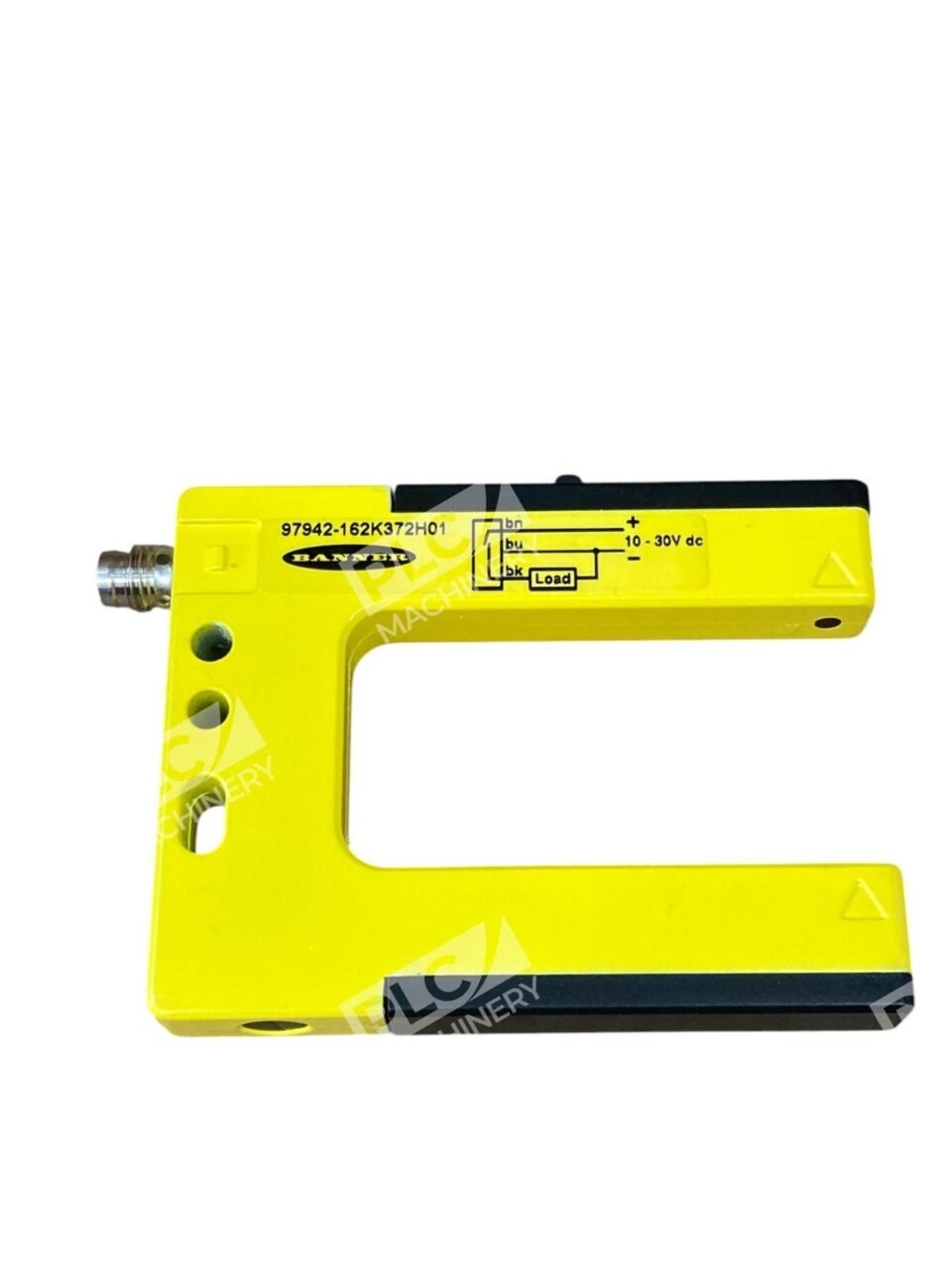

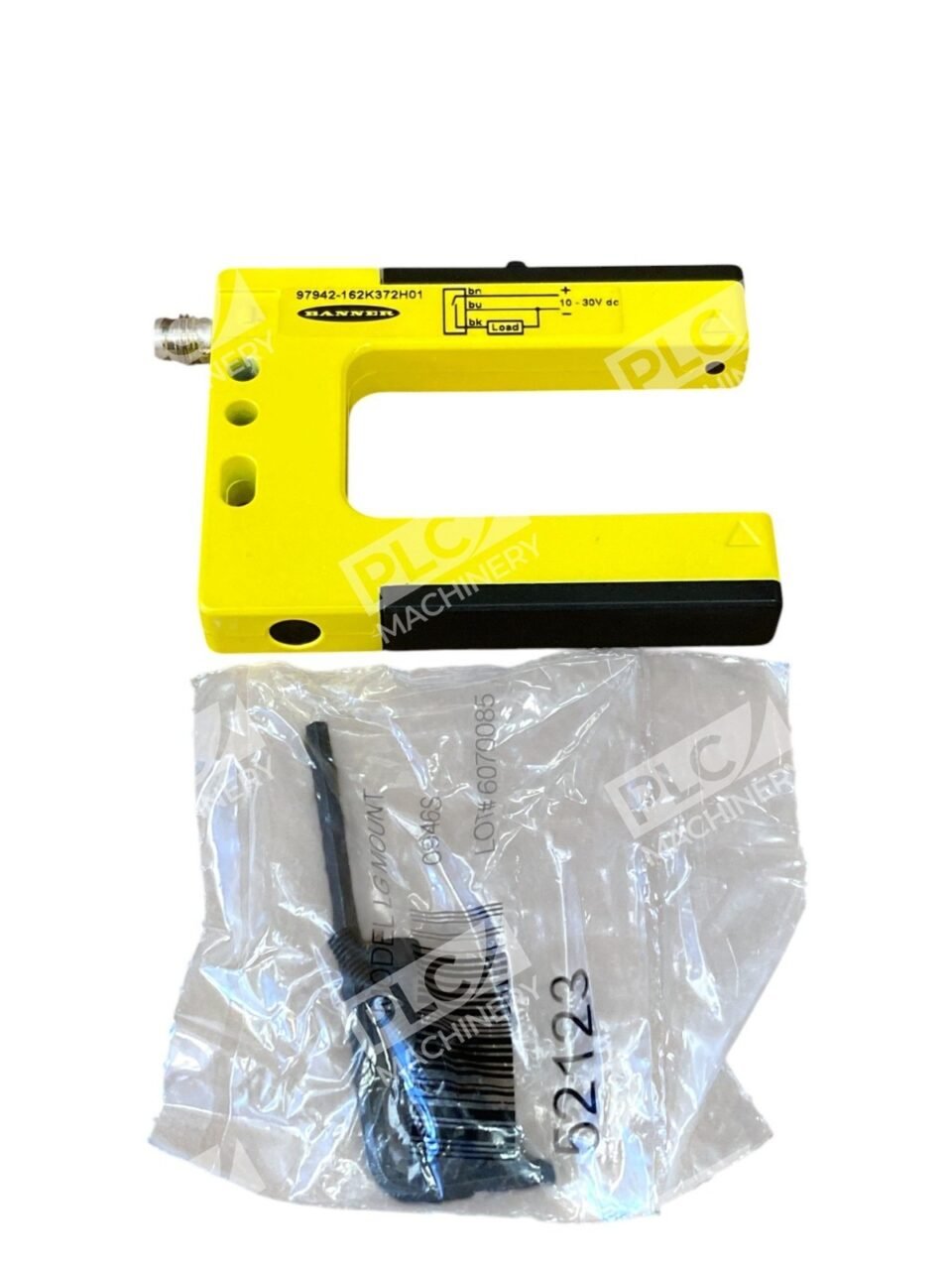

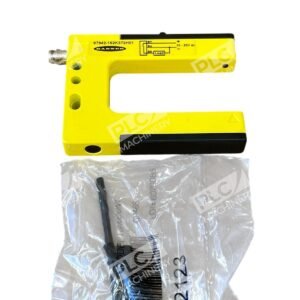

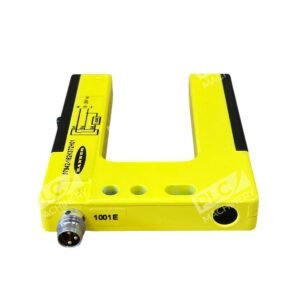

The Banner 97942-162K372H01 is a 10-30V SLM Series slot sensor manufactured by Banner Engineering for reliable object detection in opposed-mode configurations. This rugged metal sensor detects objects that pass between the opposed-mode emitter and receiver. The IP67-rated housing ensures protection against moisture and dust in harsh factory floors, food processing, automotive assembly, and packaging operations.
Key Features
- Easy to mount with powerful optics and small effective beam
- Available in eight slot widths from 10 to 220 mm
- Detects objects as small as 0.30 mm passing through the slot
- Rugged nickel-plated metal construction for industrial durability
- Fixed-distance opposed-mode detection geometry
- Bipolar output configuration (NPN and PNP options)
Technical Specifications
- Input Voltage: 10–30 V dc
- Output Type: Bipolar (1 NPN, 1 PNP)
- Housing Material: Nickel-plated metal
- IP Rating: IP67
- Detection Method: Opposed-mode slot sensor
- Connector Type: M12 PUR Pigtail (Quick Disconnect)
- Cable Length: 150 mm (6 in)
- Series: SLM (Rugged Metal Slot Sensor)
- Manufacturer: Banner Engineering
Typical Applications
- Counting and sensing parts on conveyor rails and belts, detecting edges and gear teeth
- Part presence verification in automated assembly lines
- Product sorting and orientation detection
- Web guiding and slot detection in printing machinery
- Position sensing in stamping and forming equipment
Compatibility & Replacements
Compatible With
- Industrial PLCs and controllers accepting 10–30V NPN/PNP inputs
- Motion control systems and variable frequency drives (VFDs)
- Programmable automation controllers and safety-rated logic
- Conveyor belt management systems
- Custom automation cabinets with 10–30V dc supply
Replaces / Drop-In Replacement For
- Earlier Banner SLM Series variants with equivalent slot widths and output configurations
- Compatible alternative SLM models with M12 connectors and 10–30V input specification
- Verify compatibility with your specific system integrator before ordering
Works With
- Allen-Bradley CompactLogix, ControlLogix, and Micro800 controllers
- Siemens S7-1200, S7-1500, and S7-300 PLCs
- Mitsubishi FX and Q-series programmable controllers
- Omron CP and NJ-series automation platforms
- Generic 10–30V dc industrial control systems
- Profibus, EtherNet/IP, and PROFINET fieldbus protocols (via gateways)
