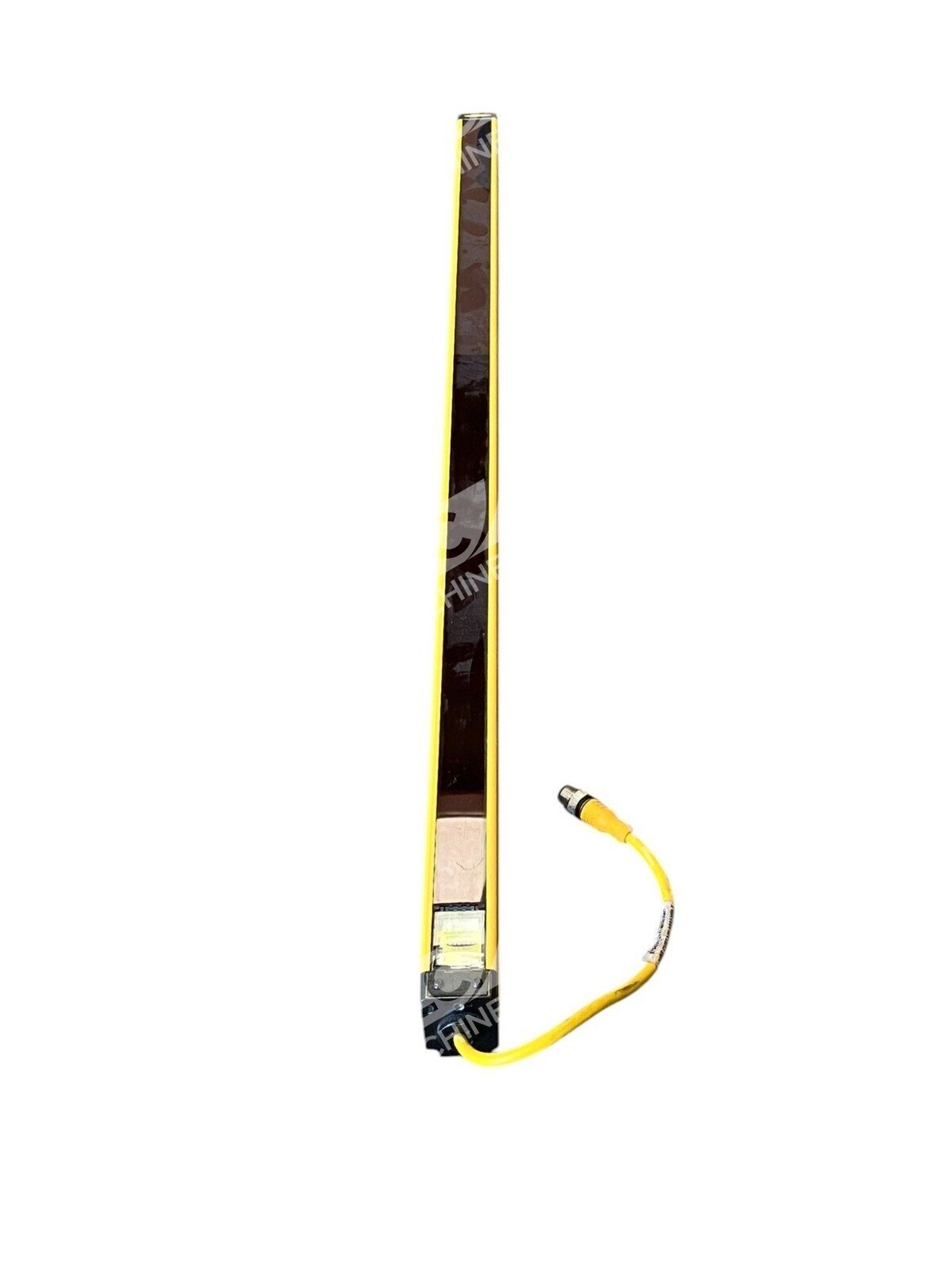

Banner 900mm EZ-Screen Receiver Light Screen SLSR14-900P8

Banner 900mm EZ-Screen Receiver Light Screen SLSR14-900P8

The Banner SLSR14-900P8 is a high-performance safety light curtain receiver designed to enhance workplace safety by detecting the presence of objects or individuals within hazardous areas. With a defined area height of 900 mm and a resolution of 14 mm, it offers precise detection capabilities suitable for finger, hand, and ankle protection.

Key Features

• Resolution: 14 mm, ensuring accurate detection of small objects.
• Operating Range: 0.1 to 6 meters, providing flexibility for various applications.
• Safety Level: Type 4, meeting stringent safety standards.
• Response Time: 32 milliseconds, facilitating rapid reaction to intrusions.
• Connector Type: 8-pin M12 pigtail, allowing for secure and straightforward connections.
• IP Rating: IP65, offering protection against dust and water ingress.
• Operating Voltage: 24 V DC, compatible with standard industrial power supplies.
• Housing Material: Durable aluminum with a black polyester finish, ensuring longevity in industrial environments.

Additional Specifications

• Dimensions (WxD): 36 x 45.2 mm
• Overall Length: 971 mm
• Supply Current: 275 mA maximum
• Operating Temperature: 0 to +55°C with relative humidity up to 95%
• External Device Monitoring: Supports 1 or 2 channels
• Fixed Blanking: Yes, allowing for the exclusion of specific areas from detection
• Auxiliary Output: Yes, providing additional functionality
• Trip/Latch Output: Selectable, offering flexibility in response configurations

The SLSR14-900P8 is engineered to withstand demanding industrial conditions, featuring a robust aluminum housing and metal end caps that resist impact and twisting. Its user-configurable trip or latch outputs and selectable scan codes enhance adaptability to various safety requirements. Additionally, the device includes blocked beam zone indicators and displays operating status, configuration, and error codes for straightforward diagnostics and maintenance.

For comprehensive safety solutions, the SLSR14-900P8 can be integrated with compatible emitters and accessories, ensuring a cohesive and reliable safety system tailored to specific operational needs.
