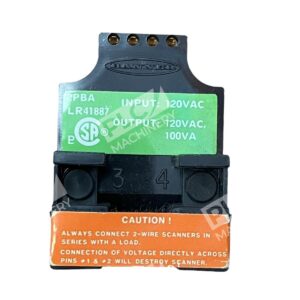

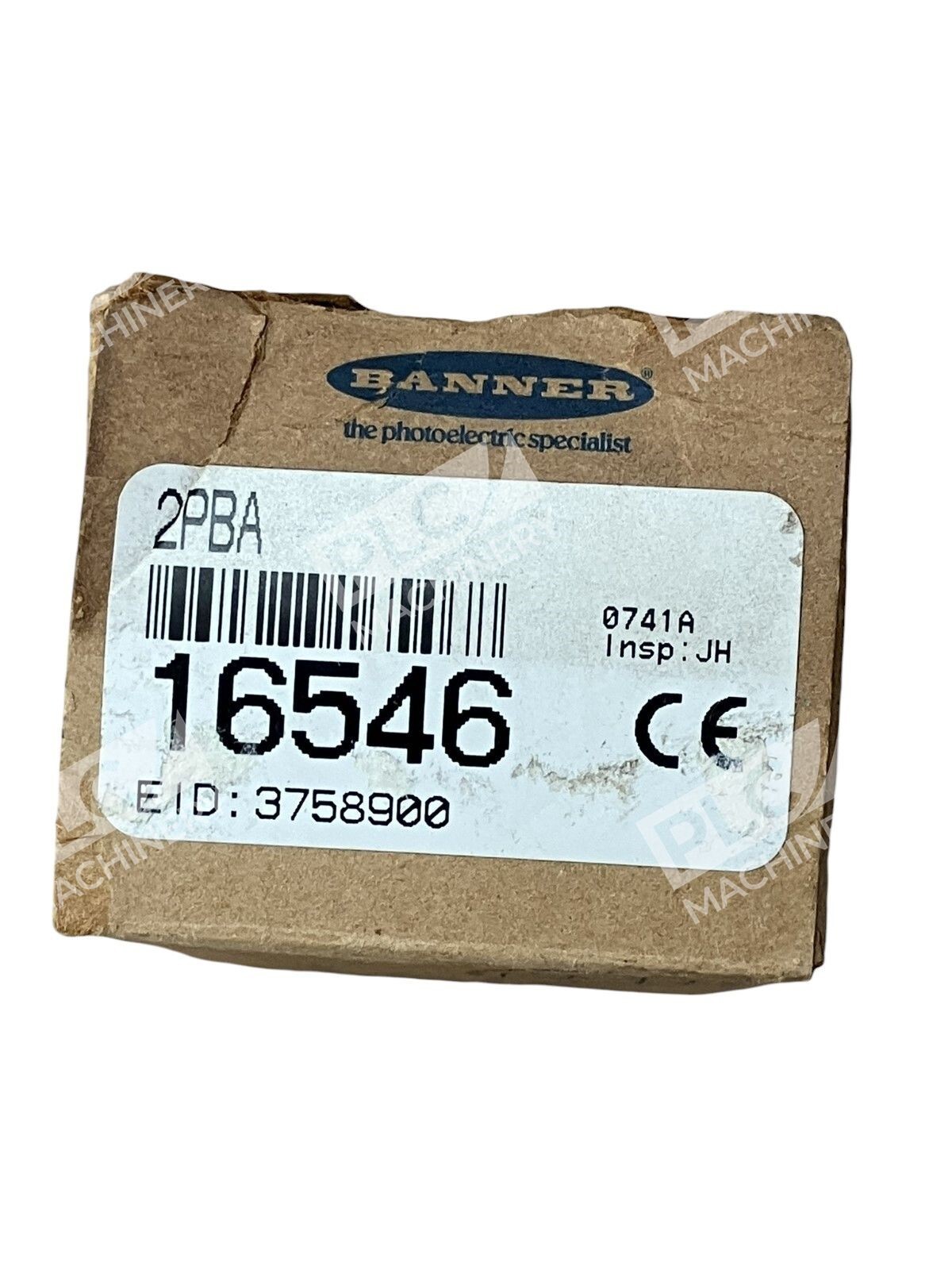

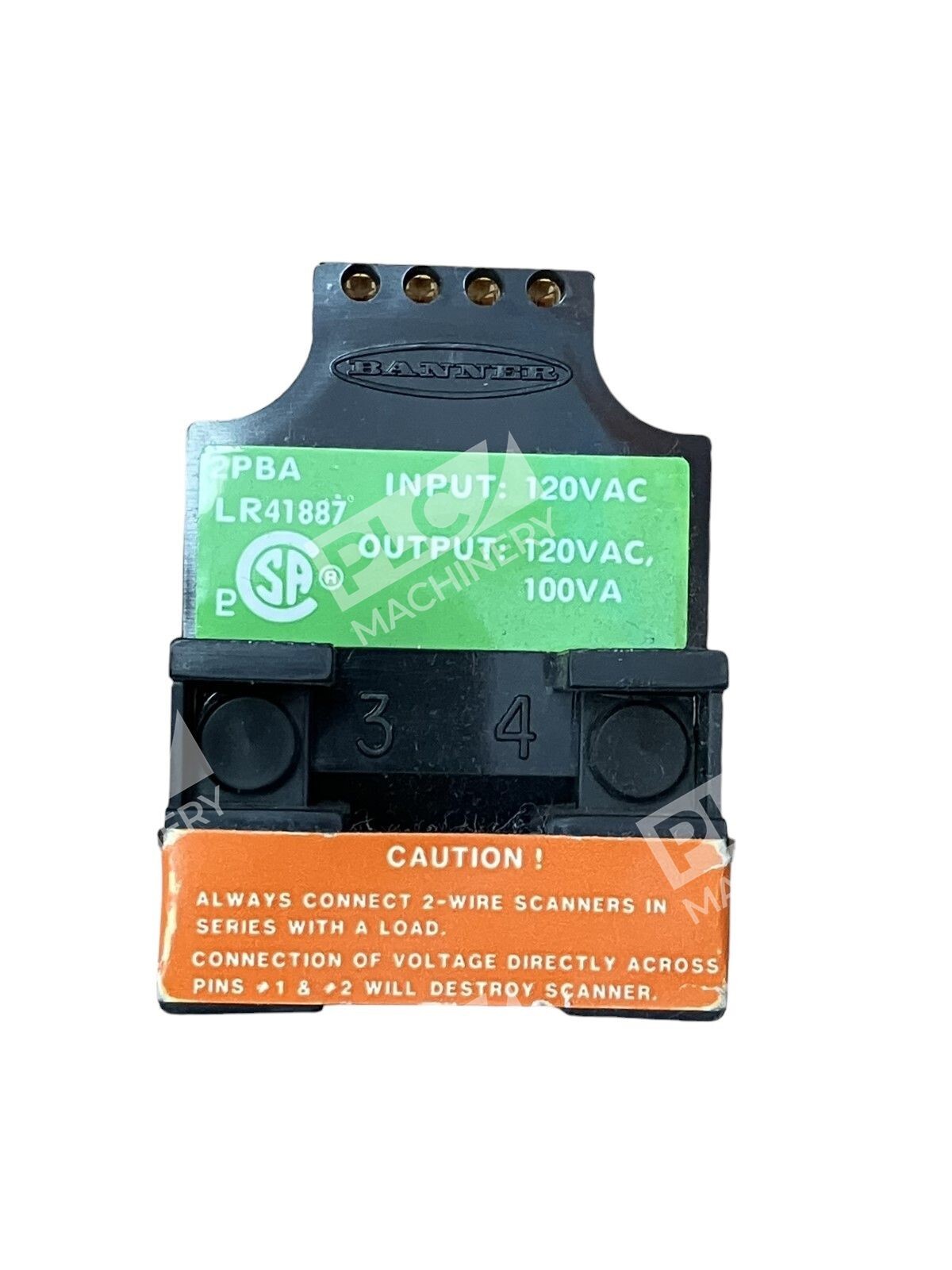

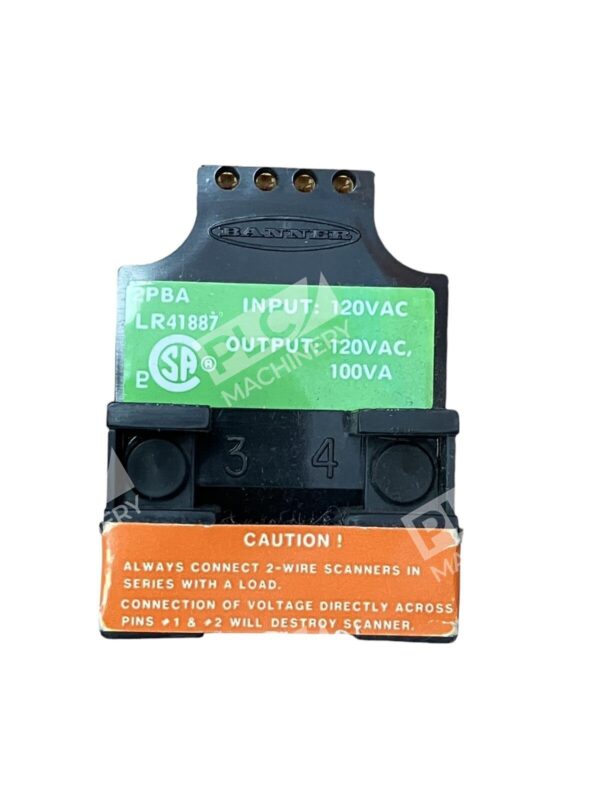

Banner 2PBA 16546 Photoelectric Power Block

Overview

The Banner 2PBA 16546 is a two-wire AC logic module and power block engineered for multi-beam photoelectric sensor systems. This industrial-grade component handles power distribution and signal switching in factory automation, machine vision, and object detection applications. The unit accepts standard AC mains voltage and delivers reliable solid-state switching for control circuits.

Key Features

• Multi-beam sensor power block with two-wire AC topology
• 105–130VAC input — compatible with standard North American power supplies
• SPST (single-pole, single-throw) solid-state switch output for logic-level signal control

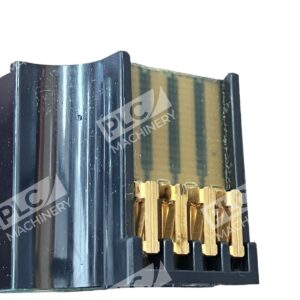

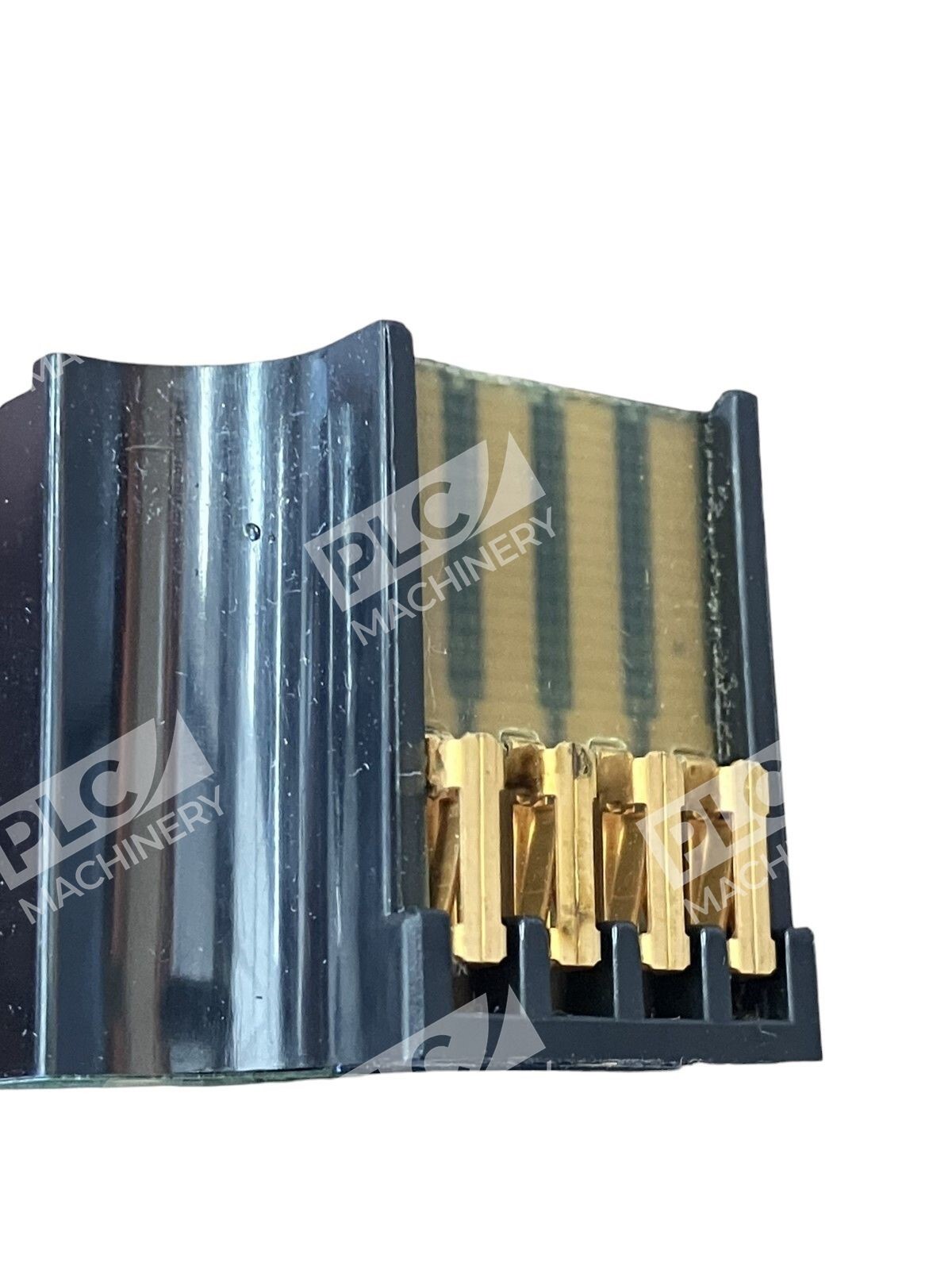

• Integrated wiring chamber for clean terminal connections
• Compact, industrial-rated housing designed for harsh factory environments

Technical Specifications

Typical Applications

• Assembly line object detection and counting
• Machine presence and safety interlock sensing
• Conveyor system monitoring and control
• Packaging and labeling equipment integration
• Multi-beam safety light curtain and position sensing systems

Compatibility & Replacements

Compatible With

• Banner multi-beam photoelectric sensor heads and arrays
• Standard industrial AC power systems (105–130V, 50/60 Hz)
• PLC and machine control logic circuits accepting solid-state switch inputs
• Legacy industrial automation environments requiring 2-wire AC modules

Replaces / Drop-In Replacement For

• Verify compatibility with your system integrator or Banner product specialist before ordering. Confirm that the sensor head and control interface match the 2-wire AC topology of this module.

Works With

• Banner photoelectric sensor sensor heads (range varies by sensor model)
• Standard industrial AC mains (105–130V, 50/60 Hz)
• Solid-state logic inputs on PLCs, relays, and motor control units
• Hardwired control circuits and automation panels
