Overview

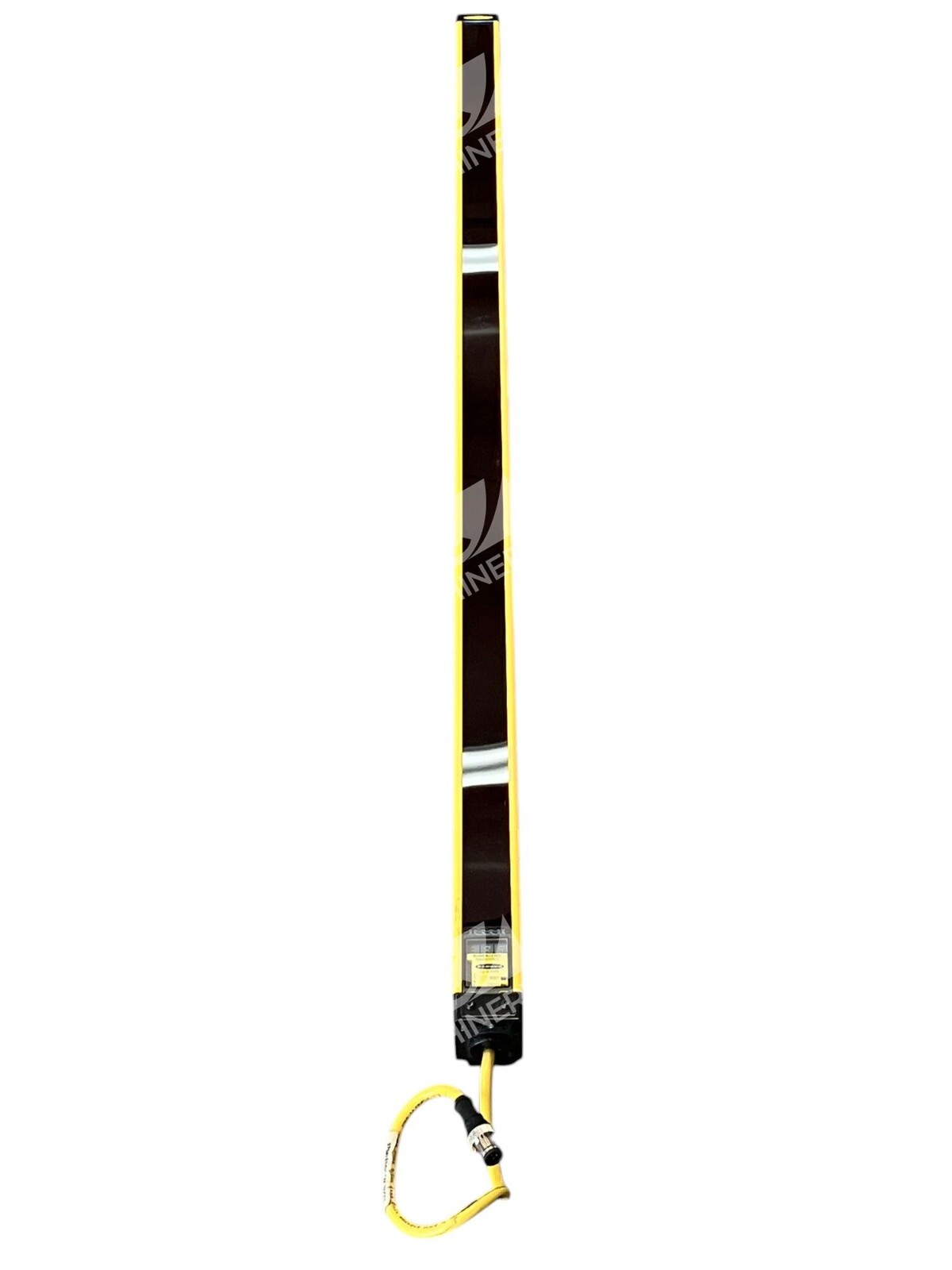

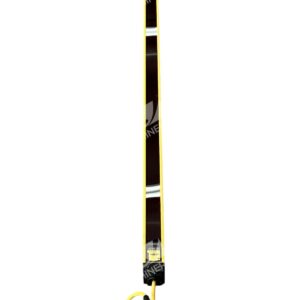

The Banner SLSR14-900P8 is a Type 4 EZ-SCREEN receiver component engineered for industrial machine guarding and safety light curtain installations. Featuring 14mm resolution and 900mm detection area, this receiver provides reliable opposed-mode sensing when paired with a matching Banner emitter. The SLSR14-900P8 is part of Banner’s proven 14/30 Series safety light screens, delivering cost-effective finger-safe detection in manufacturing, packaging, and material handling environments.
Key Features
- 14mm finger-safe resolution for operator protection
- 900mm (35.4 in) defined sensing area with 6m (20 ft) range
- M12 8-pin pigtail connectors for straightforward integration
- Housing length 971mm (38.2 in) for vertical or horizontal mounting
- Type 4 safety-rated light screen for guarding hazardous machinery
- Cascade-capable design for expanded sensing coverage
Technical Specifications

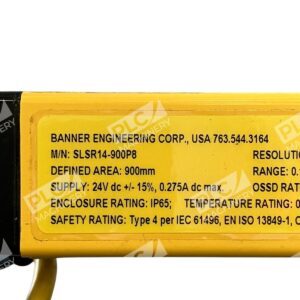

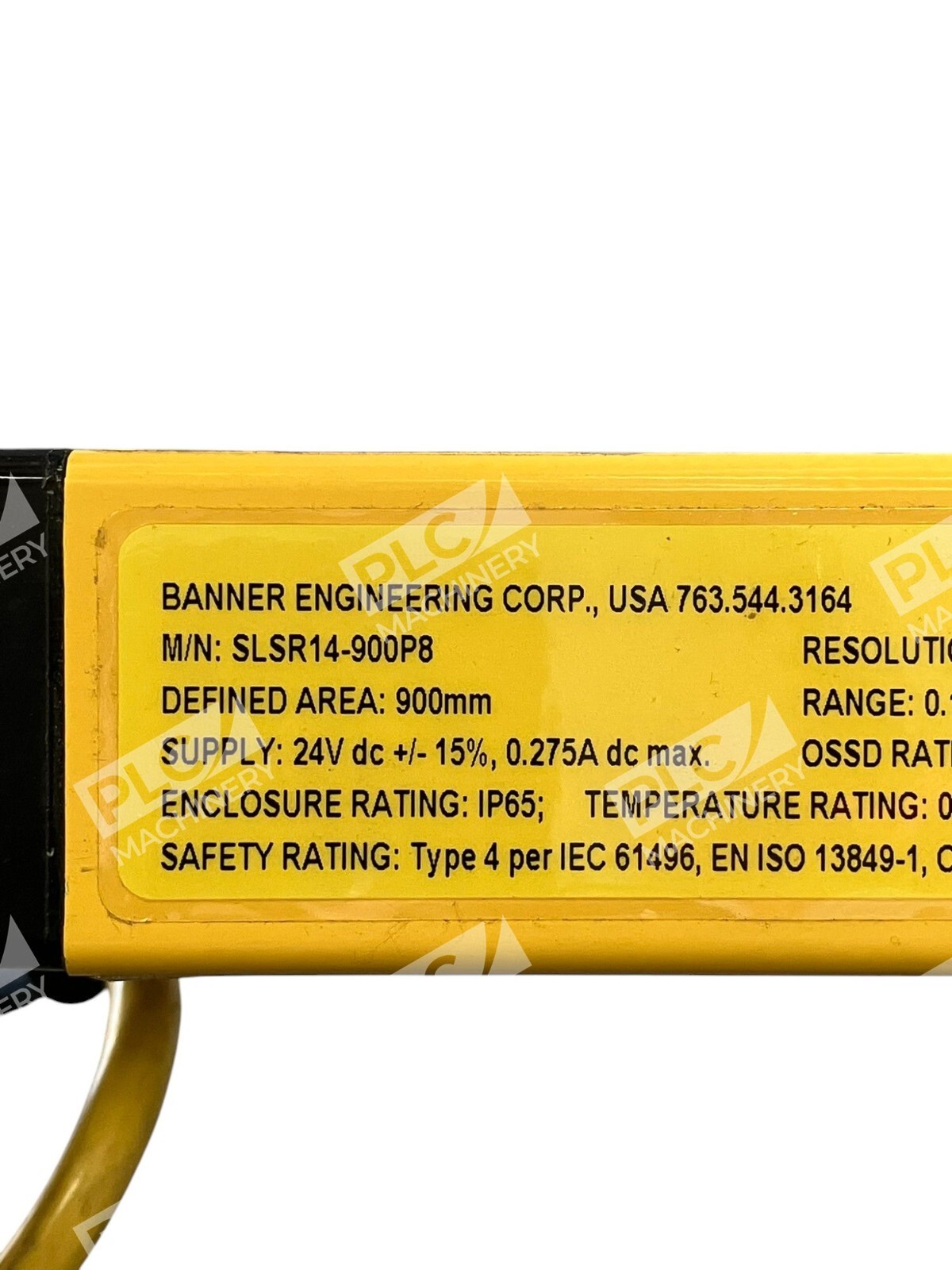

Operating specifications include 14mm beam resolution, 6 meter maximum range in opposed mode, and 900mm defined sensing area. The unit measures 971mm in housing length and connects via 8-pin M12 pigtail connectors. Response time is 32 milliseconds with 120 beams across the sensing width. CE/UKCA certification confirms compliance with industrial safety standards.
Typical Applications
The Banner SLSR14-900P8 is commonly deployed in:
- Punch press and industrial press guarding
- Packaging machinery edge protection
- Transfer press and stamping equipment safety systems
- Assembly line operator protection zones
- Automated warehouse equipment guarding
- Cascade-configured systems for extended coverage areas
Compatibility & Replacements
Compatible With
- Banner SLSE14-900P8 emitter (14mm, 900mm matching pair)
- Banner EZ-SCREEN interface modules (IM-T-9A, IM-T-11A)
- Banner cascade emitters and receivers for expanded configurations
- Standard 24 VDC industrial control circuits
- Industrial safety relay modules and programmable logic controllers
Replaces / Drop-In Replacement For
The SLSR14-900P8 is the pigtail connector variant of the 14/30 Series 900mm receiver line. It directly replaces other SLSR14-900 variants with identical sensing geometry. Verify connector type (pigtail vs. connector) with your system integrator before substitution.
Works With
- Banner EZ-SCREEN Type 4 emitter/receiver systems
- 24 VDC safety relay circuits
- Cascade-configured light curtain arrays for larger protection areas
- Standard industrial machine guarding control logic
- CE/UKCA certified safety systems
