Overview

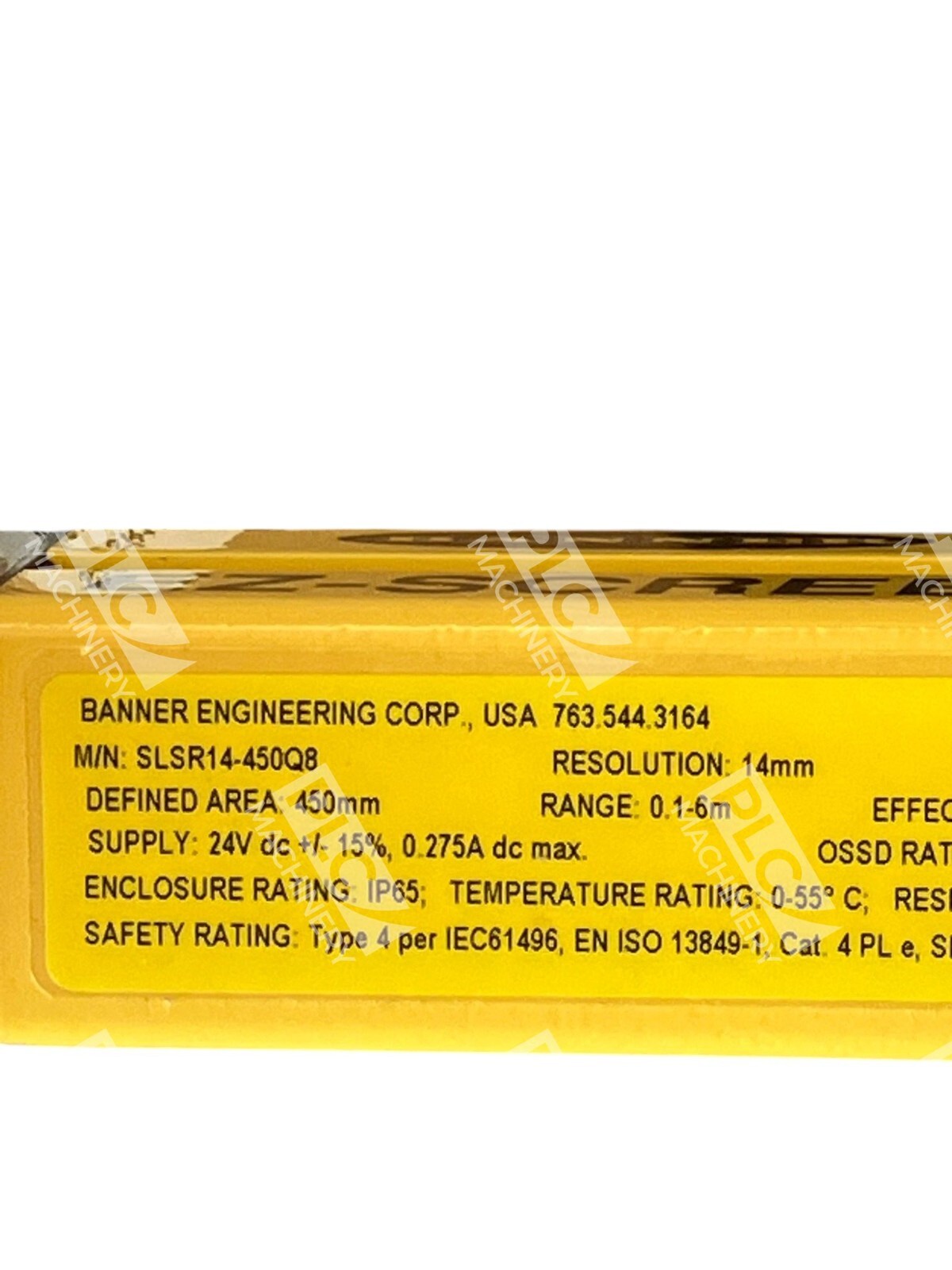

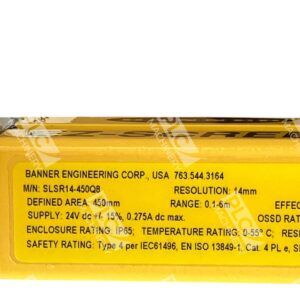

The Banner SLSR14-450Q8 is a professional-grade safety light receiver designed for the EZ-SCREEN family of protective devices. With 14mm resolution, this 450mm curtain is ideal for machine guarding applications requiring finger, hand, and ankle protection. The receiver pairs with the SLSE14-450Q8 emitter to create a complete safety light curtain system for factory automation and industrial production lines.
Key Features
- 14mm resolution — detects small objects and finger contact for enhanced worker safety
- 450mm defined area (17.7 inches) — optimal coverage for medium-sized machine access points
- 6m sensing range (20 feet) — extended reach for complex production layouts
- 60 sensor beams — fine-pitched beam pattern ensures continuous coverage with no blind spots
- 19ms response time — meets modern industrial safety standards and ISO 13855 requirements
- 8-pin M12 connector — integrated quick-disconnect design for field replacement and maintenance
- Aluminum housing with metal end caps — resists impact and abusive shop floor environments
Technical Specifications
- Resolution: 14mm
- Sensing Range: 0.1m – 6m (4 inches – 20 feet)
- Defined Area (Height): 450mm (17.7 inches)
- Housing Length: 522mm (20.6 inches)
- Number of Beams: 60
- Response Time (Tr): 19 milliseconds
- Connection Type: 8-pin M12 Connector with quick-disconnect
- Product Type: Safety Light Receiver (SLS series)
- Housing Material: Aluminum with nickel-plated finish
- Series: 14/30 Series EZ-SCREEN
- Banner Part Number: 71222
Typical Applications
- Press and punch machine guarding
- Automated assembly line protective devices
- Injection molding and plastic fabrication equipment access points
- Transfer press and stamping machine safety barriers
- Robot cell perimeter protection
- Conveyor safety and material handling systems
Compatibility & Replacements
Compatible With
- SLSE14-450Q8 EZ-SCREEN Emitter (matching pair for complete safety light curtain)
- SLSP14-450Q88 EZ-SCREEN Relay Module (logic unit)
- Banner EZ-SCREEN 14/30 Series safety systems
- ISO 13855 compliant machine guarding installations
- Standard 24VDC industrial control systems
Replaces / Drop-In Replacement For
- Earlier EZ-SCREEN 450mm receiver models within the 14mm resolution family
- Verify exact compatibility with your system integrator or safety engineer before ordering.
Works With
- M12 connector protocol for quick-disconnect field installation
- Banner EZ-SCREEN safety light curtain control modules
- Industrial Ethernet and discrete relay logic control systems
- Safety-rated PLC and motion control integrations
