Overview

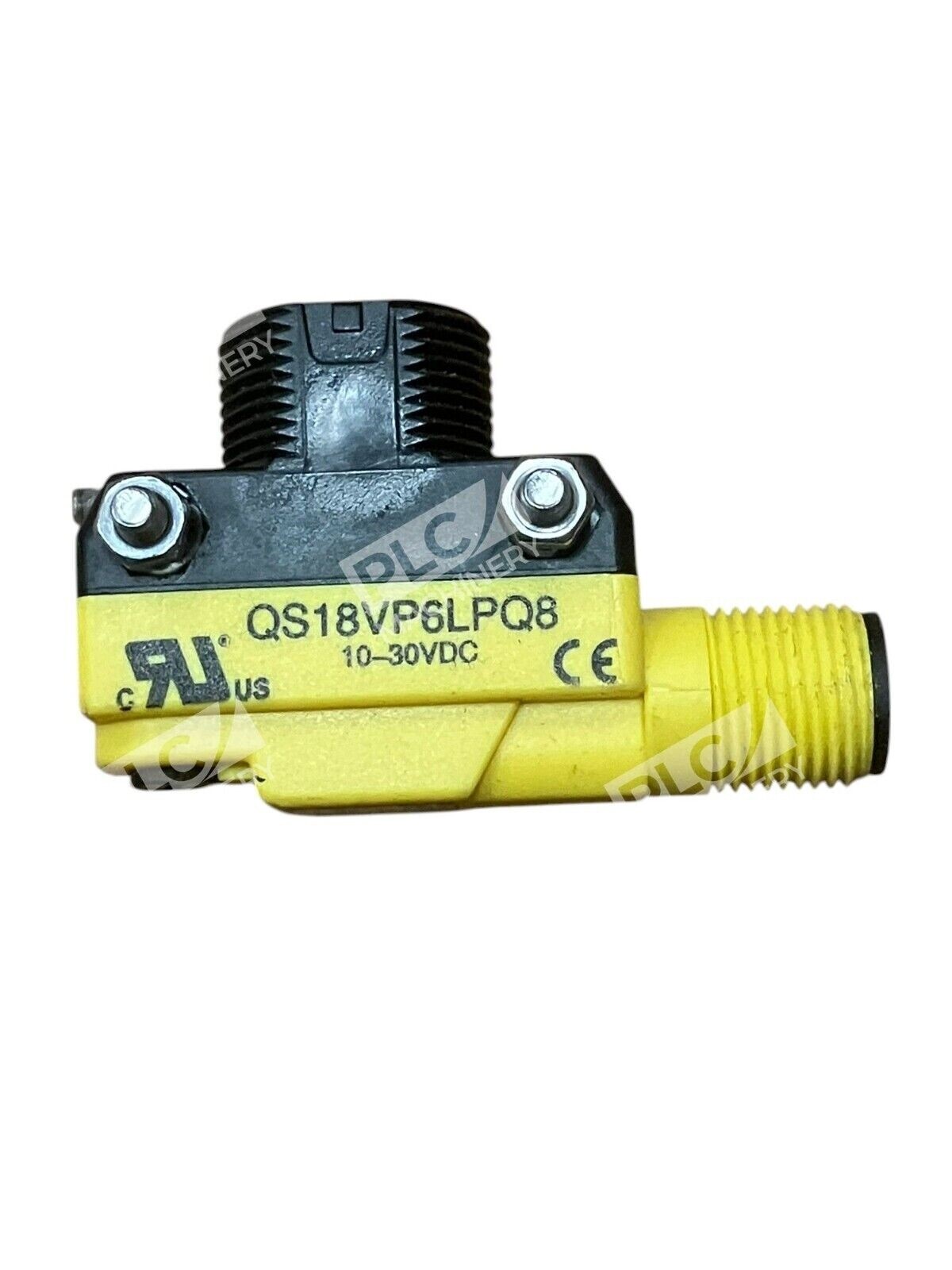

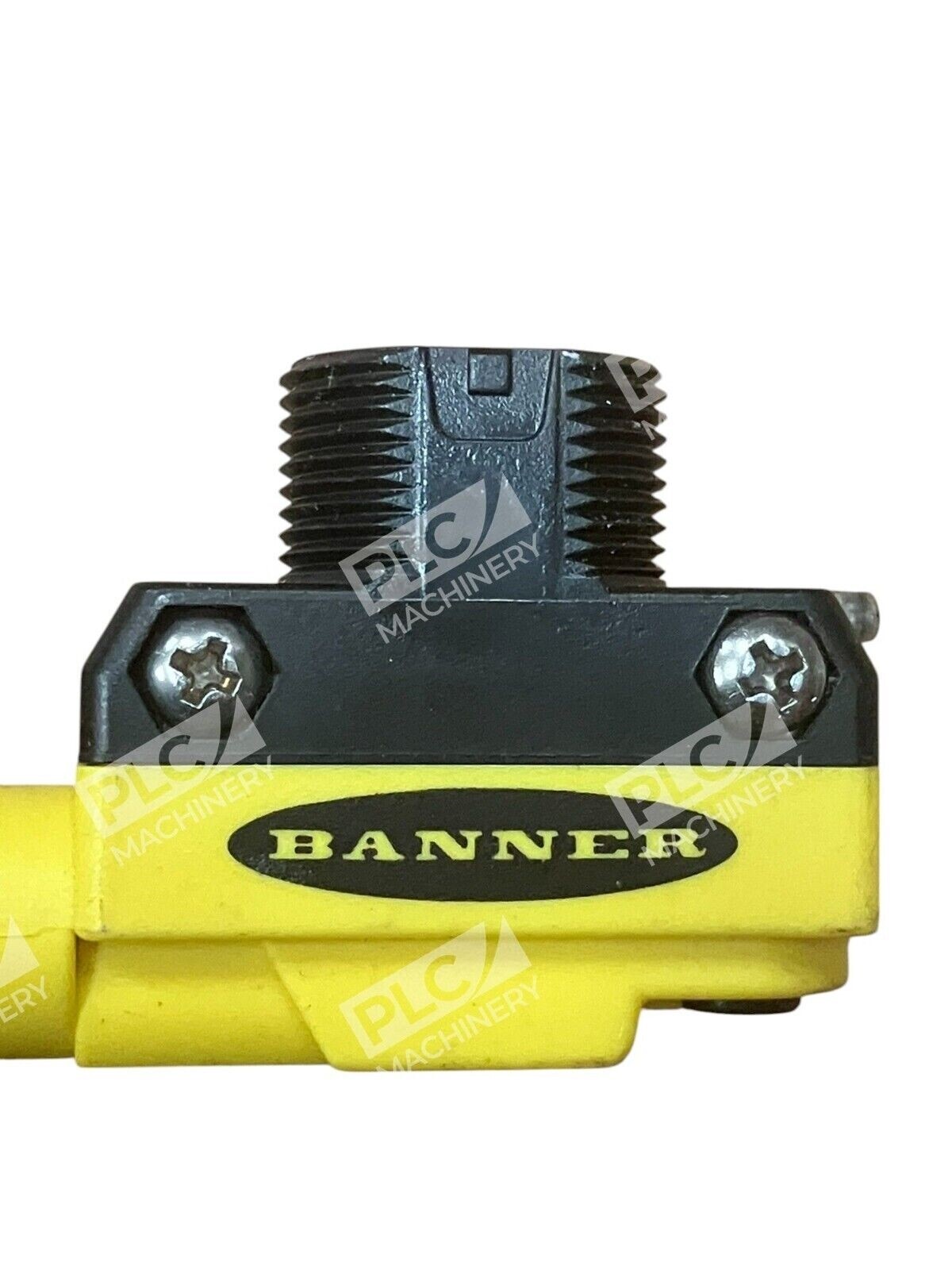

The Banner QS18VP6LPQ8 is a miniature self-contained photoelectric sensor from the WORLD-BEAM QS18 series. Featuring polarized retro-reflective sensing with 3.5m range, 10-30V dc input, and complementary PNP output, this sensor delivers exceptional optical performance in a compact universal housing suitable for virtually any mounting scenario.
Key Features
- 10 to 30VDC operation with complementary (SPDT) PNP output
- Bright LED operating status indicators visible from 360°
- Rugged sealed housing with protected circuitry
- Less than 1 millisecond output response for excellent sensing repeatability
- IP67 / NEMA 6 rating with thermoplastic housing and acrylic lens
- Pre-equipped with 4-pin Euro-style M12 connector supporting Light-ON or Dark-ON operation
Technical Specifications
The QS18VP6LPQ8 meets industrial automation standards with the following verified specifications:
Typical Applications
The WORLD-BEAM QS18 series easily fits or retrofits almost any mounting situation, making it ideal for:
- Package detection and sorting systems
- Assembly line object presence sensing
- Conveyor positioning and counting
- Material handling automation
- Industrial machinery safety and control
Compatibility & Replacements
Compatible With
- PLC and industrial control systems supporting PNP discrete inputs
- 24VDC automation systems (10-30VDC range accommodates standard 24V supplies)
- Machinery requiring polarized retro-reflective sensing mode
- M12 quick-disconnect (QD) connector equipped equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The QS18 series includes multiple variants; confirm your existing part number matches QS18VP6LPQ8 specifications before assuming interchangeability.
Works With
- Allen-Bradley CompactLogix and ControlLogix PLC systems
- Siemens S7-1200 and S7-1500 controllers
- Mitsubishi FX and iQ-F series PLCs
- Any industrial controller with 24VDC PNP input support
- PROFINET, EtherNet/IP, and standard hardwired discrete I/O
