Overview

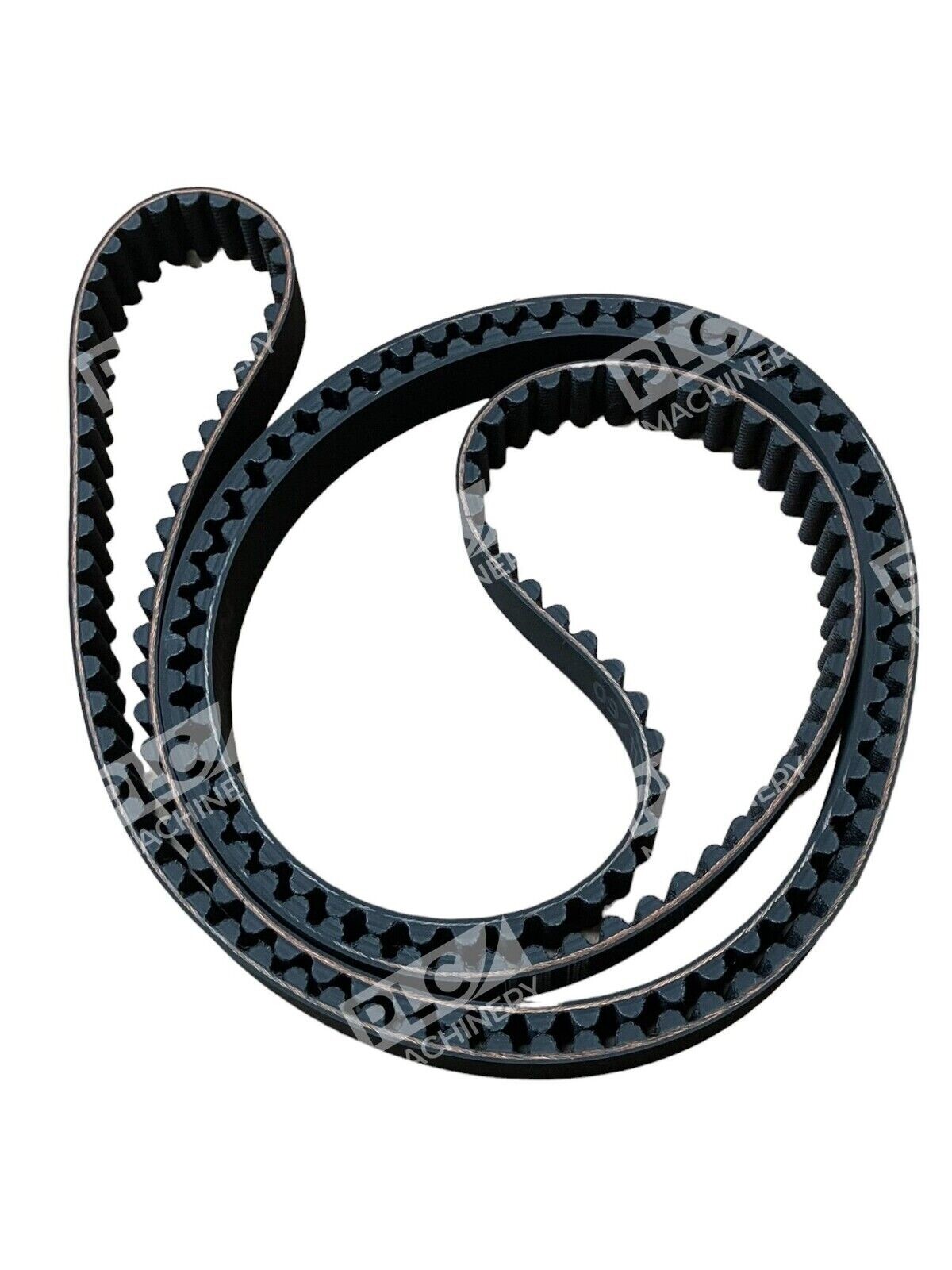

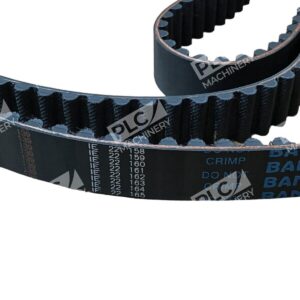

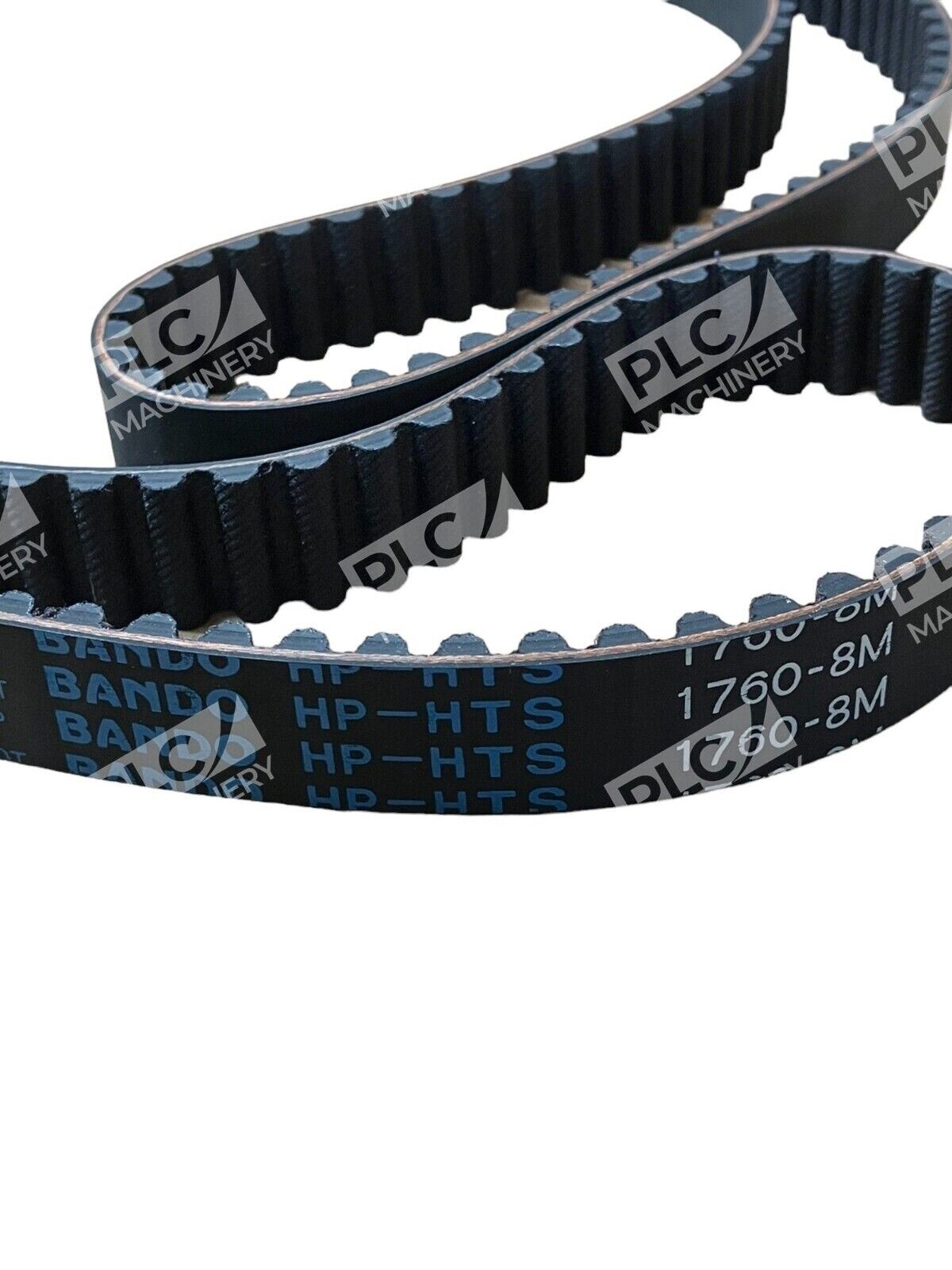

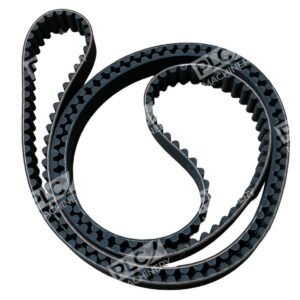

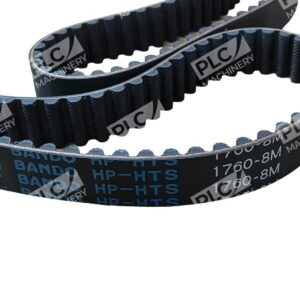

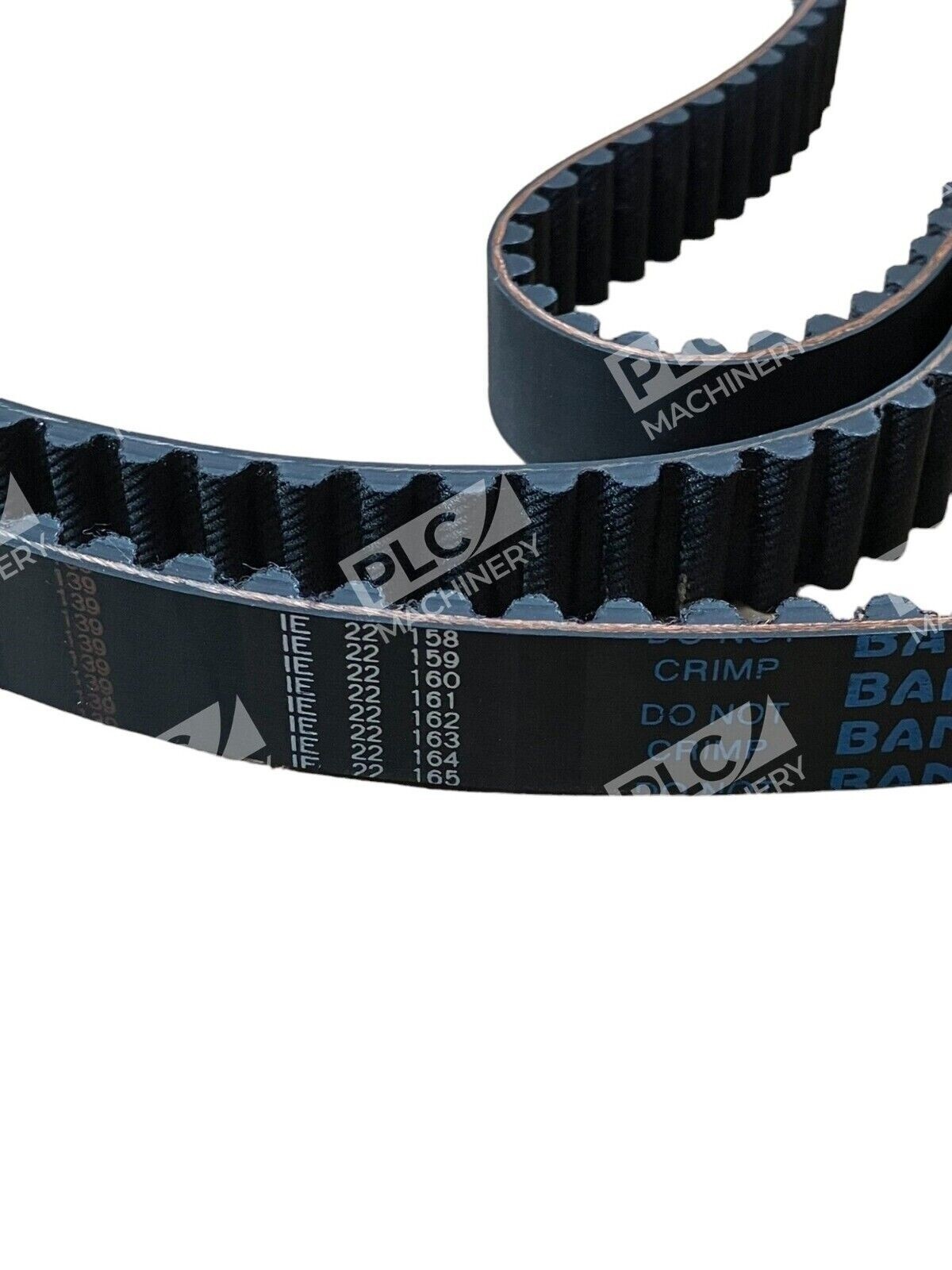

The Bando HP-HTS 1760-8M timing belt is a high-performance synchronous drive component engineered for precision power transmission in industrial, automotive, and manufacturing applications. The HP-HTS tooth profile is designed to fit both HTD pulleys and Generation II HTD pulleys. This 1760mm-length belt combines proven Bando durability with advanced materials to minimize maintenance and maximize uptime.
Key Features
- Curvilinear tooth design improves stress distribution to provide high horsepower ratings over a wide speed range and high torque transmission at low speeds.
- Belt drives are 99% efficient, leading to significant energy savings on high horsepower applications.
- The belts are thin and flexible, so they don’t generate heat build up delivering long service life.
- Continuous, helically-wound S and Z oriented fiberglass cord resists elongation and shock loads while providing excellent strength and service life.
- The rounded tooth profile meshes precisely with matching pulley grooves so there is no belt creep or slip to cause speed variation.
- The belts are made from a highly durable synthetic rubber compound, with glass fiber tension members and teeth protected by impregnated fabric on the surface.
Technical Specifications
The Bando HP-HTS 1760-8M meets the following specifications for compatibility and performance:
- Overall Length: 1760 mm (69.29 inches)
- Pitch: 8 mm
- Number of Teeth: 220
- Profile: HTD / HP-HTS (High Torque Drive)
- Material: Neoprene/synthetic rubber with fiberglass reinforcement
- Operating Temperature Range: −30°C to +90°C
- Efficiency: 99%
Typical Applications
The Bando HP-HTS 1760-8M is suitable for a wide range of industrial machinery including:
- Manufacturing equipment and machinery
- Automotive assembly and component drives
- Agricultural equipment and systems
- Industrial automation and conveyor systems
- High-torque, low-speed power transmission
Compatibility & Replacements
Compatible With
- HTD synchronous pulley systems (8M profile)
- Generation II HTD pulleys
- Industrial machinery with 8mm pitch HTD/HTS requirements
- Bando Synchro-Link drive systems
Replaces / Drop-In Replacement For
- Equivalent HTD 8M-1760 timing belts from other manufacturers
- OEM replacement applications requiring 220-tooth, 1760mm HTD synchronous belts
- Verify exact compatibility with your system integrator before ordering to ensure pulley width and tooth profile alignment.
Works With
- Bando Synchro-Link timing belt drive systems
- HTD/HTS synchronous pulley sets (8mm pitch)
- Industrial machinery requiring maintenance-free power transmission
- Systems operating across extended temperature ranges (−30°C to +90°C)
