Overview

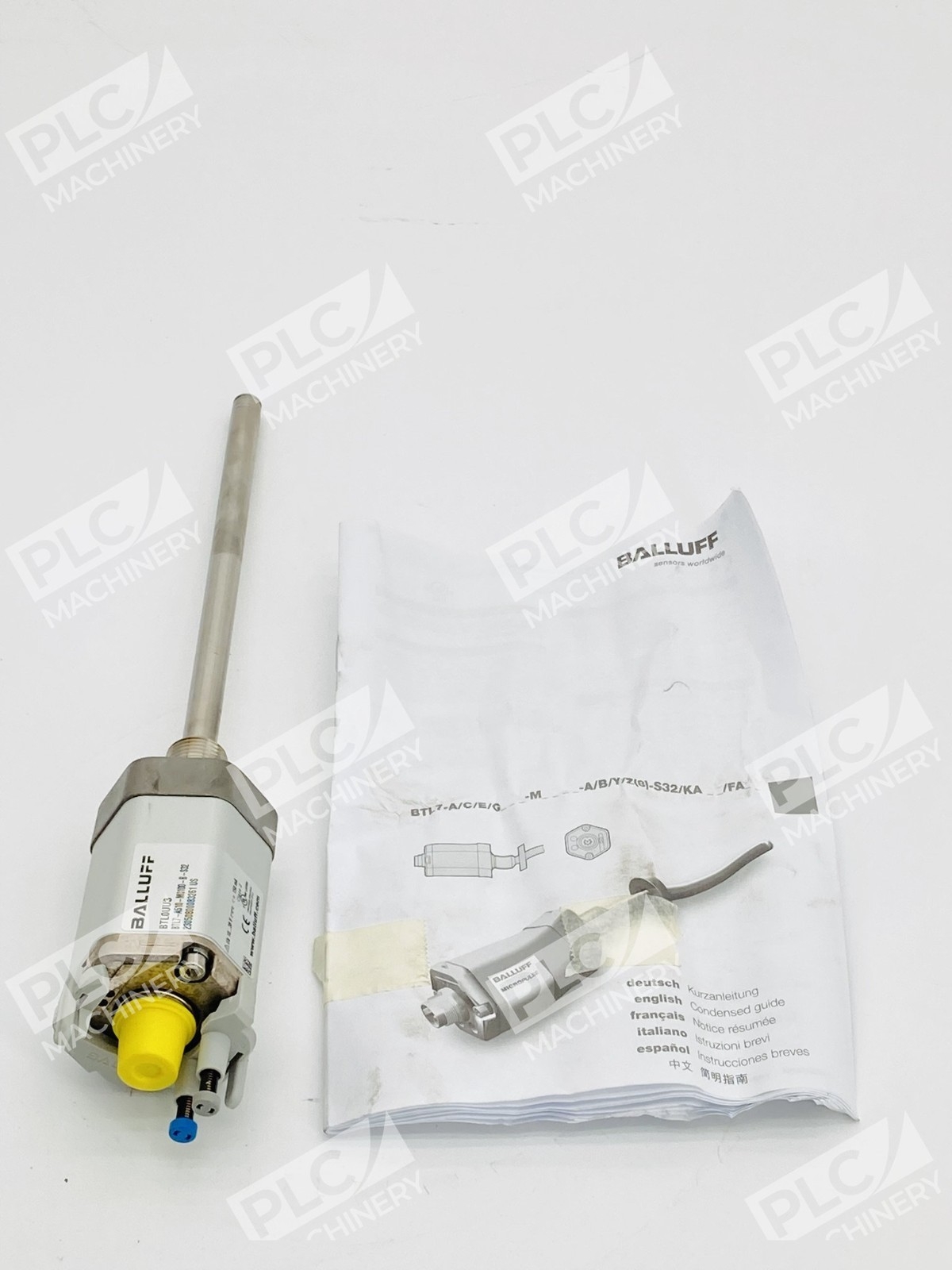

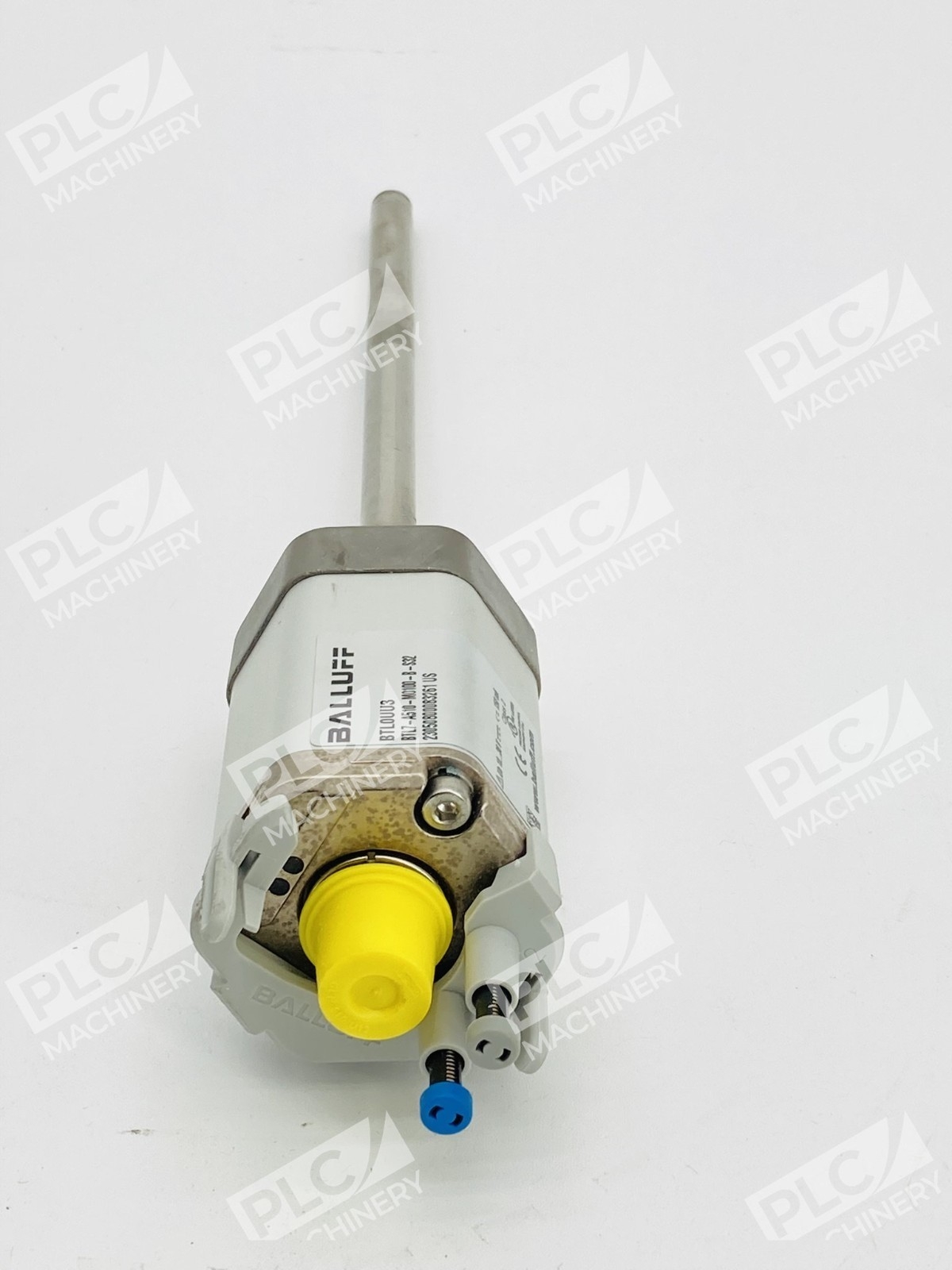

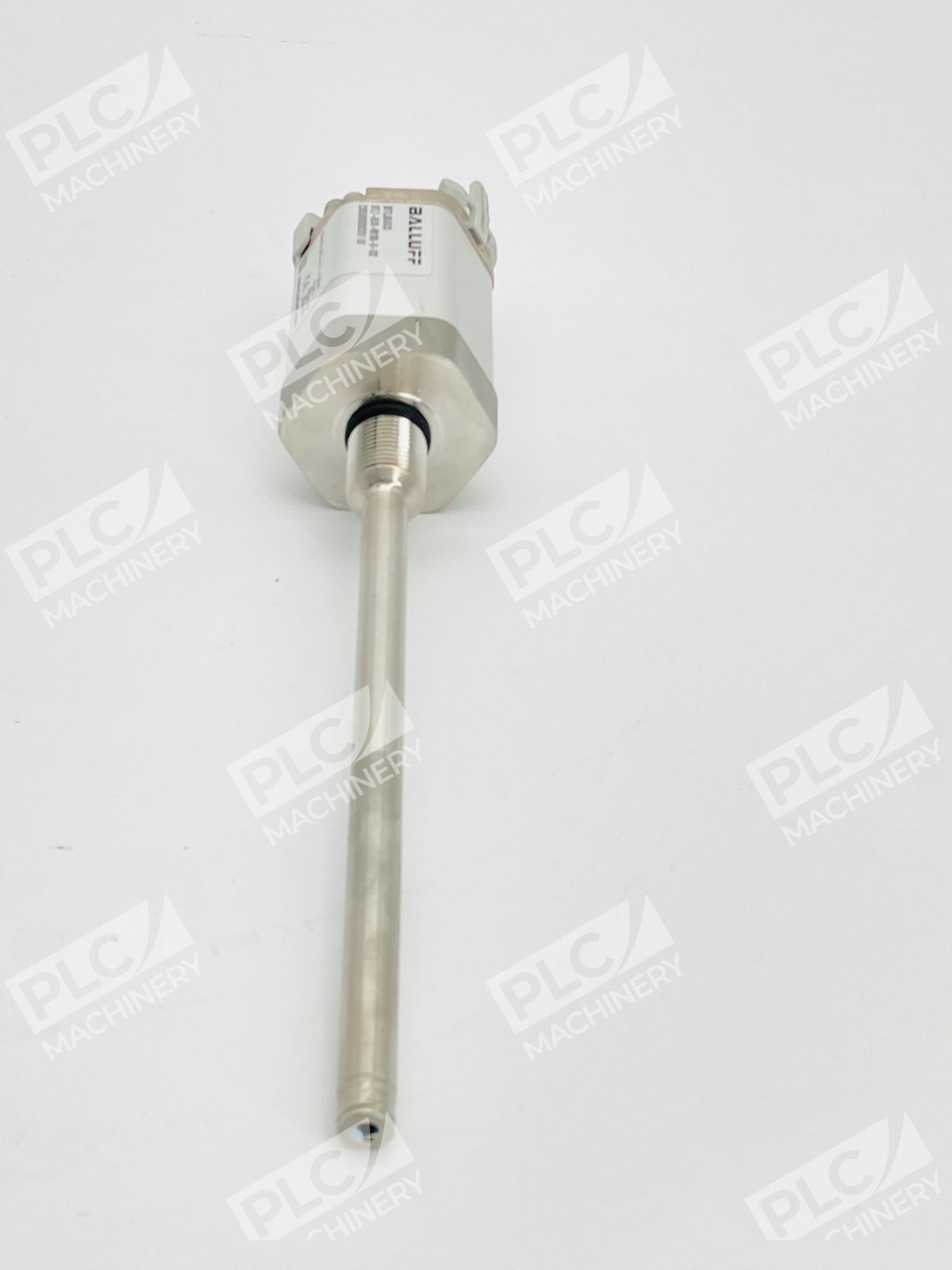

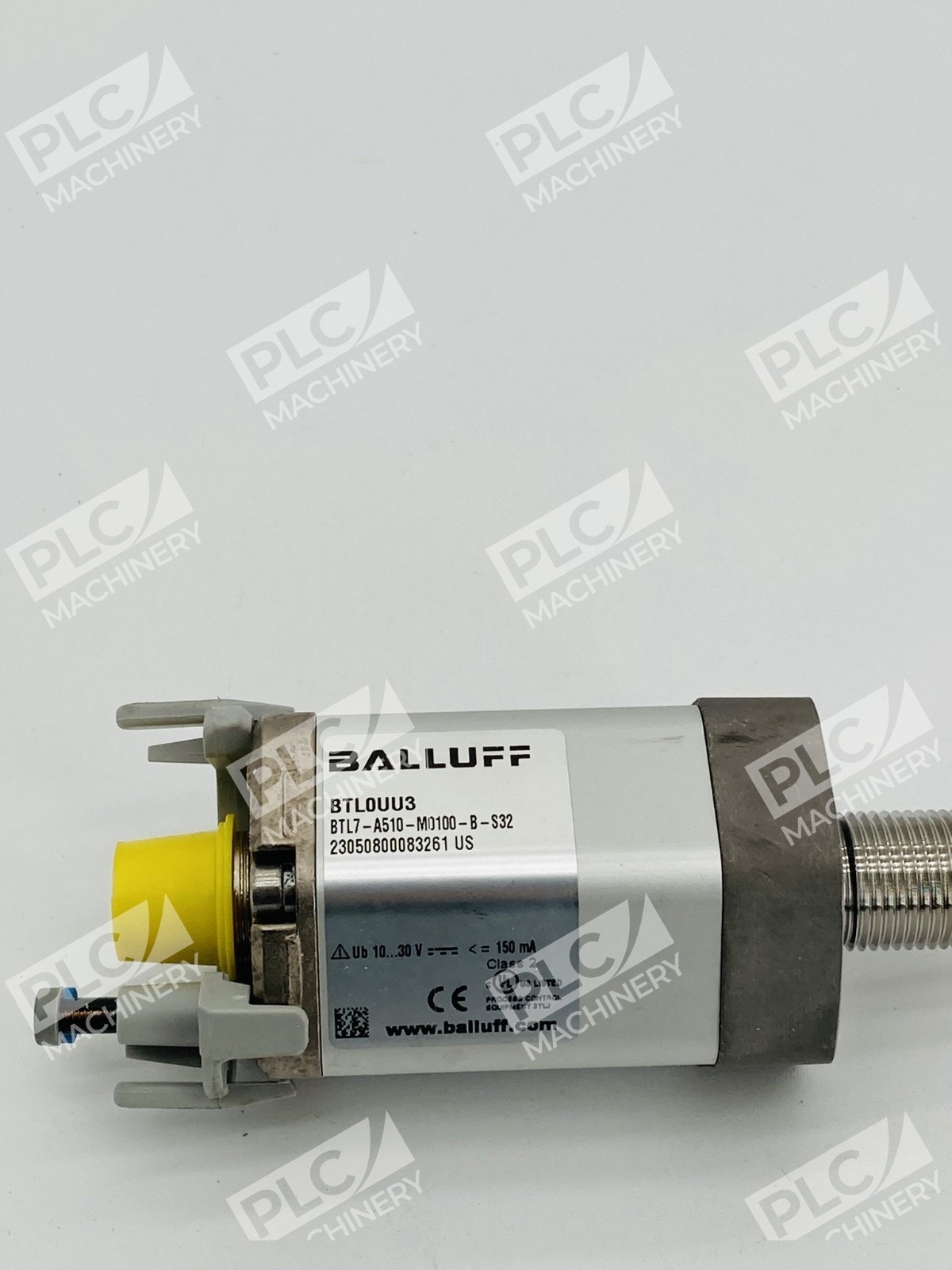

The Balluff BTL7-A510-M0100-B-S32 is a magnetostrictive linear position transducer designed for closed-loop control and position monitoring in hydraulic and industrial automation systems. Part of Balluff’s proven Micropulse+ sensor family, this rod-style sensor combines robust construction with high-precision analog output for demanding applications in machine tools, mobile equipment, and process automation.
Key Features
- Magnetostrictive measurement technology for non-contact, reliable position feedback
- Analog 0–10 V output (reversible to 10–0 V) for direct PLC/controller integration
- Rod style design with M18×1.5 threaded flange for direct cylinder integration
- M16×0.75 8-pin connector (S32) with sealed IP67 design
- Aluminum anodized housing for corrosion resistance
- System resolution down to ±2 µm with repeatability ±50 µm (≤500 mm stroke)
- Operating temperature range –40 to +100 °C
- Single magnet support (up to one magnet)
Technical Specifications
- Measurement Principle: Magnetostrictive
- Nominal Stroke Length: 100 mm (0100)
- Output Signal: Analog 0–10 V DC (reversible to 10–0 V DC)
- Load Impedance: ≤5 mΩ at end of line
- System Resolution: ±2 µm (minimum)
- Repeatability Accuracy: ±50 µm (nominal stroke ≤500 mm)
- Temperature Stability: ≤30 ppm/K
- Supply Voltage: 10–30 V DC
- Supply Current: ≤150 mA
- Output Current: ≤5 mA
- Rod Diameter: 8 mm or 10.2 mm (verify with order confirmation)
- Flange Mount: M18×1.5 per ISO 6149 (O-ring 15.4×2.1)
- Connector: M16×0.75, 8-pin, axial (S32 per IEC 130-9)
- Housing Material: Aluminum, anodized
- Operating Temperature: –40 to +100 °C
- Protection Rating: IP67 (when connector attached)
- Insulation Voltage: 500 V AC (ground to housing)
Typical Applications
- Hydraulic cylinder position feedback in industrial presses and molding machines
- Mobile equipment position monitoring (excavators, loaders, articulated trucks)
- Injection molding machine platen position control
- Machine tool spindle and axis positioning systems
- Proportional valve and actuator feedback loops
- Automated production line motion verification
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and SoftLogix analog input modules
- Siemens S7-1200, S7-1500, and classic PLC analog inputs
- Mitsubishi FX, Q, and iQ-R series PLCs with 0–10 V input cards
- Omron CP1L, CP1E, and CJ2M analog input units
- Schneider Electric Modicon M340, M580, and Harmony analog modules
- Any industrial controller with 0–10 V single-ended analog input
- PLC hydraulic proportional valve control systems
- Closed-loop motion control and feedback applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The BTL7-A510-M0100-B-S32 is a direct replacement for other BTL7-A510-M0100-B-S32 units and compatible with earlier Balluff magnetostrictive rod sensors using the same M18×1.5 threaded flange and 0–10 V output standard (e.g., BTL7-A110-M0100-B-S32, BTL7-A510-M0100-P-S32 with different connector types).
Works With
- 0–10 V DC analog input channels
- 4–20 mA transducers and signal conditioning (with external converter)
- EtherNet/IP (via analog gateway modules)
- PROFIBUS, PROFINET (via industrial I/O modules)
- Modbus RTU and TCP networks (through analog-to-serial converters)
- Studio 5000 (Logix Designer) analog input scaling
- TIA Portal (Siemens) analog input configuration
- CODESYS runtime environments
