Overview

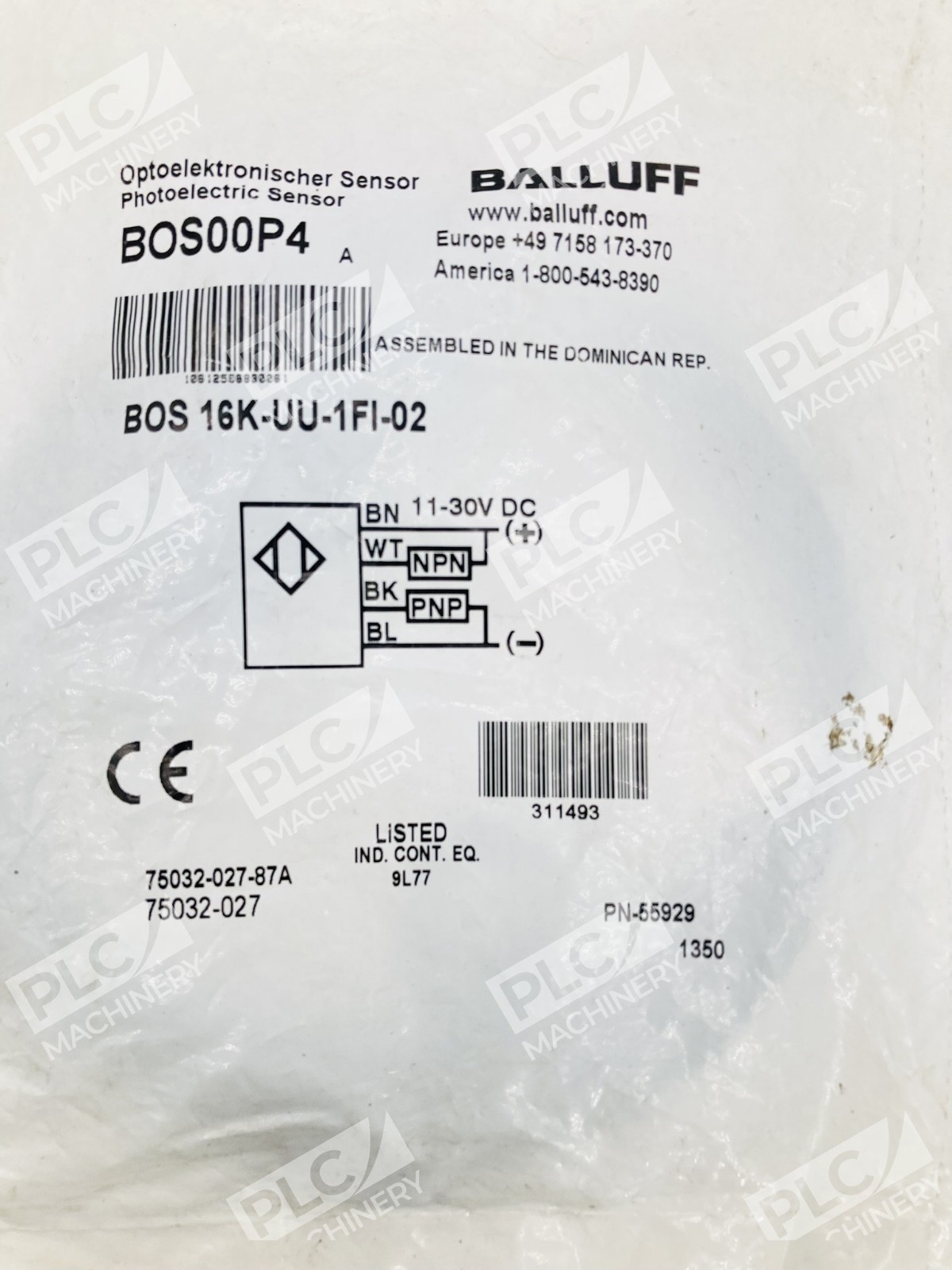

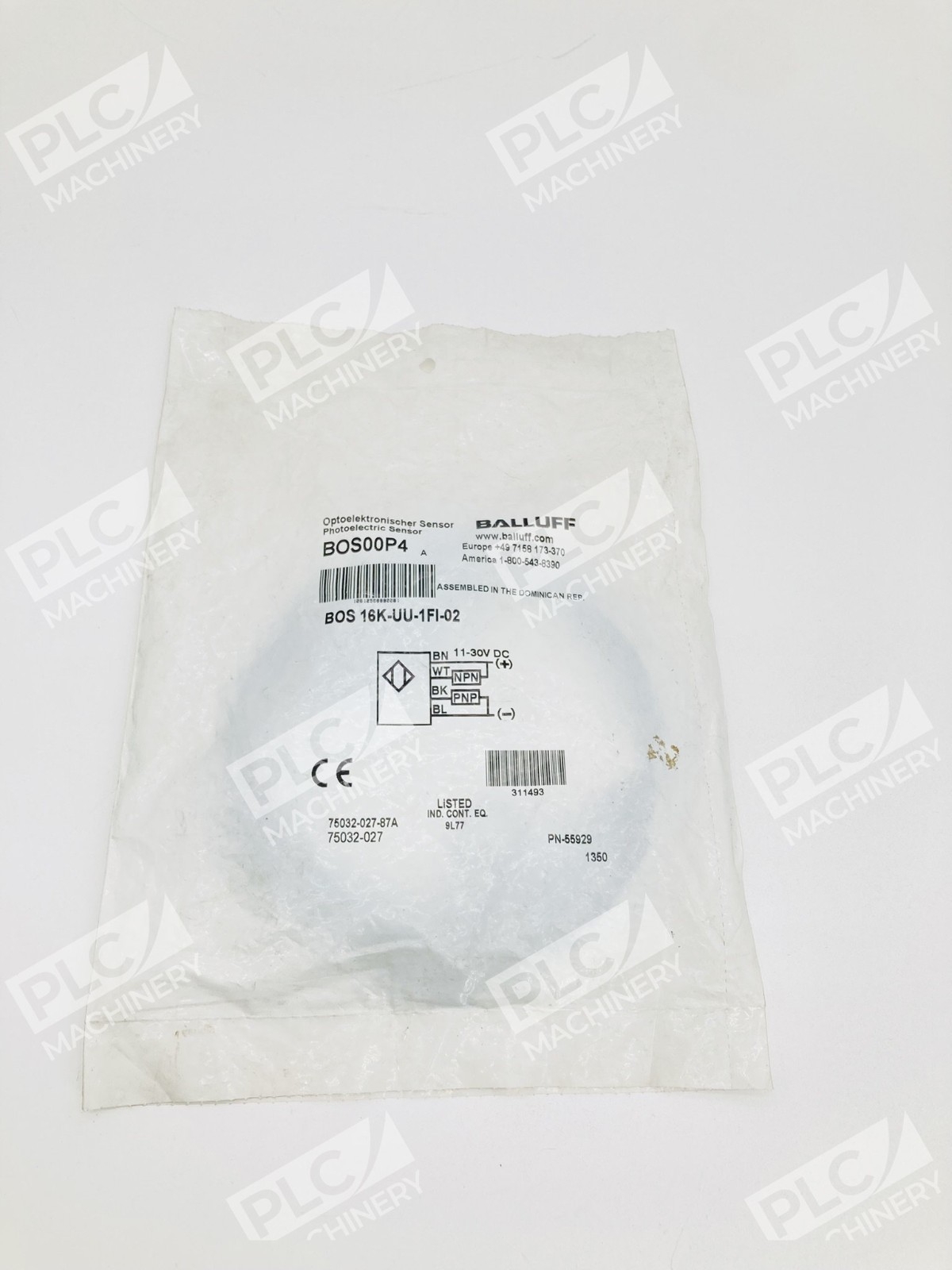

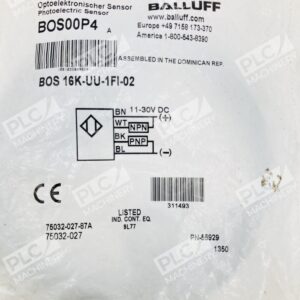

The Balluff BOS16K-UU-1FI-02 is a miniature fiber optic photoelectric sensor engineered for precision object detection in industrial automation systems. This sensor operates over a 11-30VDC supply range, making it compatible with most factory control voltages. The fiber-based design enables sensing in confined spaces where traditional barrel sensors cannot fit, providing exceptional flexibility for machine integration and custom optical path configurations.
Key Features
- Compact fiber optic sensor head for tight installation spaces
- Wide supply voltage range: 11–30VDC
- Infrared LED technology for reliable object detection
- M12 connector interface for fast field replacement
- IP65-rated housing for dust and moisture resistance
- PNP and NPN output configurations available
Technical Specifications
The BOS16K-UU-1FI-02 combines compact form factor with industrial-grade durability. Its infrared optical system operates independently of ambient light, reducing false triggers in bright factory environments. The sensor housing is constructed from high-impact polymer (PPE) with a PMMA sensing window, rated for washdown and light chemical exposure.
Typical Applications
- Food and beverage packaging machinery
- Pharmaceutical tablet and capsule detection
- Automotive component positioning and verification
- Textile and label detection systems
- Sealed container and bottle detection
- Assembly line presence verification
Compatibility & Replacements
Compatible With
- Siemens S7 PLCs (via standard I/O modules)
- Allen-Bradley CompactLogix and ControlLogix systems
- Mitsubishi FX and iQ-R series controllers
- Omron CP and CJ-series programmable controllers
- Generic 24VDC industrial control systems
- Distributed I/O nodes (PROFINET, EtherNet/IP compatible via gateway)
Replaces / Drop-In Replacement For
- Balluff BOS 16K-UU-1FI-00.2-S4 (earlier engineering revision)
- Similar Balluff fiber optic sensor models within the 16K family
Works With
- Standard 24VDC power supplies and industrial PSUs
- PLC and controller analog/digital input modules
- M12 connector systems and field-wiring harnesses
- Industrial sensor networks supporting discrete I/O protocols
