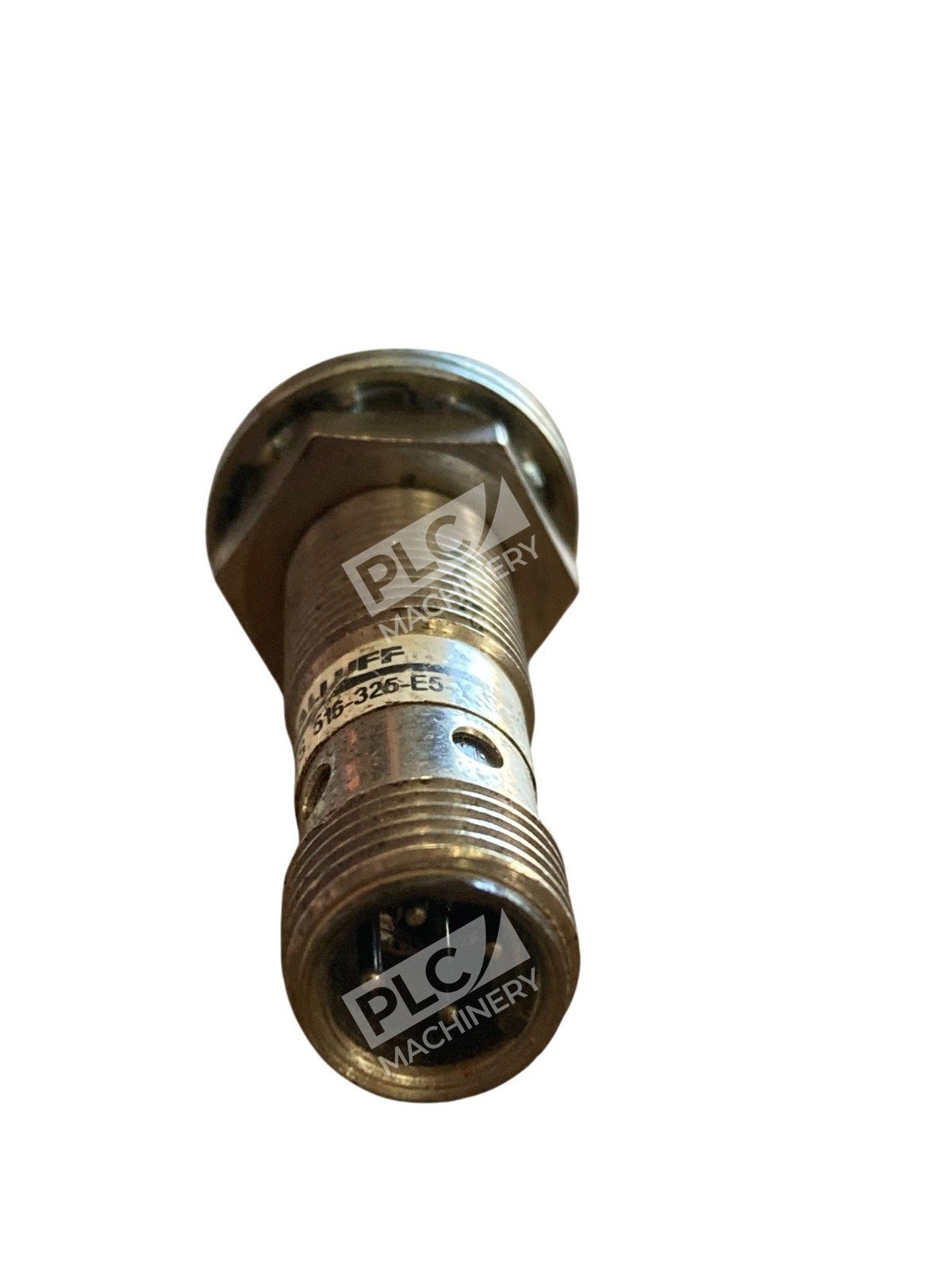

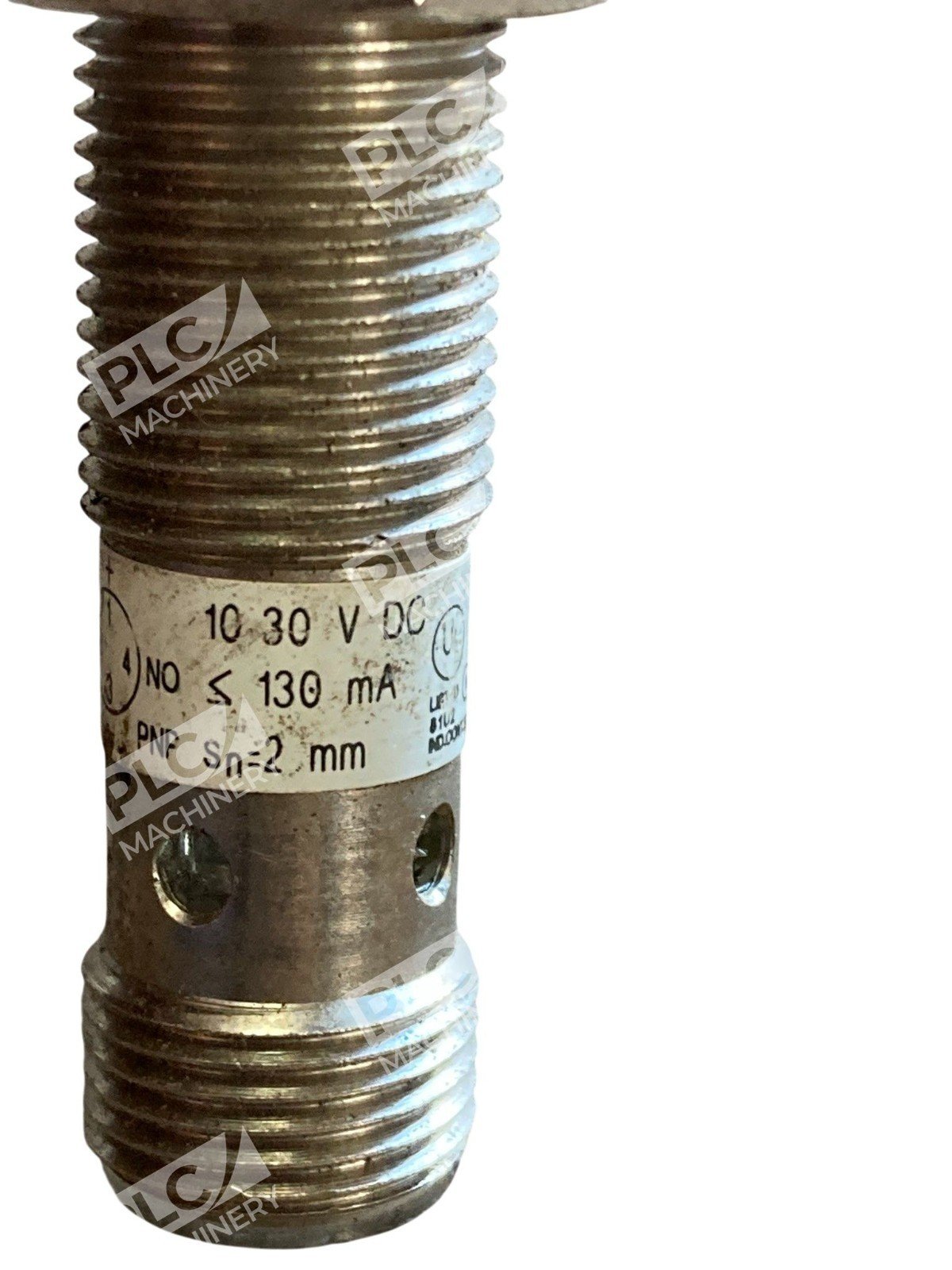

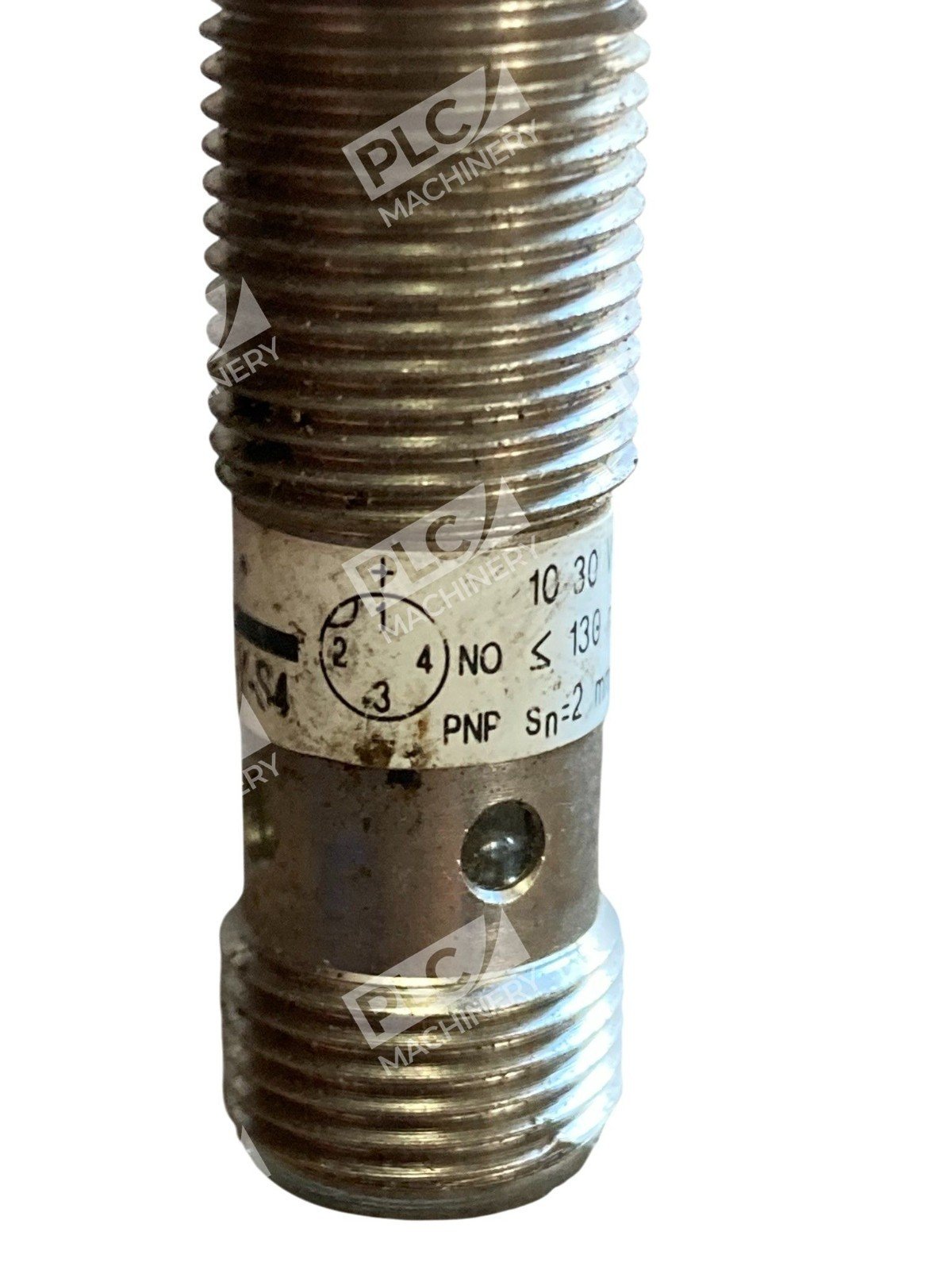

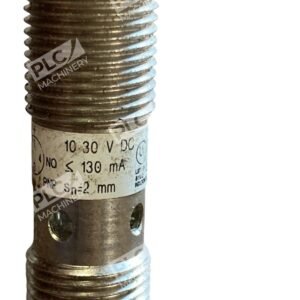

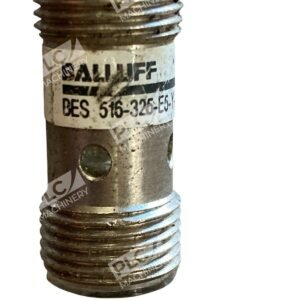

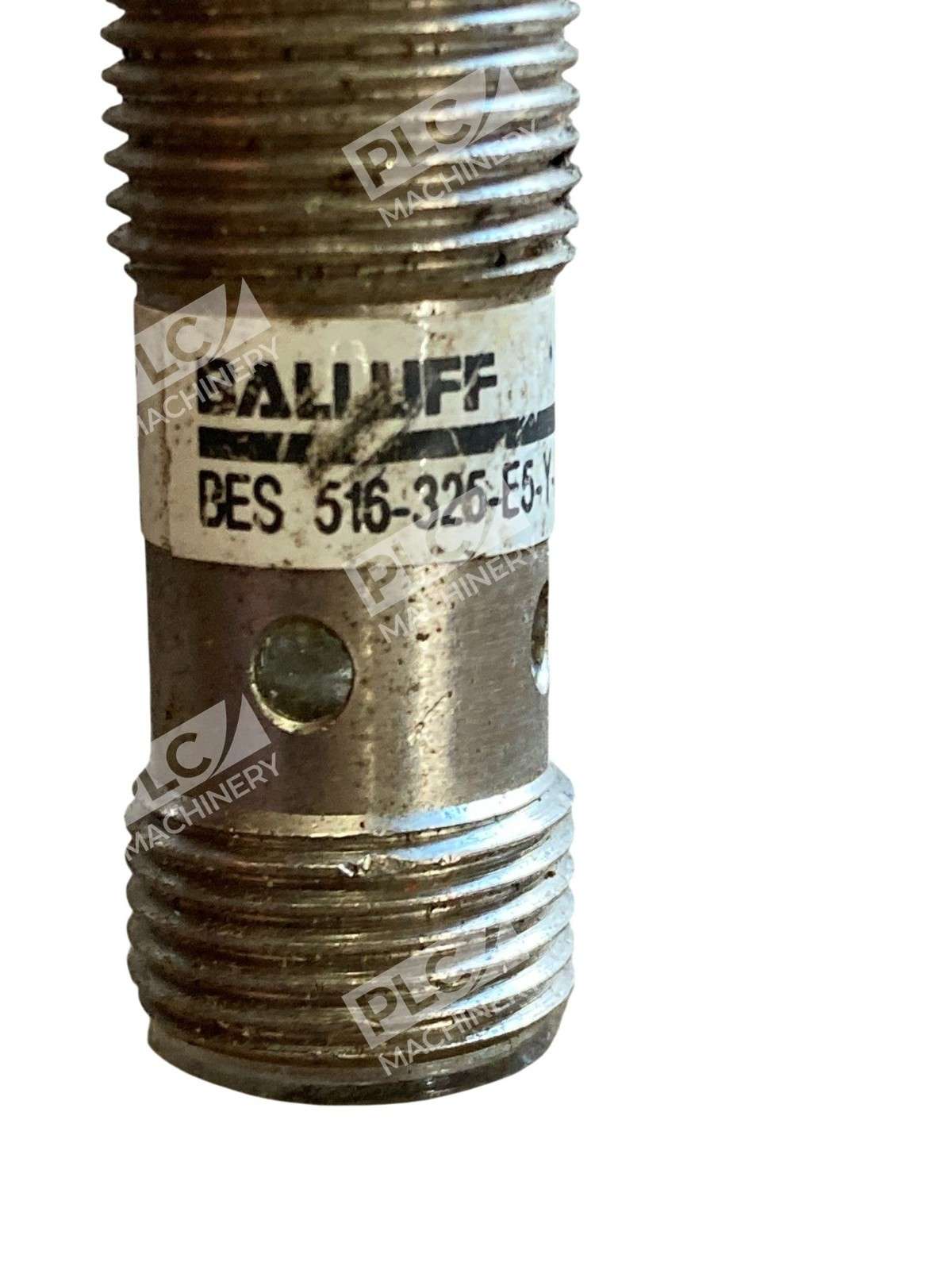

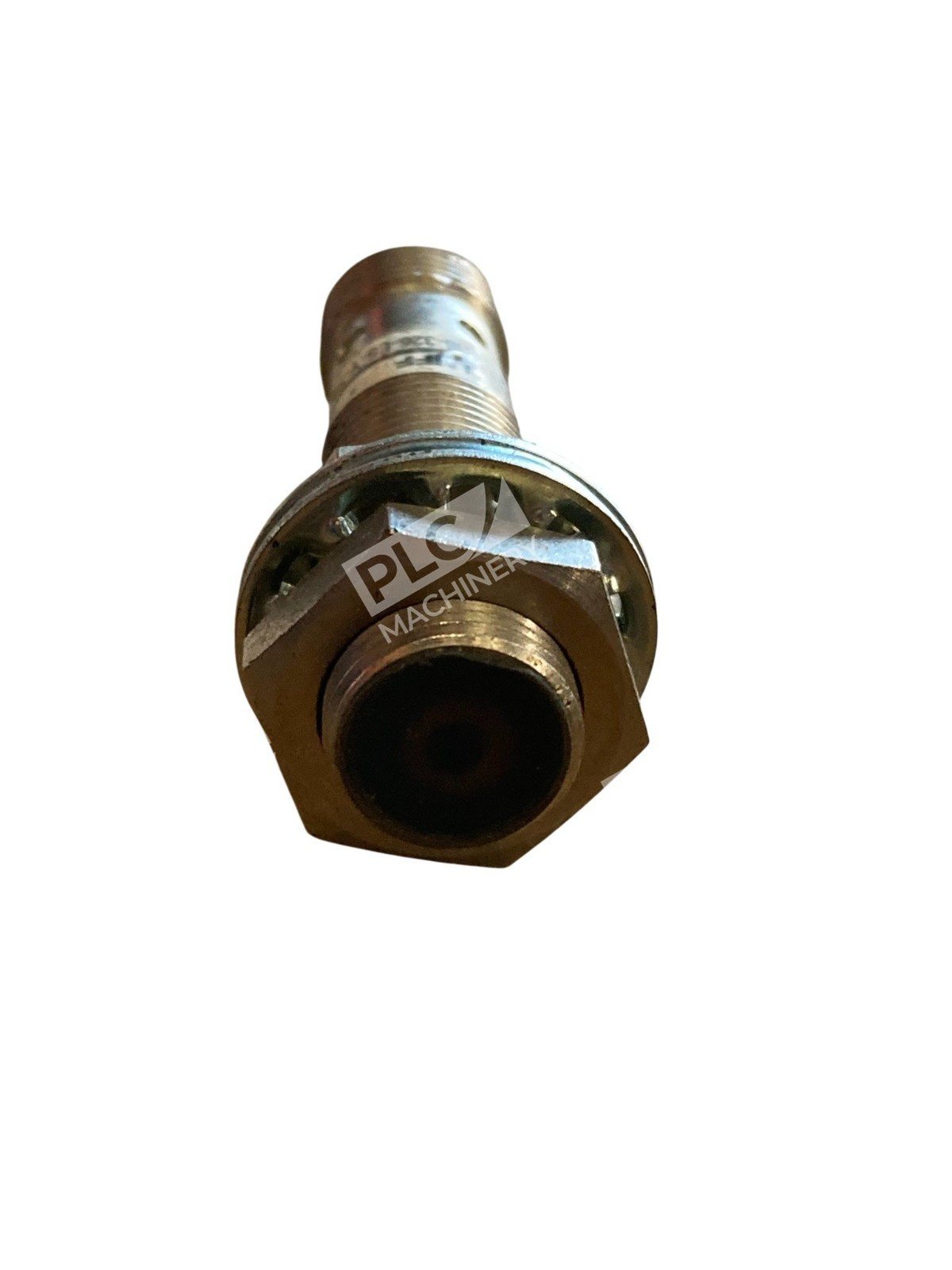

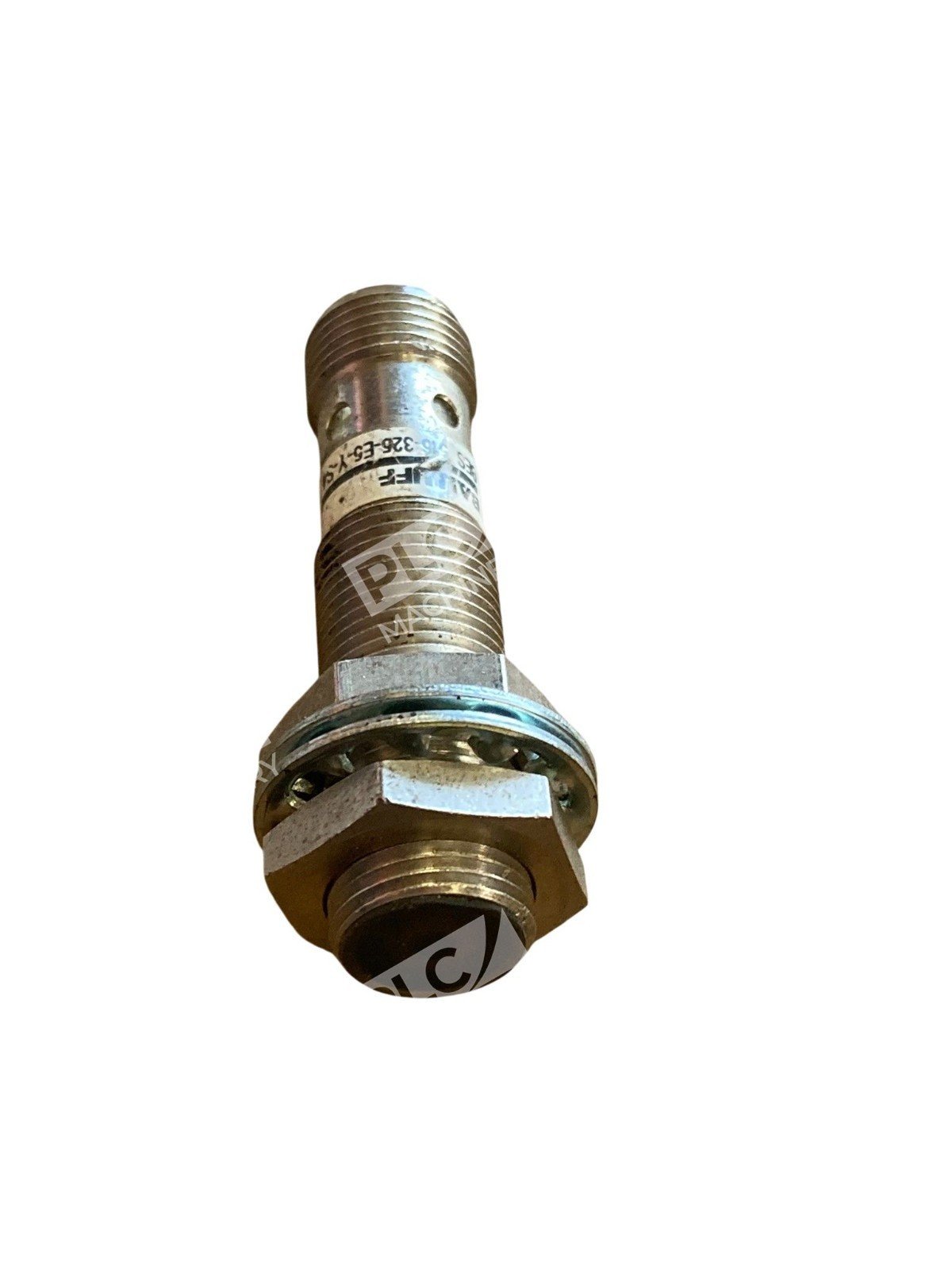

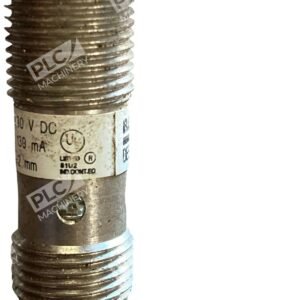

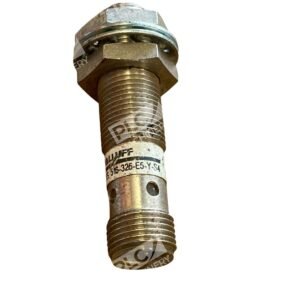

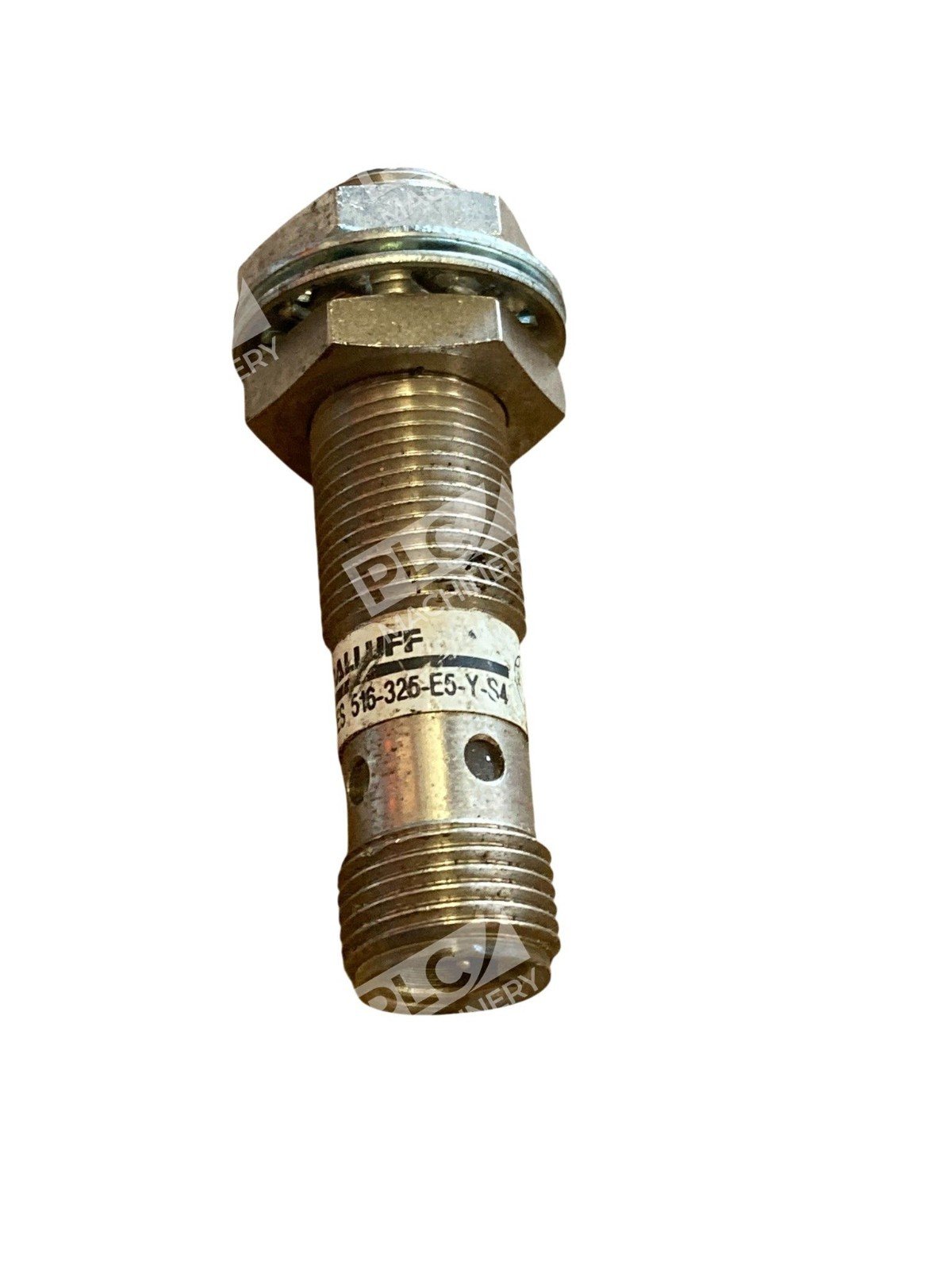

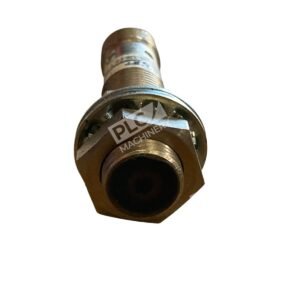

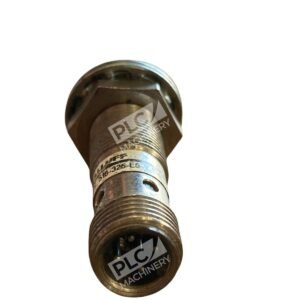

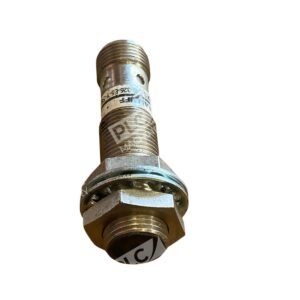

Balluff BES 516-325-E5-Y-S4 Inductive Proximity Sensor

The Balluff BES 516-325-E5-Y-S4 is a high-performance inductive proximity sensor designed for precise and reliable detection of metal objects in industrial environments. Its robust construction and advanced features make it an ideal choice for various automation applications.

Key Features

• Compact Dimensions: With a diameter of 12 mm and a length of 50 mm, this sensor is suitable for installations where space is limited.
• Flush Mounting: Designed for flush mounting, allowing seamless integration into machinery and equipment.
• Detection Range: Offers a sensing distance of 2 mm, ensuring accurate detection of metal objects within close proximity.
• Switching Output: Equipped with a PNP normally open (NO) output, facilitating straightforward integration with control systems.
• High Switching Frequency: Capable of operating at a switching frequency of up to 5000 Hz, suitable for high-speed applications.
• Durable Housing: Constructed with nickel-plated brass housing, providing excellent resistance to mechanical wear and corrosion.
• Resilient Sensing Surface: Features a sensing face made of PBT (Polybutylene Terephthalate), known for its durability and resistance to chemicals.
• Reliable Connection: Utilizes a 4-pin M12x1 male connector, ensuring secure and easy electrical connections.
• Wide Operating Voltage: Operates within a voltage range of 10 to 30 VDC, offering flexibility in various power supply scenarios.
• Temperature Tolerance: Functions effectively in ambient temperatures ranging from -25°C to +70°C, suitable for diverse industrial settings.
• High Protection Rating: Boasts an IP68 rating, indicating complete protection against dust ingress and prolonged immersion in water.
• Compliance and Approvals: Meets international standards with approvals including cULus, CE, UKCA, and WEEE, ensuring adherence to safety and environmental regulations.

Applications

The Balluff BES 516-325-E5-Y-S4 inductive proximity sensor is ideal for applications such as:

• Position detection in automated assembly lines.
• Monitoring metal components in conveyor systems.
• Detecting metal objects in packaging machinery.
• Ensuring safety in industrial automation by detecting the presence or absence of metal parts.

Its combination of compact size, high switching frequency, and robust design makes it a versatile solution for demanding industrial environments.
