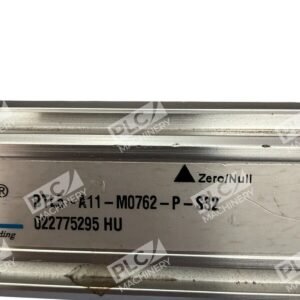

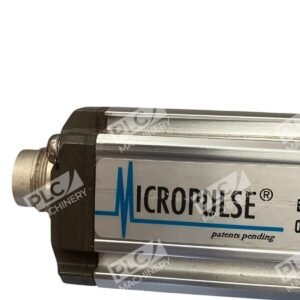

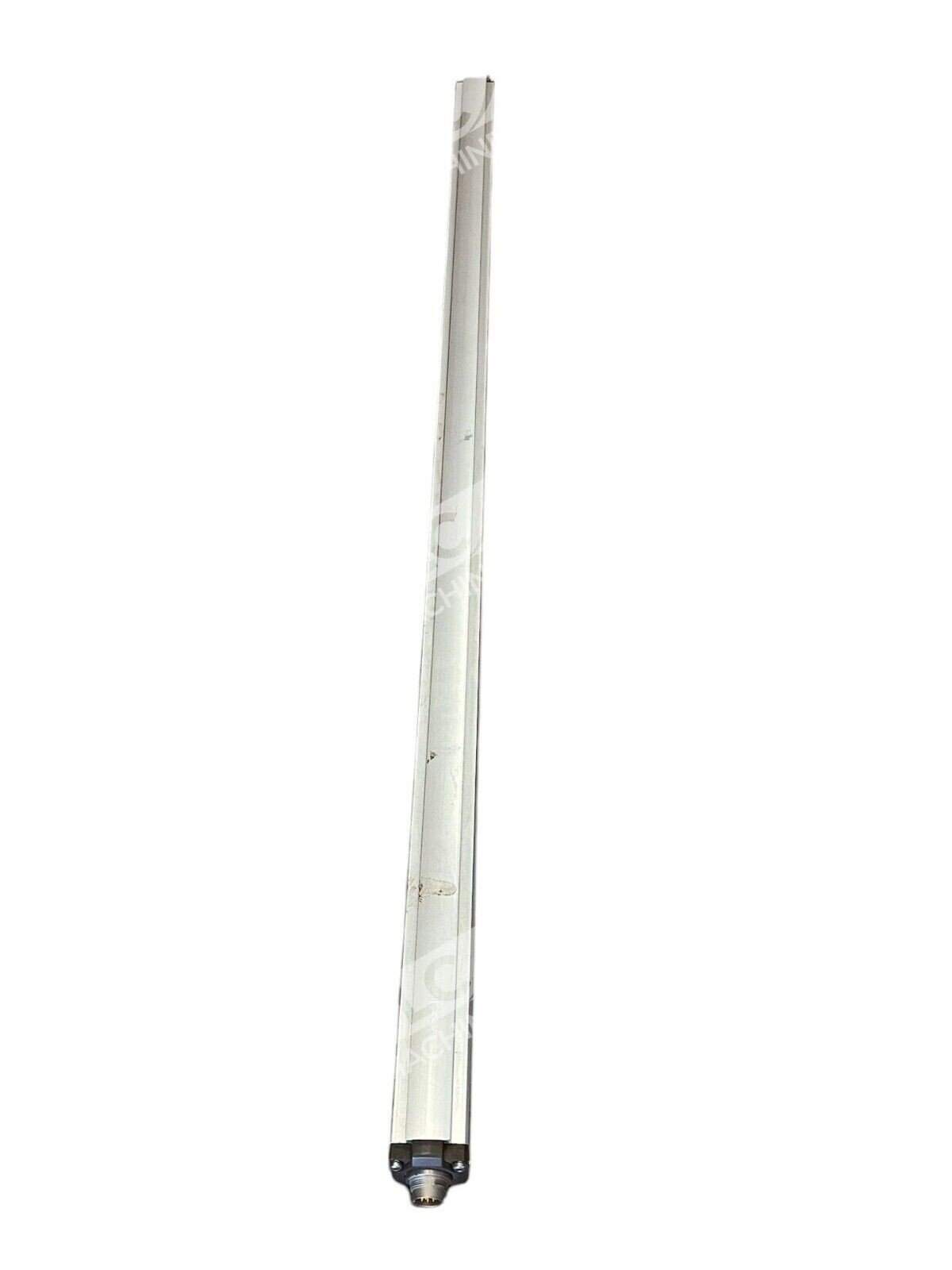

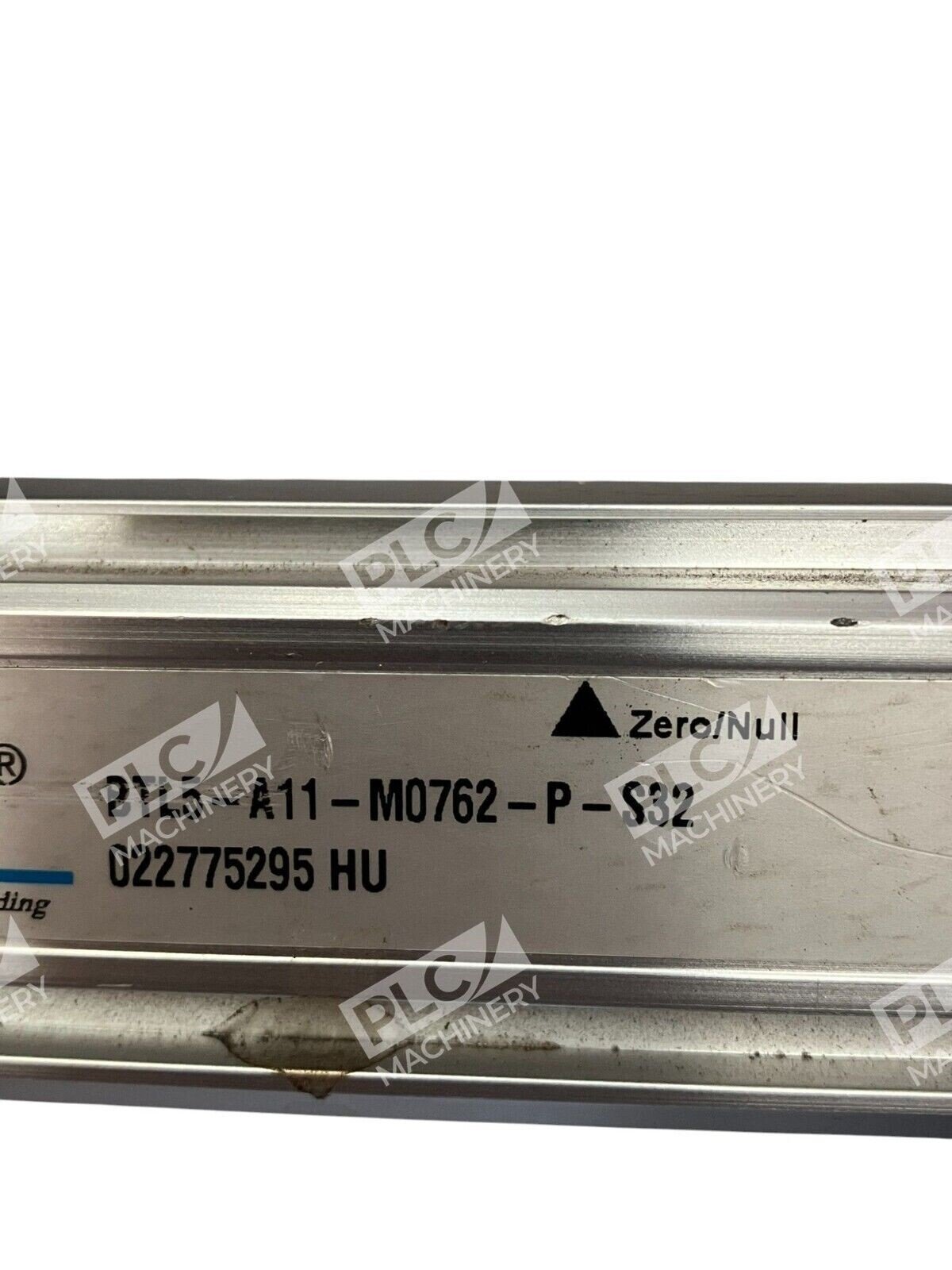

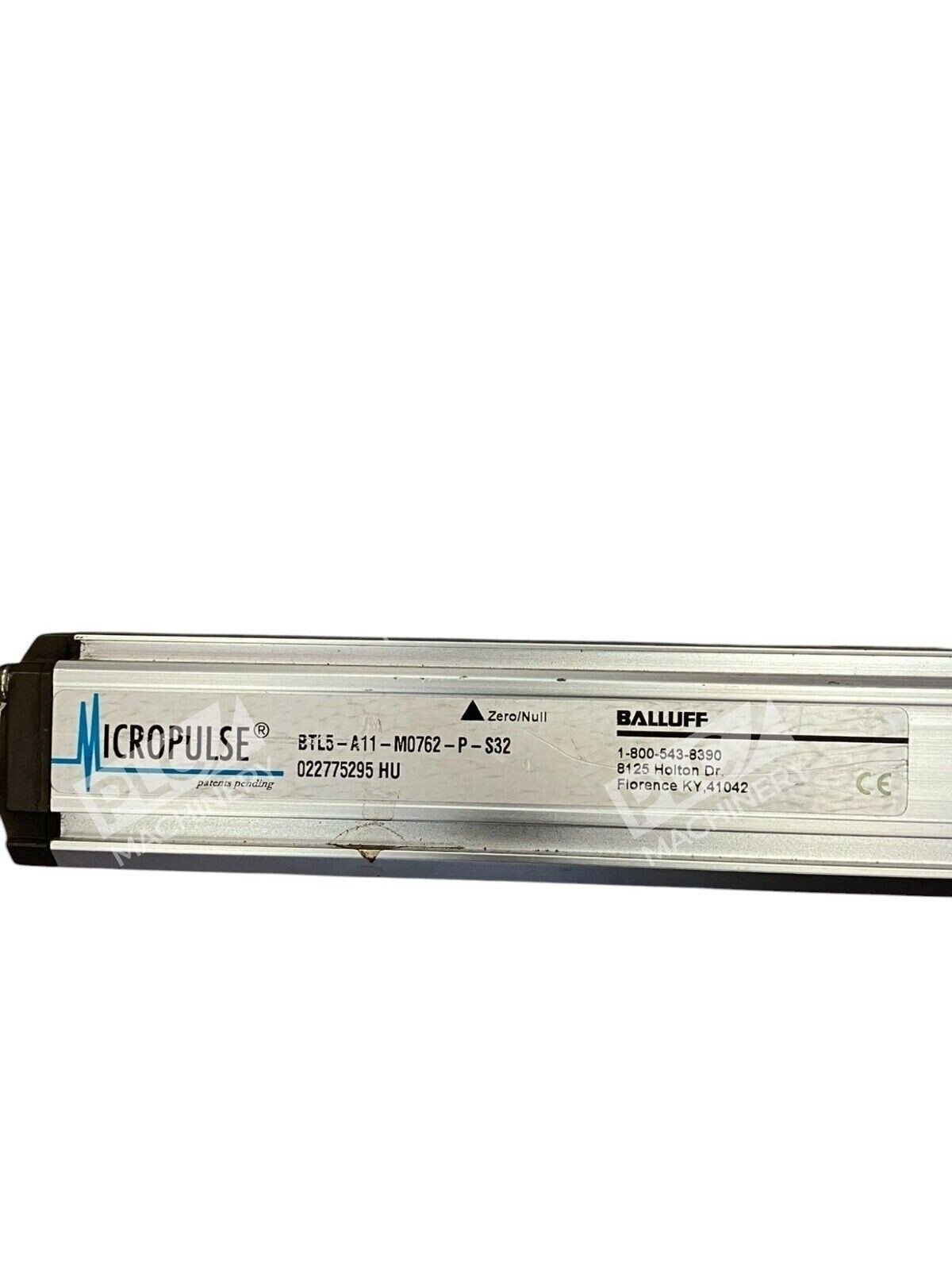

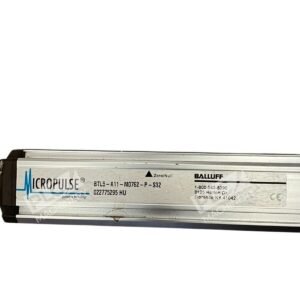

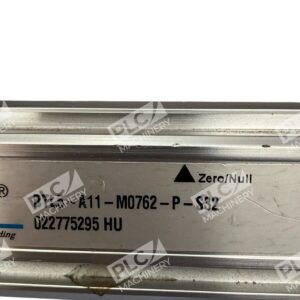

The Balluff BTL5-A11-M0762-P-S32 is a high-precision magnetostrictive linear position transducer designed for accurate and reliable position measurement in industrial applications.
Key Features
- Measurement Range: 762 mm nominal stroke length, suitable for a variety of linear positioning tasks.
- Output Signal: Analog voltage outputs of 0…10 V and 10…0 V, providing flexibility for integration with different control systems.
- Operating Voltage: Operates within a 20 to 28 VDC range, accommodating standard industrial power supplies.
- Resolution: High resolution of ≤ 2 µm, ensuring precise position feedback.
- Non-Linearity: Maximum non-linearity of ±0.02% of full scale, delivering consistent and accurate measurements.
- Repeatability: Repeat accuracy of ≤ 0.1 mV, ensuring reliable performance over repeated cycles.
- Housing Material: Constructed with anodized aluminum, offering durability and resistance to environmental factors.
- Protection Rating: IP67-rated, providing robust protection against dust and water ingress, suitable for harsh industrial environments.
- Operating Temperature: Capable of functioning in temperatures ranging from -40 to 85°C, ensuring versatility across various applications.
- Connection Type: Equipped with an M16x0.75, 8-pin connector, facilitating secure and straightforward electrical connections.
Applications
This transducer is ideal for applications requiring precise linear position measurement, such as in automation systems, material handling equipment, and machine tool positioning. Its non-contact measurement principle ensures longevity and maintenance-free operation, even in demanding industrial settings.
Installation and Compatibility
The BTL5-A11-M0762-P-S32 is designed for easy integration into existing systems, with mounting clamps for secure installation. Its standard output signals and connection interfaces make it compatible with a wide range of control systems and industrial protocols.
For detailed technical specifications and installation guidelines, please refer to the product datasheet or contact Balluff’s technical support.
