Overview

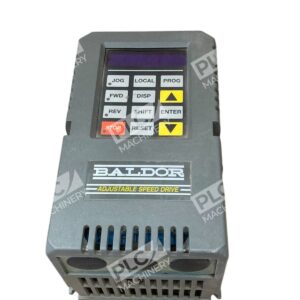

The Baldor ID15J1F50-ER is a compact inverter control adjustable speed drive designed for single-phase motor speed regulation in light industrial and maintenance applications. Part of the proven Series 15J line, this unit combines AC inverter technology with straightforward front-panel operation, making it suitable for retrofit installations and OEM equipment requiring precise variable-frequency control.
Key Features
- Series 15J inverter-based AC motor control technology
- Single-phase input (115VAC, 50/60Hz) with three-phase or single-phase output capability
- Rated for 0.5HP motor loads
- Type 1 NEMA enclosure—surface-mountable steel cabinet

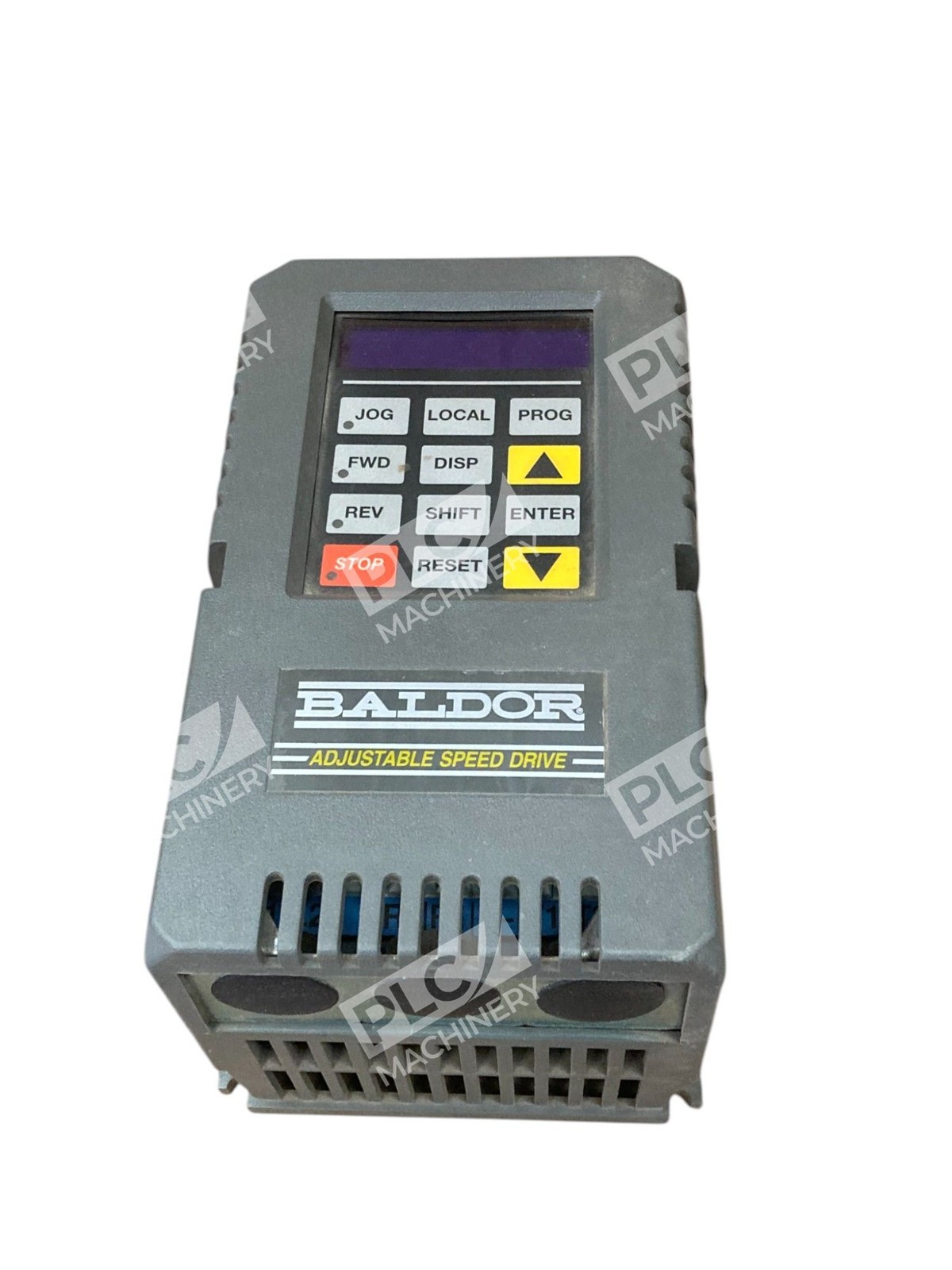

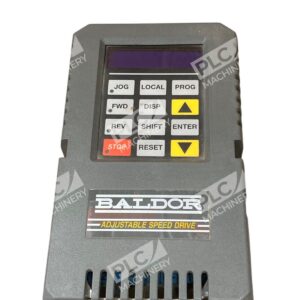

- Integral potentiometer and start/stop switching for operator control
- Adjustable speed ramp settings for soft-start capability

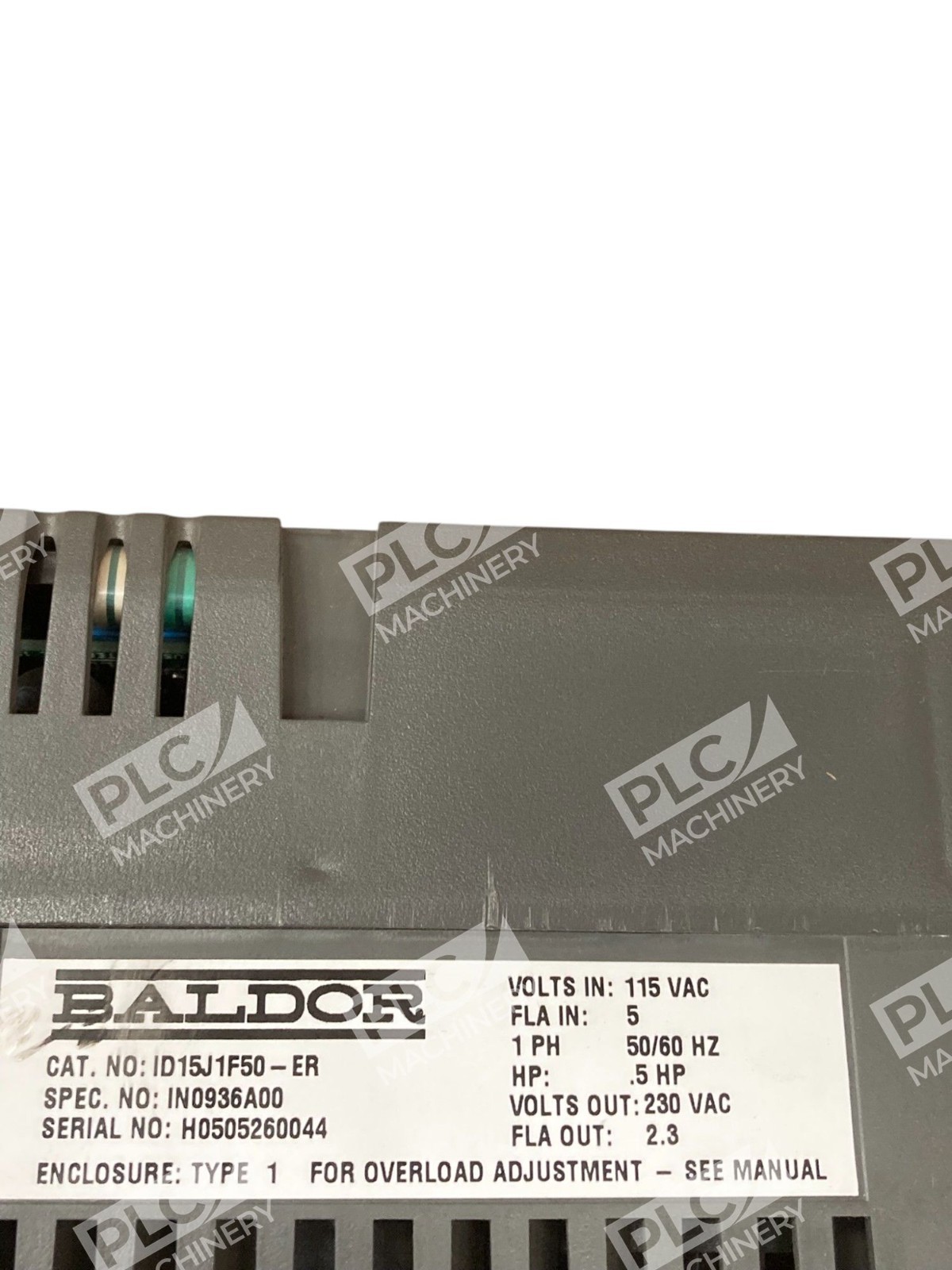

Technical Specifications
- Input Voltage: 115VAC single-phase, 50/60Hz
- Input Current: 5A maximum continuous
- Output Voltage: 230VAC variable frequency
- Output Current (Rated): 2.2A
- Horsepower Rating: 0.5HP
- Enclosure Type: NEMA 1 (Type 1) steel cabinet
- Mounting Method: Vertical surface-mount
- Control Method: AC inverter (variable frequency drive)
- Product Series: 15J
- Frequency Range: 0–60Hz output
Typical Applications
The Baldor ID15J1F50-ER is commonly applied in:
- Motor speed control for conveyor systems and light material handling
- Pump and fan speed regulation to match load requirements
- Retrofit installations requiring single-phase AC-to-three-phase conversion
- Small machine tool spindle speed adjustment
- HVAC blower and ventilation fan speed control
- Process equipment requiring variable motor torque and soft-start capability
Compatibility & Replacements
Compatible With
- Three-phase AC induction motors up to 0.5HP
- Single-phase AC motors (with appropriate load matching)
- Standard 115VAC single-phase power distribution
- Barrier terminal block wiring (standard industrial practice)
- Manual potentiometer-based speed control systems
- OEM equipment and control panels with analog speed inputs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Baldor ID15J1F50-ER is a discontinued product; consult Baldor application engineering or an authorized distributor for equivalent current-production alternatives if direct replacement is required.
Works With
- Baldor 15J Series control documentation and manuals
- Standard AC induction motor parameter adjustment (slip compensation, overload protection)
- 50/60Hz dual-frequency operation (jumper-selectable)
- Manual speed control via front-panel potentiometer
- Diagnostic LED status indicators for fault detection
