Overview

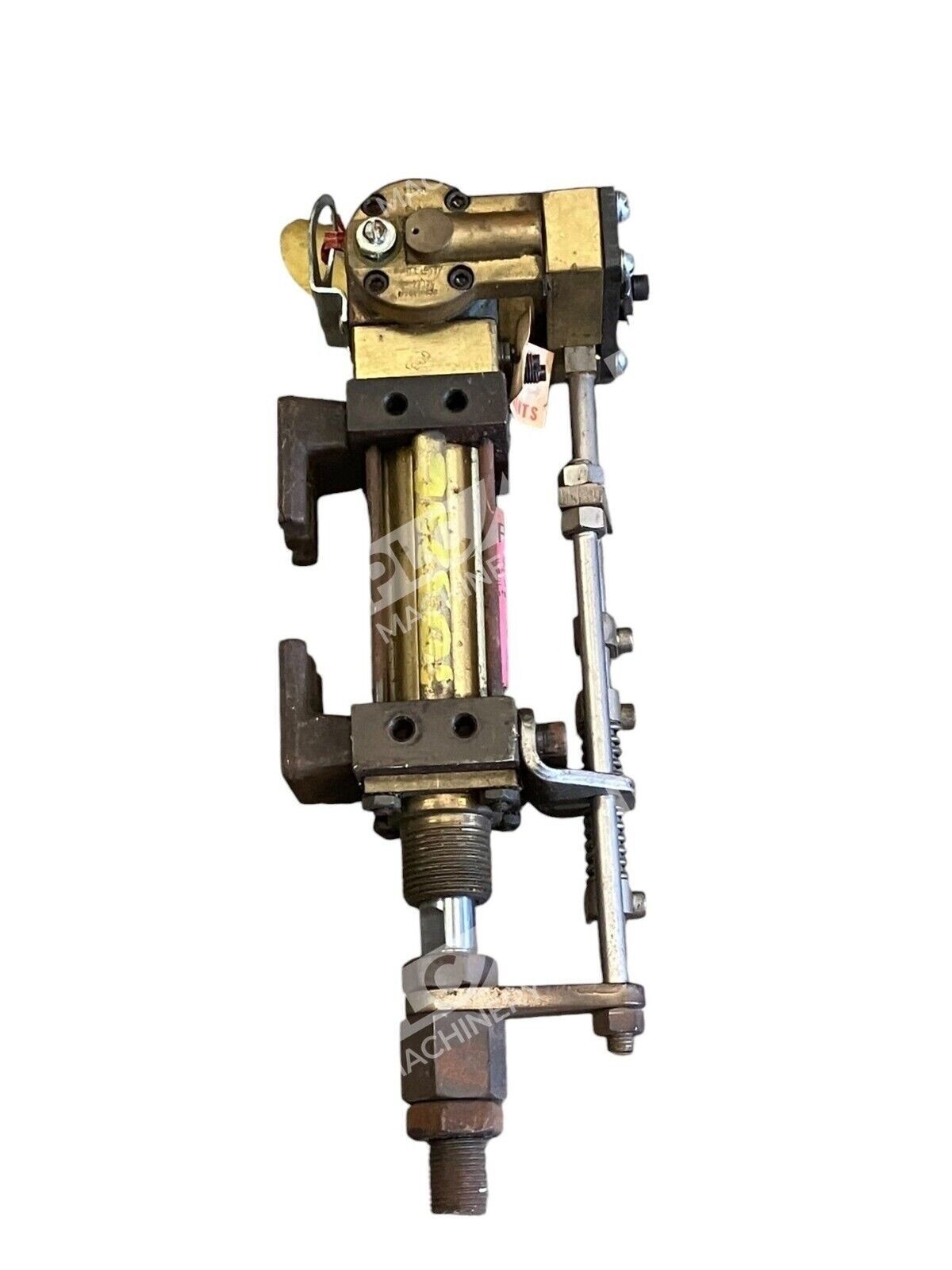

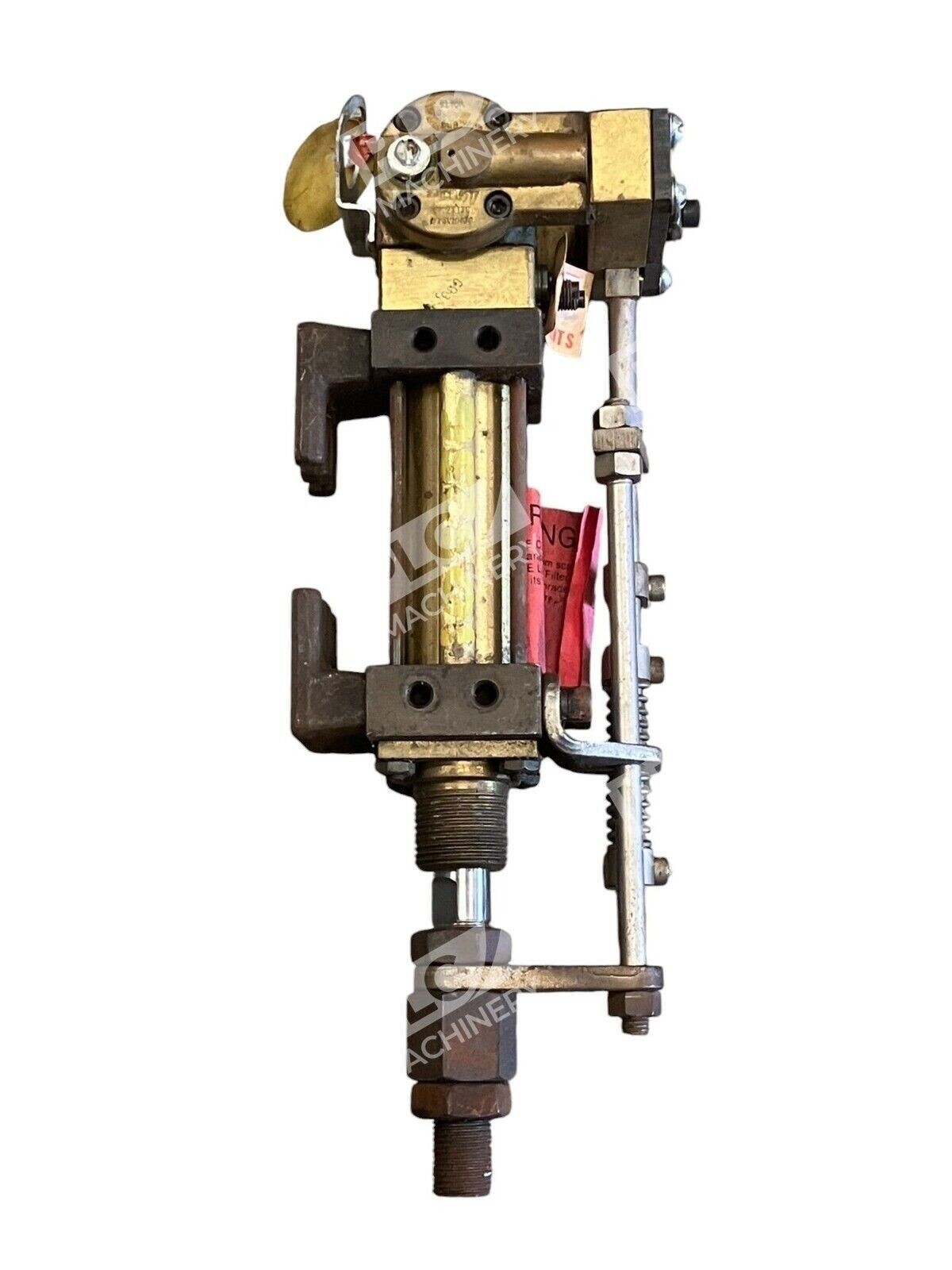

The Schrader Bellows B942200140 is a solenoid-actuated directional control valve used in compressed air systems across manufacturing, packaging, and automation environments. This EV5 model delivers consistent switching performance at 150 PSI maximum operating pressure with 12V AC, 60 Hz coil energization. The valve’s 1/4-inch NPT porting makes it a common fit in modular pneumatic manifold assemblies and standalone air circuit control applications. Available in used condition, this unit represents a cost-effective alternative for system maintenance and upgrades.
Key Features
- Solenoid-operated directional control — Reliable electromagnetic actuation for air valve switching
- 150 PSI rated pressure — Suitable for most industrial pneumatic systems (compressed air, nitrogen)
- 12V AC, 60 Hz coil — Standard North American single-phase electrical specification
- 1/4-inch NPT ports — Industry-standard pipe thread for manifold and tubing connections
- EV5 directional function — 5/2-way or 5/3-way solenoid switching typical of this series
- Compact porting design — Integrates into confined manifold cavity spaces and sandwich-mount assemblies
Technical Specifications

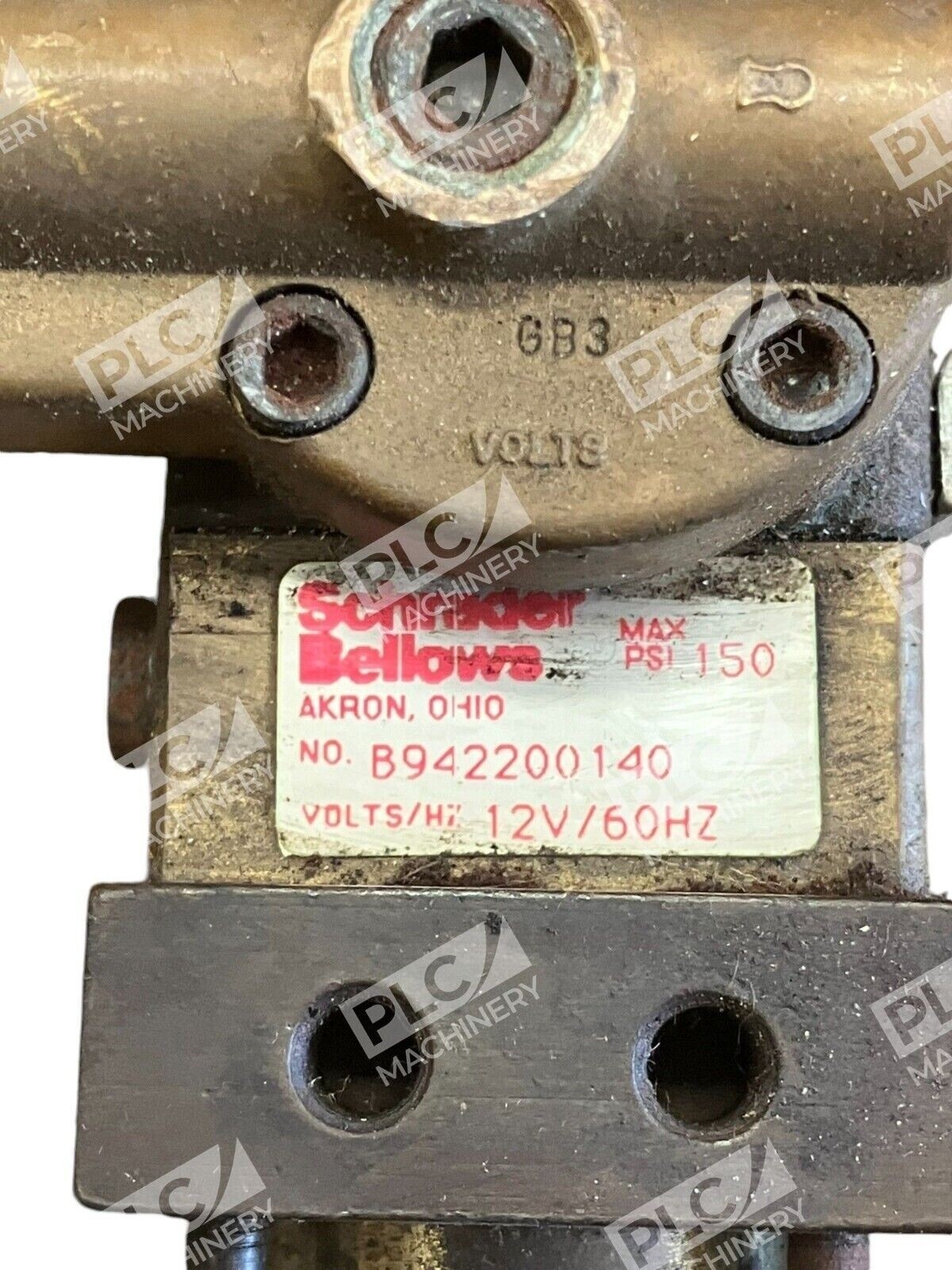

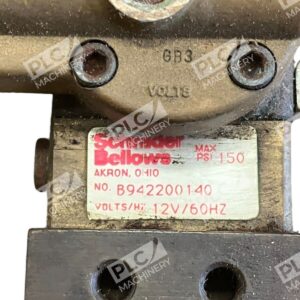

- Model: Schrader Bellows B942200140
- Valve Type: Solenoid-operated directional control valve, EV5 series
- Maximum Operating Pressure: 150 PSI (10.3 bar)
- Electrical Rating: 12V AC, 60 Hz
- Port Size: 1/4-inch NPT (female pipe thread)
- Weight: 2.10 lbs
- Fluid Medium: Filtered compressed air
- Operating Temperature Range: Typical industrial pneumatic range (consult OEM specifications for exact limits)
Typical Applications
- Pneumatic automation: Press control, gripper actuation, and cylinder sequencing
- Packaging machinery: Bag sealing, carton closing, and labeling line control
- Industrial air circuits: Tool supply, workstation air distribution, and plant compressed-air networks
- Test stands: Pneumatic actuator testing and diagnostic equipment
- Manifold assemblies: OEM modular valve packages and custom pneumatic circuit designs
Compatibility & Replacements
Compatible With
- Parker Hannifin pneumatic control systems (Schrader Bellows is Parker subsidiary)
- Industrial compressed air networks rated 150 PSI or less
- Standard 1/4-inch NPT pneumatic tubing and hose fittings
- Solenoid valve coil-replaceable designs and manifold cavity sandwich mounts
- Single-phase 12V AC, 60 Hz power supplies common in factory control panels
Replaces / Drop-In Replacement For
- Direct replacement for OEM-original Schrader Bellows B942200140 valves requiring return-to-service
- Verify mounting cavity and port orientation with original equipment documentation before installation
- Compatible with manifold sandwich-mount and cavity designs utilizing 1/4-inch NPT EV5 solenoid valve interfaces
Works With
- Pneumatic control: Directional logic-based air circuits, sequence valves, pressure regulators
- Electrical integration: PLC, relay logic, and solid-state switch outputs (12V AC rated)
- Tubing standards: ISO 4414 pneumatic safety and design requirements
- System documentation: Verify exact schematic and electrical wiring with machine OEM before retrofit
