Overview

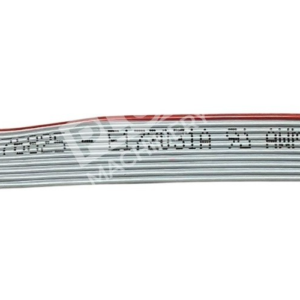

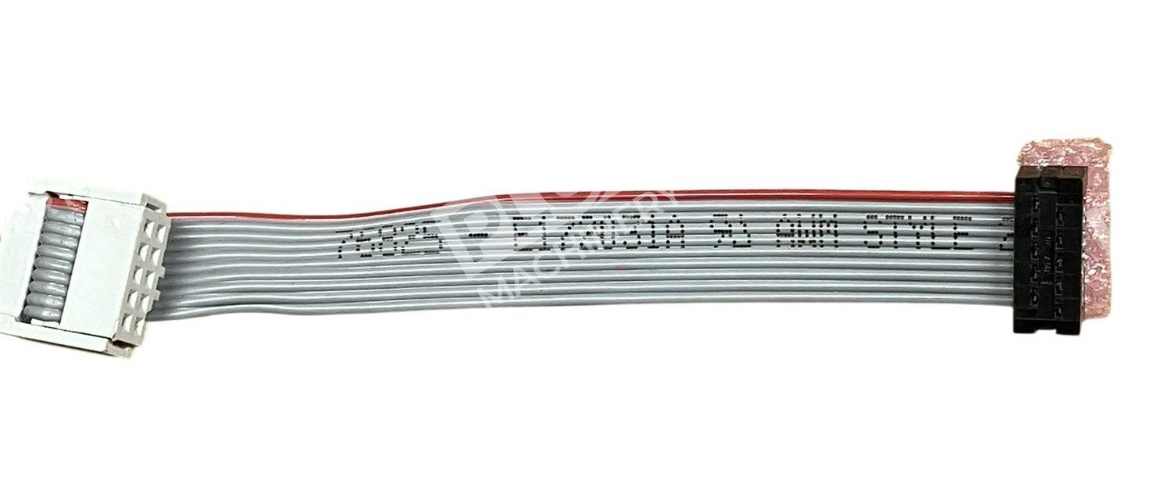

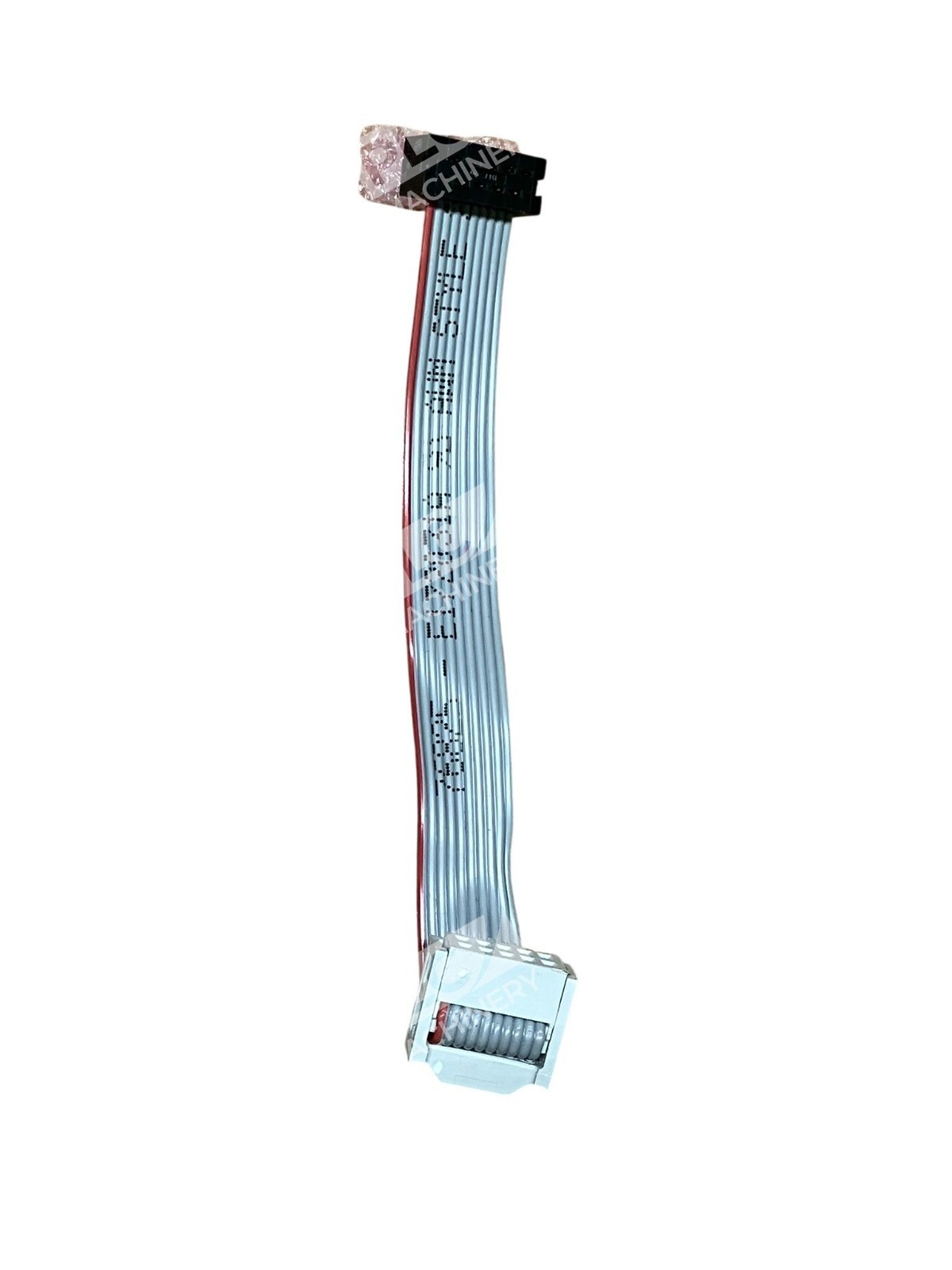

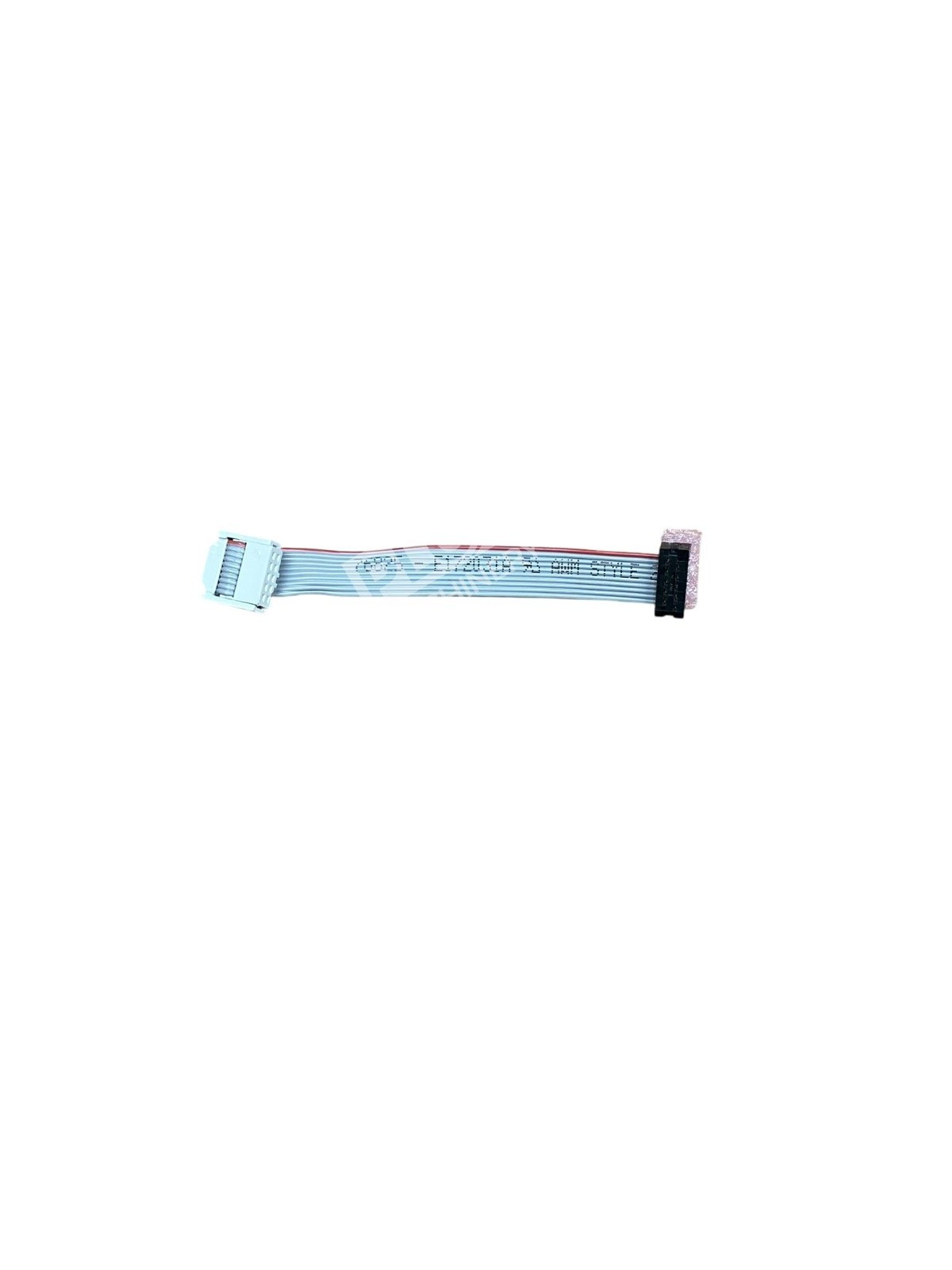

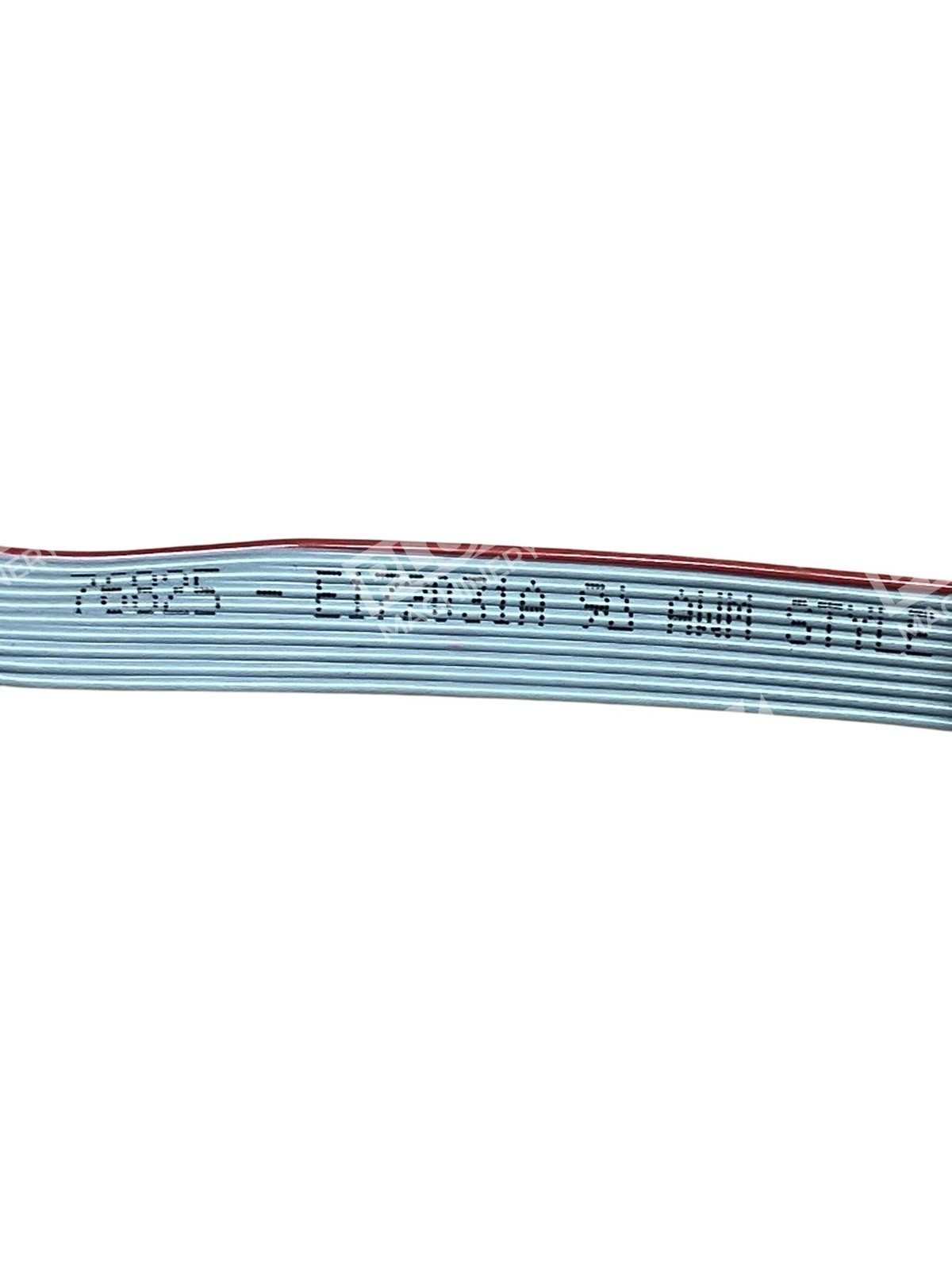

The AWM ribbon flat cable 76825-E172031A is a UL-certified flexible flat cable built for reliable signal and power transmission in industrial equipment. AWM (Appliance Wiring Material) certification ensures compliance with UL standards for voltage, temperature, and flame resistance. The flat, flexible design enables easy routing through confined spaces, making it ideal for control panels, machinery harnesses, and data-signal applications.
Key Features
- UL AWM-certified construction for industrial safety and compliance
- Flat, flexible ribbon design for tight-space routing and installation
- Durable PVC insulation with tinned copper conductors
- Color-marked edge conductors for easy polarity identification
- Suitable for machinery, equipment harnesses, and control circuits
Technical Specifications
While specific dimensional and electrical parameters for the 76825-E172031A are not publicly documented by the manufacturer, AWM-style ribbon cables typically feature:
- Conductor Material: Tinned copper
- Insulation: PVC, flame-retardant (VW-1 or FT-1 rated)
- Operating Temperature: 80°C typical
- Voltage Rating: 60V or 300V (model-dependent)
- Certifications: UL AWM-listed, CSA-approved
- Pitch Options: 0.5mm to 1.27mm (conductor spacing)
Typical Applications
- Industrial machinery control harnesses and interconnects
- Equipment panel-to-PCB signal transmission
- Automation system wiring and data-signal cables
- Electronic device and equipment internal wiring
- Space-constrained installation environments
Compatibility & Replacements
Compatible With
- Industrial control panels and machinery systems
- Standard terminal block connectors and IDC (insulation displacement) connectors
- Automated manufacturing and assembly equipment
- Commercial and industrial electronic devices
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 76825-E172031A is designed as a direct replacement for equivalent AWM-rated flat ribbon cables used in industrial equipment. Exact cross-reference models depend on your specific application and connector type.
Works With
- Insulation Displacement Connectors (IDC) and crimp connectors
- Standard terminal strips and block connectors
- UL-compliant harness assembly and panel-build processes
- Industrial automation and machinery control systems
