<h2>Overview</h2>

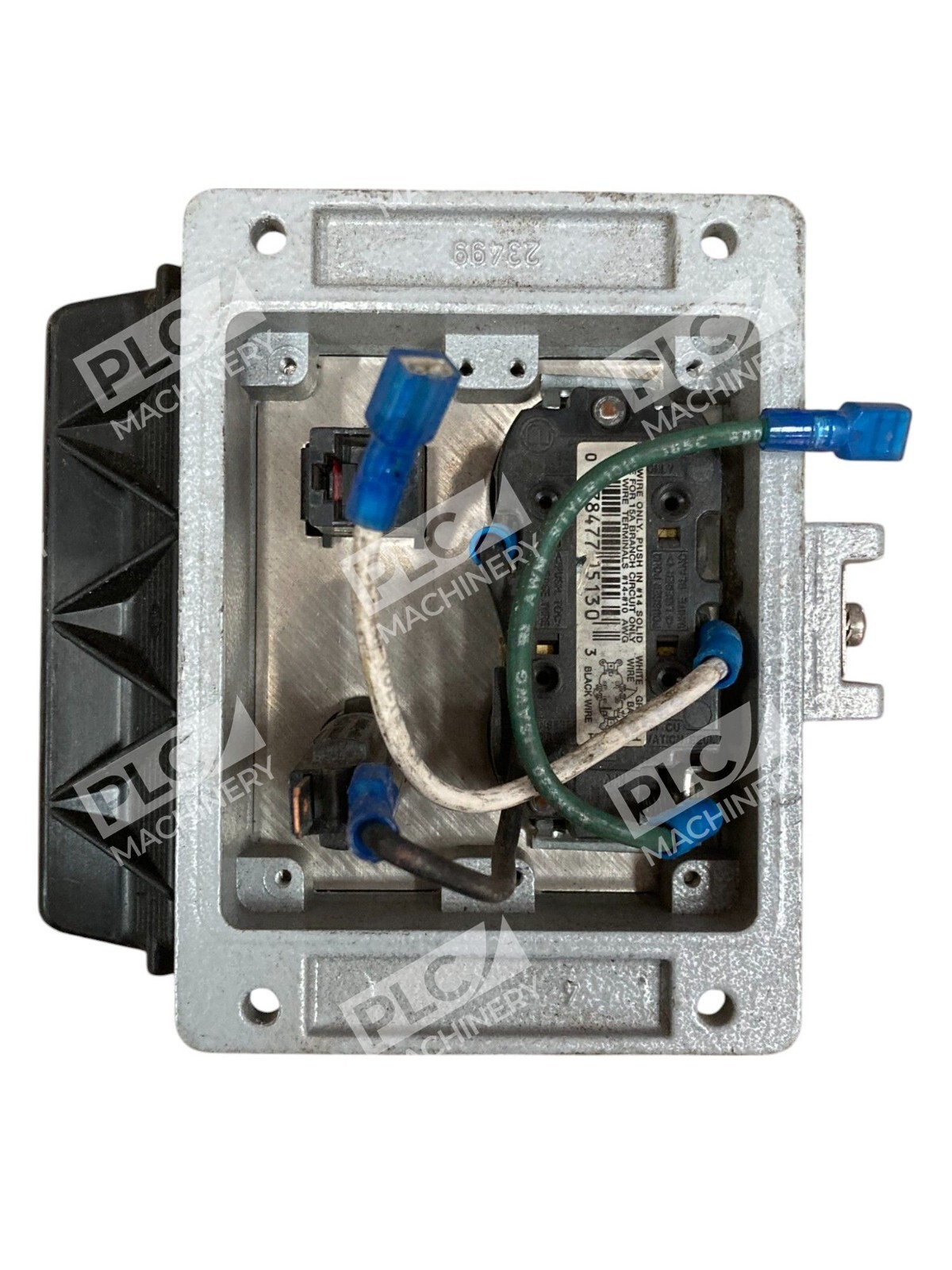

<p>The <strong>Automation Direct ZP-PDA-32-201</strong> is part of the ZIPport heavy-duty panel interface connector series engineered for industrial enclosures. It combines a duplex 120 VAC power outlet with a female-to-female RJ45 Ethernet port, allowing internal equipment to be accessed externally without opening the cabinet. This connector streamlines control panel assembly and maintenance by providing safe, convenient external access to power and network connections in demanding industrial environments.</p>
<h2>Key Features</h2>
<ul>

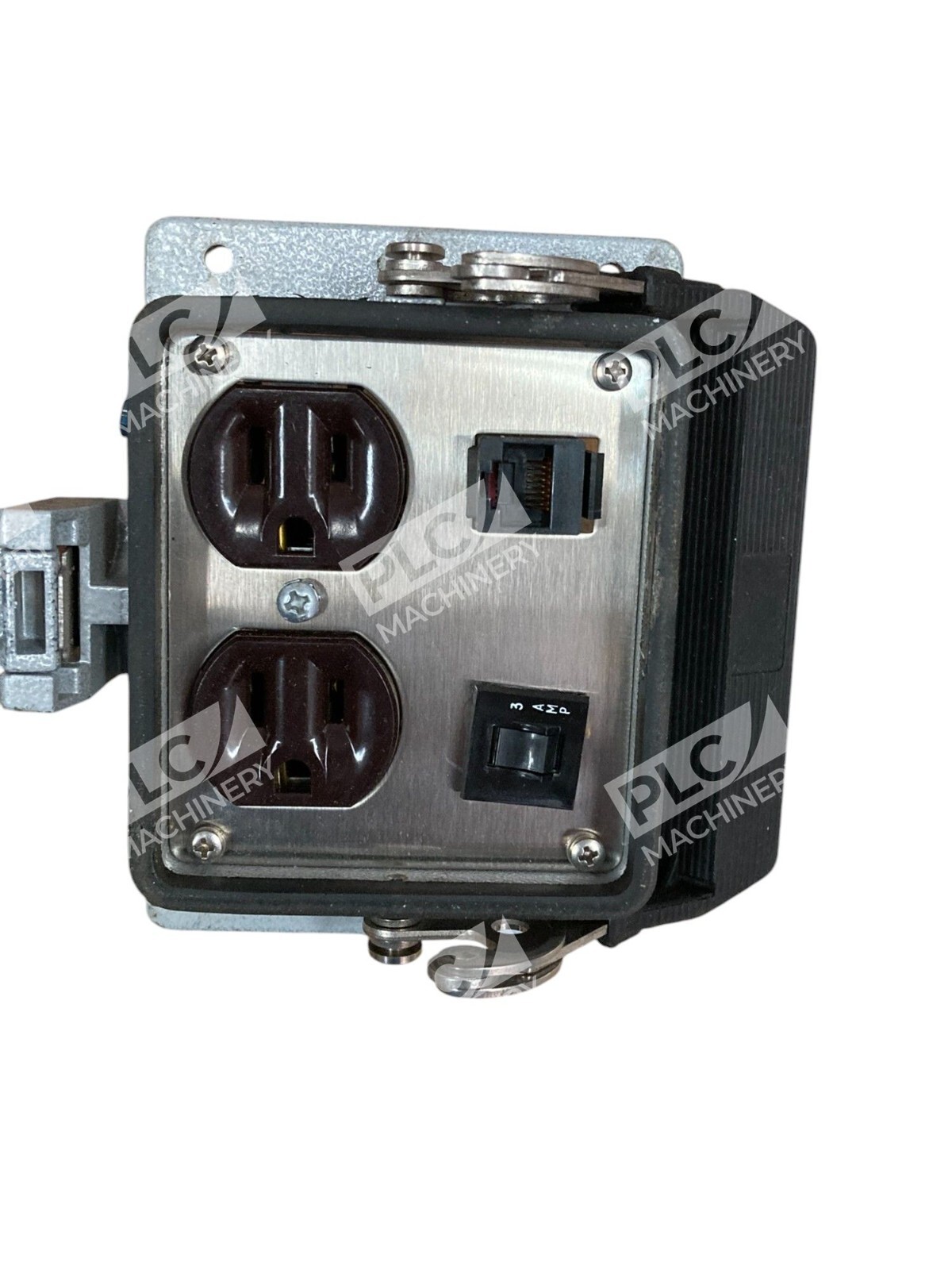

<li>Duplex 120 VAC outlet for convenient external power access</li>
<li>RJ45 Ethernet pass-through port (female exterior / female interior) for network connectivity</li>
<li>3A circuit breaker for built-in overload protection</li>
<li>Rugged 32B housing rated for industrial control cabinet applications</li>

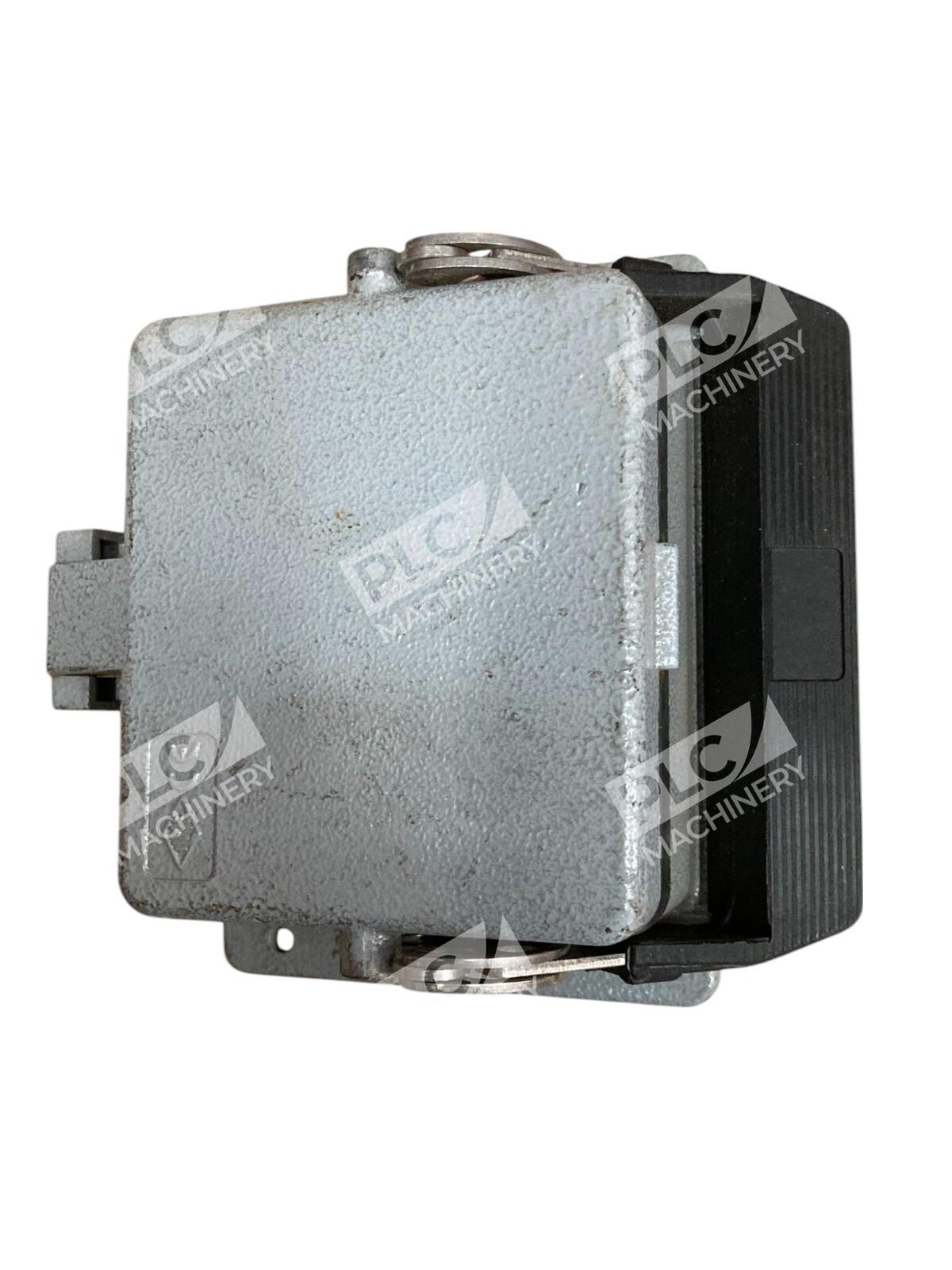

<li>Single lever locking mechanism for secure connector housing during operation</li>
<li>Integral gasket to maintain enclosure sealing integrity</li>
</ul>
<h2>Technical Specifications</h2>
<ul>

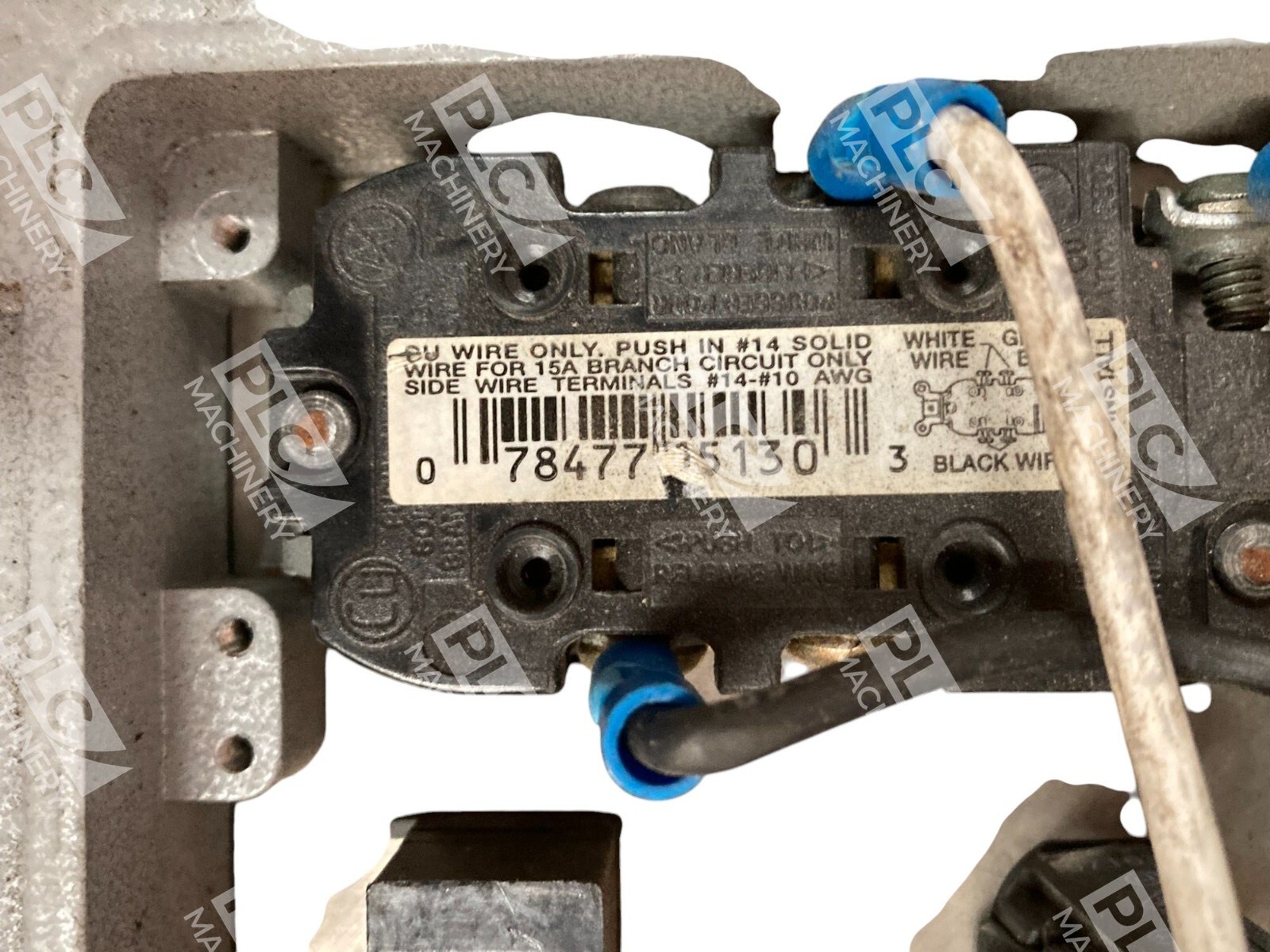

<li><strong>Power Outlet:</strong> Duplex, 120 VAC, 15 A</li>
<li><strong>Network Port:</strong> RJ45 Ethernet (female exterior / female interior)</li>
<li><strong>Circuit Protection:</strong> 3A circuit breaker</li>
<li><strong>Housing:</strong> 32B (duplex configuration)</li>
<li><strong>Mounting:</strong> Panel-mount enclosure integration</li>
<li><strong>Connector Type:</strong> ZIPport panel interface connector</li>
<li><strong>Weight:</strong> 1.84 lbs</li>
<li><strong>Series:</strong> ZIPport</li>
<li><strong>Manufacturer:</strong> Automation Direct</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Industrial control panel enclosures requiring external power and Ethernet access</li>
<li>Machine automation systems needing convenient operator interface connections</li>
<li>HVAC and facility control systems with networked controllers</li>
<li>Process control cabinets eliminating the need to open enclosures for maintenance</li>
<li>Remote I/O and network access for PLCs and industrial computers</li>
<li>Retrofit installations where external connectivity is required</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Industrial control enclosures and control cabinets</li>
<li>Standard electrical outlets rated for 120 VAC operation</li>
<li>Ethernet networks requiring RJ45 pass-through connectivity</li>
<li>PLCs, drives, HMIs, and other networked automation equipment</li>
<li>Panel-mount applications with duplex outlet spacing requirements</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>Verify specific model replacement compatibility with your system integrator or Automation Direct technical support before ordering. The ZP-PDA-32-201 is engineered as the primary product in the ZIPport duplex outlet with Ethernet series.</p>
<h3>Works With</h3>
<ul>
<li>Standard Ethernet CAT5/CAT6 cables for network connectivity</li>
<li>Industrial control software platforms communicating over Ethernet</li>
<li>Modular wiring systems and panel interface ecosystems</li>
<li>Standard 120 VAC power distribution circuits</li>
<li>Industrial enclosure mounting rails and integration frameworks</li>
</ul>
