Overview

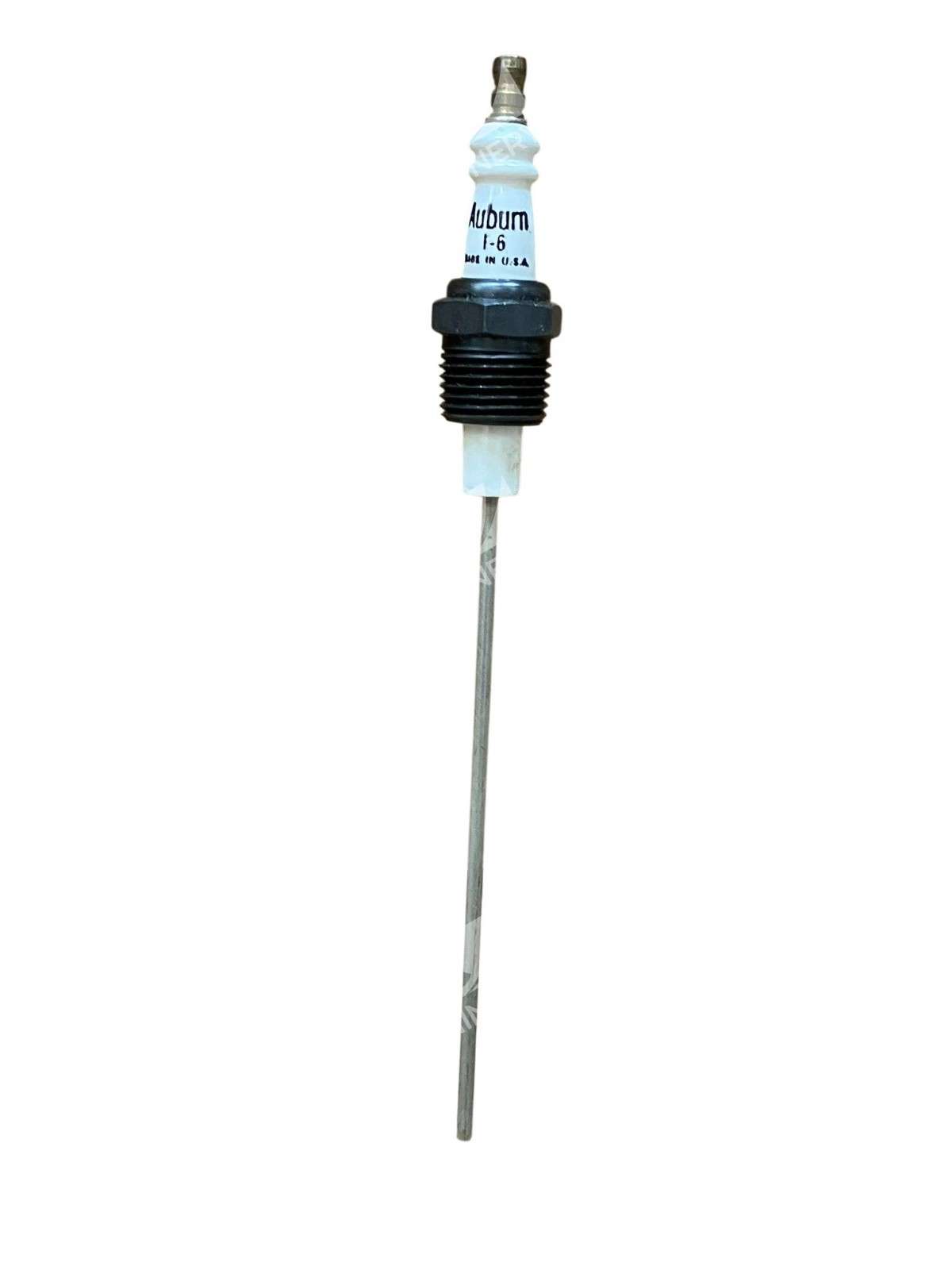

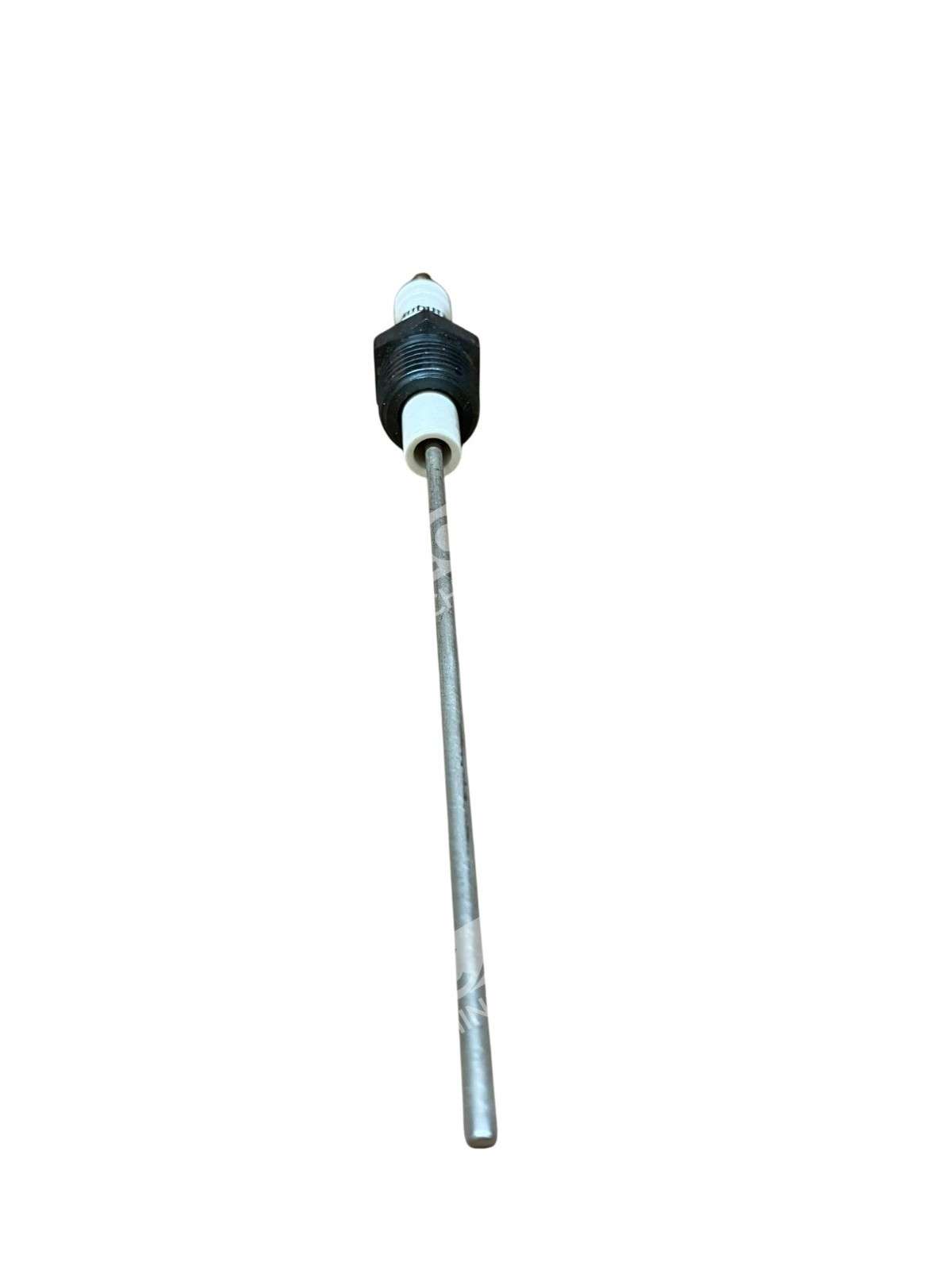

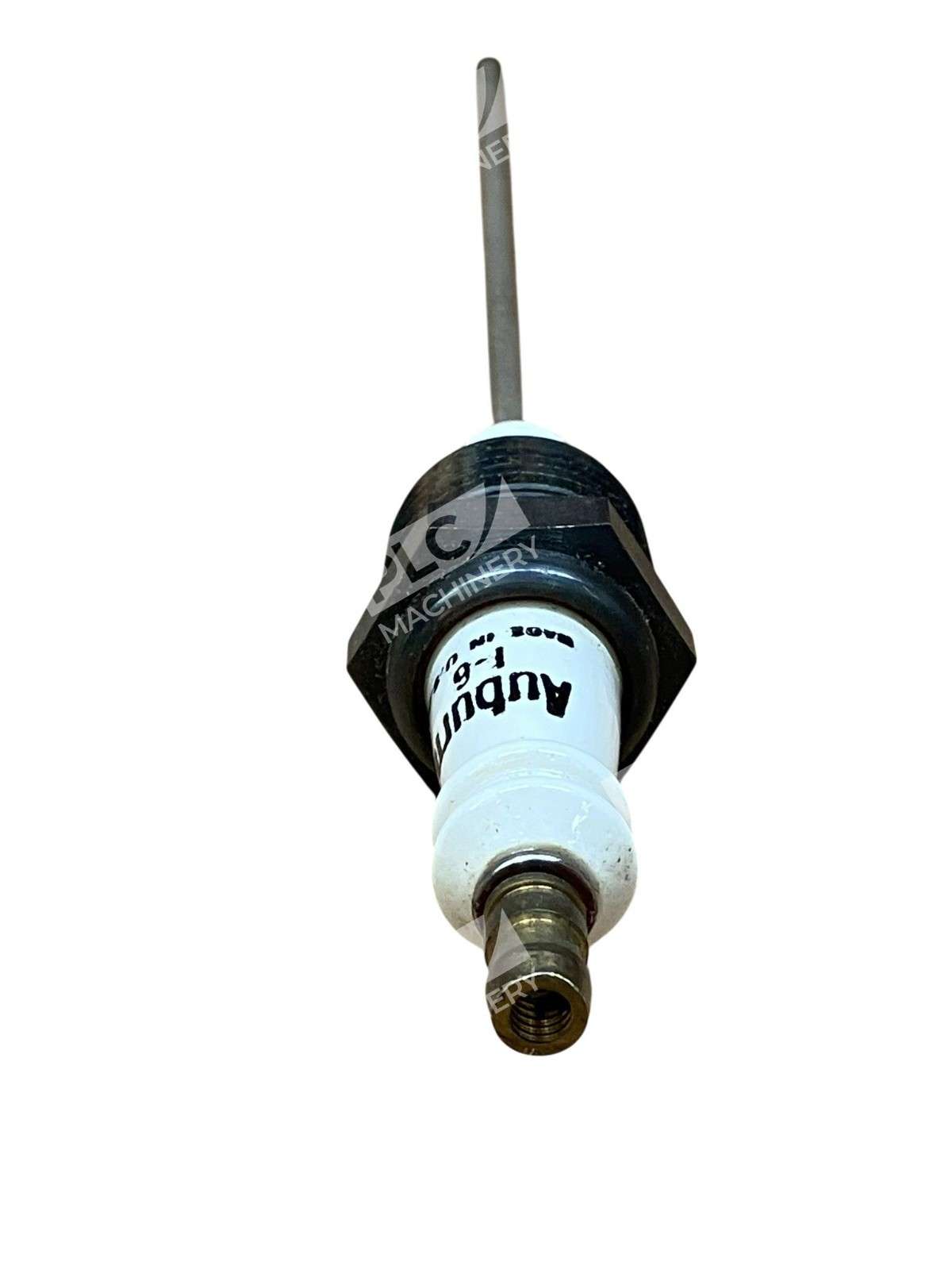

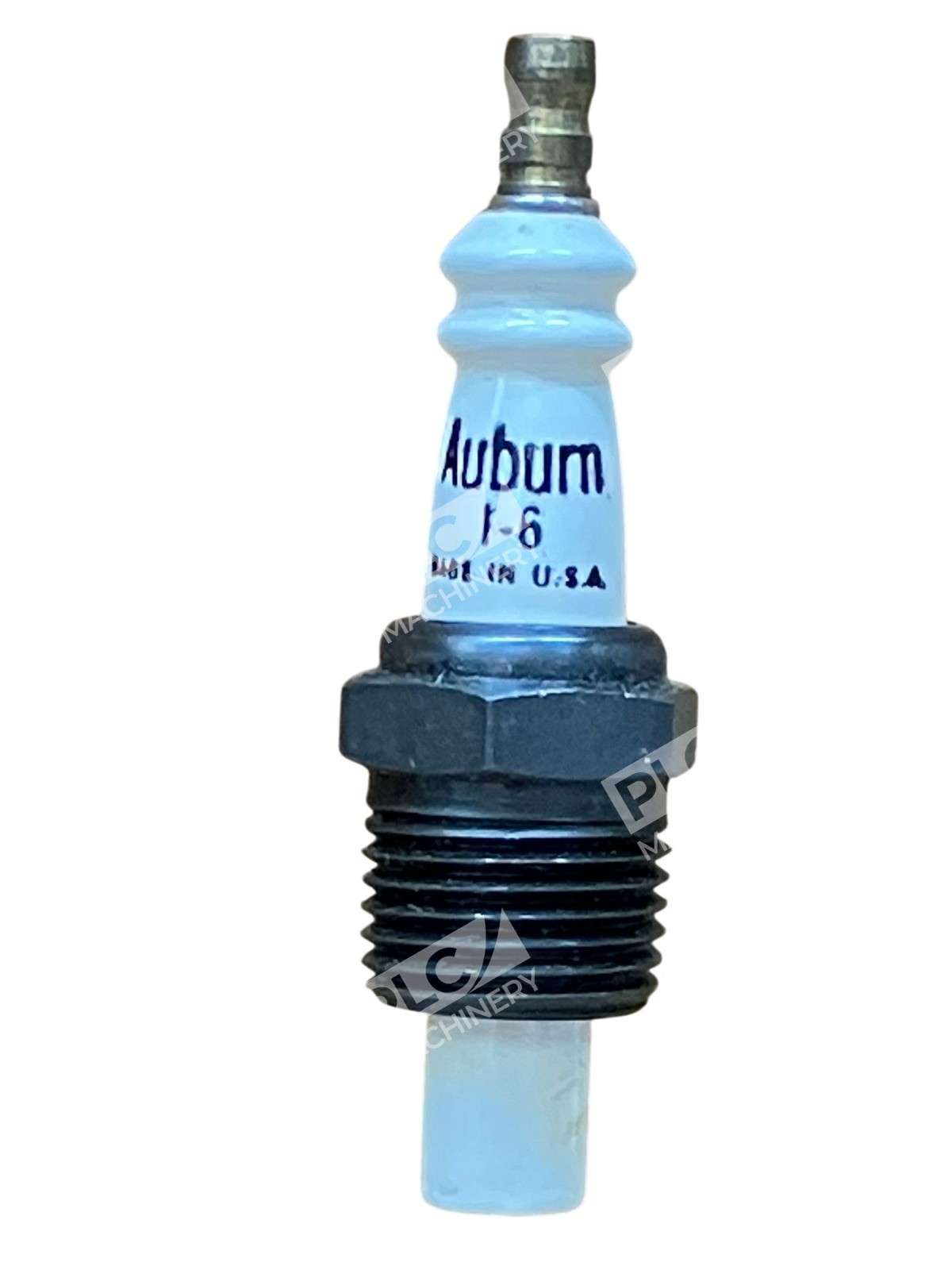

The Auburn CS12954 I-6 igniter is a high-quality spark igniter designed for industrial combustion systems. This igniter is used to generate a spark or provide a flame to ignite the fuel-air mixture within the burner, ensuring efficient and reliable combustion. These products are used in ovens, burners, boilers, heaters, furnances, flarestacks, and a variety of other applications.
Key Features
- Centre electrodes are fabricated from Auburn developed alloys and designed to resist both sparking erosion and chemical corrosion under both normal and extreme operating temperature conditions.
- Center wires are made from Nickel, Chromel, Inconel or Kanthal depending on the application.
- The Hexagon provides contact for a socket wrench during installation and removal. A variety of Hex sizes and thread patterns are available.
- NPT threaded connection for secure mounting in combustion chambers
Technical Specifications
| Manufacturer | Auburn |
| Part Number | I-6 |
| Alternate Part Number | CS12954 |
| Thread Size | 1/2-14 NPT |
| Overall Length | 8 inches |
| Rod Length | 5 inches |
| Hex Size | 7/8 inches |
| Application | Industrial spark igniter / flame rod |
Typical Applications
- Industrial ovens and furnaces
- Boiler ignition systems
- Gas burners for heating applications
- Flare stack ignition
- Combustion control systems
Compatibility & Replacements
Compatible With
- Industrial combustion burner systems with 1/2-14 NPT thread ports
- Boiler and furnace control systems requiring spark ignition
- Ovens and indirect heating applications
- Flame detection and ignition monitoring circuits
Replaces / Drop-In Replacement For
- Federal Mogul equivalent igniter models with I-6 designation
- Auburn I-6 variants with identical thread and mounting specifications
Works With
- Standard industrial ignition controllers and flame sensors
- Manual and automatic combustion systems
- High-temperature burner applications up to extreme operating conditions
