Overview

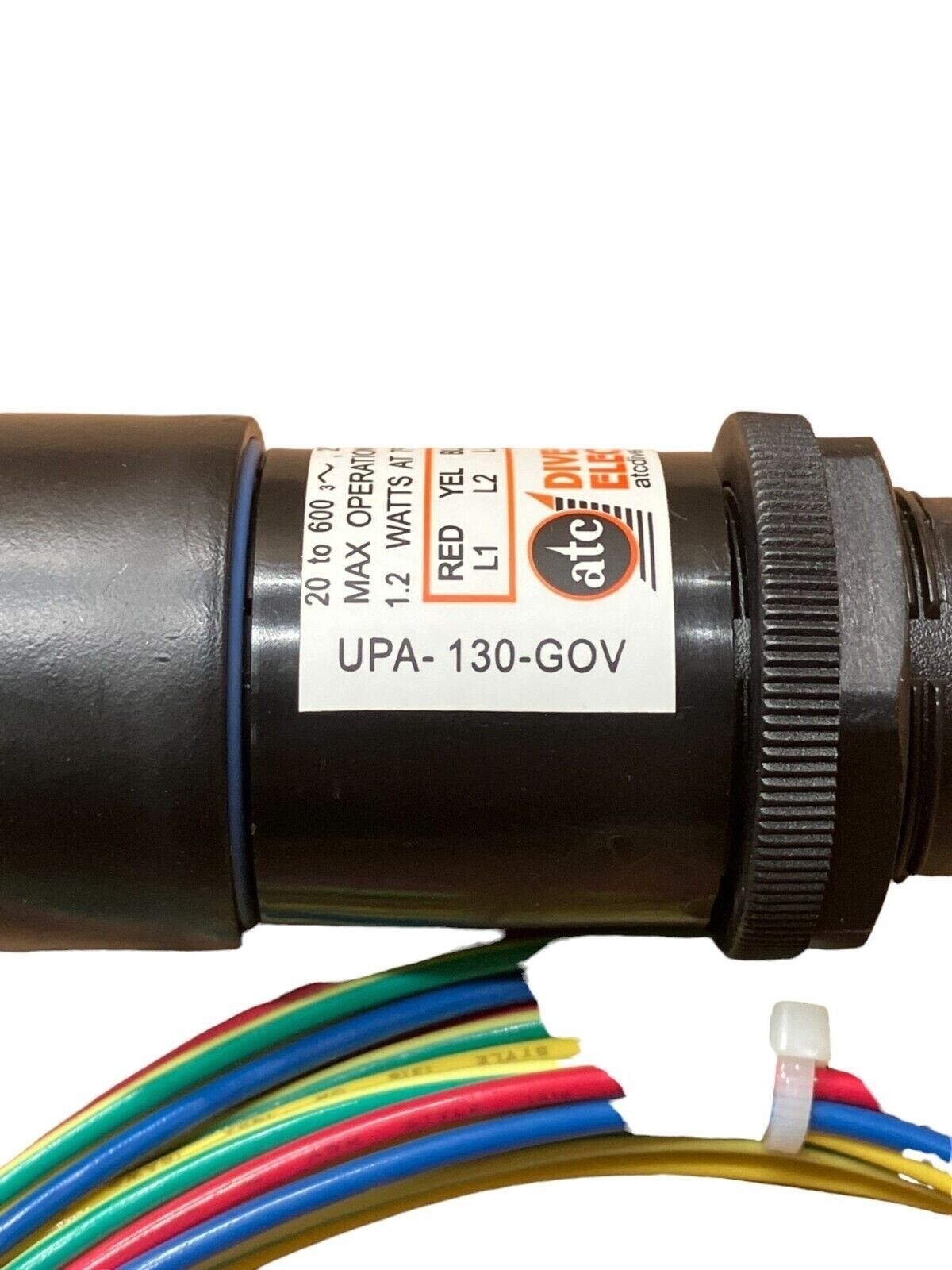

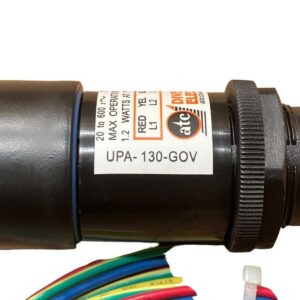

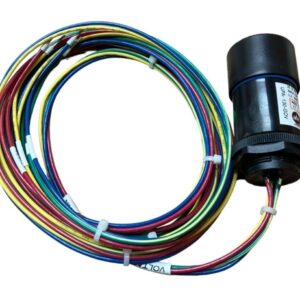

The ATC Diversified UPA-130-GOV is a panel-mounted voltage monitor and power alert device designed to reduce electrical hazards during panel service and maintenance. This industrial-grade detector alerts technicians and electricians to the presence of dangerous AC and DC voltages before the panel is opened, supporting NFPA 70E and OSHA lockout/tagout compliance. The unit is hardwired directly to the circuit breaker or main disconnect, providing real-time visual feedback via LED indicators when live voltage is present.
Key Features

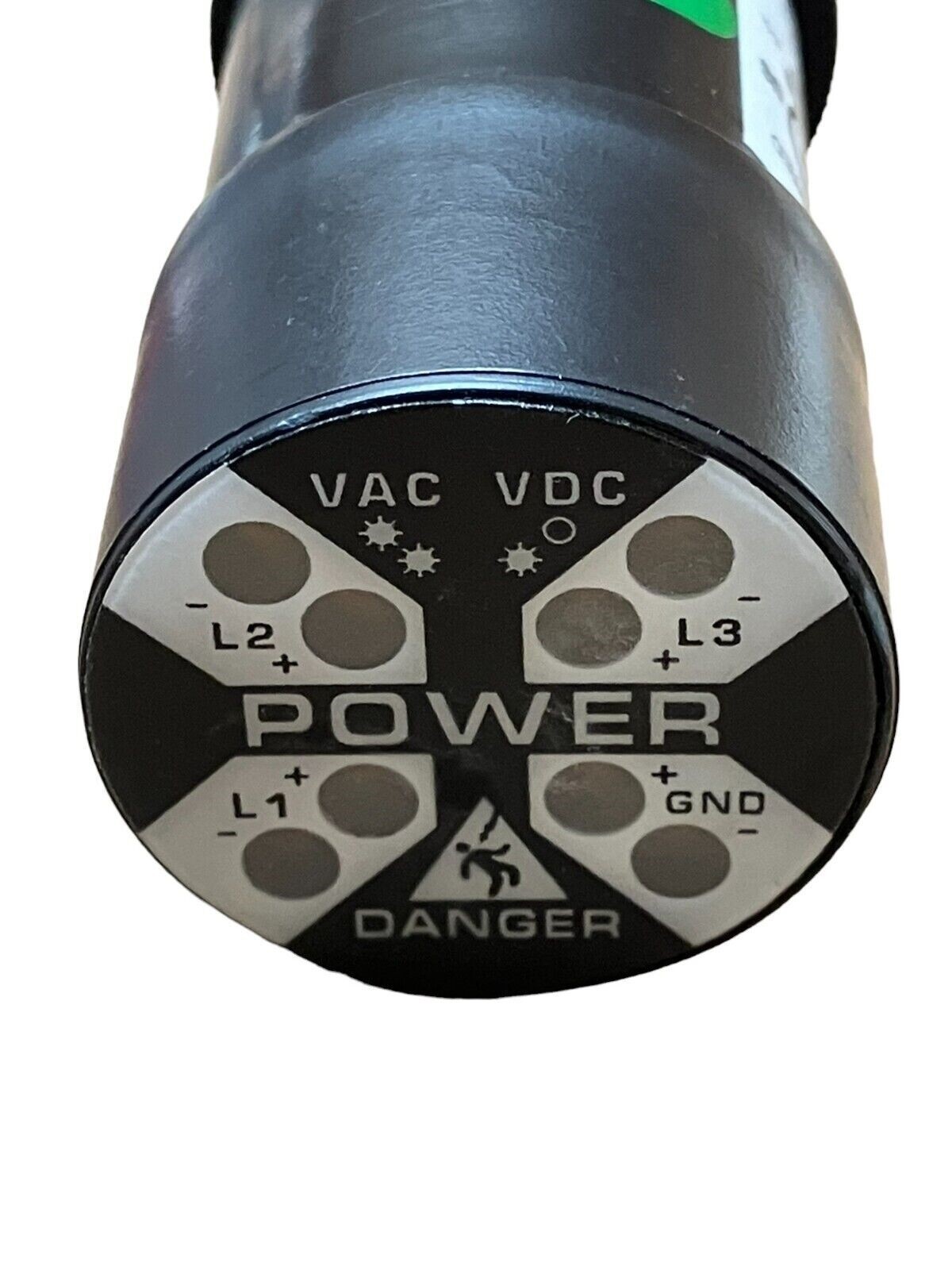

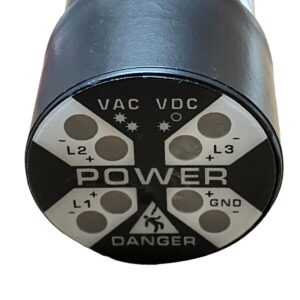

- Eight detector LEDs – Two indicators per monitored line (L1, L2, L3, GND), designated “+” and “-” for polarity detection
- Dual voltage detection – Monitors AC potentials (40-750 VAC) and stored DC energy (30-1000 VDC) simultaneously
- Redundant circuitry – Self-powered by the monitored voltage; no external power source required
- Arc flash risk mitigation – Pre-verifies electrical safety condition before panel access
- UL and cUL Listed – Meets electrical safety and compliance standards
- 30 mm panel knockout – Easy installation through standard panel opening
Technical Specifications
- AC Detection Range: 40–750 VAC
- DC Detection Range: 30–1000 VDC (includes stored energy)

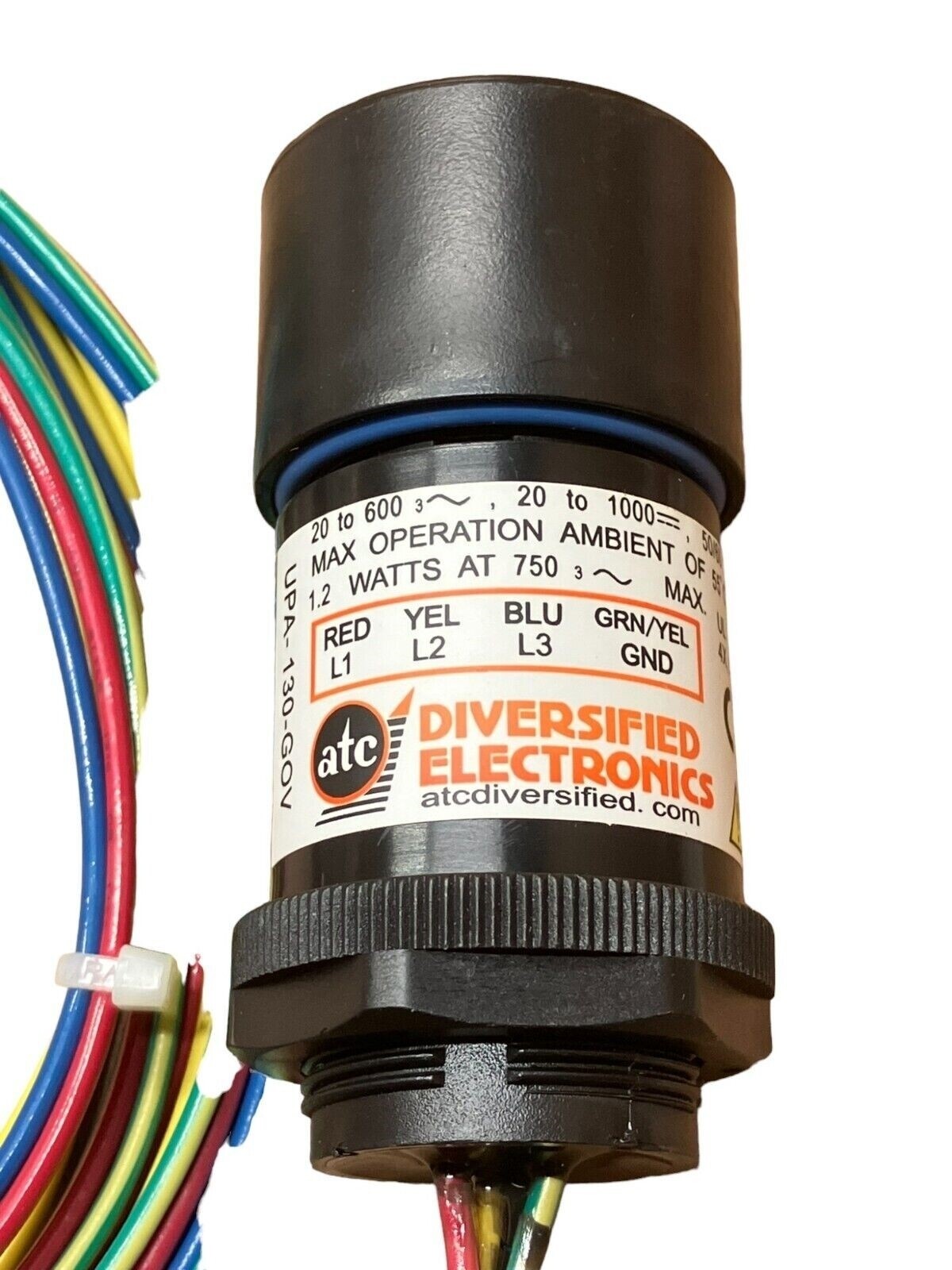

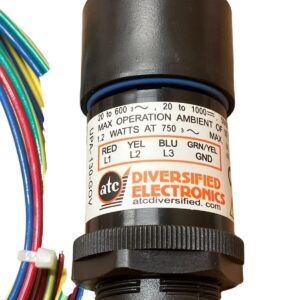

- Monitored Input Lines: L1, L2, L3, Ground (four lines, eight detectors)
- LED Indicators: 8 detectors (4 lines × 2 per line)
- Power Source: Self-powered by monitored voltage

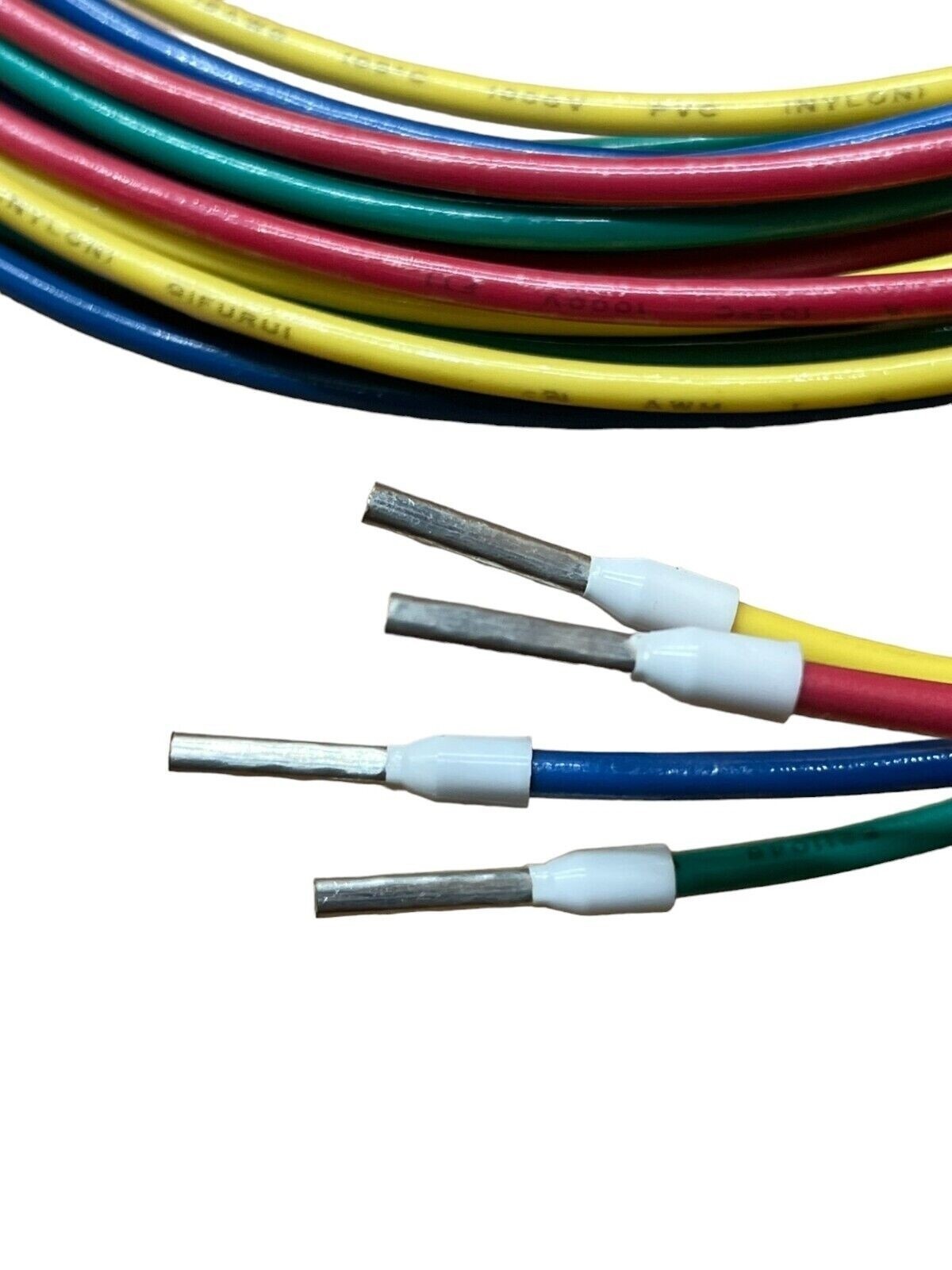

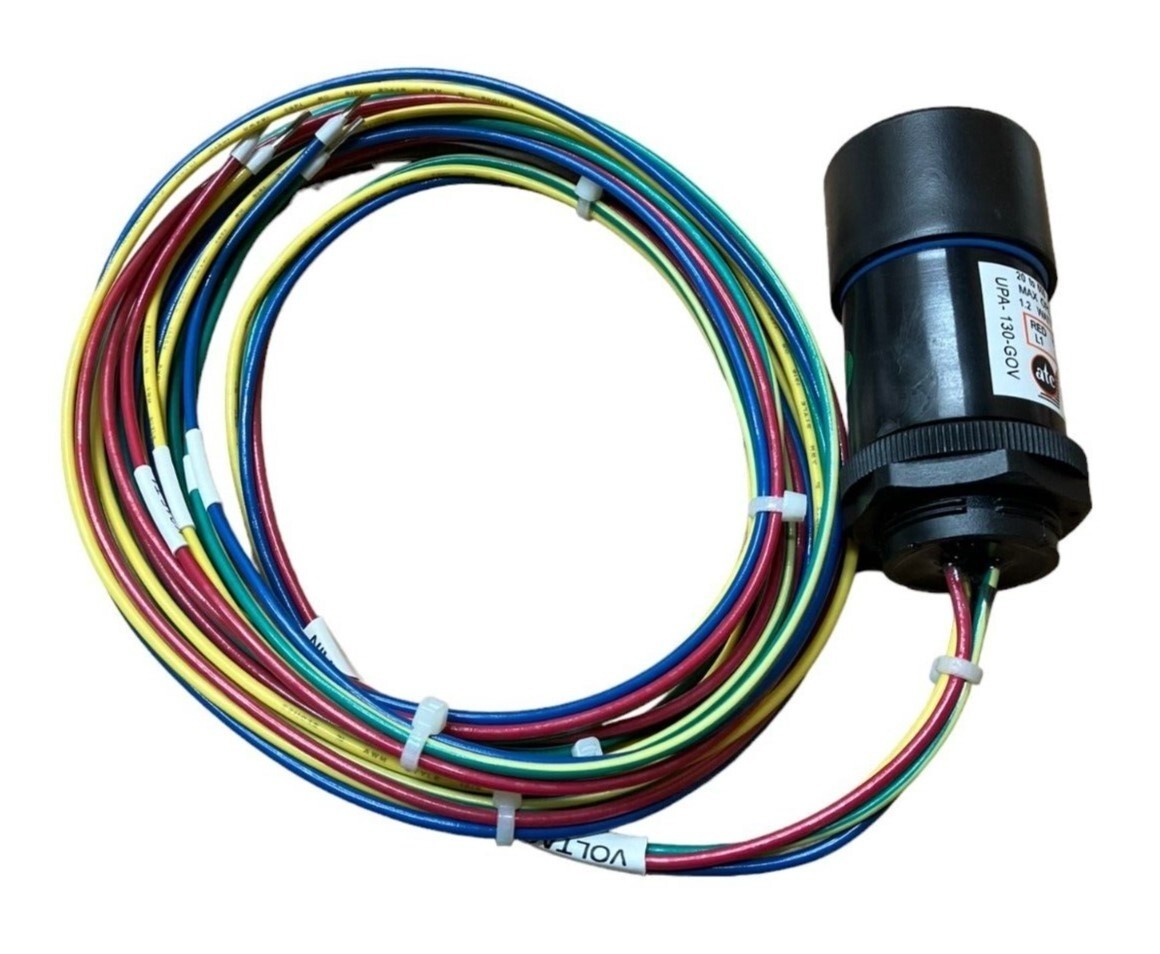

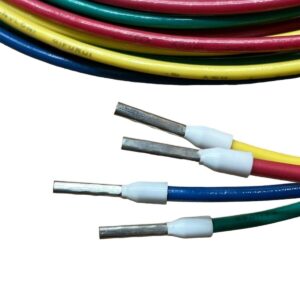

- Termination: 6 feet (4) 18 AWG leads
- Panel Mount: 30 mm knockout opening
- Enclosure Rating: NEMA 4X (totally encapsulated)

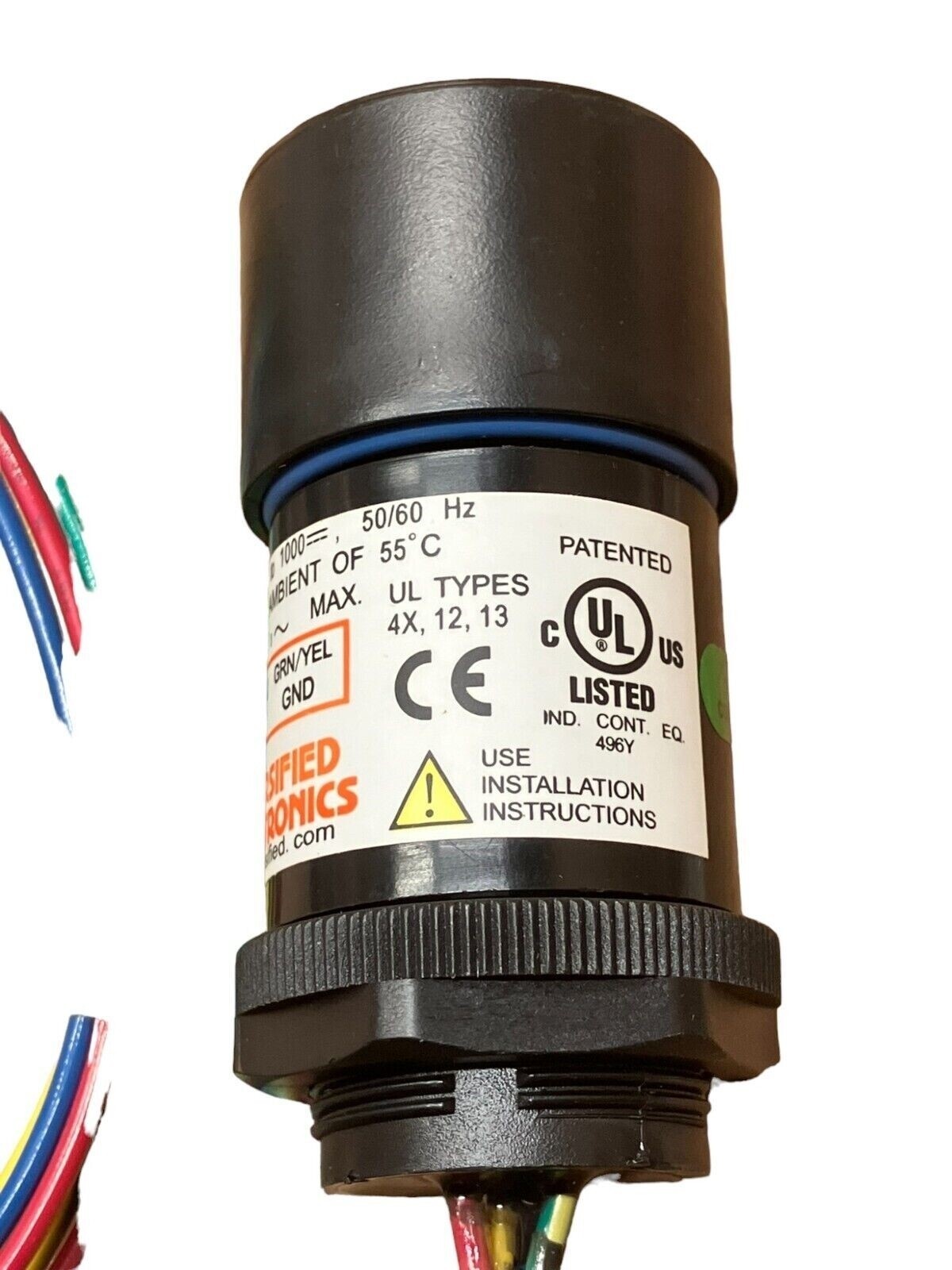

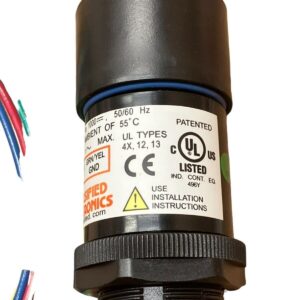

- Certifications: UL Listed, cUL Listed (UL File Number E55826)
Typical Applications
- Control panel electrical safety verification before maintenance
- Lockout/tagout (LOTO) procedures in industrial facilities
- Arc flash hazard awareness programs (NFPA 70E compliance)
- Manufacturing, automation, and factory maintenance environments
- Electrical distribution and switchgear monitoring
- Emergency shutdown and safety protocol verification
Compatibility & Replacements
Compatible With
- Three-phase AC distribution systems (L1, L2, L3, GND)
- Single-phase and DC power systems
- Industrial motor control centers (MCCs)
- Switchboards and distribution panels
- NFPA 70E and OSHA electrical safety programs
Replaces / Drop-In Replacement For
- Legacy UPA-130 models without GOV designation
- Other 30 mm panel-mounted voltage alert devices with similar specifications
Works With
- Lockout/tagout systems and energy isolation procedures
- Electrical test equipment (voltmeters, multimeters)
- Arc flash safety programs and hazard assessments
- Facility maintenance management systems
