Overview

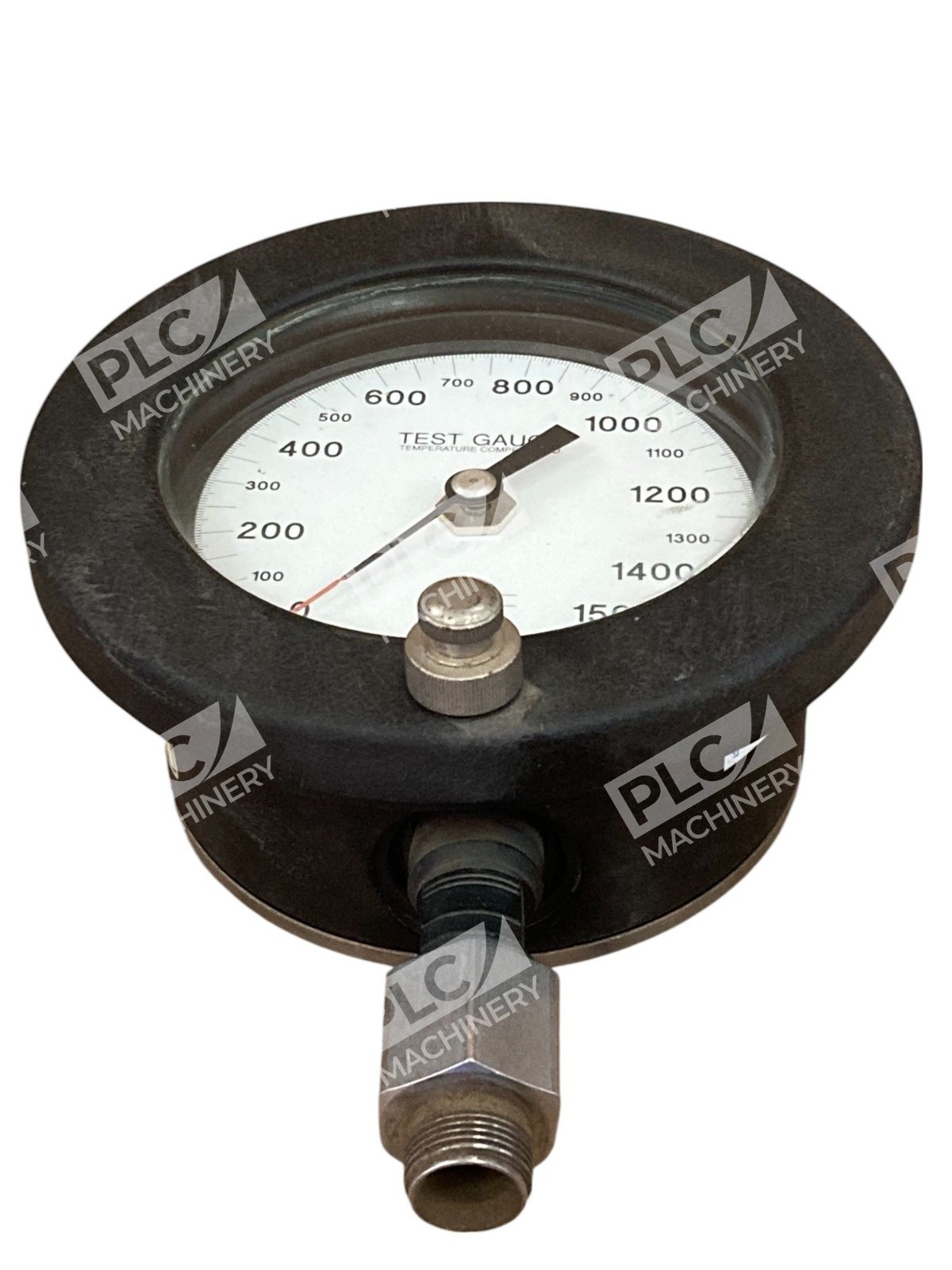

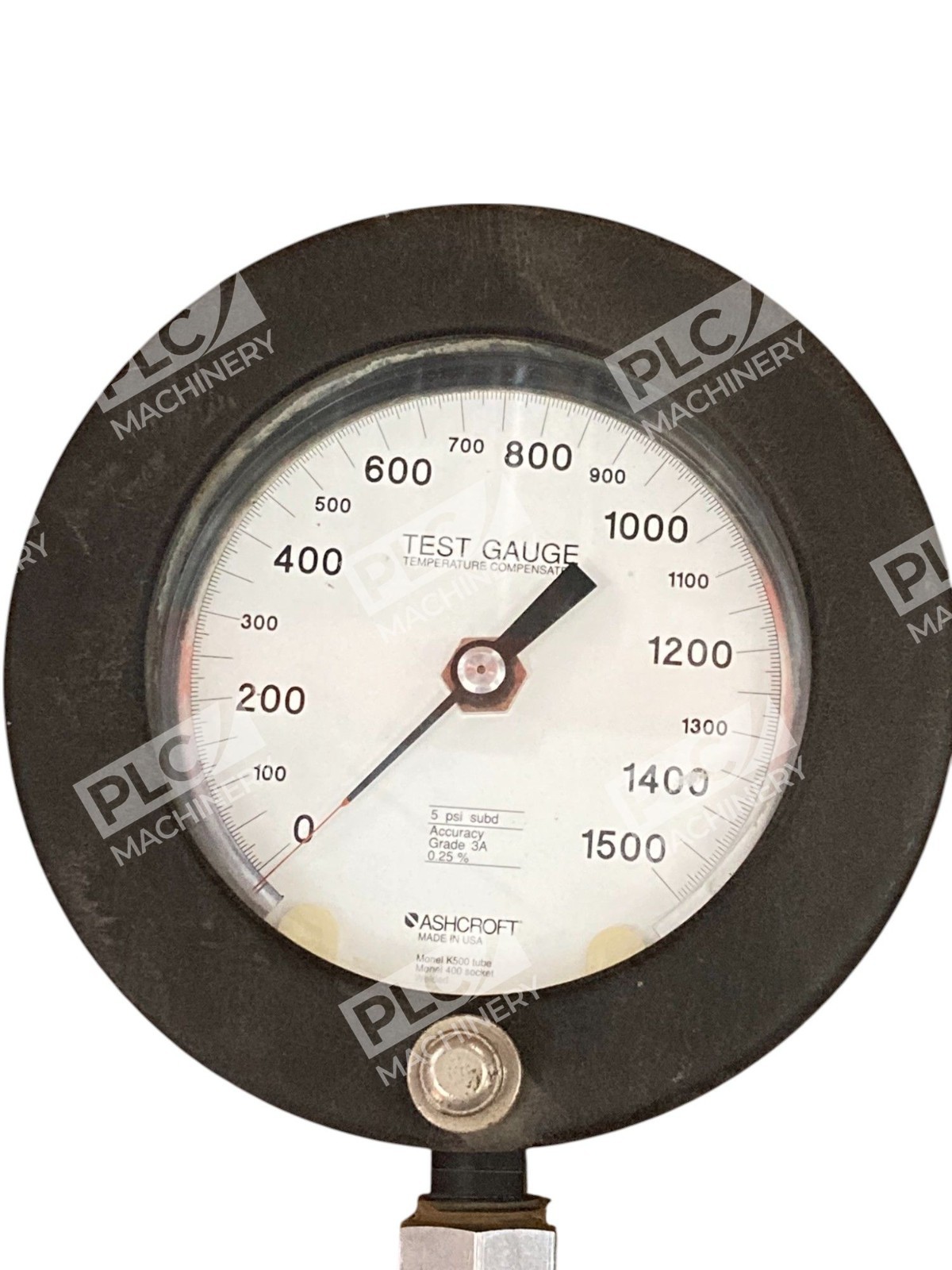

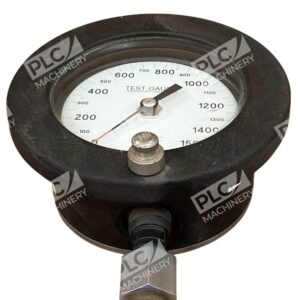

The Ashcroft temperature compensated test gauge is a precision instrument designed for accurate pressure measurement in industrial, laboratory, and field applications. With its 5 PSI subdivision scale and extended 0-1500 PSI range, this gauge provides fine granularity for detailed pressure diagnostics and system validation. Temperature compensation technology reduces measurement drift across varying ambient conditions, ensuring consistent accuracy whether you’re in a climate-controlled lab or outdoors.
Key Features
- Temperature Compensation: Reduces temperature-induced measurement error across standard operating ranges
- 5 PSI Subdivision: Fine scale resolution for precise pressure diagnostics and troubleshooting
- 0-1500 PSI Range: Broad measurement capability across industrial and hydraulic applications

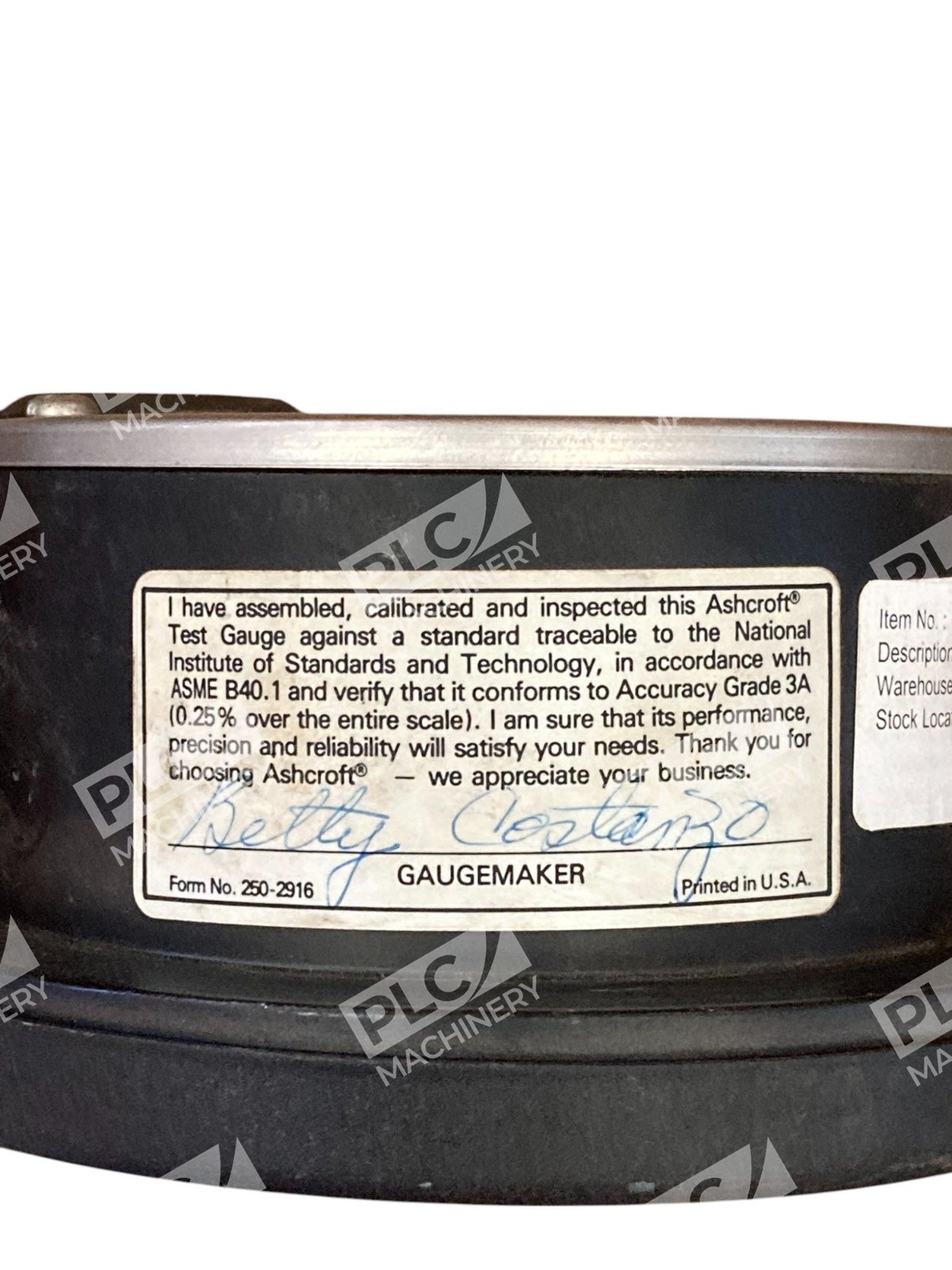

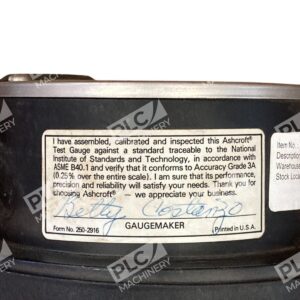

- Grade 3A Accuracy: ±0.25% accuracy standard for secondary and reference measurements
- Durable Construction: Built with bronze tube and brass components for reliability in demanding environments
Technical Specifications

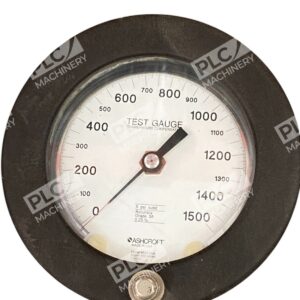

- Pressure Range: 0-1500 PSI
- Subdivision: 5 PSI
- Accuracy Class: Grade 3A (±0.25% of span)
- Temperature Compensation: Yes
- Tube Material: Bronze
- Socket Material: Brass
- Dial Adjustment: Externally adjustable
Typical Applications
This Ashcroft test gauge is commonly used for:
- Hydraulic system pressure testing and validation
- Pneumatic equipment calibration and diagnostics
- Secondary standard pressure measurement in field service
- System commissioning and troubleshooting
- Manufacturing and OEM pressure system verification
- Laboratory and metrology applications requiring precision reference measurements
Compatibility & Replacements
Compatible With
- Portable hydraulic test kits and pressure generation units
- Manual pump test systems
- Industrial hydraulic and pneumatic systems
- Laboratory pressure measurement setups
Replaces / Drop-In Replacement For
Ashcroft test gauges with similar specifications and 5 PSI subdivision scales. Verify compatibility with your specific system setup and pressure requirements before ordering.
Works With
- Portable pressure comparators and test stands
- Manual pressure generation systems
- Ashcroft secondary standard and reference gauge setups
- Field service and maintenance toolkits
