Overview

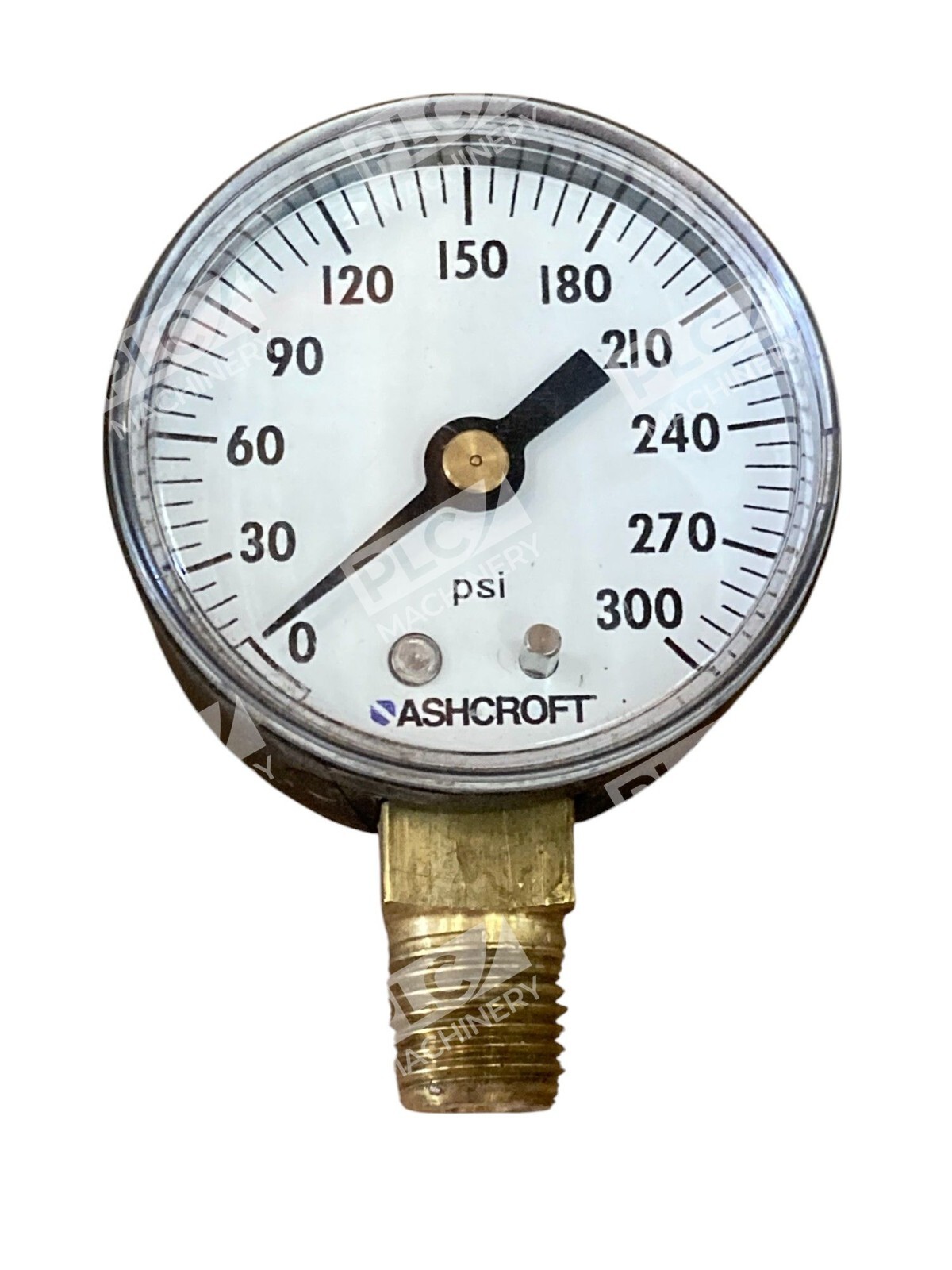

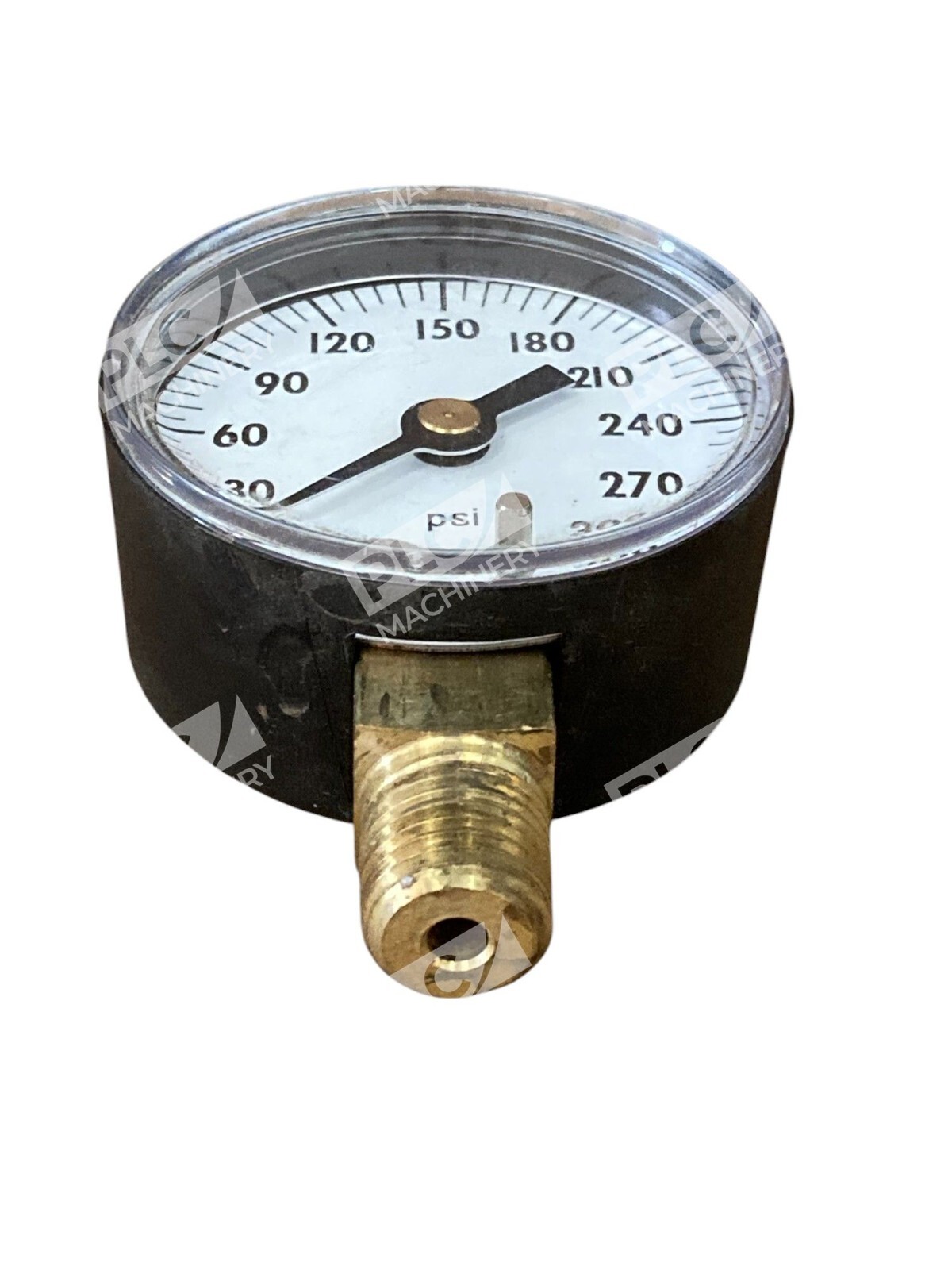

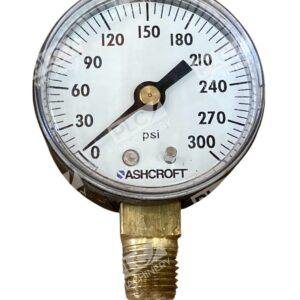

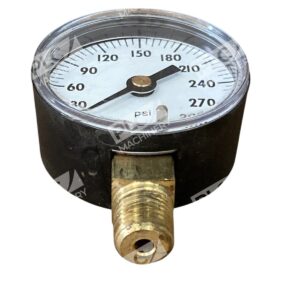

The Ashcroft 20W1005PH02LXC300 is a commercial-grade pressure gauge engineered for accurate, dependable pressure measurement across a wide range of industrial applications. This 2″ dial gauge combines a robust black ABS case with a polycarbonate window and a PowerFlex gauge movement, delivering the durability and clarity required in demanding industrial environments such as hydraulics, pneumatics, compressors, and water systems.
Key Features
- 2″ dial size with aluminum dial and black pointer for clear, easy readability
- ±3% accuracy per manufacturer specification
- 1/4″ NPT (National Pipe Thread) lower process connection for direct installation
- Black ABS case with polycarbonate window for durability and visibility
- PowerFlex gauge movement for smooth operation and longevity
- Dry service design suitable for air and non-corrosive gas applications
- Panel-mount configuration for flexible installation options
Technical Specifications
- Dial Size: 2 inches
- Pressure Range: 0-300 PSI
- Accuracy: ±3%
- Connection Size: 1/4″ NPT (lower process connection)
- Case Material: Black ABS plastic
- Window Material: Polycarbonate
- Gauge Movement: PowerFlex (sealed, dry service)
- Internal Components: Bronze Bourdon tube with brass socket
- Pointer: Black
- Service Type: Dry (air and non-corrosive gases)
- Part Number Format: 20W1005PH02LXC300
Typical Applications
The Ashcroft 20W1005PH02LXC300 is ideal for use in:
- Hydraulic and pneumatic systems
- Centrifugal pumps and positive displacement pumps
- Air compressors and gas compression equipment
- Water supply and circulation systems
- Industrial filter regulators and control systems
- Beverage dispensing and pressure feed systems
- Paint spray equipment and application systems
- General OEM equipment requiring reliable pressure indication
Compatibility & Replacements
Compatible With
- 1/4″ NPT threaded port connections on manifolds, blocks, and equipment
- All dry air and inert gas applications (non-corrosive service)
- Panel-mount installations with 1.5″ behind-panel clearance minimum
- Industrial control and monitoring systems requiring 0-300 PSI measurement
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The part number format 20W1005PH02LXC300 can be cross-referenced with other Ashcroft 1005P series gauges of the same specification range and connection size.
Works With
- Direct mechanical pressure reading—no electronics or calibration required
- Manual or pneumatic control systems utilizing pressure feedback
- All 1/4″ NPT process connections and manifold ports
- Dry air and inert gas applications as specified by Ashcroft
