Overview

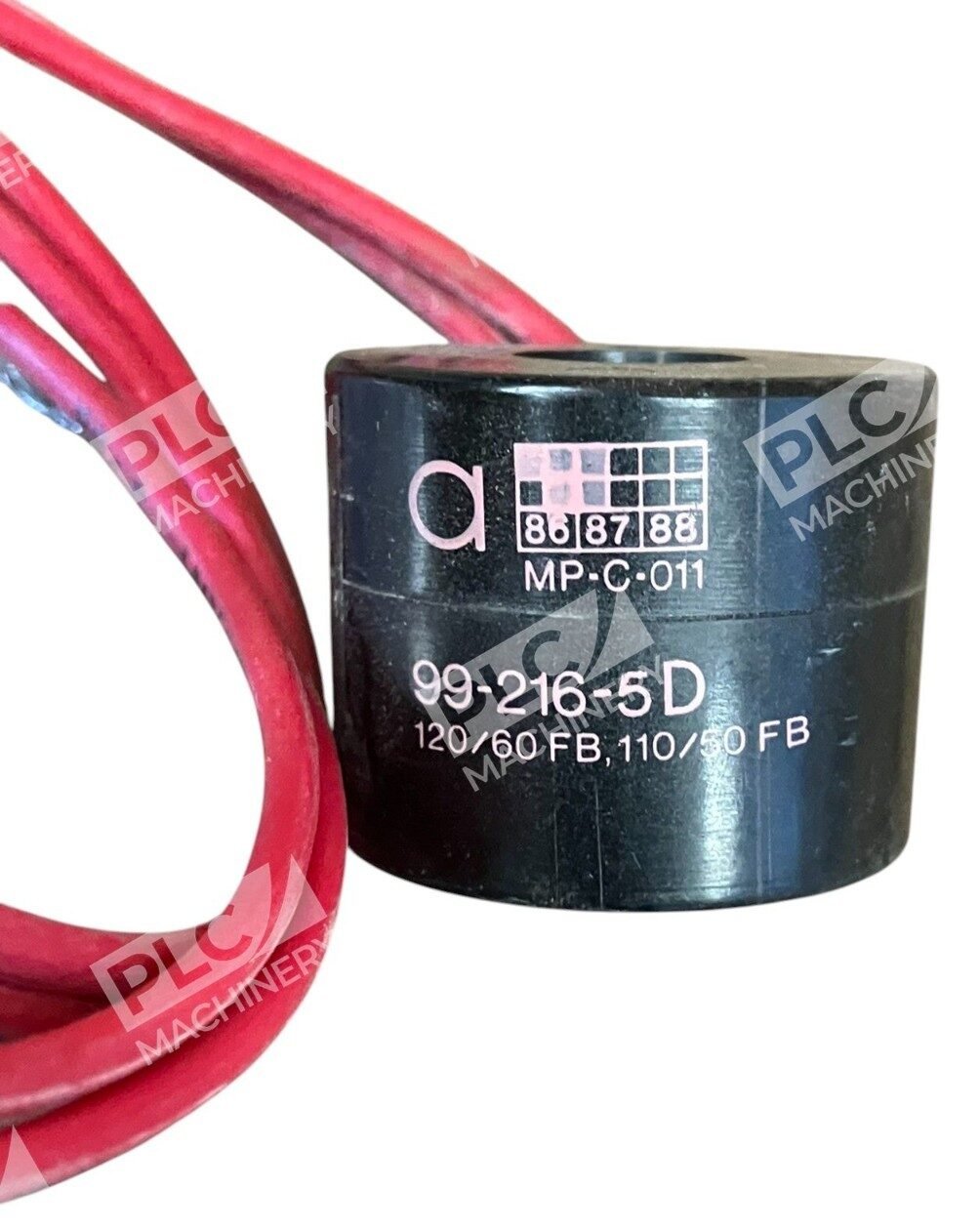

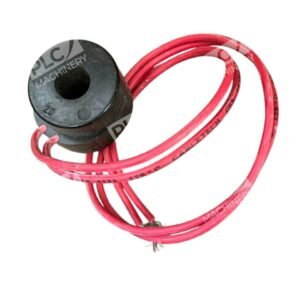

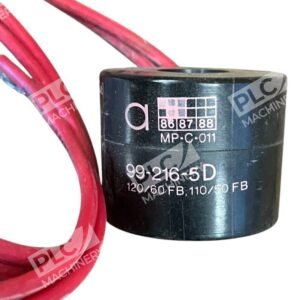

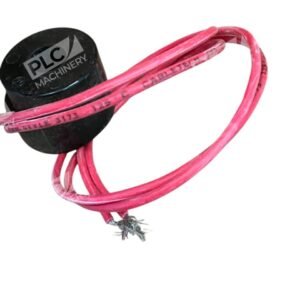

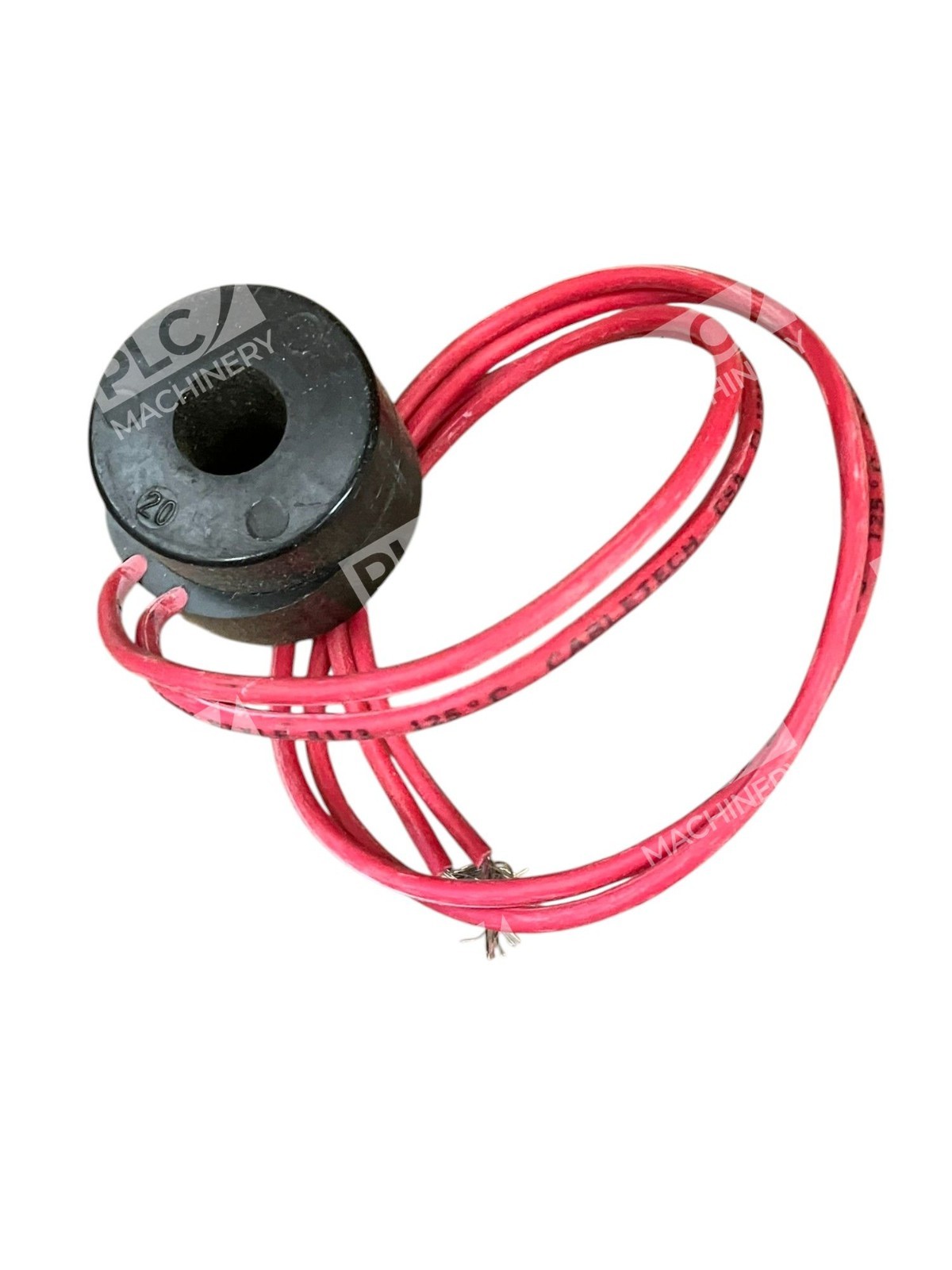

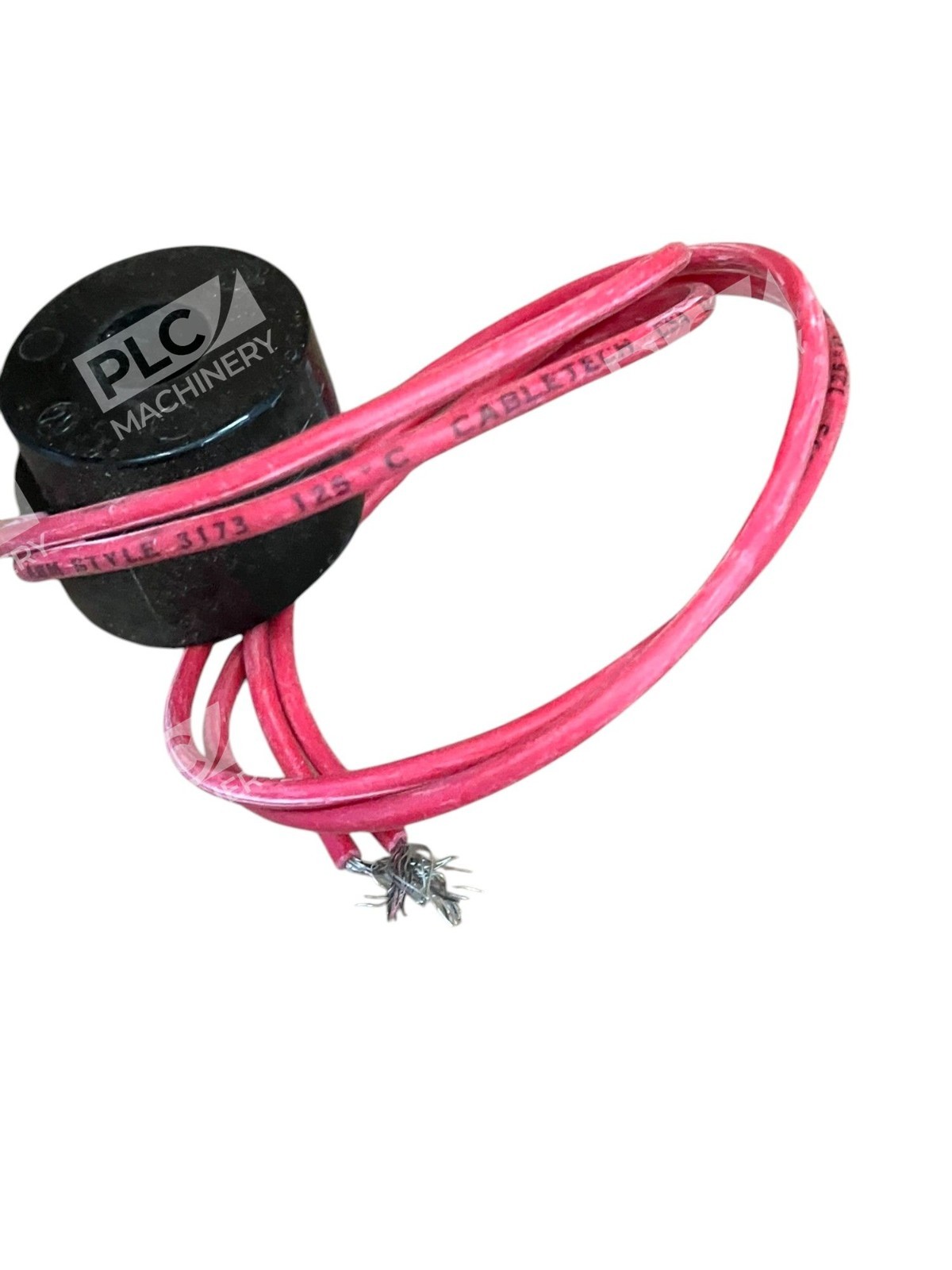

The ASCO 99-216-5D is an industrial-grade solenoid coil designed as a direct replacement component for ASCO Red Hat series valves. This two-wire replacement coil is rated for 120V/60Hz and 110V/50Hz operation, making it suitable for both North American and international industrial applications. Built with gasoline vapor resistance, the solenoid coil meets stringent industrial reliability standards and is engineered for continuous service in valve control systems.
Key Features
- Two-wire solenoid coil for ASCO N-1044 type D valves
- Dual voltage ratings: 120V 60Hz and 110V 50Hz
- Gasoline vapor resistant construction for fuel-handling applications
- Meets IEC 216 thermal endurance standards for continuous operation
- Direct drop-in replacement for Red Hat series solenoid valve coils
- Compact design compatible with existing valve assemblies
Technical Specifications
- Part Number: 99-216-5D
- Manufacturer: ASCO (Emerson)
- Valve Compatibility: Type D, N-1044 (Red Hat Series)
- Primary Voltage Rating: 120V, 60Hz
- Secondary Voltage Rating: 110V, 50Hz

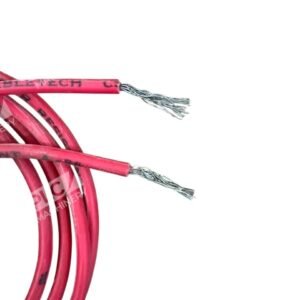

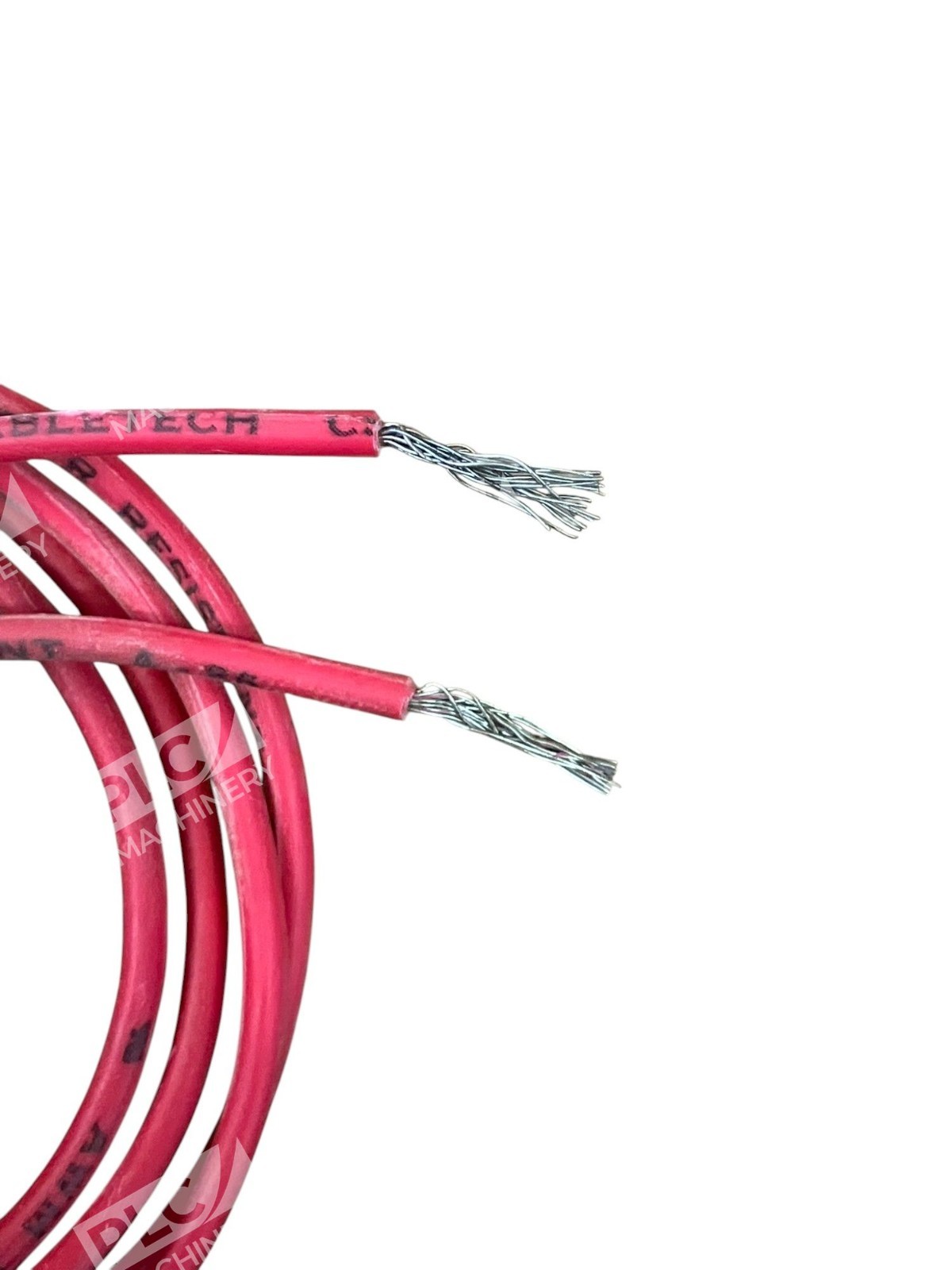

- Wire Configuration: 2-wire
- Vapor Resistance: Gasoline vapor resistant
- Insulation Class: Meets IEC 216 standards
- Operating Temperature: Suitable for continuous duty cycles

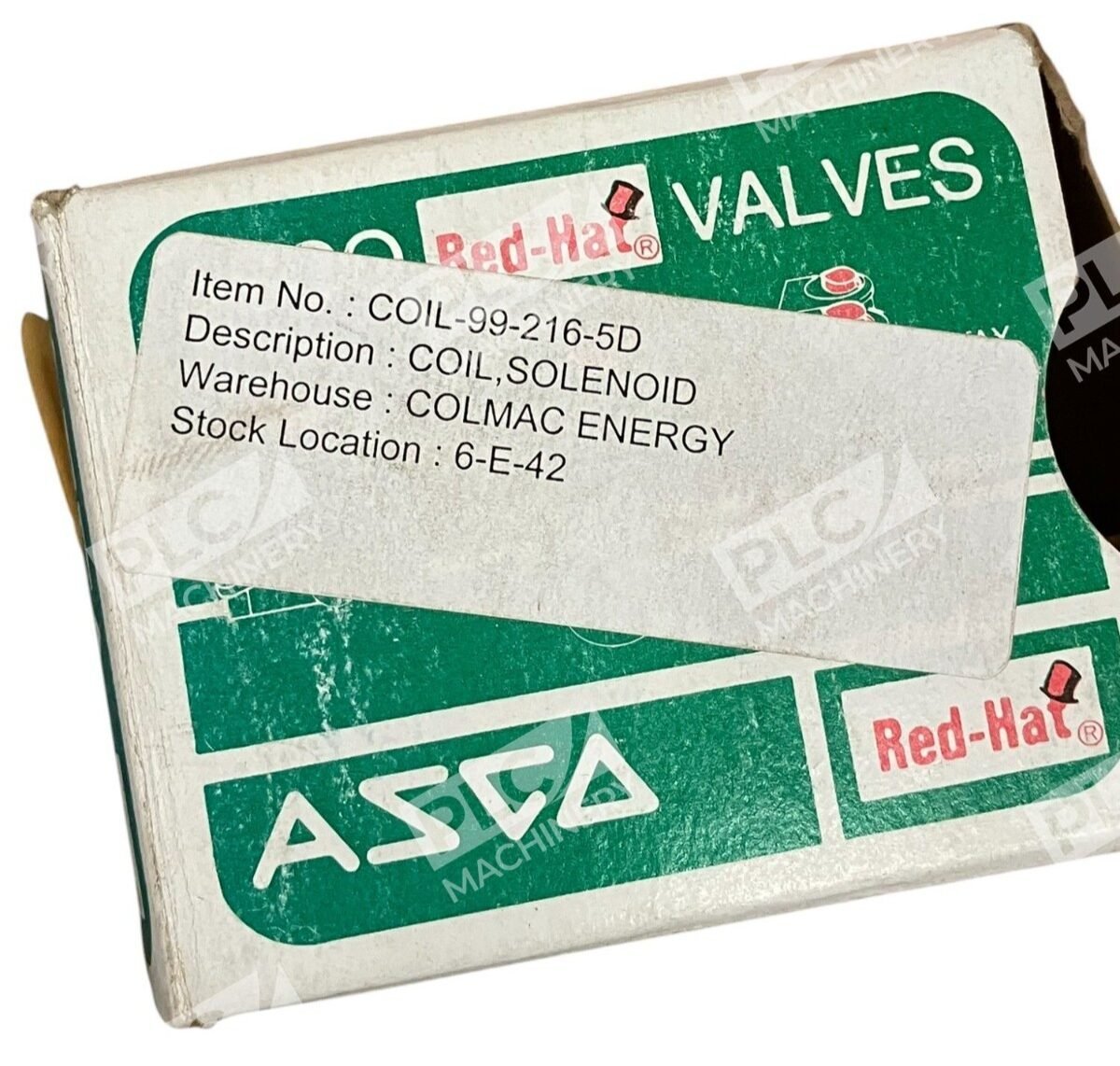

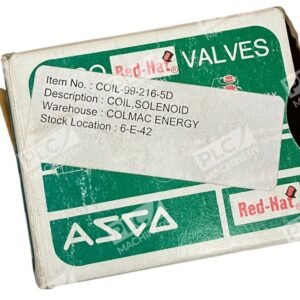

- Condition: New in Box
Typical Applications
The ASCO 99-216-5D solenoid coil is used in industrial fluid control systems including pneumatic and hydraulic valve actuation, fuel system valve control, and automated process valve operations. It is particularly suited for applications requiring gasoline vapor resistance, such as fuel handling equipment, automotive service stations, and petrochemical processing systems where Red Hat solenoid valves are deployed.
Compatibility & Replacements
Compatible With
- ASCO Red Hat series solenoid valves
- N-1044 Type D valve assemblies
- 110V/120V AC control circuits (50/60Hz)
- Industrial valve automation systems
Replaces / Drop-In Replacement For
- ASCO 99-216-5D (direct OEM part)
- Equivalent ASCO Red Hat solenoid coil assemblies for Type D N-1044 valves
- Previous generation Red Hat replacement coils (verify cross-reference with system integrator)
Works With
- Standard AC solenoid valve control circuits
- Industrial control panels and PLC valve driver outputs
- 24V/120V AC relay-based valve control logic
- Direct 110V–120V AC power supplies
