Overview

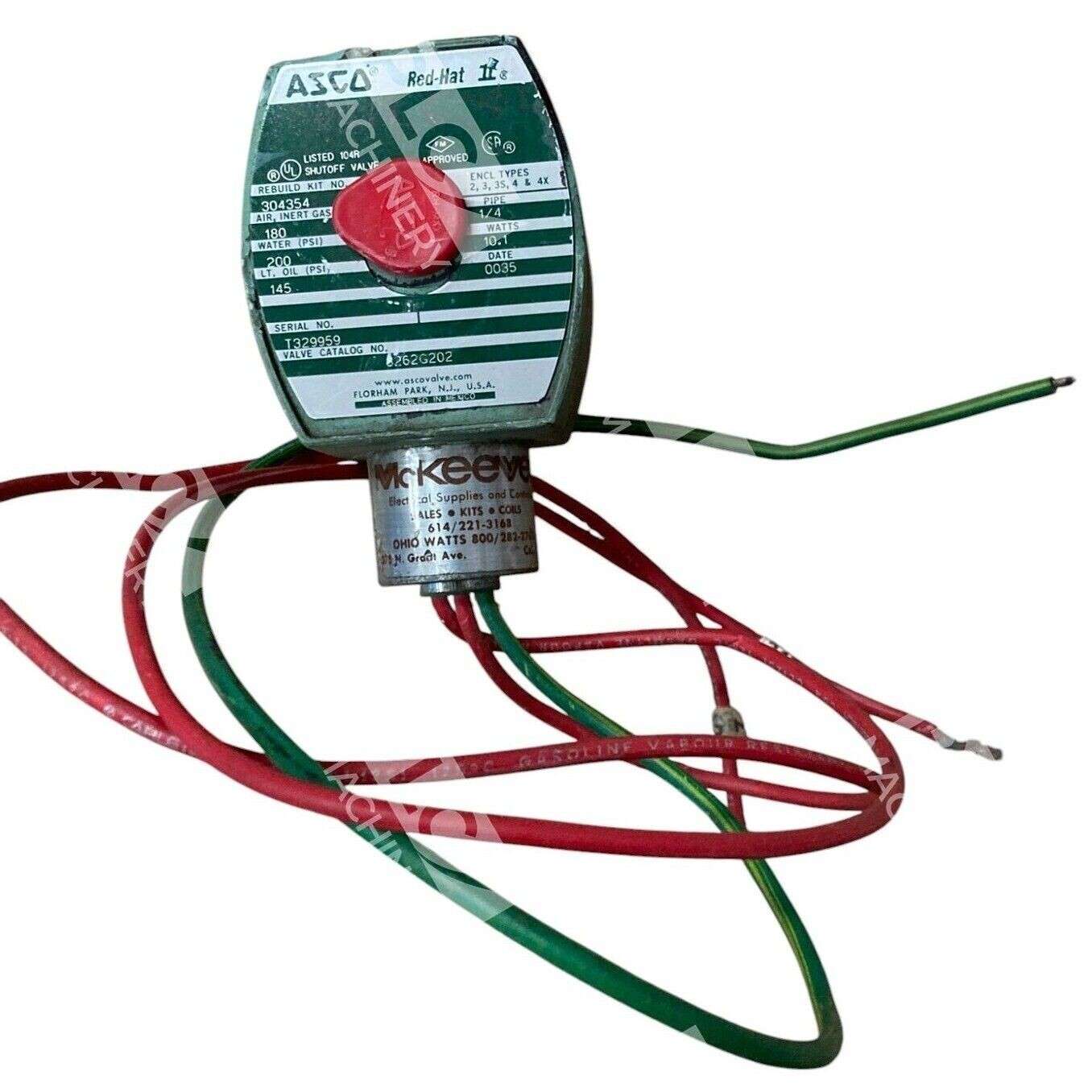

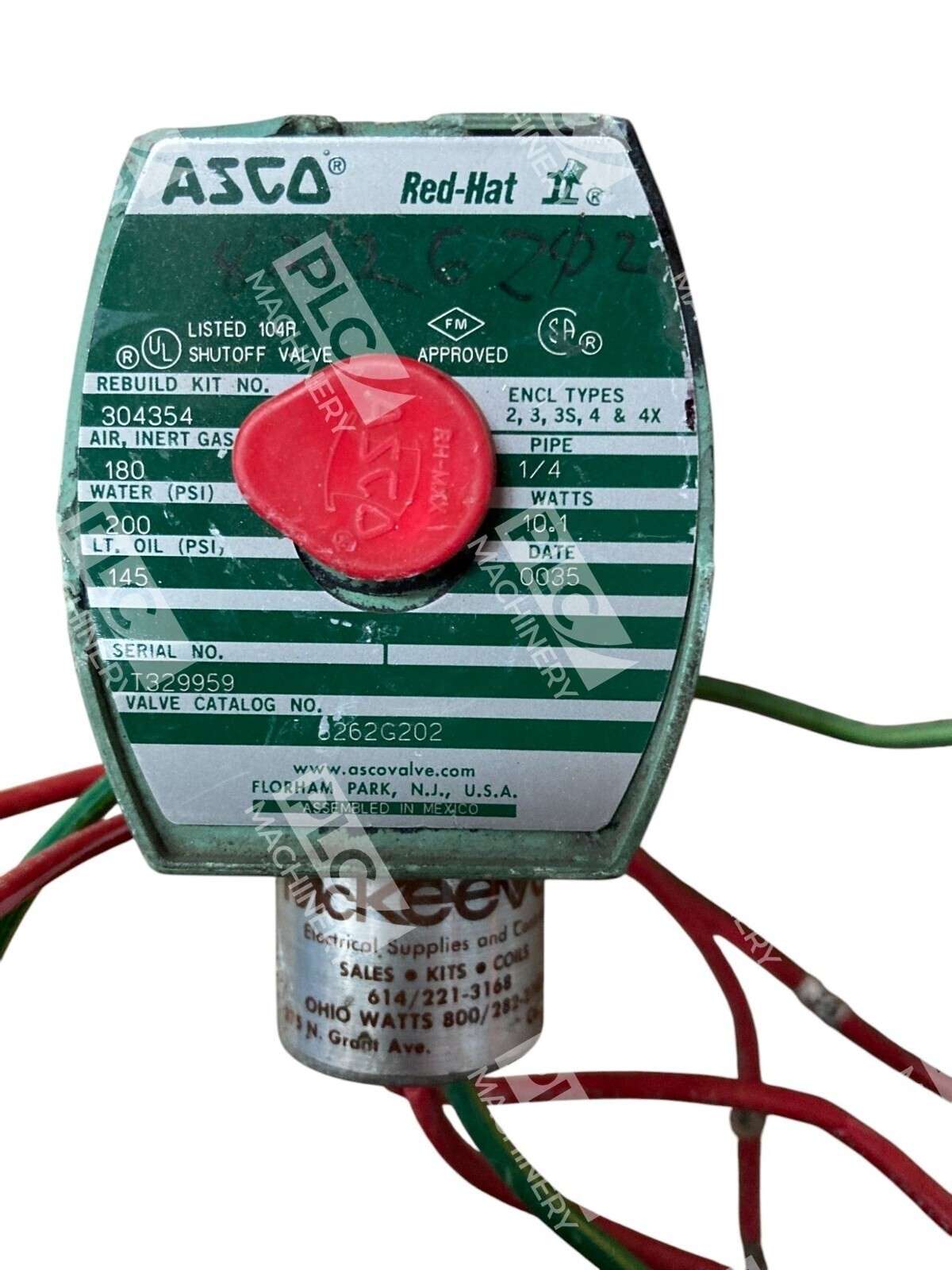

The Asco 8262G202 solenoid valve is a compact, direct-acting shutoff valve from the industry-standard Red-Hat Series. This 2-way general service solenoid valve handles media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil and cryogenic fluids. It features small poppet valves for tight shutoff, is mountable in any position, and offers brass body construction for general atmospheres.
Key Features
- 2-way general service and specialty service solenoid valve design
- Reliable, proven design with high flows
- Small poppet valves for tight shutoff
- Wide range of elastomers for specialty service
- Mountable in any position
- Normally closed operation—no energization required for seal
Technical Specifications
- Part Number: 8262G202
- Port Size: 1/4″ NPT
- Valve Type: 2-Way, Normally Closed
- Solenoid Voltage: 120V AC
- Flow Coefficient (Cv): 0.5
- Orifice Size: 5/32″
- Coil Insulation Class: F
- Operating Pressure: 145–200 psi
- Maximum Fluid Temperature: 180°F
- Body Material: Brass
- Enclosure Type: NEMA 4/4X, Watertight
- Ambient Operating Temp (AC): 32°F to 125°F (0°C to 52°C)
- Series: Asco 8262 (Red-Hat)
Typical Applications
The 262/263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others. Additional uses include:
- Compressed air system isolation and control
- Water supply shutoff in industrial and commercial equipment
- Fuel gas and light oil flow control
- Steam system bypass and blocking
- OEM panel and test equipment integration
Compatibility & Replacements
Compatible With
- 120V AC single-phase power supply systems
- Compressed air networks and pneumatic systems
- Water, light oil, and inert gas fluid systems
- Industrial fluid control and shutoff applications
- Equipment requiring 1/4″ NPT port connections
Replaces / Drop-In Replacement For
This model has been discontinued by the manufacturer. The recommended direct replacement is the Asco 8262H202, a 1/4″ Normally Closed Solenoid Valve (120V) with identical port and electrical configuration.
Works With
- 120V AC industrial control circuits
- Pneumatic and hydraulic system integration
- Standard 1/4″ NPT threaded piping and fittings
- Fluid flow control systems and automation panels
