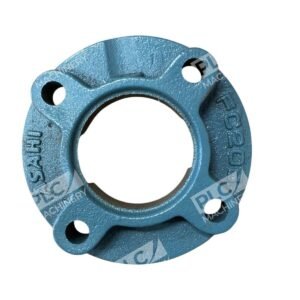

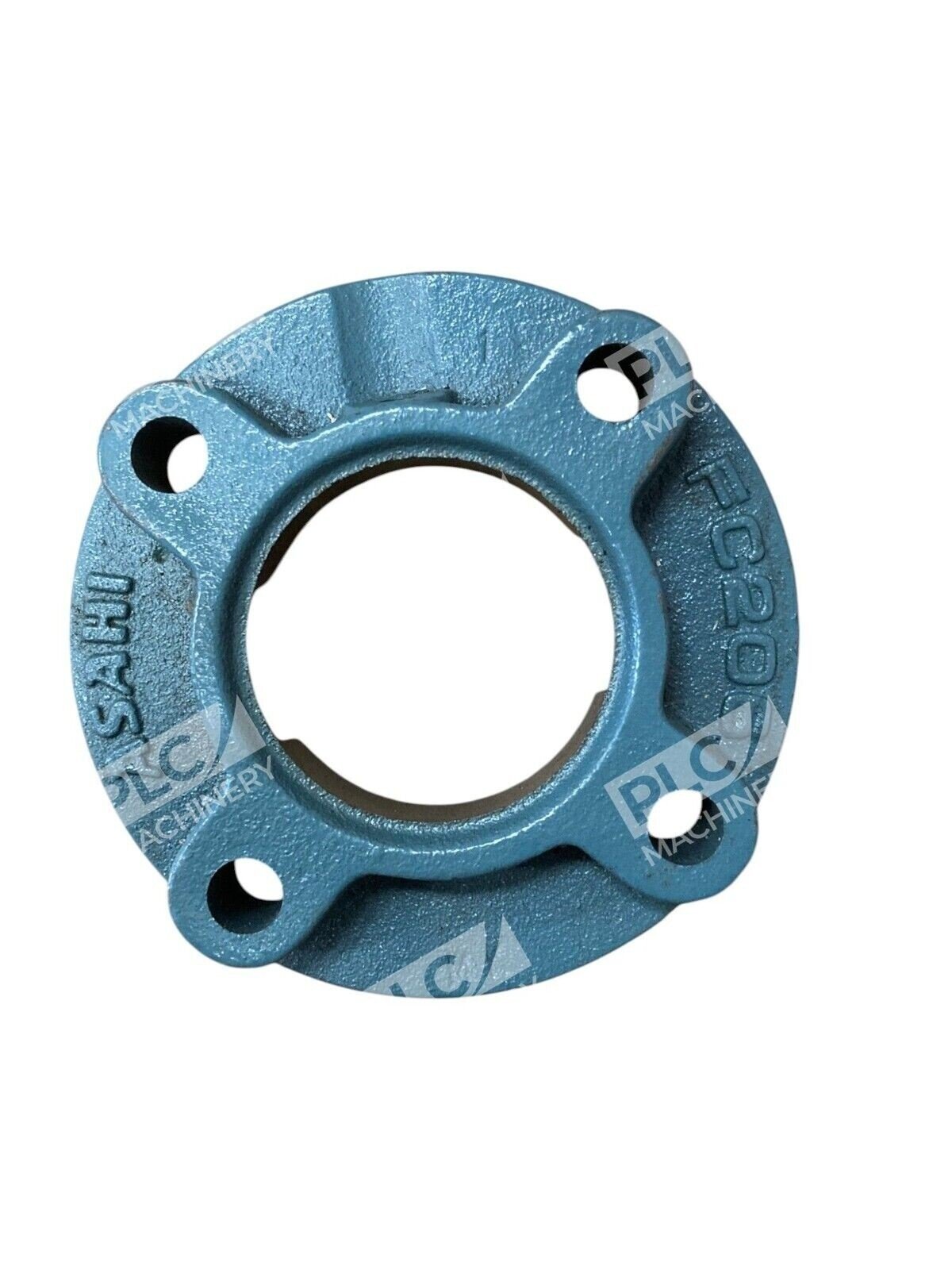

Asahi 4-Bolt Bearing Housing FC206
The Asahi FC206 is a robust 4-bolt flange bearing housing designed to provide reliable support for rotating shafts in various industrial applications. Crafted from high-grade cast iron, this housing ensures durability and stability under demanding conditions.
Key Features
- Material: High-quality cast iron housing for enhanced strength and longevity.
- Design: 4-bolt flange configuration offers secure mounting and easy installation.
- Compatibility: Designed to accommodate UC206 insert bearings, suitable for shafts with a diameter of 30 mm.
- Locking Mechanism: Equipped with a set screw locking collar to firmly secure the bearing onto the shaft.
- Sealing: Features contact seals made of nitrile rubber to protect against contaminants and retain lubrication.
Specifications
- Shaft Diameter: 30 mm
- Housing Length: 125 mm
- Overall Width: 40.2 mm
- Flange Thickness: 8 mm
- Bolt Circle Diameter: 100 mm
- Bolt Hole Size: 12 mm
- Dynamic Load Rating: 4,400 lbf
- Static Load Rating: 2,540 lbf
- Operating Temperature Range: -40°F to 250°F
The Asahi FC206 bearing housing is engineered for light-duty applications, offering a balance of performance and ease of maintenance. Its non-relubricatable design simplifies upkeep, making it a practical choice for various industrial settings.
