Overview

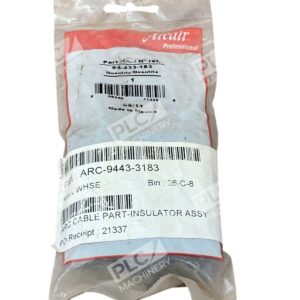

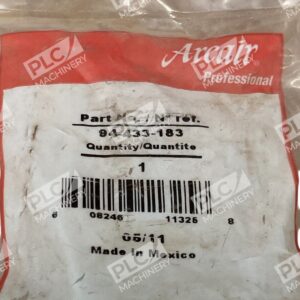

The Arcair 94-433-183 insulator assembly is a replacement insulator and screw assembly manufactured for use with Arcair’s K4000 Extreme Angle-Arc manual gouging torch system. This component plays a critical role in torch performance by insulating the torch body from the work piece, permitting lower operating temperatures and preventing thermal damage during air carbon arc cutting and gouging operations.
Key Features
- Includes insulator and mounting screws for direct installation
- Reduces torch operating temperature to avoid overheating during extended use
- Improves nozzle seal integrity and performance
- Compatible with multiple K4000 torch models across the Arcair lineup
- Suitable for air carbon arc cutting and gouging (CAC-A) processes
Technical Specifications
- Manufacturer: Arcair (ESAB Corporation)
- Part Number: 94-433-183 (also 94433183)
- Item Type: Insulator and Screw Assembly
- For Torch Series: K4000
- Compatible Torch Models: 01-082-002, 61-082-006, 61-082-007, 61-082-008, 61-082-009
- Welding Process: Air Carbon Arc Cutting and Gouging (CAC-A)
- Weight: 0.26 lbs
- Country of Origin: Mexico
- Includes: Insulator and mounting screws
Typical Applications
The Arcair 94-433-183 is widely used in fabrication, maintenance, and repair shops where air carbon arc gouging and cutting are performed. It is essential for:
- Thermal management in high-amperage gouging operations (K4000 = 1000A rated)
- Maintenance and repair of carbon arc gouging torches
- Extension of torch service life by reducing thermal stress
- Operations requiring precision gouging on carbon steel, stainless steel, and aluminum
Compatibility & Replacements
Compatible With
- Arcair K4000 Extreme Angle-Arc Manual Gouging Torch (1000A rated)
- Torch models 01-082-002, 61-082-006, 61-082-007, 61-082-008, 61-082-009
- Air carbon arc cutting and gouging (CAC-A) equipment
- Standard arc gouging torch power supplies and cables
Replaces / Drop-In Replacement For
- Original Arcair K4000 insulator assemblies
- Worn or damaged insulators on Arcair gouging torches
- RADNOR 315 (soft substitute alternative per Airgas catalog)
Works With
- Arcair brand welding power supplies and torch systems
- Standard electrode cable assemblies for arc gouging
- Work clamps and grounding systems for arc gouging applications
- Carbon electrodes rated for air carbon arc processes
