Overview

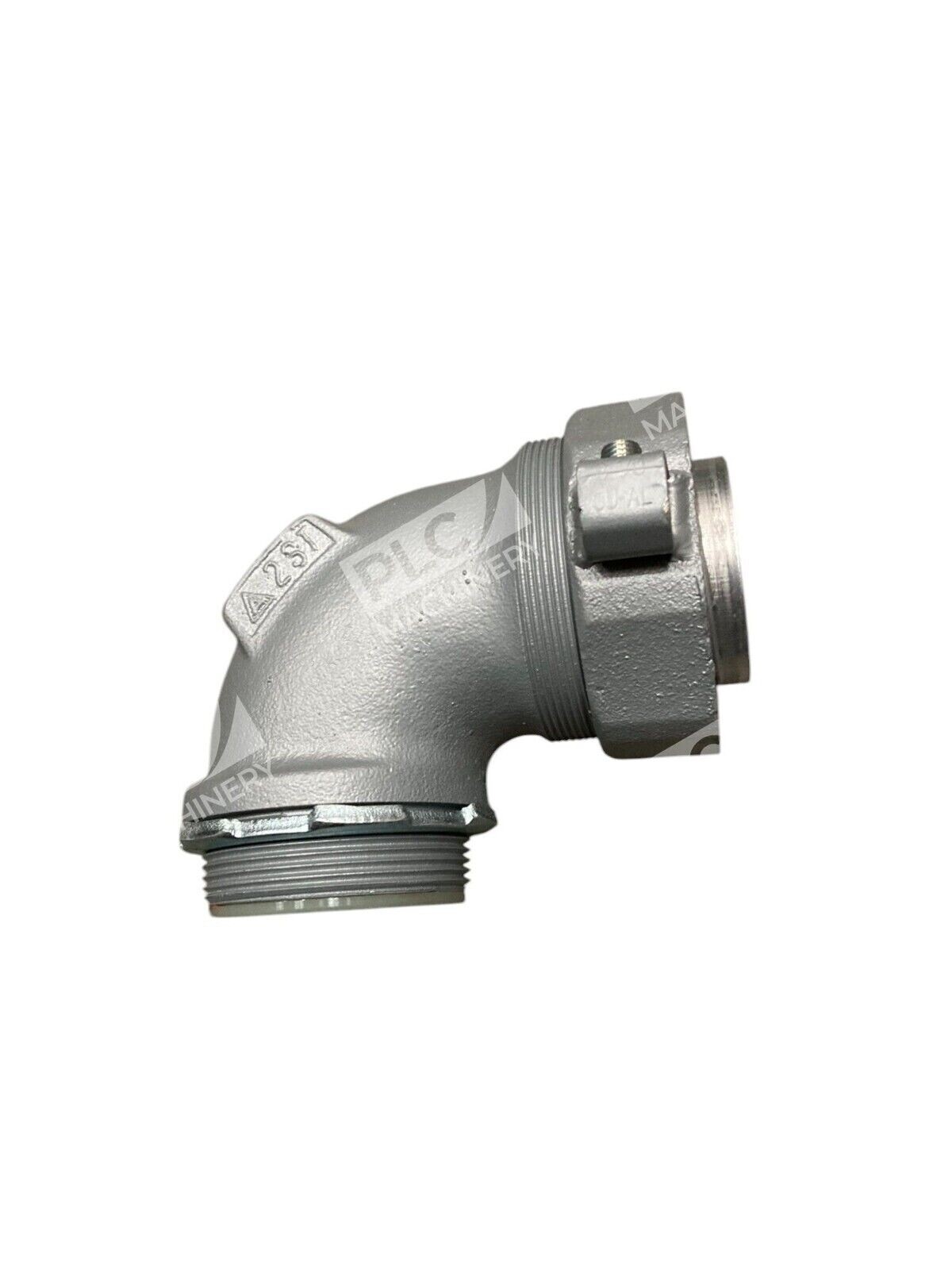

The Appleton 2″ 90 degree elbow conduit (part number GE 483729 STB90200L) is a standard-duty conduit elbow fitting manufactured from malleable iron. This fitting is essential for routing electrical conduit around obstacles and changing direction in industrial electrical installations. The zinc electroplated finish provides corrosion resistance and extends service life in both indoor and outdoor environments.
Key Features
- Material: Malleable iron construction for durability and impact resistance
- Finish: Zinc electroplated for corrosion protection
- 90-Degree Design: Standard elbow configuration for directional changes in conduit runs
- UL Listed: Complies with UL 886 and UL 1203 standards
- CSA Approved: Meets C22.2 certification requirements for Canadian installations
- Male-to-Female Connection: Tapered threaded connections for secure assembly
Technical Specifications
The elbow is rated for use with both rigid metallic conduit (RMC) and intermediate metal conduit (IMC). The trade size is 2 inches, and it features tapered MNPT (male) and FNPT (female) connections. Dimension A (length) is approximately 4 inches from center to center.
Typical Applications
- Industrial electrical control panel installations
- Factory machine wiring and conduit routing
- Hazardous classified locations (where explosion-proof variants are required)
- RMC and IMC conduit system bends and routing
- Indoor and outdoor electrical installations requiring corrosion-resistant fittings
Compatibility & Replacements
Compatible With
- Rigid Metallic Conduit (RMC) – 2″ trade size
- Intermediate Metal Conduit (IMC) – 2″ trade size
- Appleton UNILETS conduit accessories and fittings
- Standard electrical installations compliant with NEC Article 342 (RMC) and Article 345 (IMC)
- Systems requiring UL 886 / UL 1203 certified conduit components
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Similar Appleton 2″ 90-degree elbow models are available in both standard and explosion-proof configurations.
Works With
- 2″ RMC and IMC conduit systems
- Tapered NPT threaded conduit couplings and adapters
- Standard electrical wiring systems and enclosures
- UL 886 and UL 1203 compliant conduit installations
