Overview
The Amphenol 97-24-11P is a 9-contact circular connector insert engineered for industrial connectivity in demanding environments. As part of the 97 Series family, this insert delivers MIL-DTL-5015 compliance and broad application flexibility for control systems, machine tools, and automation equipment.
Key Features

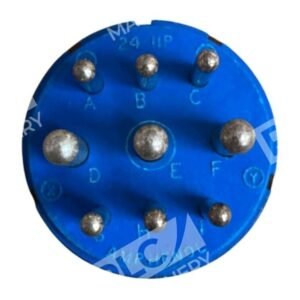

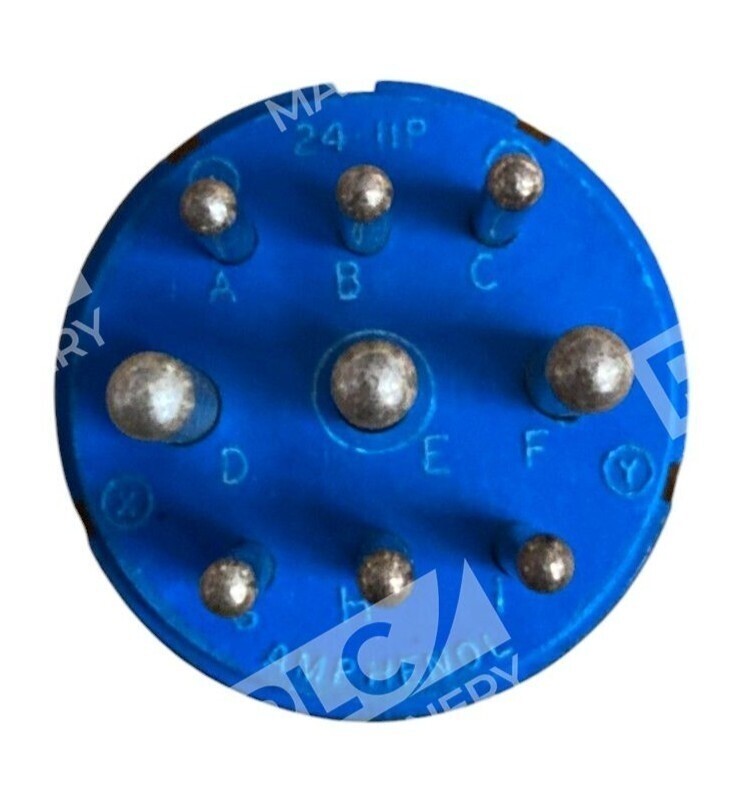

- 9 pin contacts in solder termination configuration

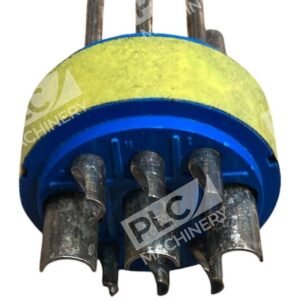

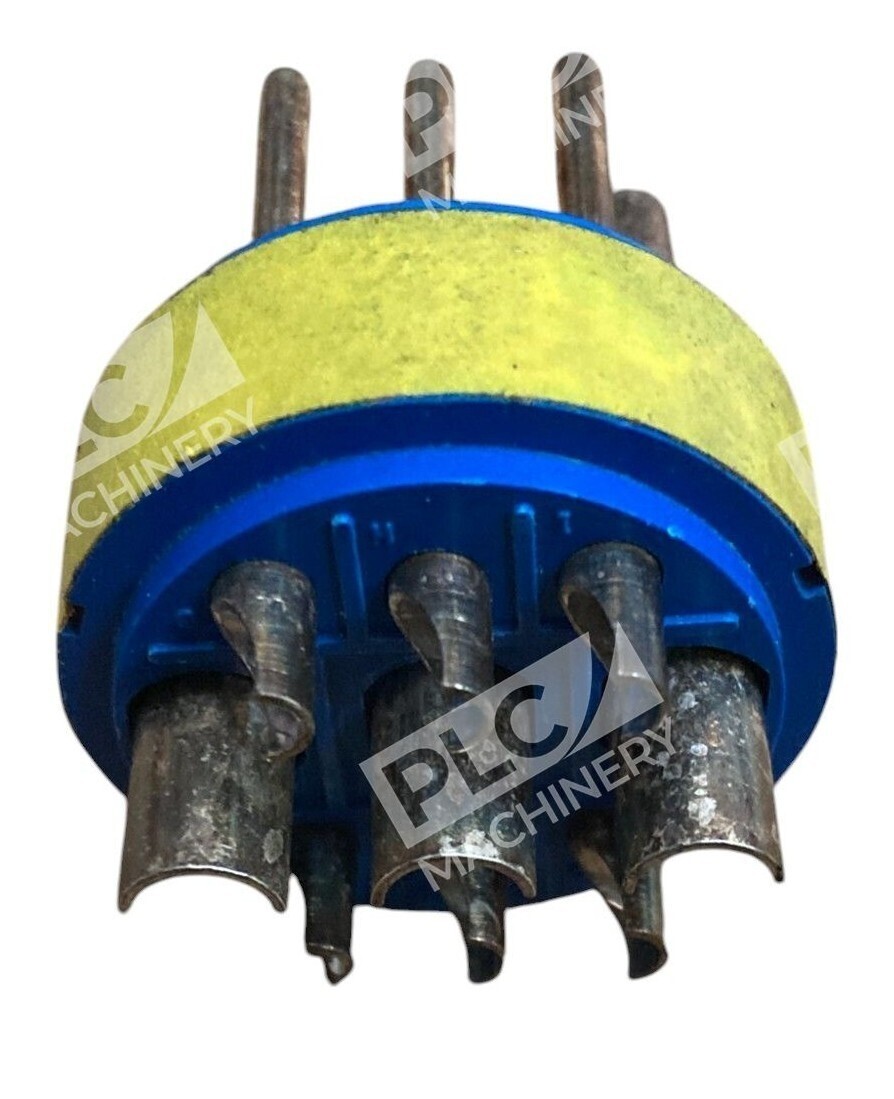

- Silver-plated pre-tinned solder cups for reliable soldered joints
- Compatible with Size 24 threaded connector shells
- MIL-DTL-5015 (SAE-AS50151) military specification compliance
- Proven design for robotics, welding, and industrial machinery applications
Technical Specifications
- Contact Type: Pin (male)
- Termination: Solder
- Number of Contacts: 9
- Contact Plating: Silver with pre-tinned solder cups
- Shell Size: 24
- Specification: MIL-DTL-5015 / SAE-AS50151
- Series: Amphenol 97
Typical Applications
The 97-24-11P insert is widely used in:
- Industrial robotics and motion control systems
- Machine tool interconnects and control wiring
- Welding equipment and power distribution
- Process control and automation wiring harnesses
- Military and aerospace connector assemblies
Compatibility & Replacements
Compatible With
- Amphenol 97 Series Size 24 connector shells
- MIL-DTL-5015 compliant receptacle shells
- Industrial solder-termination harness assemblies
Replaces / Drop-In Replacement For

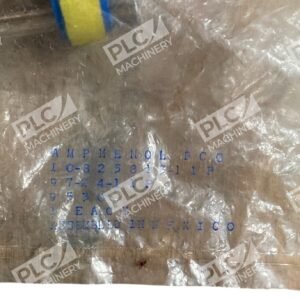

The 97-24-11P is referenced under alternate part number 10-825813-11P. Verify compatibility with your system integrator or connector assembly vendor before ordering replacement units.
Works With
- Amphenol 97 Series threaded connector bodies
- Standard solder joint assembly and rework processes
- MIL-STD-1344 test voltage specifications
