Overview

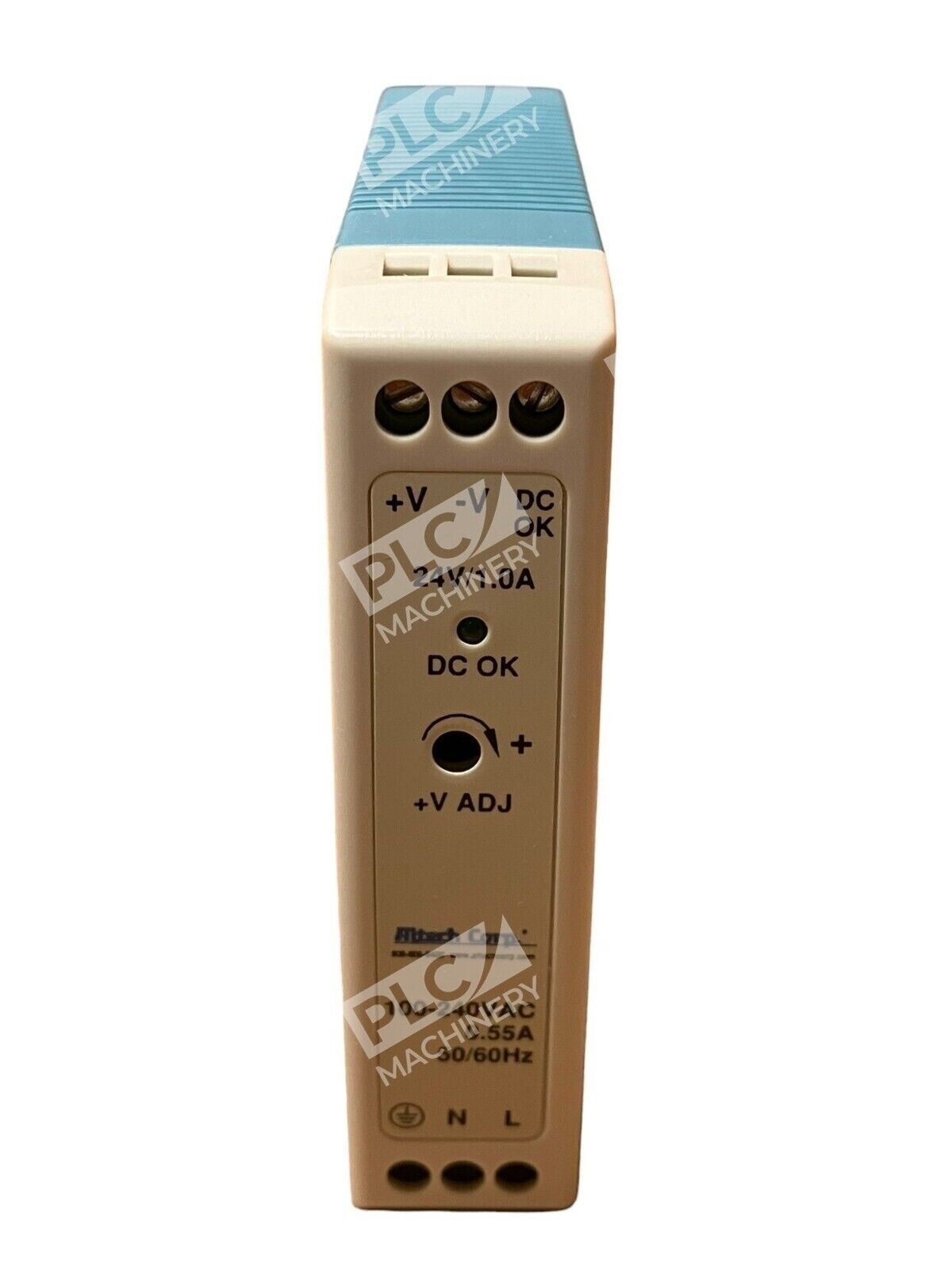

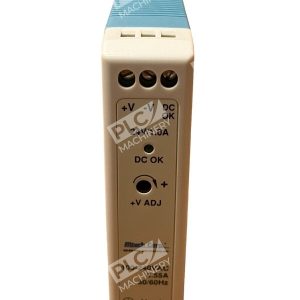

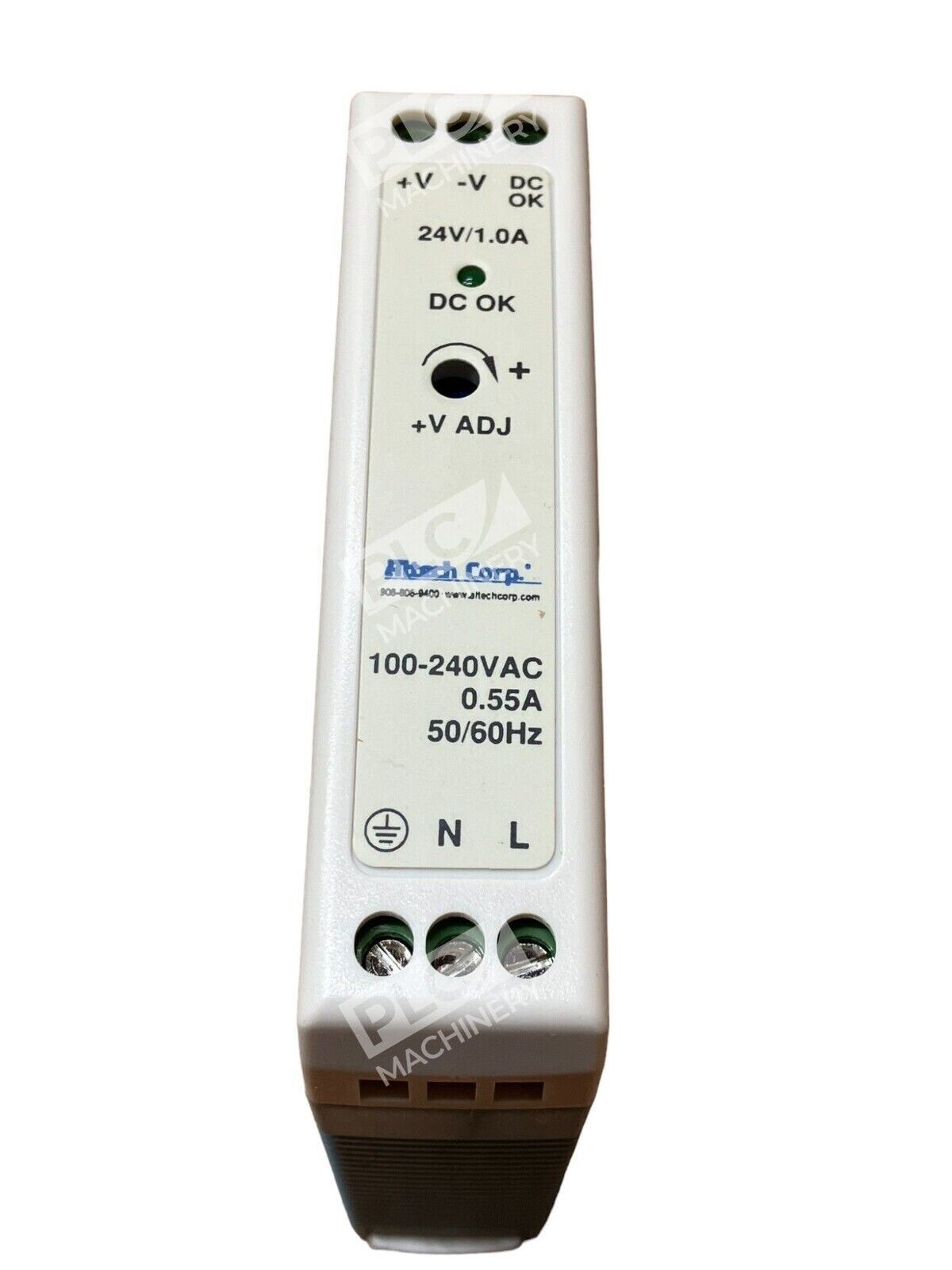

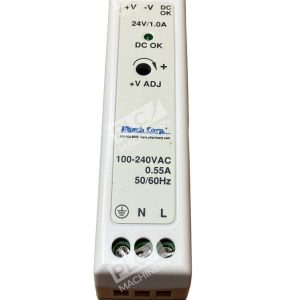

The Altech Corp PS-S2024 is a single-output industrial DIN rail power supply rated at 20W, delivering 24V DC at up to 1A. Part of the PS-S slim series, this power supply accepts universal AC input (85–264V, 47–63 Hz) and is engineered for industrial automation, control systems, and equipment requiring low-ripple, regulated 24VDC. Its compact form factor and screw-terminal connections make it suitable for space-constrained panel installations.
Key Features
- Universal AC Input: 85-264V AC full range operation eliminates the need for separate input voltage selectors
- Built-In Protections: Short circuit, overload, and overvoltage protections safeguard connected equipment
- Low Ripple Output: 150mVp-p ripple and noise ensures clean power for sensitive control circuits
- Free-Air Cooling: Cooling by free air convection — no fan required, eliminating maintenance needs
- Active Power-OK Signal: Built-in DC OK active signal and LED power indicator for easy monitoring
- 3-Year Warranty: 100% full load burn-in tested with manufacturer warranty for reliability assurance

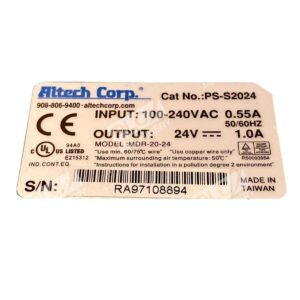

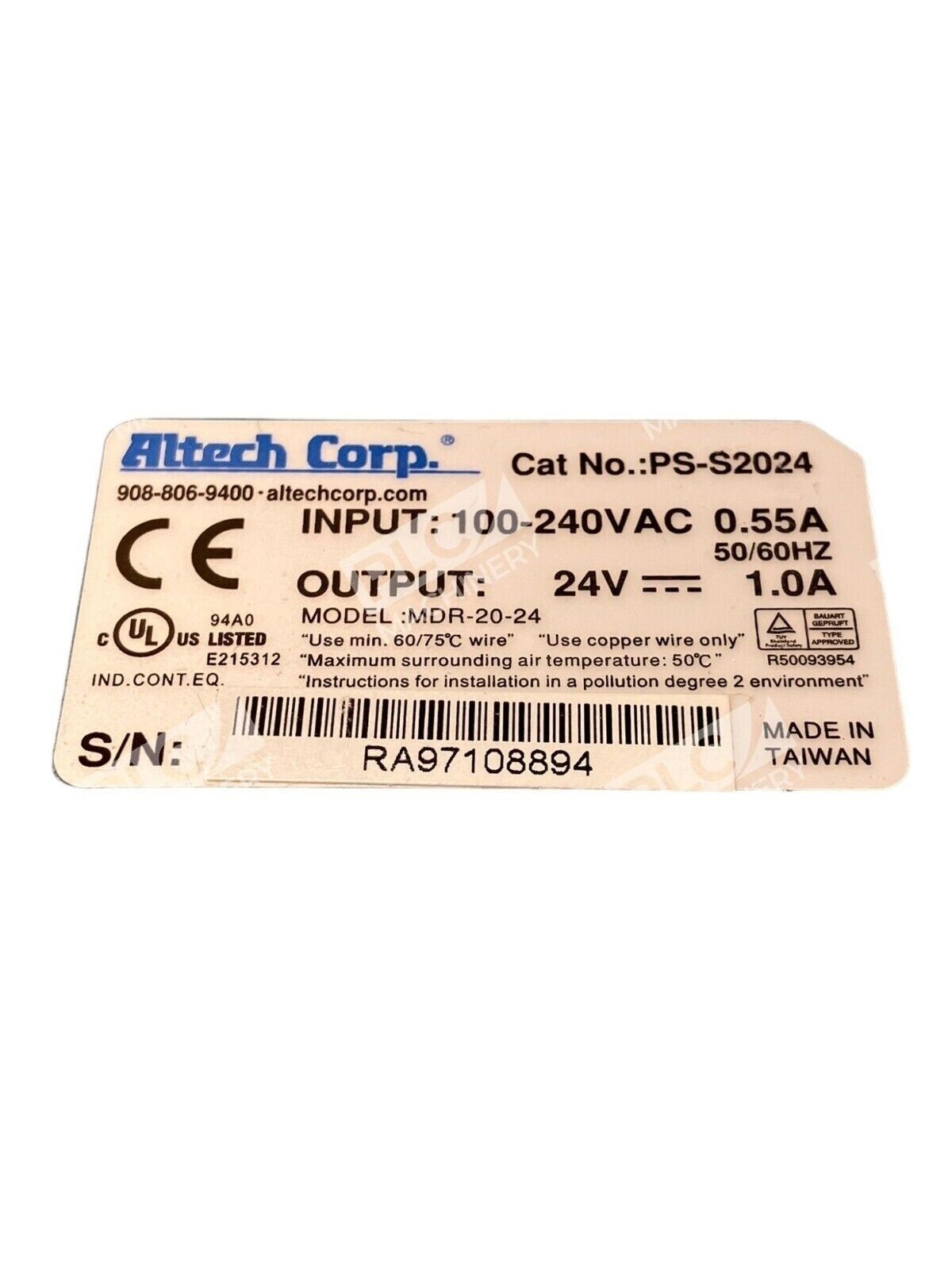

Technical Specifications
- Output Voltage: 24V DC
- Rated Current: 1A
- Rated Power: 24W
- Input Voltage Range: 85-264V AC
- Input Frequency: 47-63 Hz
- Voltage Tolerance: ±1%
- Ripple & Noise (max): 150 mVp-p
- Efficiency: 84%
- Operating Temperature: -20 to +70°C

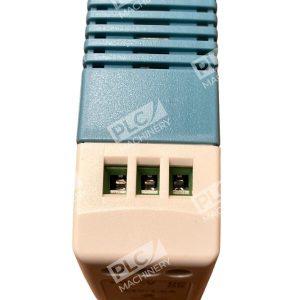

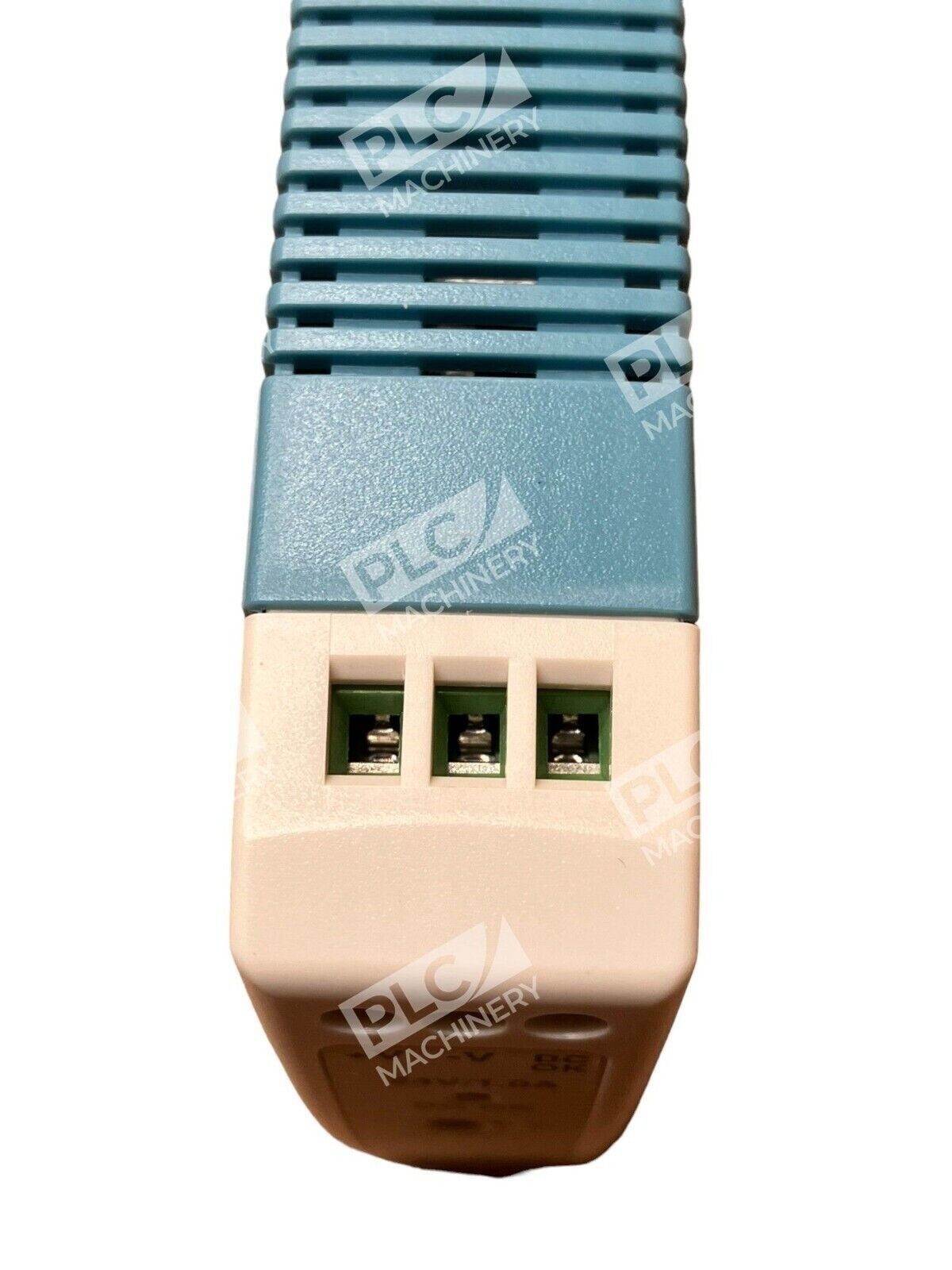

- Mounting: DIN rail (35mm), screw terminal connections
- Dimensions (WxHxD): 22.5 x 90 x 100 mm (0.89 x 3.54 x 3.94 inches)
- Weight: 0.19 kg (0.48 lbs)
- Certifications: UL508
Typical Applications
The PS-S2024 is widely deployed in industrial control panels, PLC power supplies, instrumentation systems, security equipment, and motor control stations. Its rugged design and full-load burn-in testing make it reliable for harsh factory and plant environments where uptime is critical. The universal input voltage range simplifies international and multi-site deployments.
Compatibility & Replacements
Compatible With
- Standard 35mm DIN rail mounting systems
- Industrial control systems and PLC power inputs
- Automation equipment requiring 24VDC regulated supply
- Instrumentation and panel-mount applications
Replaces / Drop-In Replacement For
Compatible with other PS-S slim series models (PS-S2005, PS-S2012, PS-S2015) offering different voltage outputs (5V, 12V, 15V). The PS-S2024 is the 24V variant. For identical specifications and form factor, verify exact part number compatibility with your system integrator before ordering.
Works With
- DIN rail mounting and distribution systems
- Screw terminal connection blocks
- Industrial control panel enclosures and automation platforms
- Any equipment rated for 24VDC input at ≤1A
