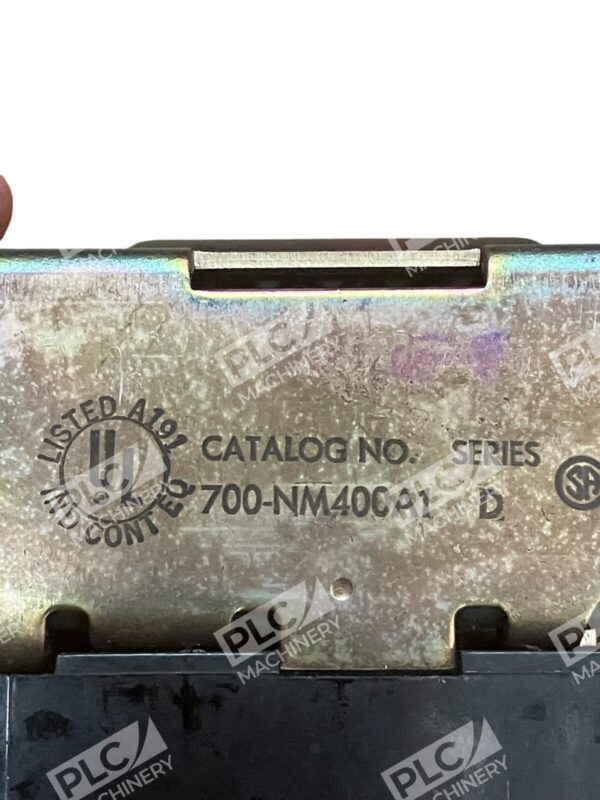

The Allen-Bradley Type N AC Relay 700-NM400A1 is a high-reliability industrial control relay designed for demanding applications. This relay features four normally open (N.O.) contacts and operates with a coil voltage of 110V at 50Hz or 120V at 60Hz.
Key Features
- Contact Configuration: 4 N.O. contacts, providing flexibility in control circuit design.
- Coil Voltage: Compatible with 110V at 50Hz and 120V at 60Hz power supplies.
- Contact Rating: Each contact is rated for 10A at 300V AC, adhering to NEMA A300 standards.
- Mounting Options: Designed for panel or strip mounting, with horizontal mounting recommended for optimal performance.
- Durability: Constructed with silver contact material to ensure reliable operation and longevity.
Technical Specifications
- Operating Temperature Range: -20°C to 40°C, suitable for various industrial environments.
- Wire Size Compatibility: Accommodates wire sizes from #18 AWG to (2) #12 AWG per UL/CSA standards.
- Dimensions: Height: 9.5 cm; Width: 6.7 cm; Length: 12.2 cm.
- Weight: Approximately 0.724 kg.
Applications
The 700-NM400A1 relay is ideal for use in industrial control systems where reliable switching and control are essential. Its robust design and versatile mounting options make it suitable for a wide range of applications, including manufacturing processes, automation systems, and other industrial environments.
Please note that the 700-NM400A1 model has been discontinued as of May 30, 2008. For current applications, consider alternative models such as the 700-N400A1, which offers similar features and is actively supported.
