Overview

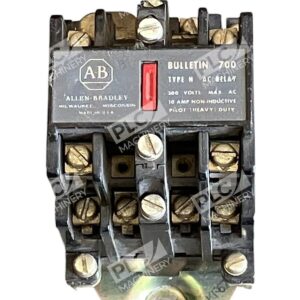

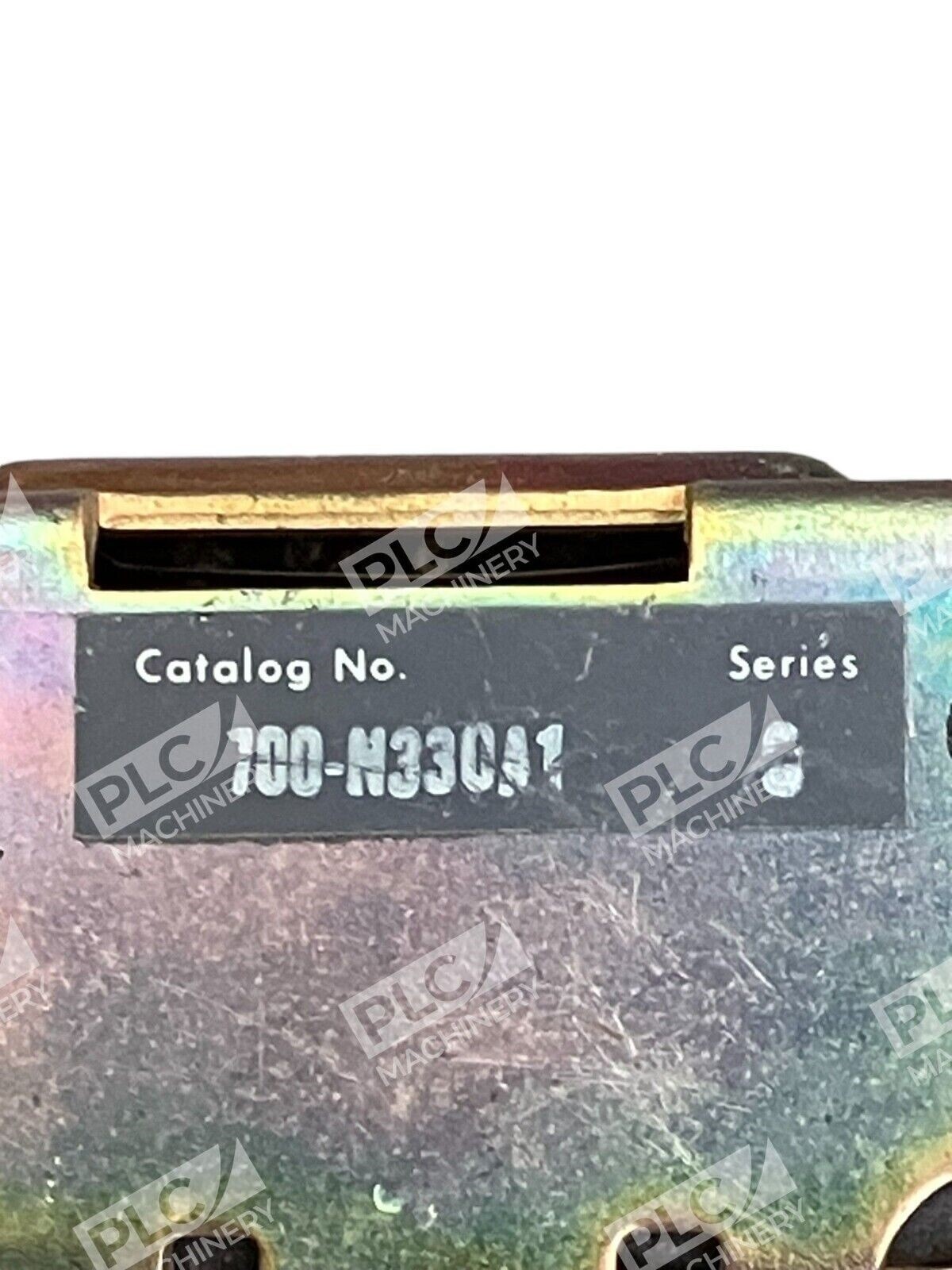

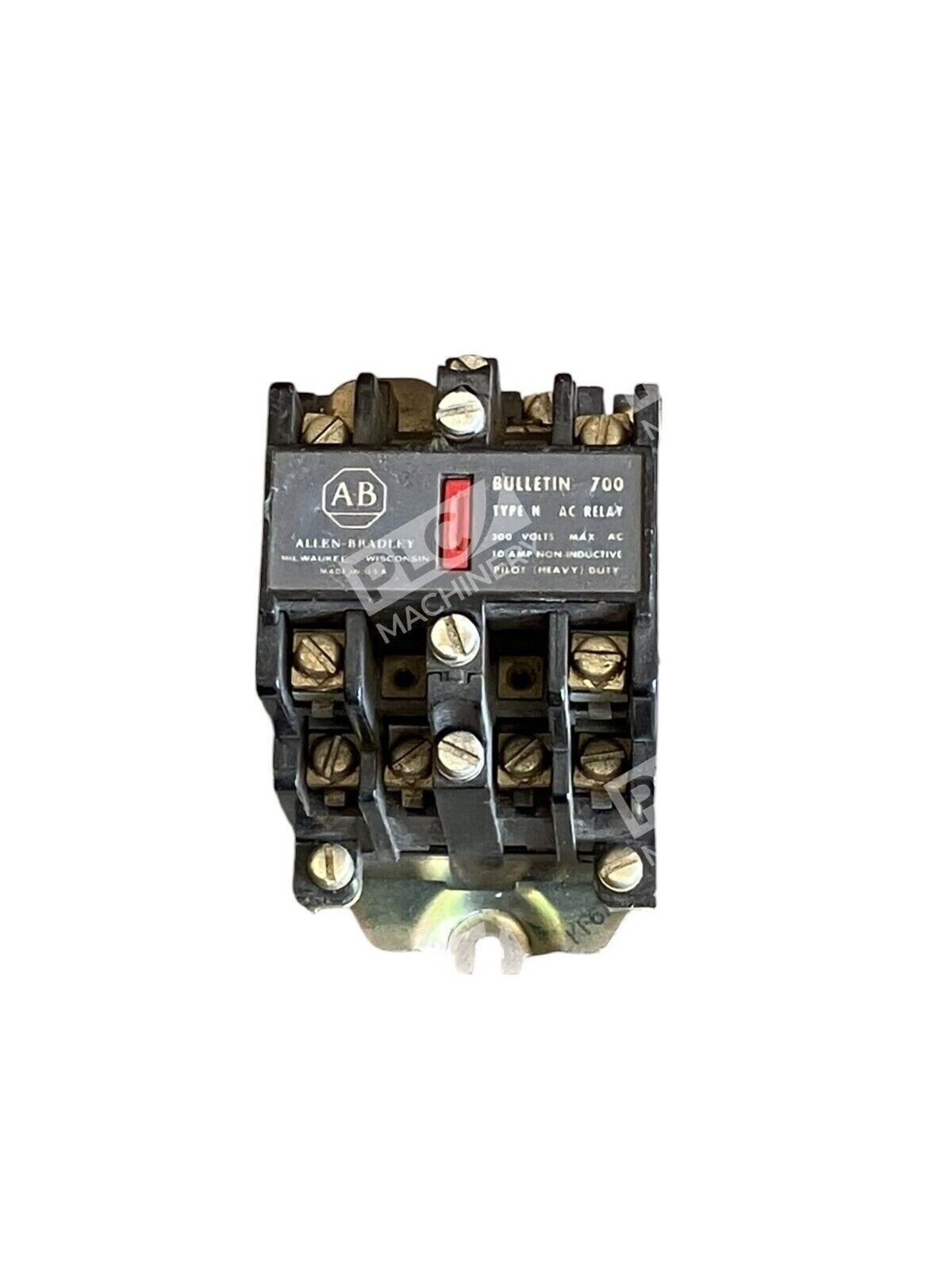

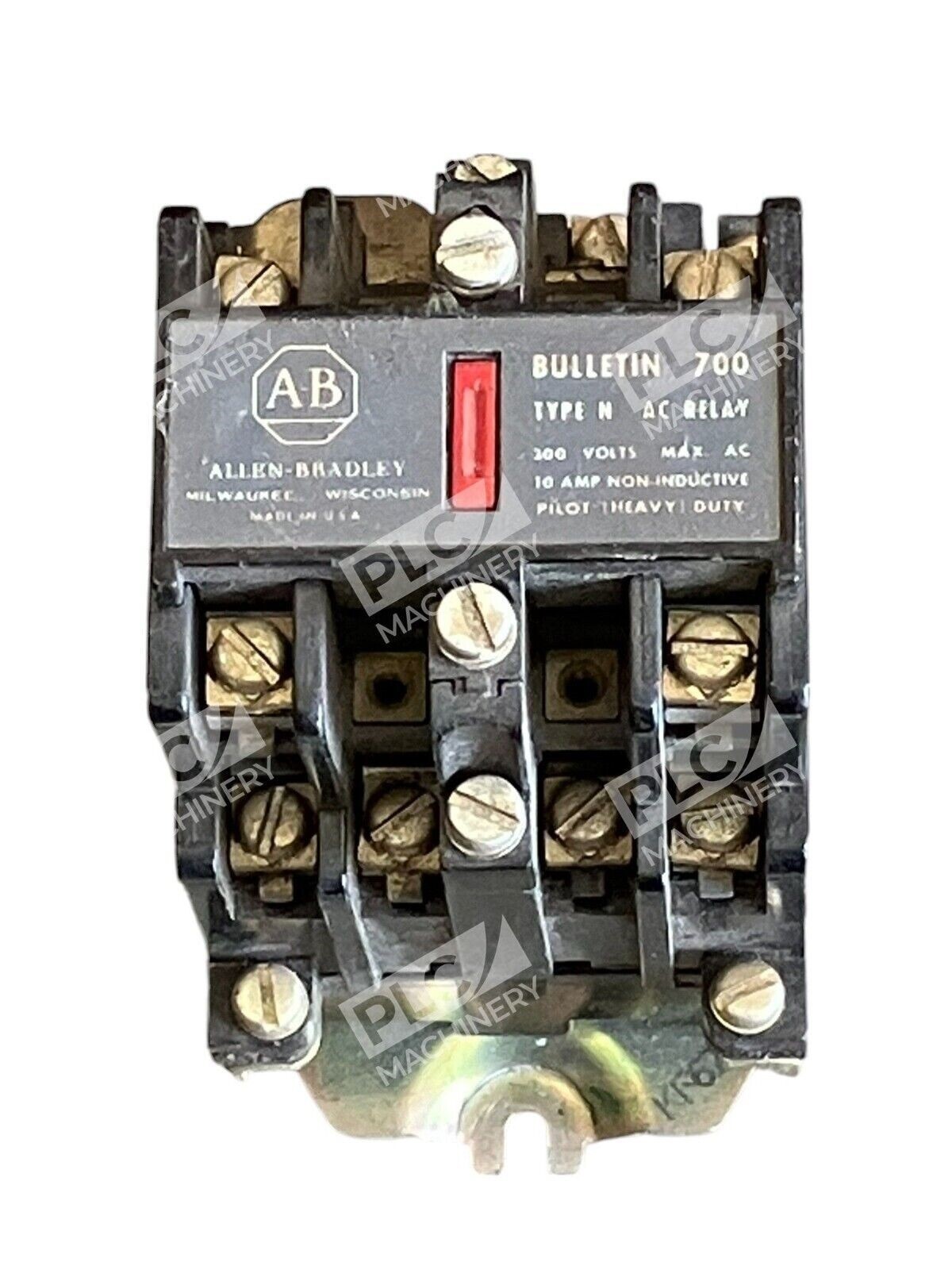

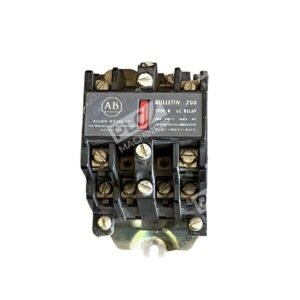

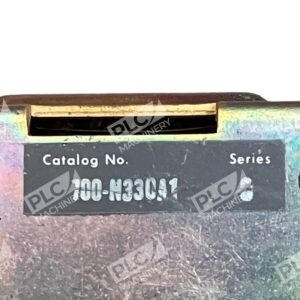

The Allen-Bradley 700-N330A1 /G is a Type M AC control relay engineered for pilot heavy-duty applications in industrial environments. Part of the proven 700-N NEMA low-profile relay series, this unit provides dependable switching performance for general-purpose control circuits, machine automation, and process equipment.
Key Features
- 10A contact rating for reliable pilot-duty switching
- Type M configuration optimized for industrial control systems
- AC coil design supporting standard industrial voltages
- NEMA-rated construction for industrial reliability
- Compatible with standard 700-series sockets and accessories
- Proven Allen-Bradley quality and durability
Technical Specifications
This relay is manufactured to Allen-Bradley’s exacting industrial standards with robust mechanical construction suitable for frequent switching cycles. Contact materials and coil windings are selected for optimal performance in standard industrial control applications. The relay features mechanical switching with no electronic components, ensuring long operational life and freedom from sensitivity to electrical noise or transients common in manufacturing environments.
Typical Applications
- Machine control and automation systems
- Process equipment switching circuits
- Pilot duty control for larger load switching
- Industrial process control panels
- Equipment interlocks and safety circuits
Compatibility & Replacements
The 700-N330A1 /G is compatible with standard Allen-Bradley Bulletin 700 relay sockets (such as 700-HN series sockets) and accessory modules including time-delay units and surge suppressors. For replacement or upgrade considerations, consult Allen-Bradley’s relay compatibility charts or contact technical support for equivalent alternatives in the 700-series family.
