Overview

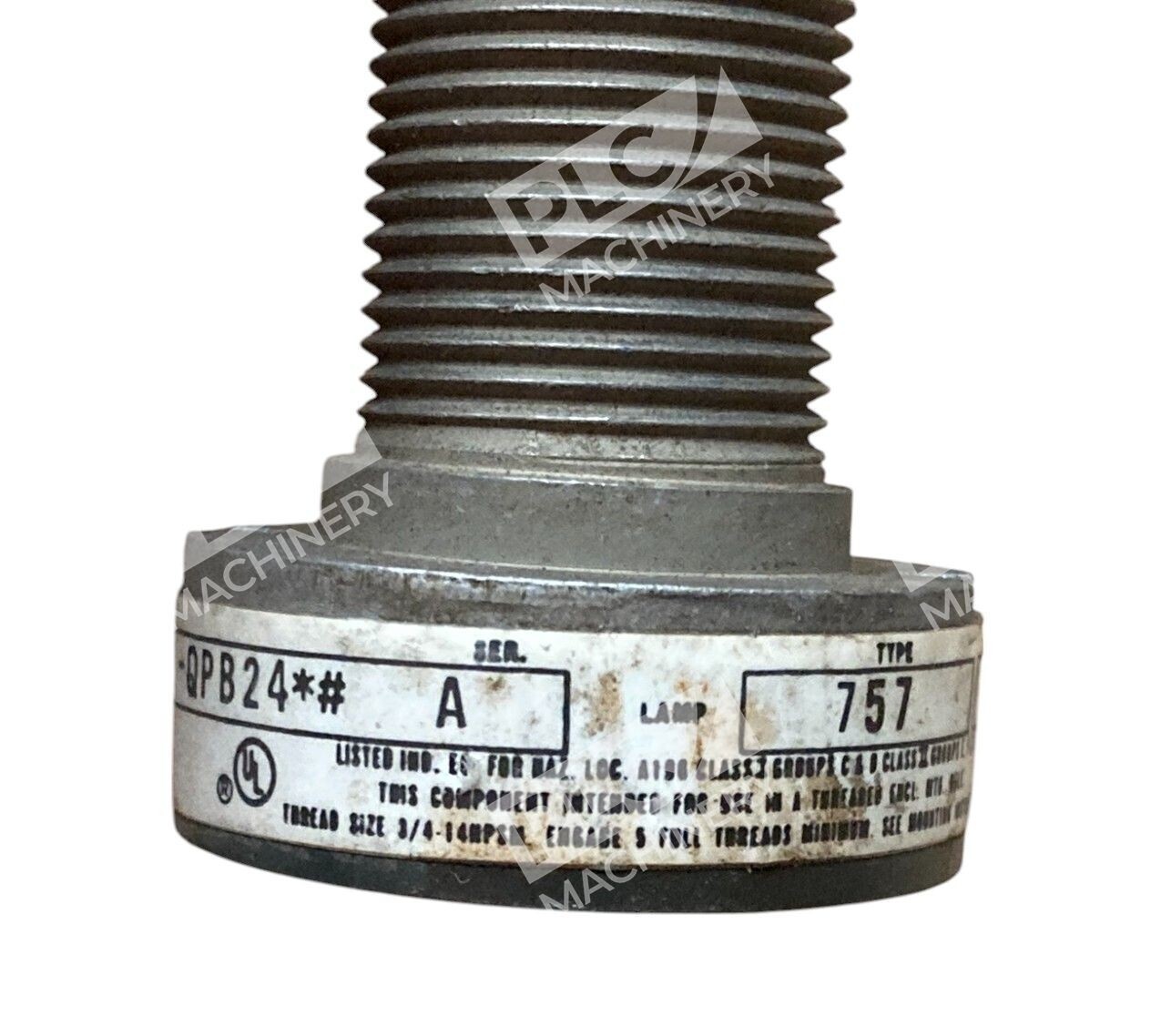

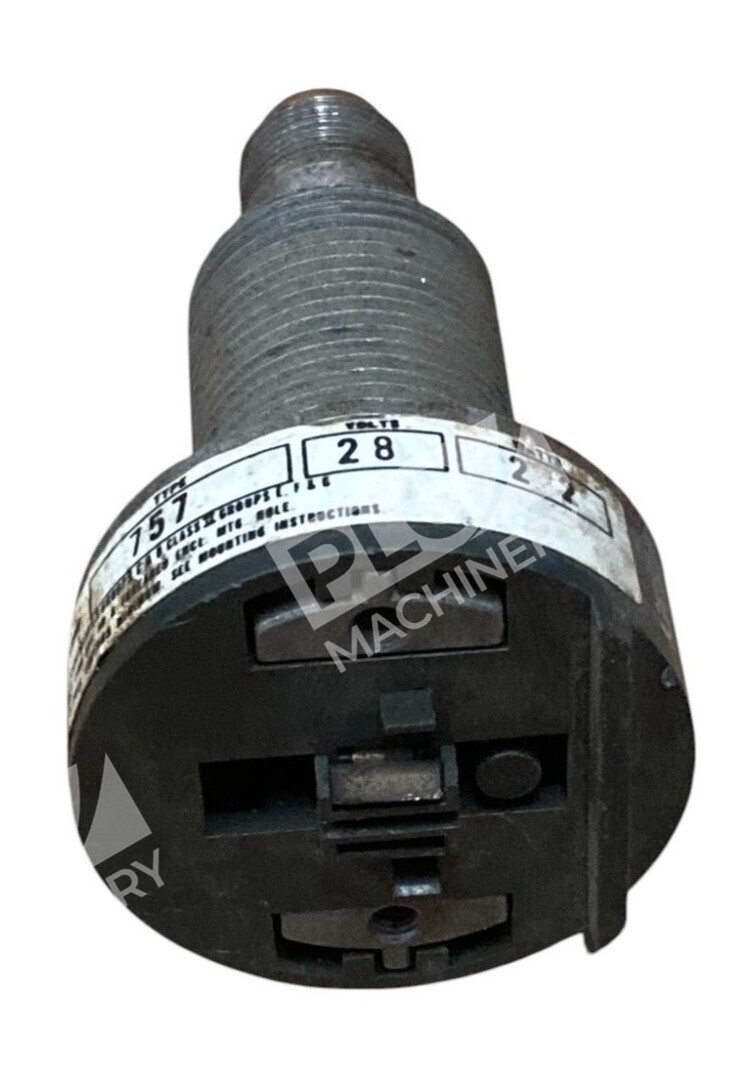

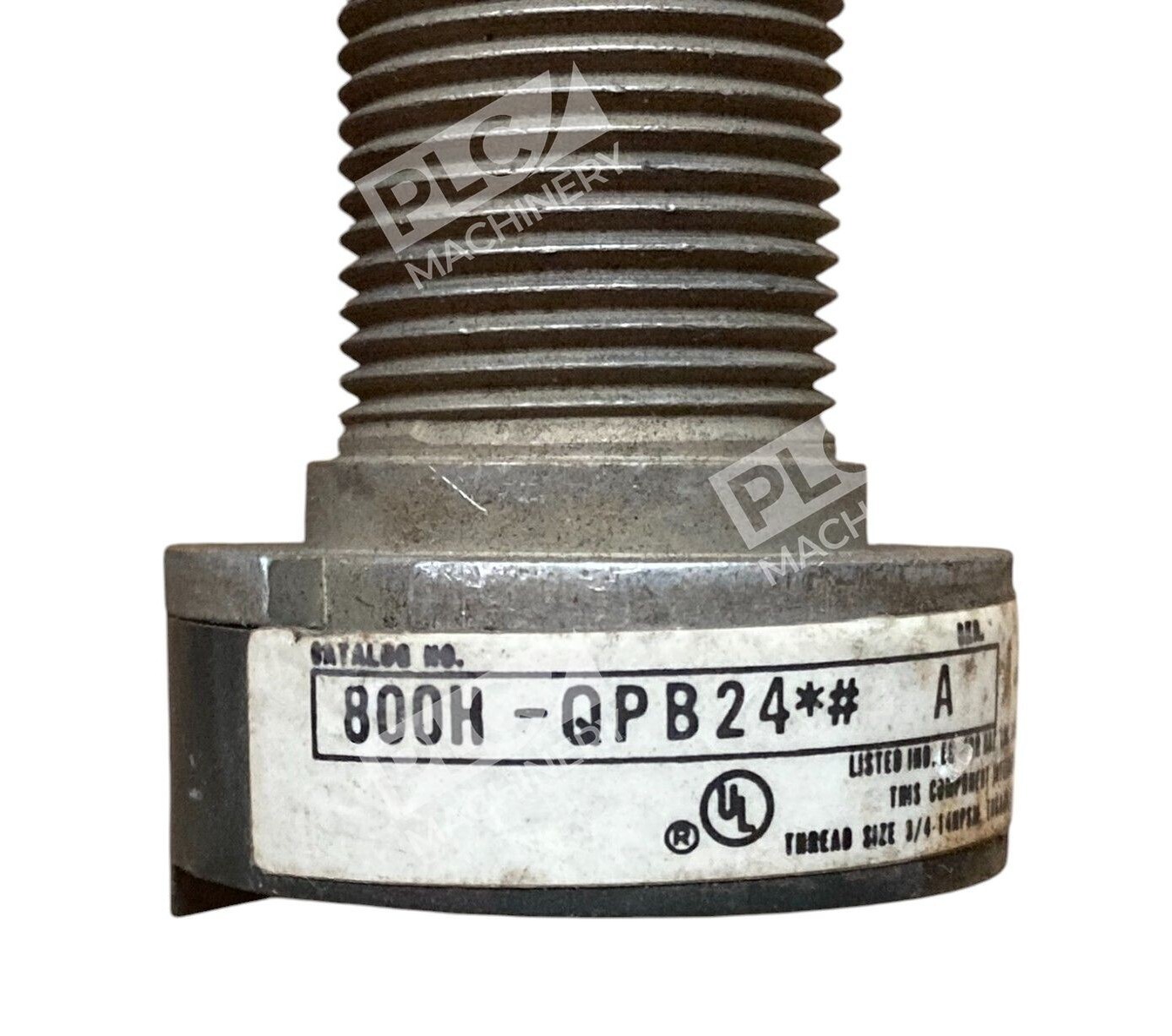

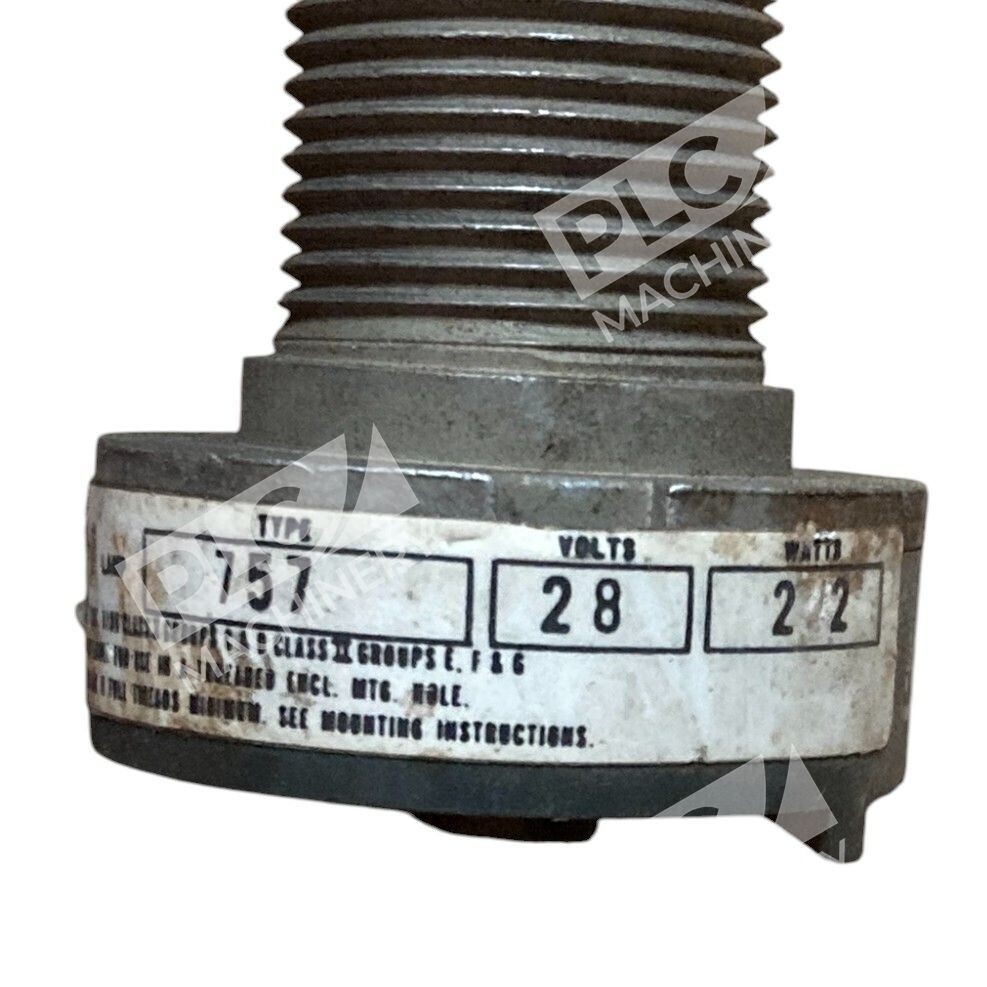

The Allen-Bradley 800H-QPB24 is a pushbutton-mounted incandescent indicator lamp rated for 24V AC/DC operation. Part of the industry-standard 800H series, this lamp delivers dependable pilot light functionality in Type 7 and Type 9 enclosure applications. The product combines durable construction with proven incandescent illumination technology, making it suitable for electrical equipment, control cabinets, and industrial machinery requiring visual status indication.
Key Features
- 24V AC/DC full-voltage operation with wide compatibility
- Incandescent lamp technology for warm, reliable illumination
- Type 7 and Type 9 enclosure ratings for hazardous and general-purpose locations
- Standard plastic barrel construction with multi-color insert capability
- Panel-mount design for easy integration into control panels
- Recognized Allen-Bradley quality and industry reliability
Technical Specifications
This indicator lamp meets standard UL, CSA, and CUL certifications for North American applications. The unit features a compact design suitable for 30mm pushbutton cutouts and standard panel mounting configurations. Operating temperature range accommodates both industrial and commercial environments with appropriate storage specifications.
Typical Applications
- Machine tool control panels and operator interfaces
- Industrial electrical enclosures and motor control centers
- Hazardous location installations (Type 7/9 rated)
- Status indication and process monitoring in manufacturing facilities
- General industrial control system visual feedback
Compatibility & Replacements
The 800H-QPB24 is part of the extensive Allen-Bradley 800H pushbutton operator family, offering drop-in compatibility with standard 30mm control circuit applications. This lamp component integrates with the 800H pushbutton block system, allowing for flexible configuration in control panel designs. Technicians and system integrators commonly specify this unit as a replacement component in existing 800H installations due to its proven reliability and standardized mounting interface.
