Allen Bradley Terminal Lug Kit 199-LF1 /A

The Allen-Bradley 199-LF1 Terminal Lug Kit is designed to enhance the connectivity and performance of various electrical systems.

Key Features

• Compatibility: This kit is compatible with Allen-Bradley devices, including the 194R-NJ200P3, 194R-NN200P3, and 194R-NA400P3 disconnect switches. ([rexelusa.com](https://www.rexelusa.com/p/17619/allen-bradley/terminal-lugs-for-194r-nh100p3-6awg-250kcmil/662072235584/199-lf1?utm_source=openai))
• Conductor Size Range: Supports wire sizes from 6 AWG to 250 KCMIL (16 mm² to 120 mm²), accommodating a broad spectrum of wiring requirements. ([sparecrux.com](https://www.sparecrux.com/products/199-lf1-allen-bradley-194r-legacy-fused-disconnect-switch-accessories-oversize-terminal-lug-pkg-qty-3?utm_source=openai))
• Torque Specifications: For 6 mm bolts, the recommended torque is 16.9 N·m (150 lb-in), and for 8 mm bolts, it’s 31 N·m (275 lb-in), ensuring secure and reliable connections. ([sparecrux.com](https://www.sparecrux.com/products/199-lf1-allen-bradley-194r-legacy-fused-disconnect-switch-accessories-oversize-terminal-lug-pkg-qty-3?utm_source=openai))

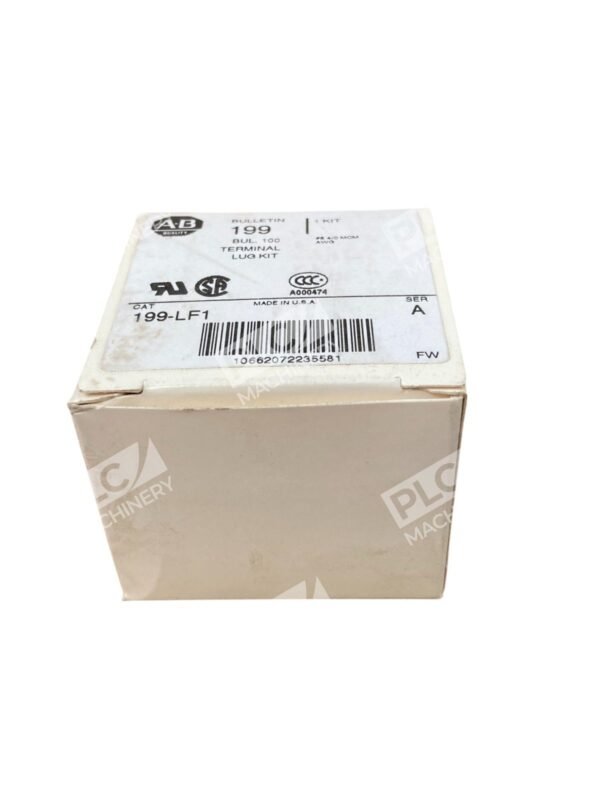

• Package Contents: Each kit includes three terminal lugs, providing the necessary components for standard installations. ([configurator.rockwellautomation.com](https://configurator.rockwellautomation.com/api/Product/199-LF1/cutsheet?utm_source=openai))

Applications

The 199-LF1 Terminal Lug Kit is ideal for use in industrial settings where robust and reliable electrical connections are essential. Its compatibility with specific Allen-Bradley disconnect switches makes it a valuable component in maintaining and upgrading electrical systems.

Installation Considerations

When installing the 199-LF1 Terminal Lug Kit, it’s crucial to adhere to the specified torque settings to ensure optimal performance and safety. Proper installation helps in maintaining the integrity of electrical connections and prolongs the lifespan of the equipment.

In summary, the Allen-Bradley 199-LF1 Terminal Lug Kit offers a reliable solution for enhancing electrical connections in compatible systems, ensuring safety and efficiency in industrial applications.
