Overview

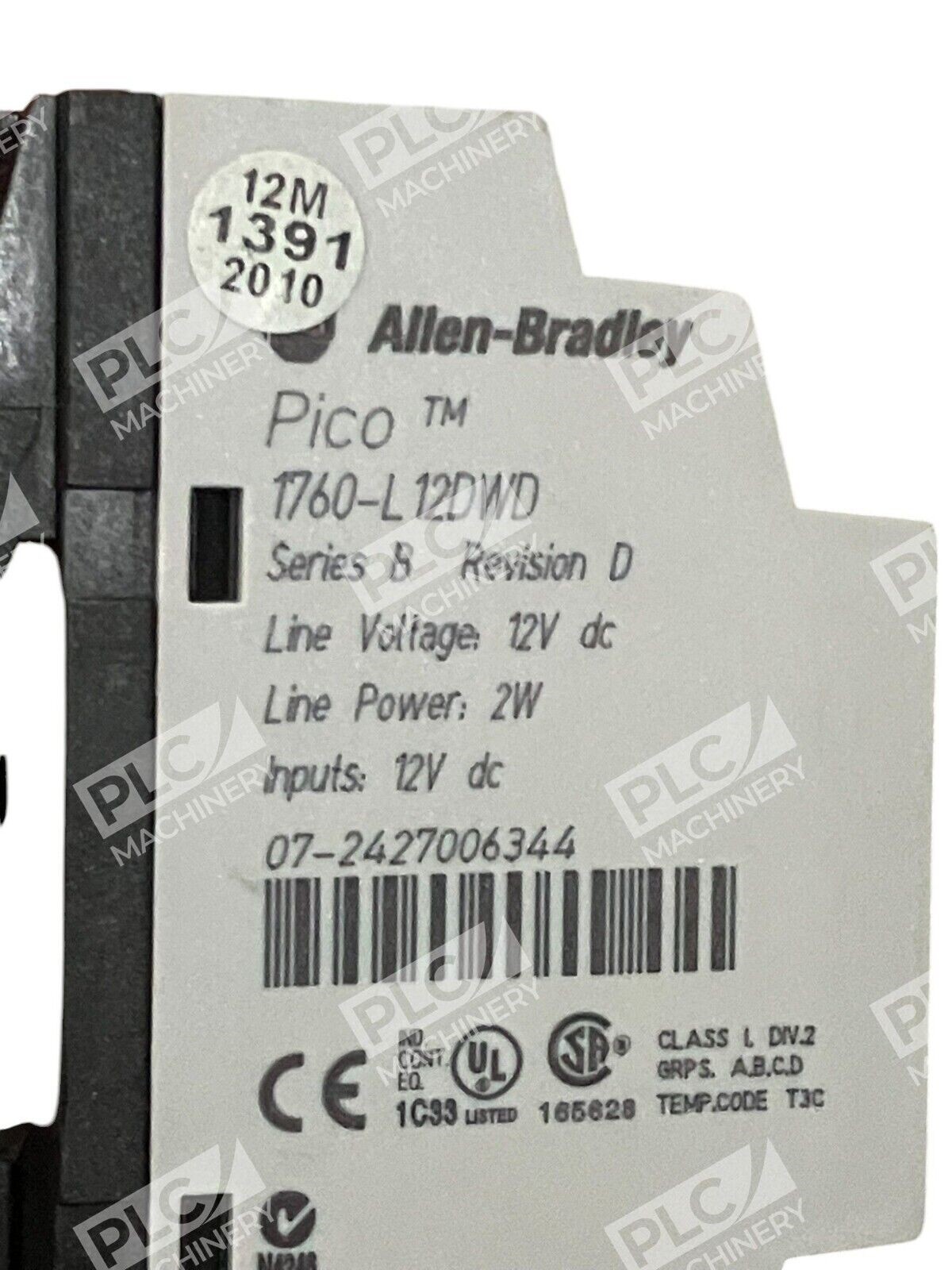

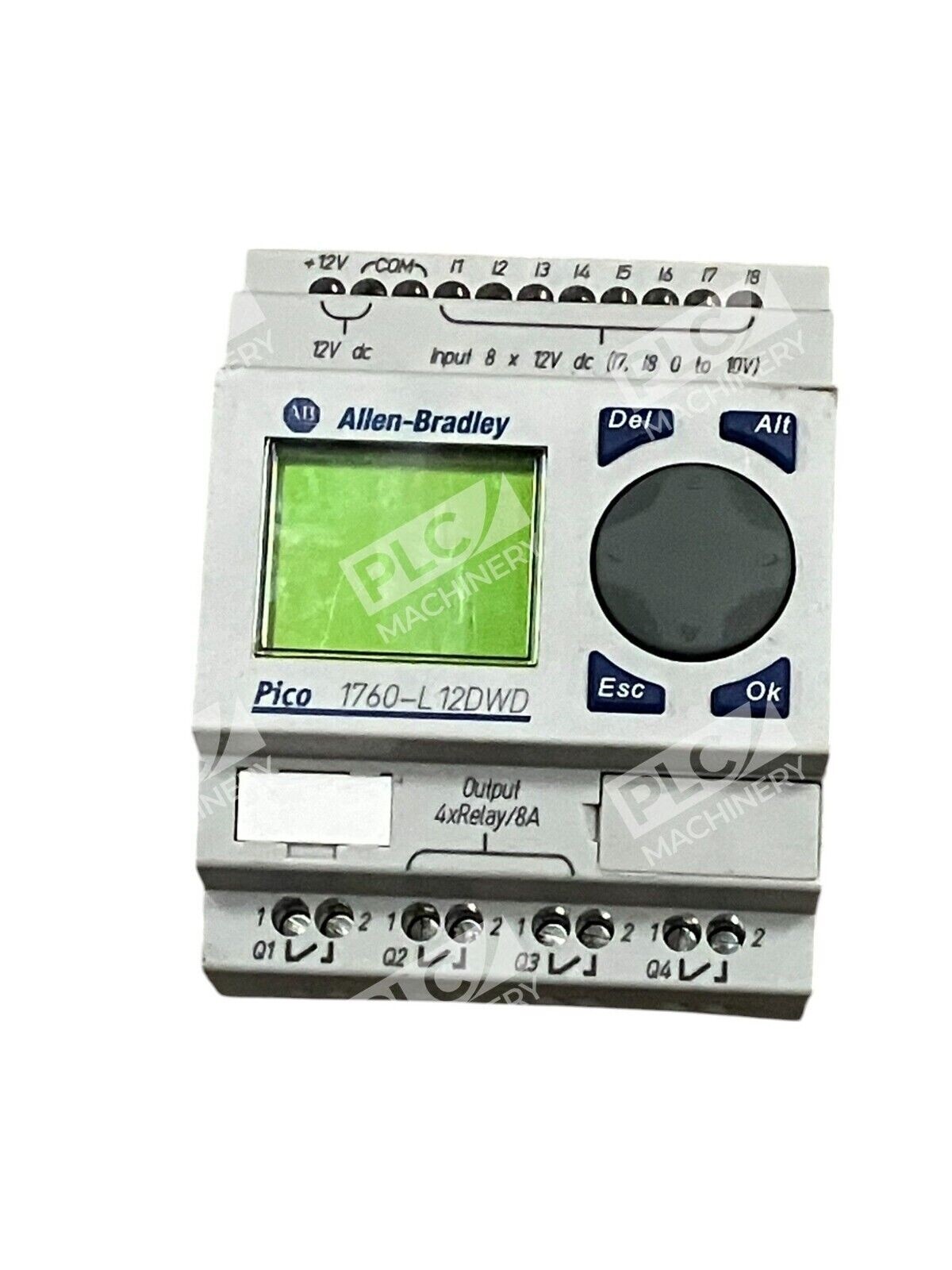

The Allen-Bradley 1760-L12DWD /B is a 12-point Pico logic controller from Rockwell Automation’s compact automation family. The 1760-L12DWD is a Pico Controller primarily used in applications with small and micro automation requirements, capable of implementing time base logic, counting, and real-time clocked based applications. It operates at an input voltage range of 10.2 to 15.6V DC, making it suitable for 12V powered distributed control systems.
Key Features
- 8 discrete inputs and 4 relay outputs with 2 analog inputs capable of 0 to 10VDC signals
- Embedded real-time clock (RTC) used to track exact time during industrial operations
- Integrated high-speed inputs from channels I1, I2, I3, and I4, enabling use with counters, totalizers and other fast applications

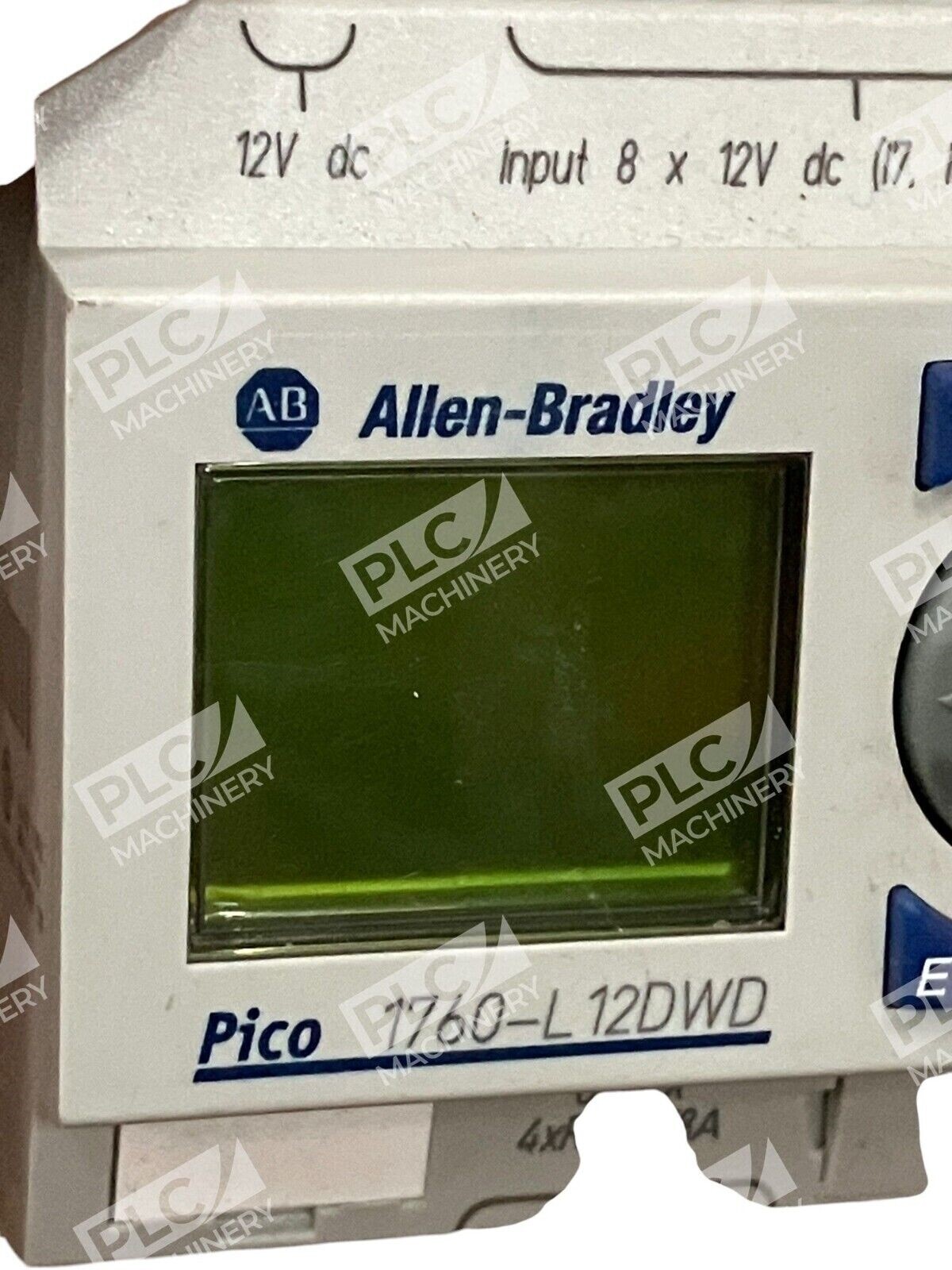

- LCD status display for real-time monitoring
- Operating temperature range from -25 to 55 degrees Celsius with IP20 protection class
- Ladder programming language support with readily accessible timer and counter elements
Technical Specifications
- Power Supply: 12V DC (10.2 to 15.6V DC range)
- Inputs: 8 discrete inputs and 2 analog inputs (0 to 10VDC)
- Outputs: 4 relay outputs
- High-Speed Inputs: Channels I1, I2, I3, I4
- Relay Rating: 8 Amps, 250V AC
- Current Draw: 140 mA at 12V DC nominal
- Power Dissipation: 2 Watts at 12V DC
- Memory: 512 instructions
- Dimensions: 71.5 x 90 x 56.5 millimeters (2.82 x 3.55 x 2.23 inches)
- Weight: Approximately 200 grams (7 ounces)
- Mounting: DIN rail and panel mount
- Operating Temperature: -25 to 55°C (-13 to 131°F)
- Enclosure Rating: IP20 open enclosure
- Certifications: C-Tick, C-UL-us, CE, CL1DIV2, CSA
Typical Applications
Basic control logics such as implementation of Start/Stop, Jog, Forward/Reverse motor controls, Opening and Closing of electrical devices such as valves, lamps and other electrical equipment may be implemented. The bulletin 1760 controller has acceptable functions for relays and time switching for most general applications; it can be applied to fans, lighting, window and door controllers, conveyors, and pumps.
Compatibility & Replacements
Compared to the 1760-L12AWA, this Pico controller has the same amount of embedded I/O however does not include high-speed inputs, meaning the 1760-L12DWD is capable of being used with high-speed inputs such as counters, totalizers and other applications. To download program to the Pico controller it is necessary to use the Allen-Bradley manufacture 1760-CBL-PM02 programming cables, with the programming PC connecting via the COM port while the Pico controller connects through the Pico interface. Verify compatibility with your existing 1760 series modules before installation. This Series B Revision D unit offers industry-standard reliability for OEM replacement and retrofit applications.
