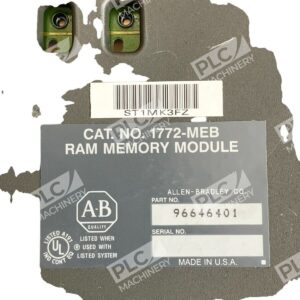

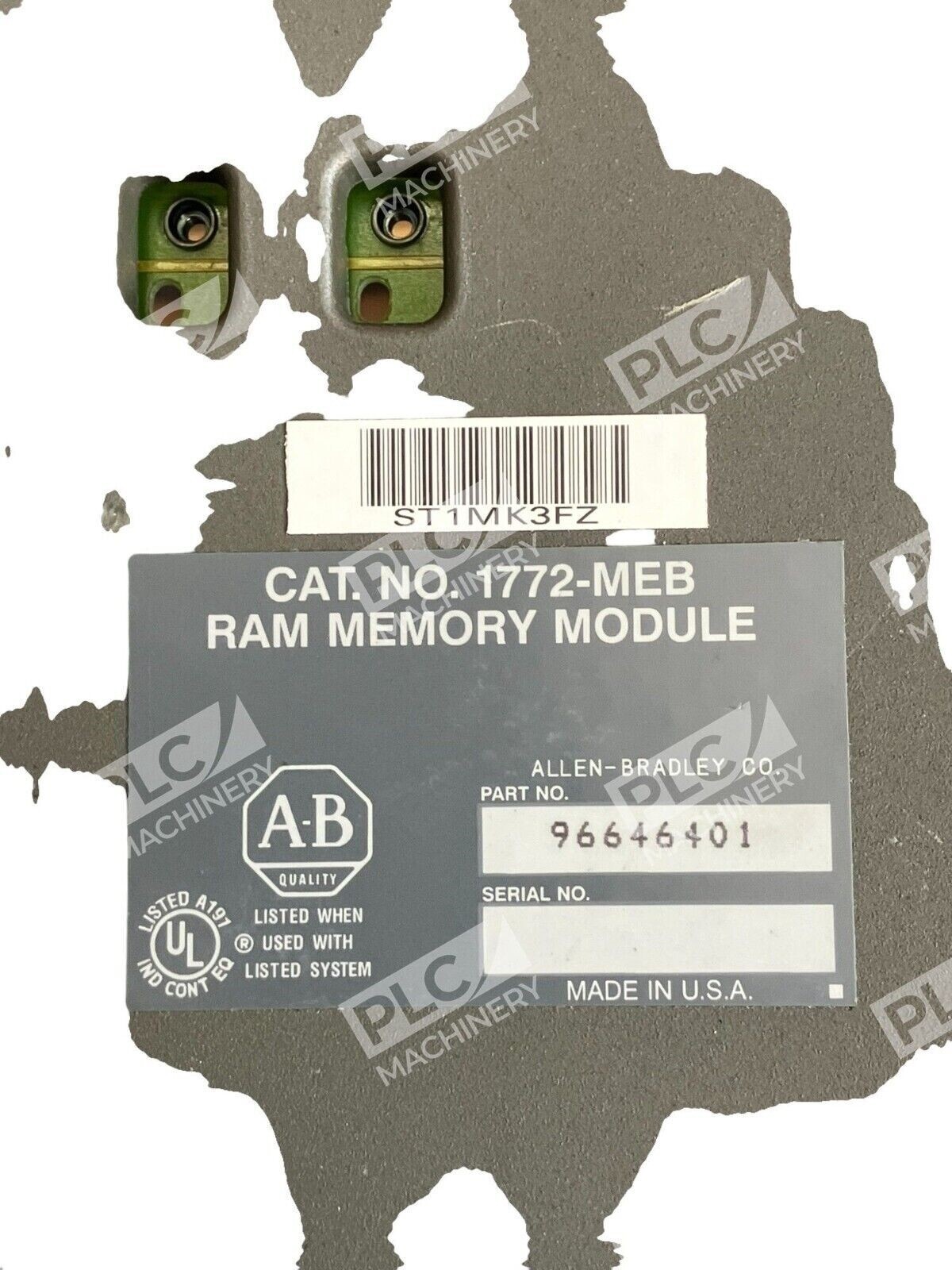

Allen Bradley RAM Memory Module 96646401 1772-MEB

Allen-Bradley 1772-MEB RAM Memory Module

The Allen-Bradley 1772-MEB is a CMOS RAM Memory Module designed to enhance the memory capacity of PLC-2/20 and PLC-2/30 programmable controllers. This module provides a flexible solution for expanding system memory, accommodating the needs of complex industrial applications.

Key Features

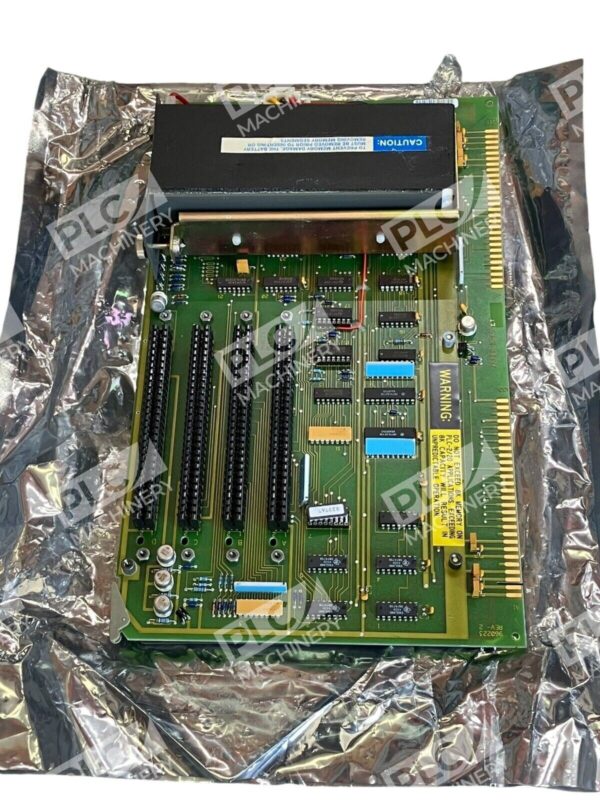

• Expandable Memory: Equipped with four sockets labeled A to D, the 1772-MEB allows for the addition of compatible memory segments, such as 1772-MR, 1772-MT, 1772-MS, and 1772-MS8, enabling memory expansion up to 8192 words.
• Seamless Integration: Designed specifically for PLC-2/20 and PLC-2/30 controllers, ensuring optimal performance and compatibility within existing systems.
• Durable Construction: Built to withstand industrial environments, providing reliable operation under demanding conditions.
• Easy Installation: Fits into the rightmost slot of the PLC-2 processor chassis, with keyed connectors to ensure proper alignment and prevent damage during installation.

Technical Specifications

• Compatibility: PLC-2/20 and PLC-2/30 processors
• Memory Expansion: Supports additional memory segments (1772-MR, 1772-MT, 1772-MS, 1772-MS8)
• Installation Slots: Four sockets labeled A, B, C, and D
• ESD Sensitivity: Yes
• Keyed Connecting Pins: Yes

Applications

The 1772-MEB module is ideal for various industrial applications requiring enhanced memory capacity, including:

• Process control
• Material handling
• Measurement and gauging
• Pollution control and monitoring

By expanding the memory of PLC-2 controllers, the 1772-MEB module enables the execution of complex programs involving timers, counters, arithmetic functions, and data transfer operations, thereby improving overall system performance and flexibility.
