Allen Bradley PCB SP-120663 120771 w/ 120774, 120786

Allen-Bradley PCB SP-120663 120771 with 120774, 120786

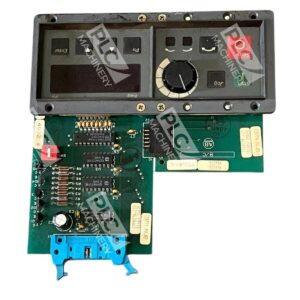

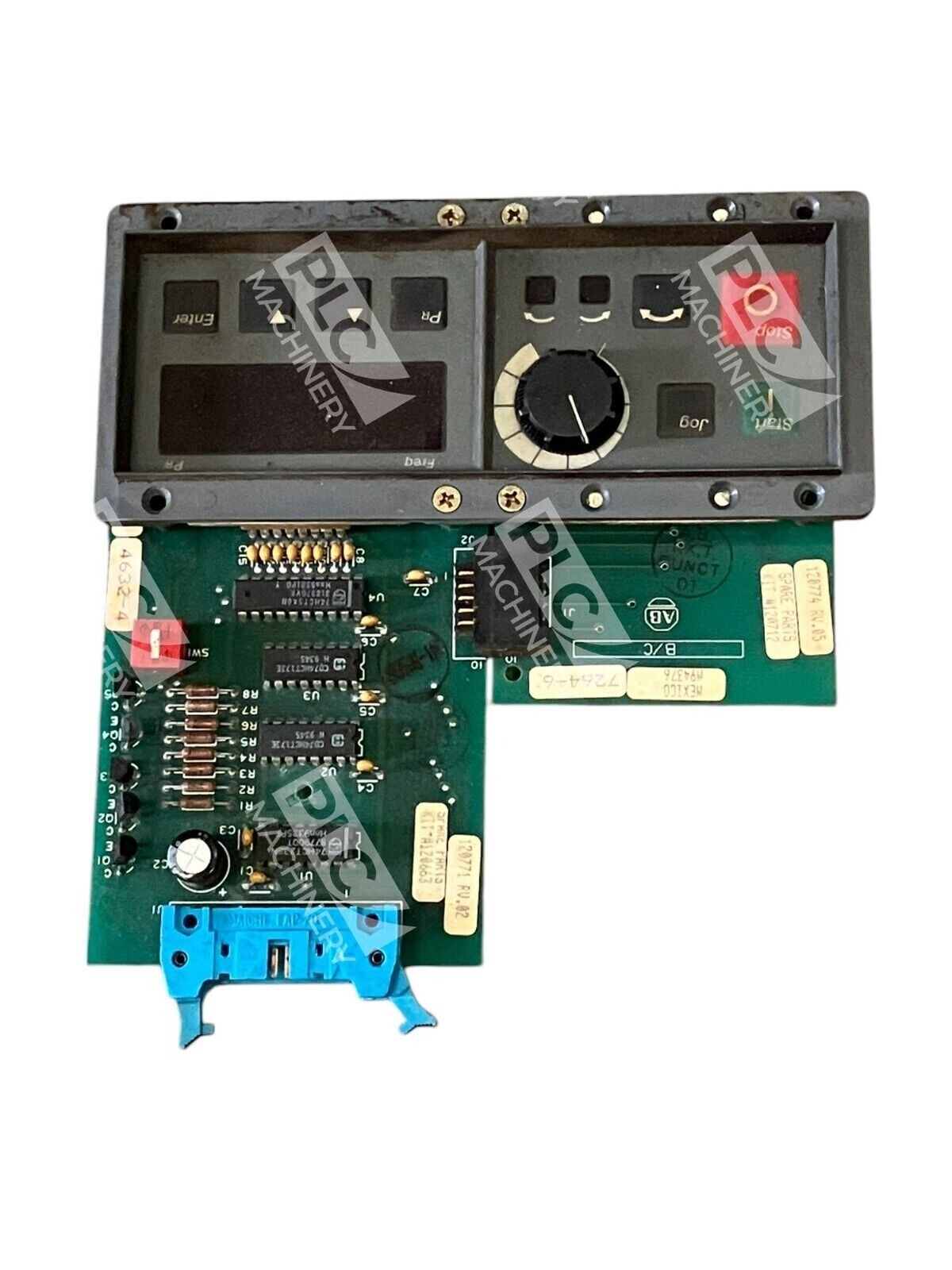

The Allen-Bradley PCB SP-120663, in conjunction with components 120771, 120774, and 120786, forms a comprehensive drive interface solution designed for precise control of three-phase induction motors ranging from 3 to 200 horsepower. This assembly is integral to the efficient operation of industrial motor control systems.

Key Components and Their Functions

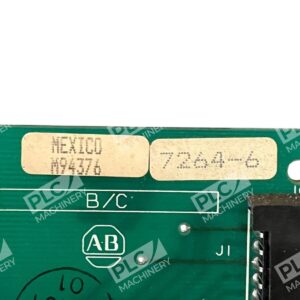

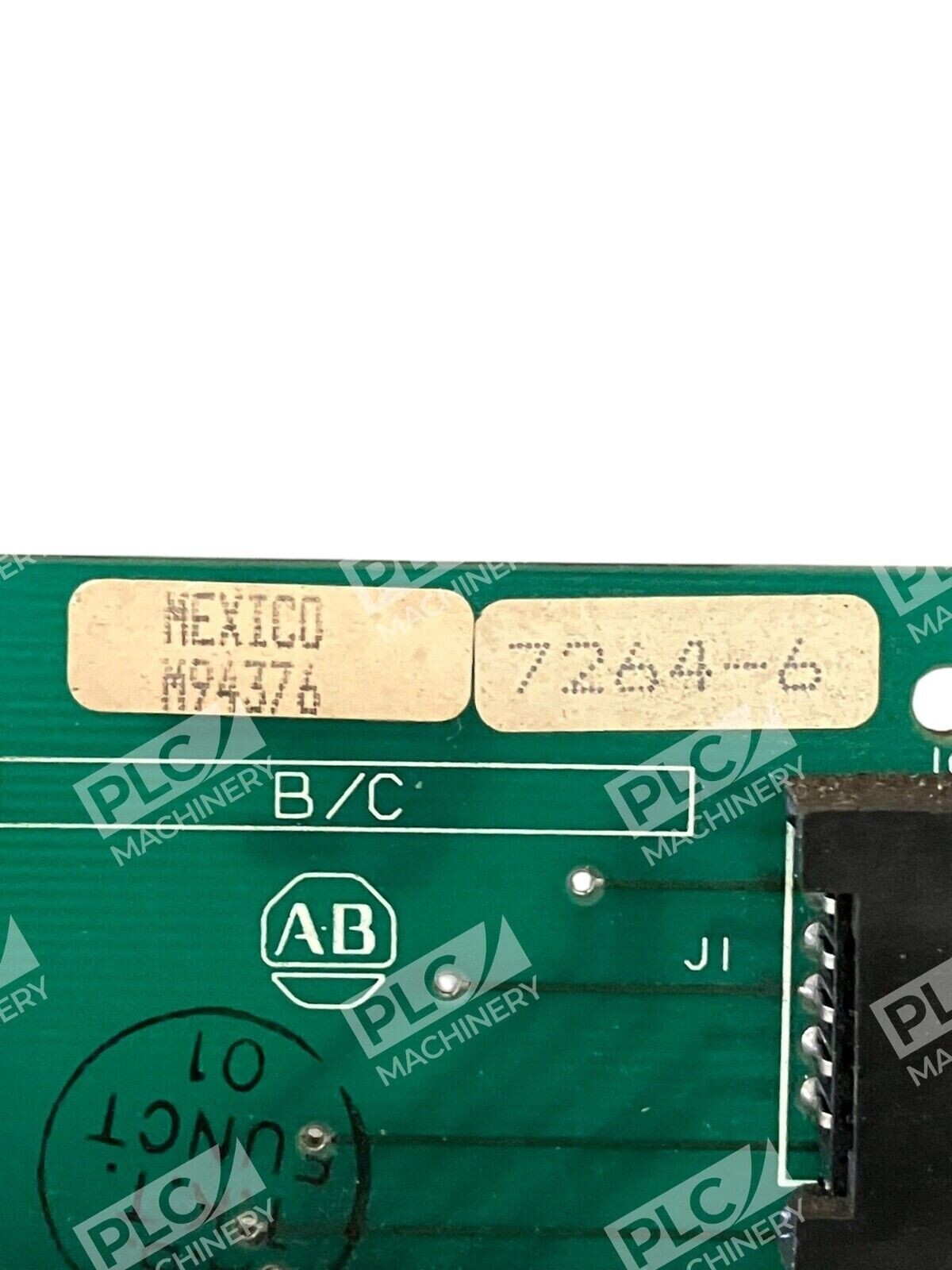

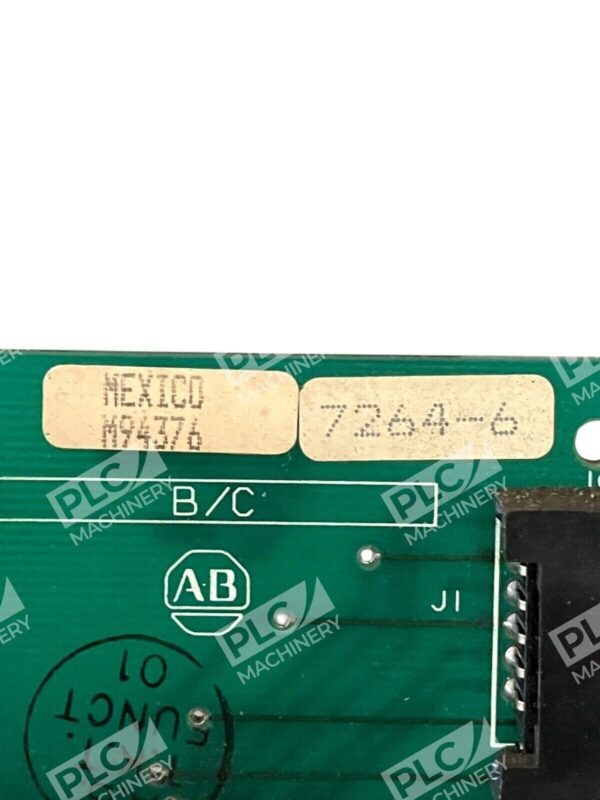

• SP-120663: This is the primary drive interface board, engineered to provide adjustable Pulse Width Modulation (PWM) and frequency modulation, enabling effective management of motor speed and performance.

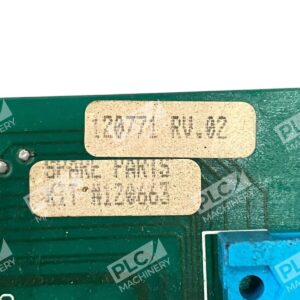

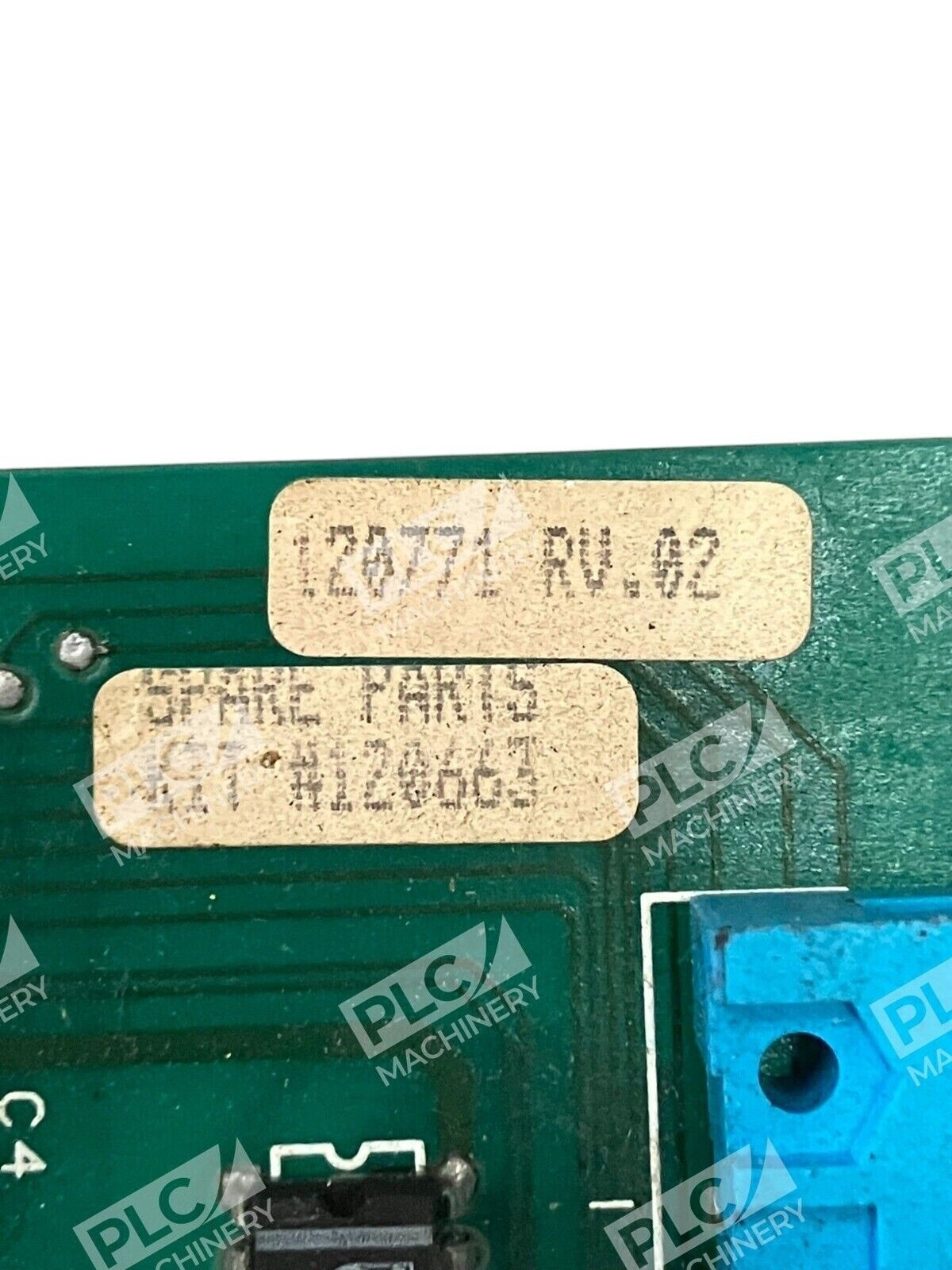

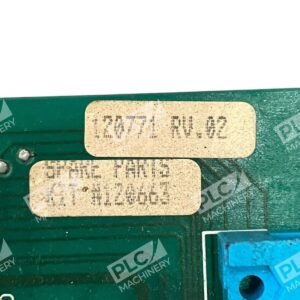

• 120771: Known as the Programming and Display Assembly, this component facilitates user interaction through its display interface, allowing for monitoring and configuration of drive parameters.
• 120774: Referred to as the FA2 Operator Control Assembly, this unit serves as the operator control interface, providing essential controls for drive operation within a NEMA-1 rated enclosure.

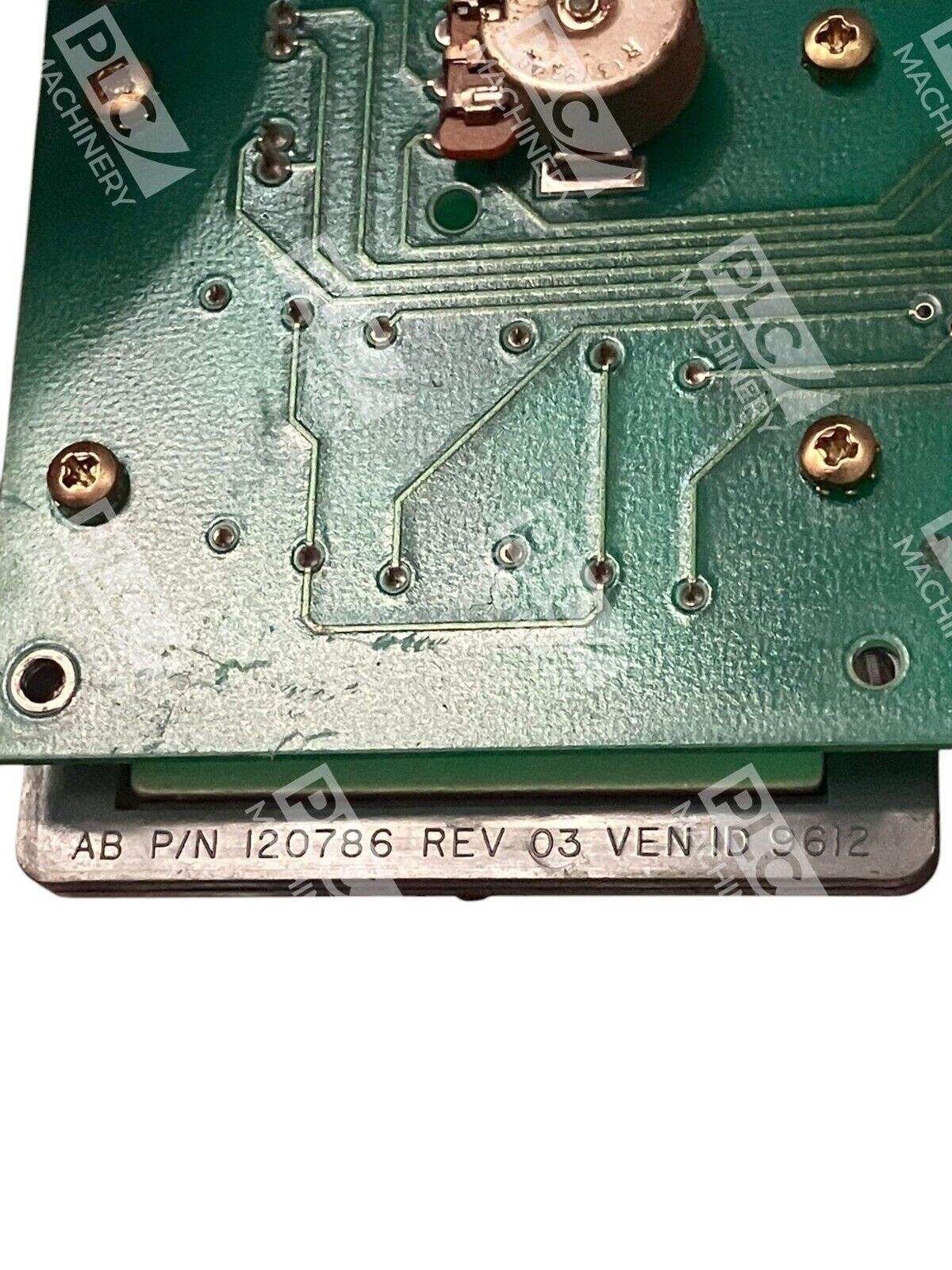

• 120786: This is the Plastic Bezel Component 36 Universal Injection Molded, designed to house and protect the display and control assemblies, ensuring durability and ease of use.

Installation and Handling

When installing the SP-120663 and its associated components, it is crucial to observe electrostatic discharge (ESD) precautions to prevent potential damage. Ensure that all static control procedures are followed during handling, testing, and servicing. Additionally, verify that all power sources are disconnected before installation to maintain safety and equipment integrity.

Applications

This assembly is suitable for a wide range of industrial applications requiring precise motor control, including manufacturing processes, conveyor systems, and other automated machinery. Its modular design allows for flexibility and scalability in various operational environments.

By integrating these components, users can achieve a robust and reliable motor control system tailored to their specific industrial needs.
