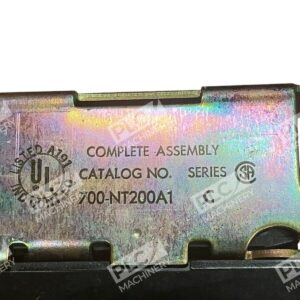

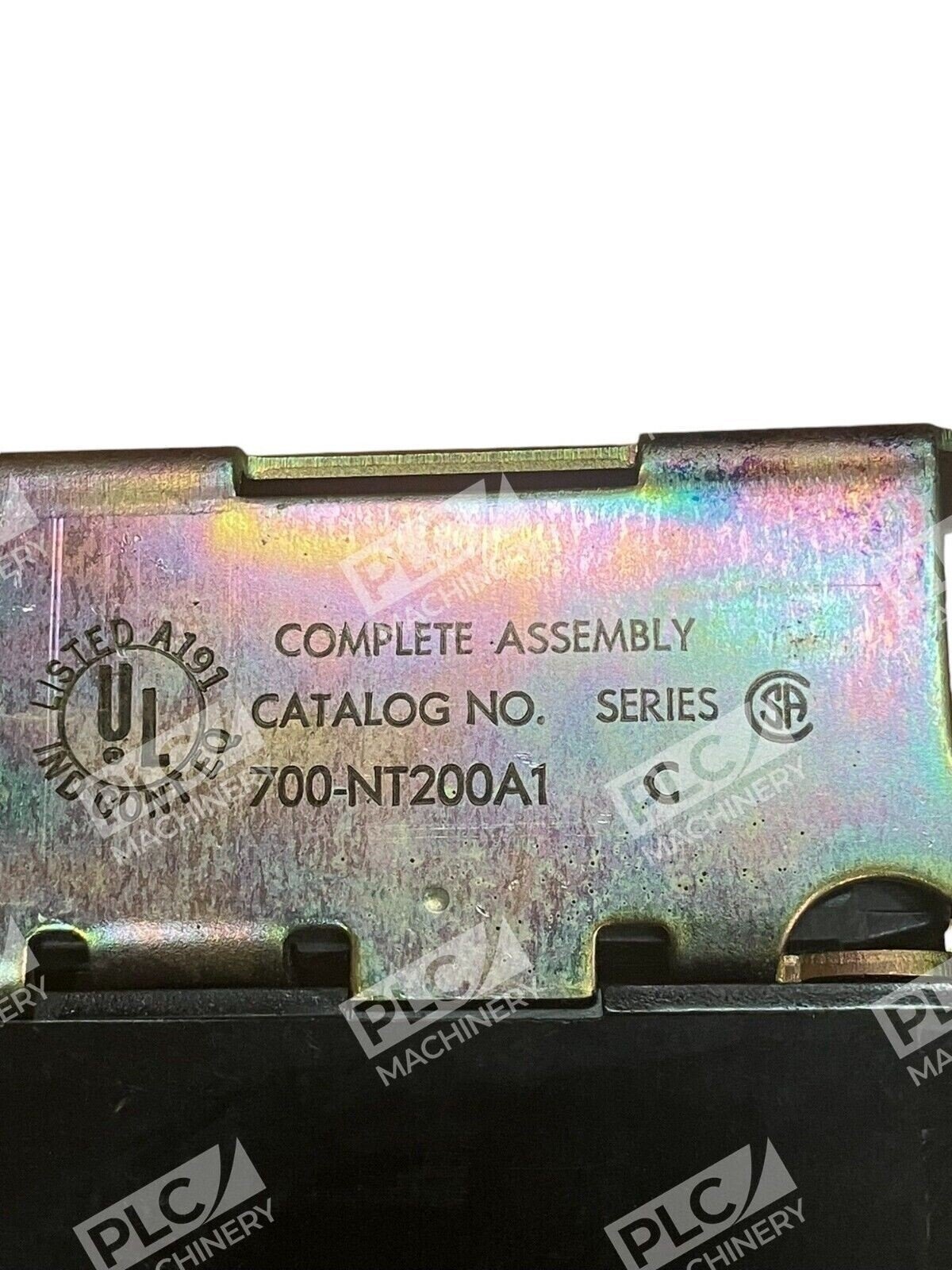

Allen Bradley Nema A300 Type N AC Relay 700-NT200A1 /C

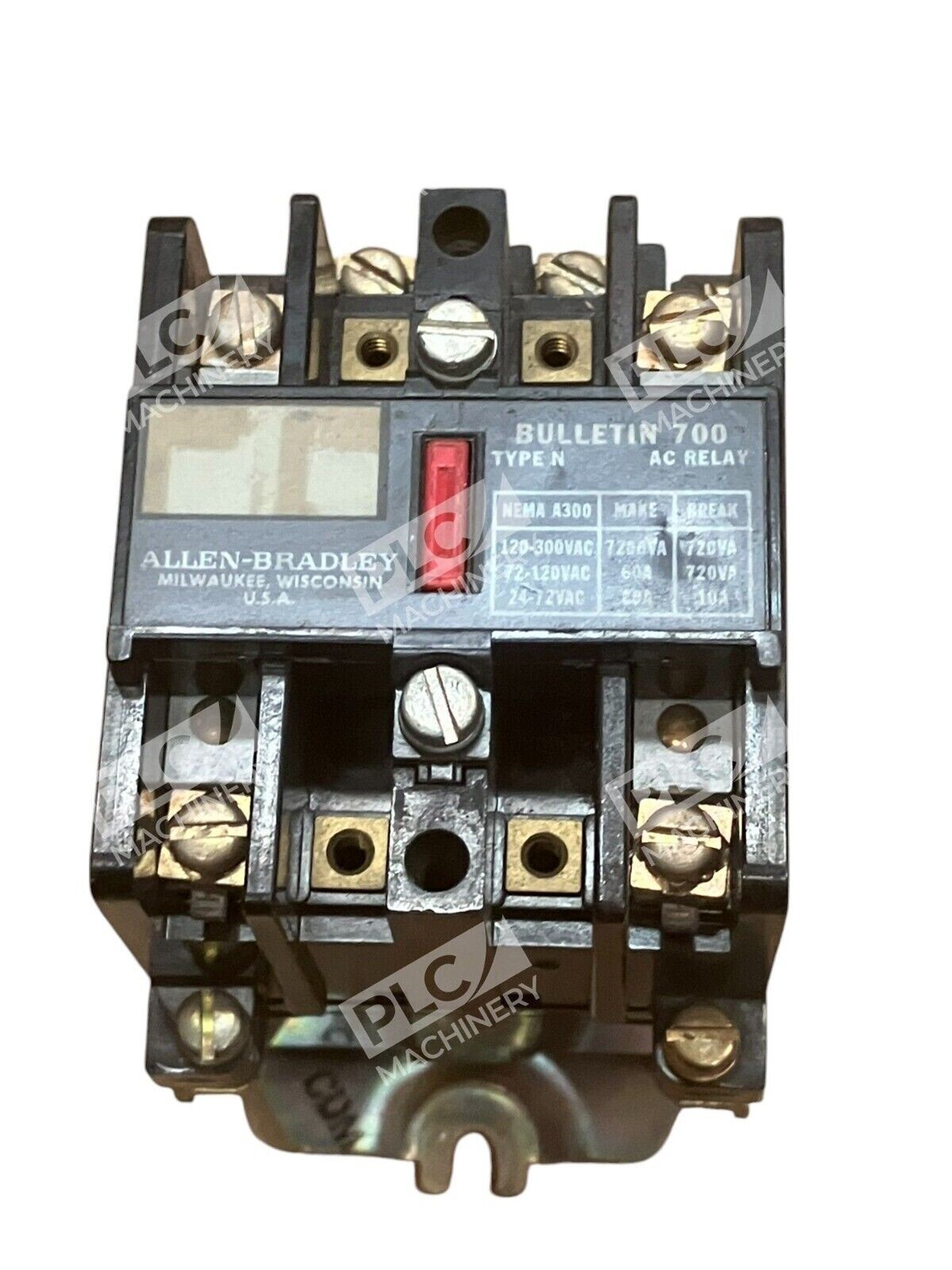

The Allen-Bradley 700-NT200A1 is a NEMA A300 Type N AC industrial control relay designed for high-reliability switching applications. This electrically held relay features a pneumatic timing attachment, providing precise control over timing functions.

Key Features

• Contact Configuration: Equipped with 2 Normally Open (N.O.) contacts, allowing for versatile control in various applications.
• Coil Voltage: Operates on a control voltage of 110V at 50Hz or 120V at 60Hz, ensuring compatibility with standard AC power supplies.
• Pneumatic Timing Unit: Incorporates a pneumatic timing attachment, enabling adjustable time delays for precise operational control.
• Manual Override: Features manual override capability with a highly visible red bar for easy status indication.
• Contact Cartridges: Contact cartridges are convertible from Normally Open (N.O.) to Normally Closed (N.C.) and vice versa, offering flexibility in configuration.

Specifications

• Contact Rating: Rated for 10A at 300V AC, suitable for various industrial applications.
• Coil Voltage Options: Available in 24V to 250V AC coils, accommodating different voltage requirements.
• Mounting: Designed for panel mounting, facilitating easy integration into control panels.
• Environmental Conditions: Operates effectively within a wide range of environmental conditions, ensuring reliability in diverse settings.

The 700-NT200A1 relay is part of Allen-Bradley’s 700-N series, known for its low-profile design and high-performance capabilities. Its combination of manual override, flexible contact configuration, and pneumatic timing makes it a valuable component in complex control systems.
