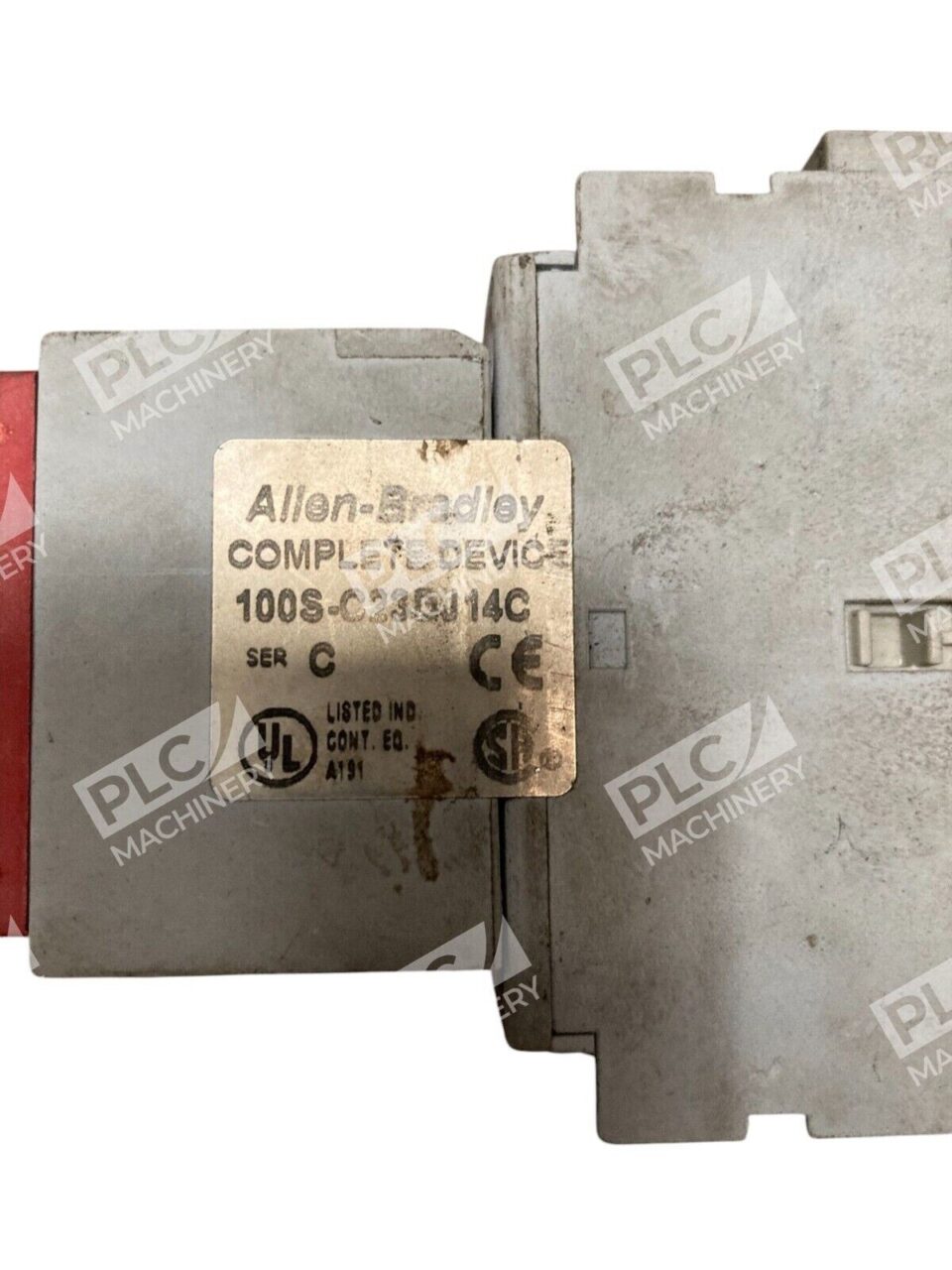

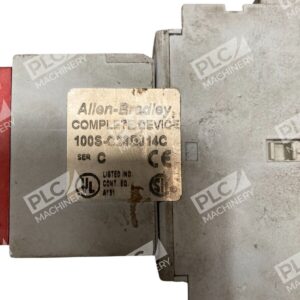

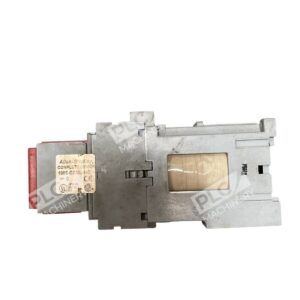

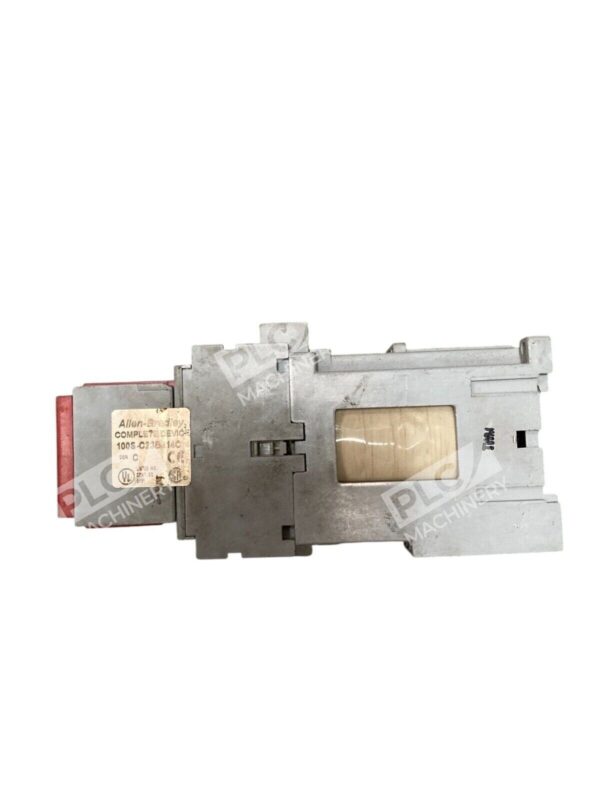

Allen-Bradley Guardmaster Safety Relay Contactor 100S-C23DJ14C
The Allen-Bradley Guardmaster Safety Relay Contactor 100S-C23DJ14C is a robust and reliable component designed to enhance the safety and efficiency of industrial automation systems. This safety contactor is engineered to meet the stringent requirements of modern safety applications, providing mechanically linked, positively guided, or mirror contact performance.
Key Features
- Current Rating: 23 Amperes
- Coil Voltage: 24V DC with Integrated Diode

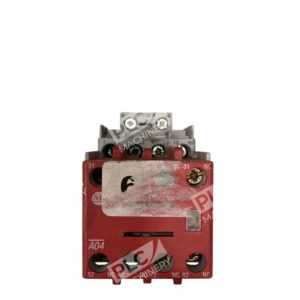

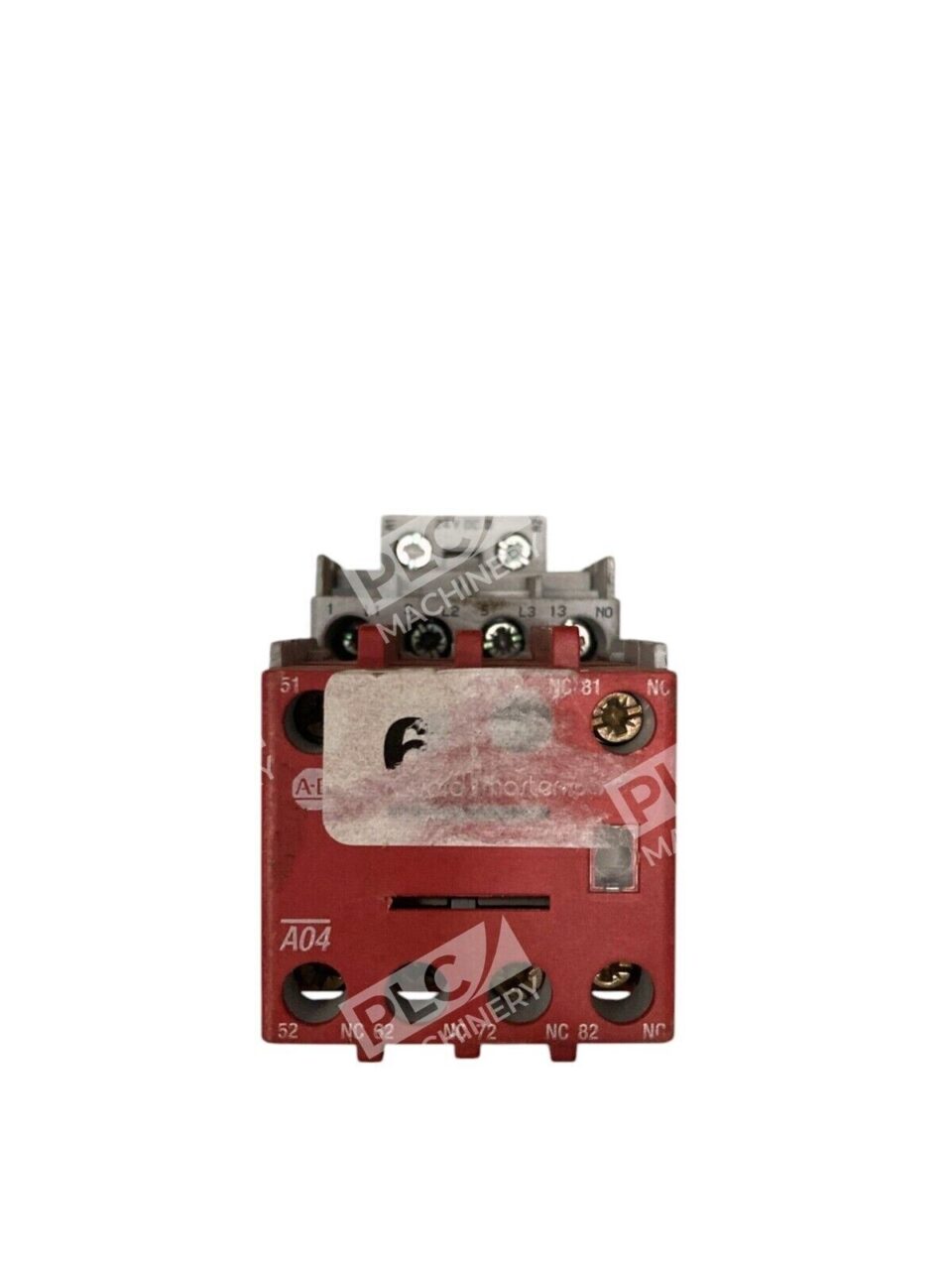

- Contact Configuration: 3 Normally Open (NO) power poles, 1 Normally Open (NO) auxiliary contact, and 4 Normally Closed (NC) auxiliary contacts
- Certifications: SUVA LVD Type Approval, IECEE Scheme
Dimensions and Weight
- Height: 4.9 cm
- Width: 9.101 cm
- Length: 17.3 cm
- Weight: 0.859 kg
Applications
The 100S-C23DJ14C safety contactor is ideal for use in safety-related control systems where reliable disconnection of power is critical. Its design ensures compliance with safety standards, making it suitable for applications in manufacturing, processing, and other industrial environments requiring high safety integrity.
Installation and Maintenance
For detailed installation instructions and technical data, refer to the following documents:
- Installation Instructions: 100S-IN009
- Technical Data: 100-TD013
These resources provide comprehensive guidance on proper installation, wiring, and maintenance to ensure optimal performance and safety compliance.
By integrating the Allen-Bradley Guardmaster Safety Relay Contactor 100S-C23DJ14C into your system, you can achieve enhanced safety and reliability in your industrial automation applications.
