Allen Bradley DC Input 12V 0.110A Programming Terminal 1201-HA1 /B

Allen-Bradley 1201-HA1 Programming Terminal

The Allen-Bradley 1201-HA1 is a versatile programming terminal designed to enhance the functionality of operator interface devices, particularly for SCANport-compatible drives such as the 1305, 1335, 1394, and 1557 series. This module serves as both a programmer and an analog speed operator, facilitating efficient control and configuration of connected drives.

Key Features

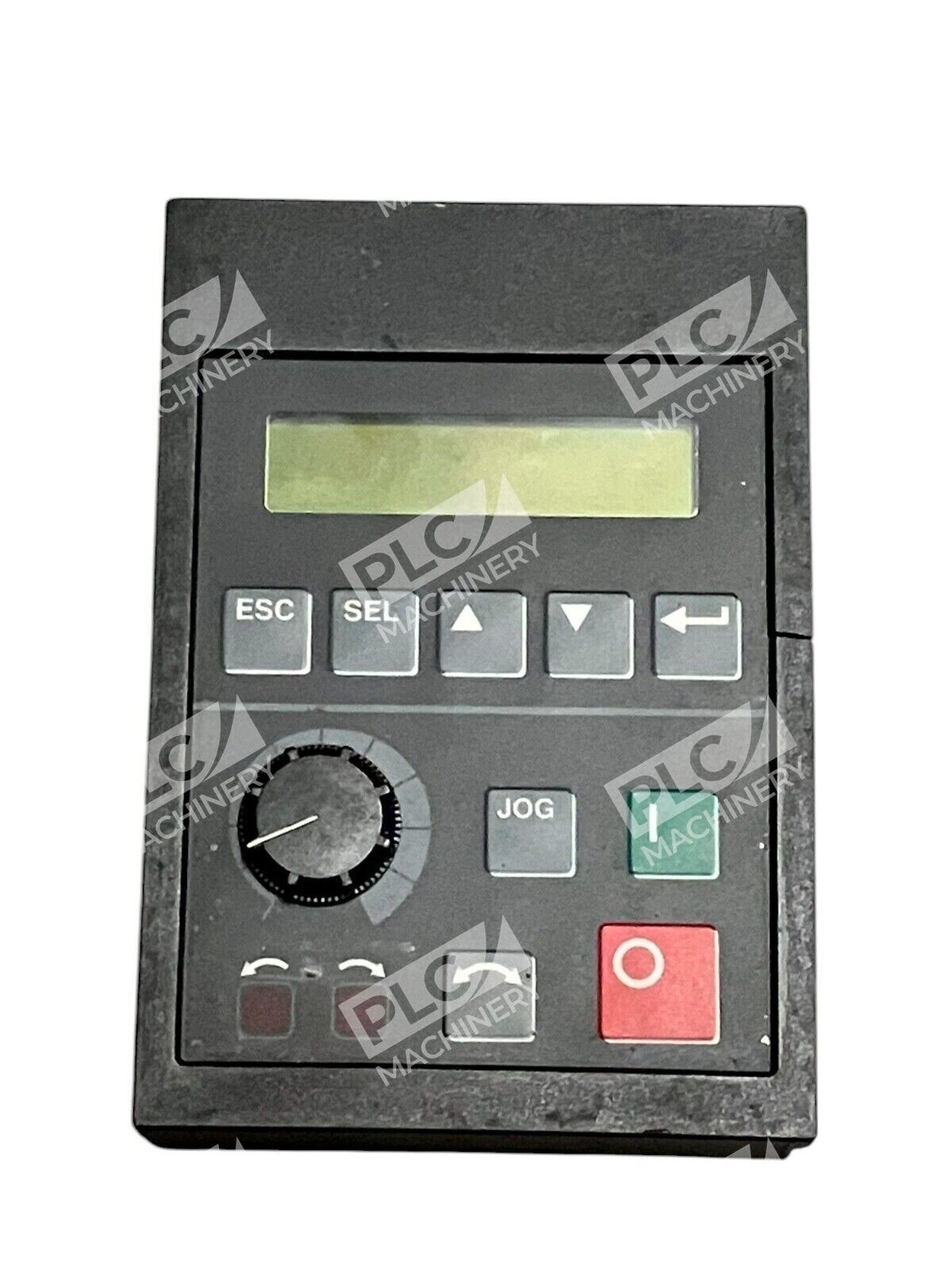

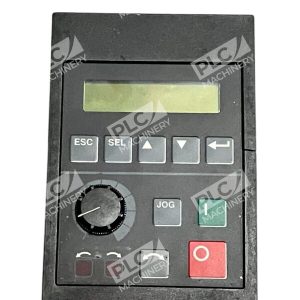

• Display and Controls: Equipped with a liquid crystal display (LCD) and a user-friendly keypad, the 1201-HA1 allows for straightforward navigation through programming parameters and real-time monitoring of system status.
• Analog Potentiometer: An integrated analog potentiometer enables precise manual speed adjustments, offering operators direct control over drive performance.
• Fault Management: The terminal provides immediate fault displays and maintains a fault queue, recording the last four faults to assist in quick diagnostics and troubleshooting.
• Programming Efficiency: Features such as parameter search and menu-saving functions streamline the programming process, reducing setup time and enhancing operational efficiency.

Technical Specifications

• Compatibility: Designed for use with Allen-Bradley 1305, 1335, 1394, and 1557 drives.
• Enclosure: Housed in a NEMA 1 rated enclosure, providing protection against dust and other non-corrosive materials.
• Operating Environment: Suitable for indoor use only, with an operating temperature range up to 40 degrees Celsius.

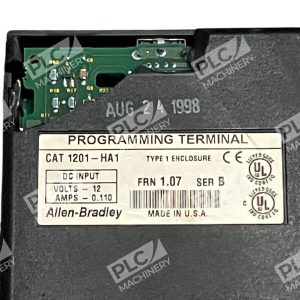

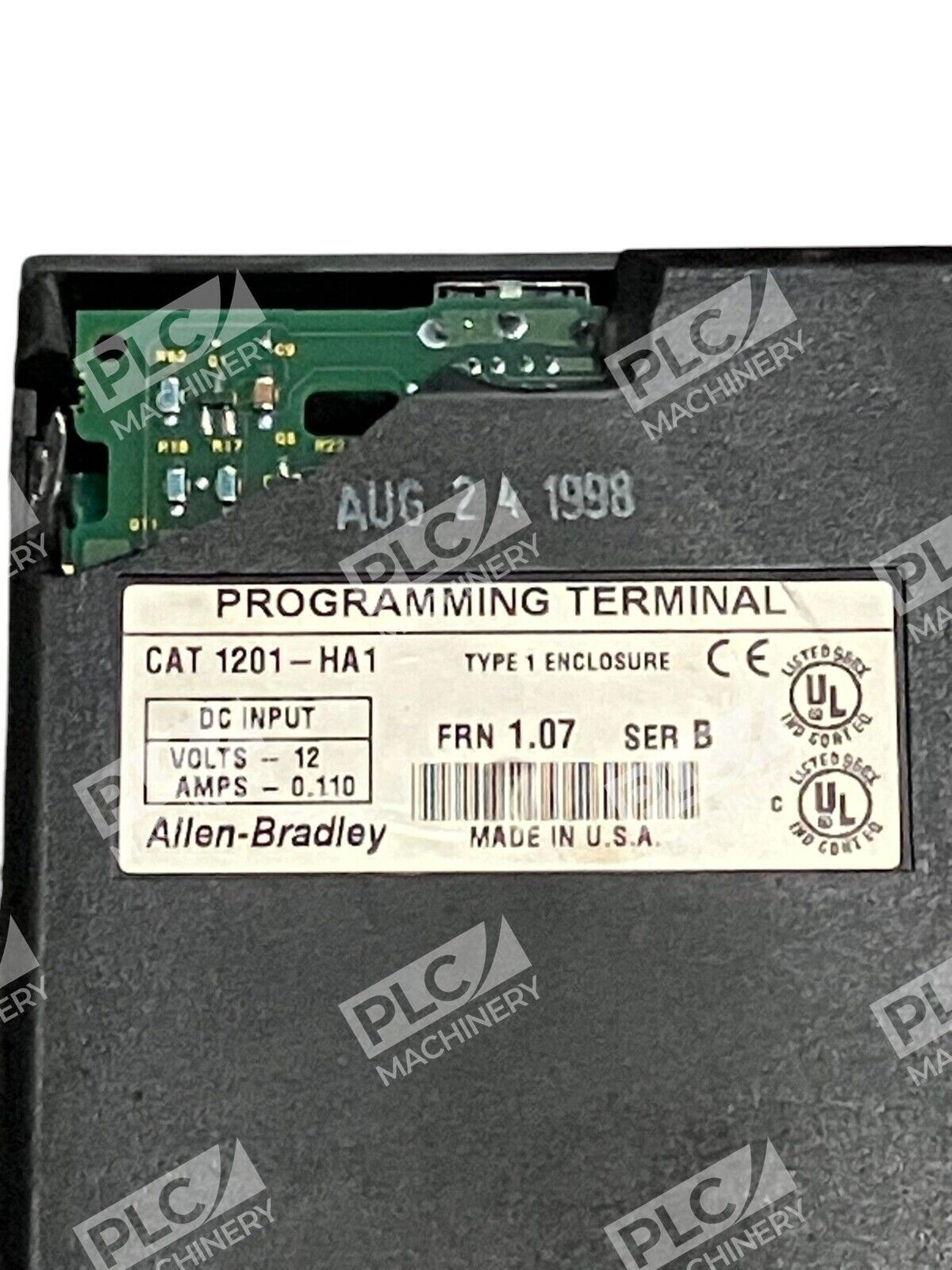

• Power Requirements: Operates on 12 Volts DC with a current draw of 0.110 Amps.
• Dimensions: Measures approximately 12.7 x 8.9 x 2.5 cm, making it compact and easy to integrate into existing systems.
• Weight: Weighs around 7.2 ounces, facilitating easy handling and installation.

The Allen-Bradley 1201-HA1 programming terminal is an essential accessory for operators seeking enhanced control and programming capabilities for their SCANport-compatible drives. Its combination of user-friendly features and robust design ensures reliable performance in industrial settings.
